Product Overview
Technical Summary
| Parameter | Value |
|---|---|

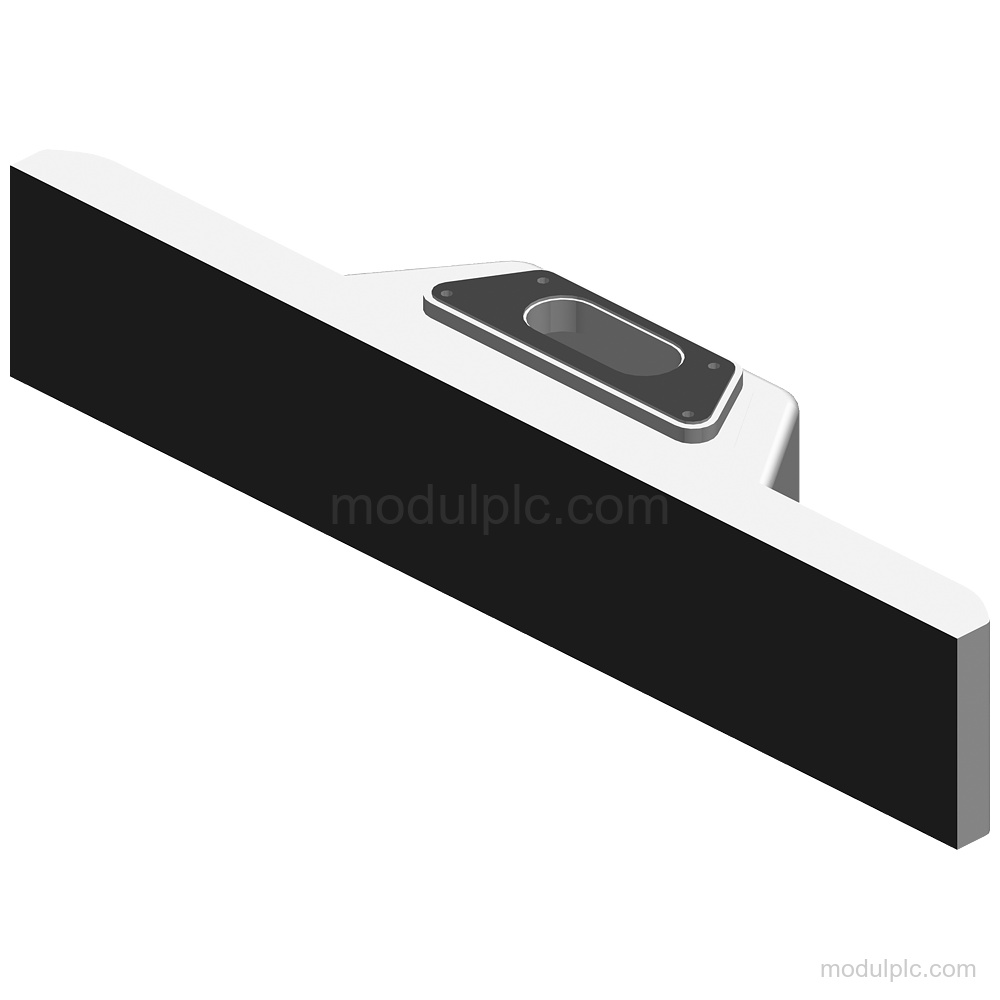

| Product type | Extension Unit 22" PROFINET |
| Operator-control positions | 12 |
| PROFINET interfaces | 2; incl. switch |
| Supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Current consumption | 150 mA; without load |
| Active power input | 3 W; additionally 0.1 W per control element with LED |

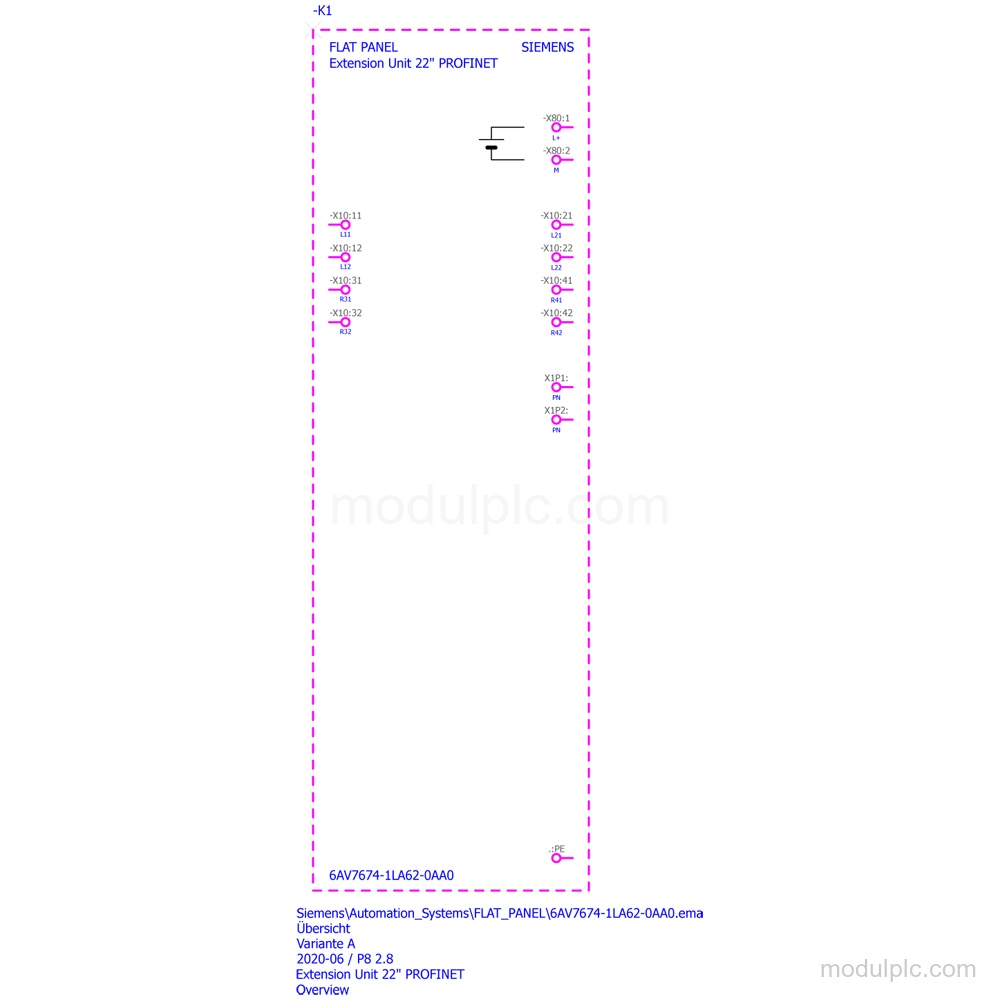

| Safety-contact connector | 8-pin connector |

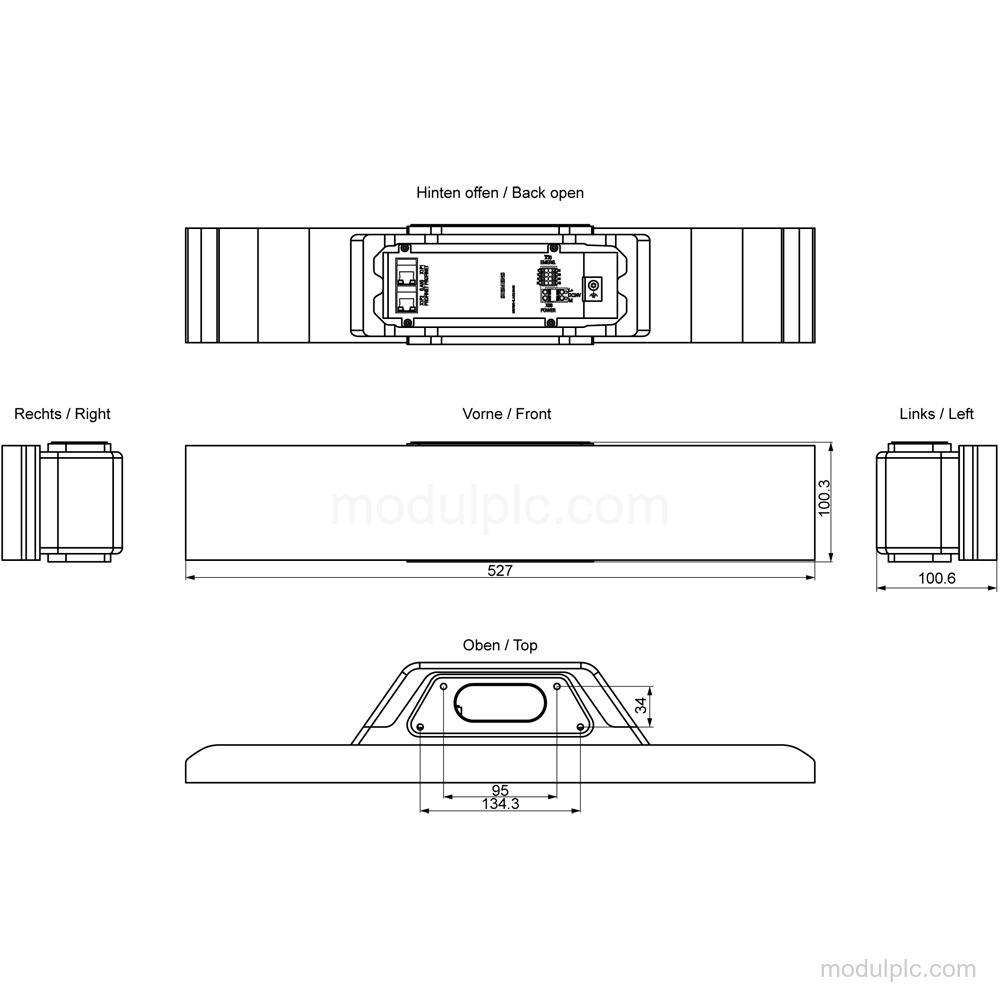

| Mounting | Lower part of a 16:9 HMI / IPC PRO device; screwed joint |
| Protection | IP65 all-round |
| Rack mounting | No |
| Front mounting | No |
Key Features
- Operator-control positions: 12 mounting positions are available for command devices and signaling units; max. 12 operator controls can be equipped.
- PROFINET interfaces: 2 PROFINET interfaces with an integrated switch support line and ring construction without an external switch.
- Supply voltage: Rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Mounting and connection: Mounts on the lower part of a 16:9 HMI / IPC PRO device by screwed joint; safety-related contacts use an 8-pin connector.
- Protection and diagnostics: Protection is IP65 all-round; key and signal lamp testing runs automatically when switching on.
Frequently Asked Questions
1. How many operator-control positions does 6AV7674-1LA62-0AA0 provide?
It provides 12 mounting positions, with a maximum of 12 operator controls; the connection is without equipment.
2. Which PROFINET interface configuration does the Extension Unit have?
It has 2 PROFINET interfaces with an integrated switch for constructing lines and rings without an external switch.
3. What supply voltage does the unit require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. How is the Extension Unit mounted and connected?
It is mounted on the lower part of a 16:9 HMI / IPC PRO device by screwed joint. Safety-related contacts use an 8-pin connector.
