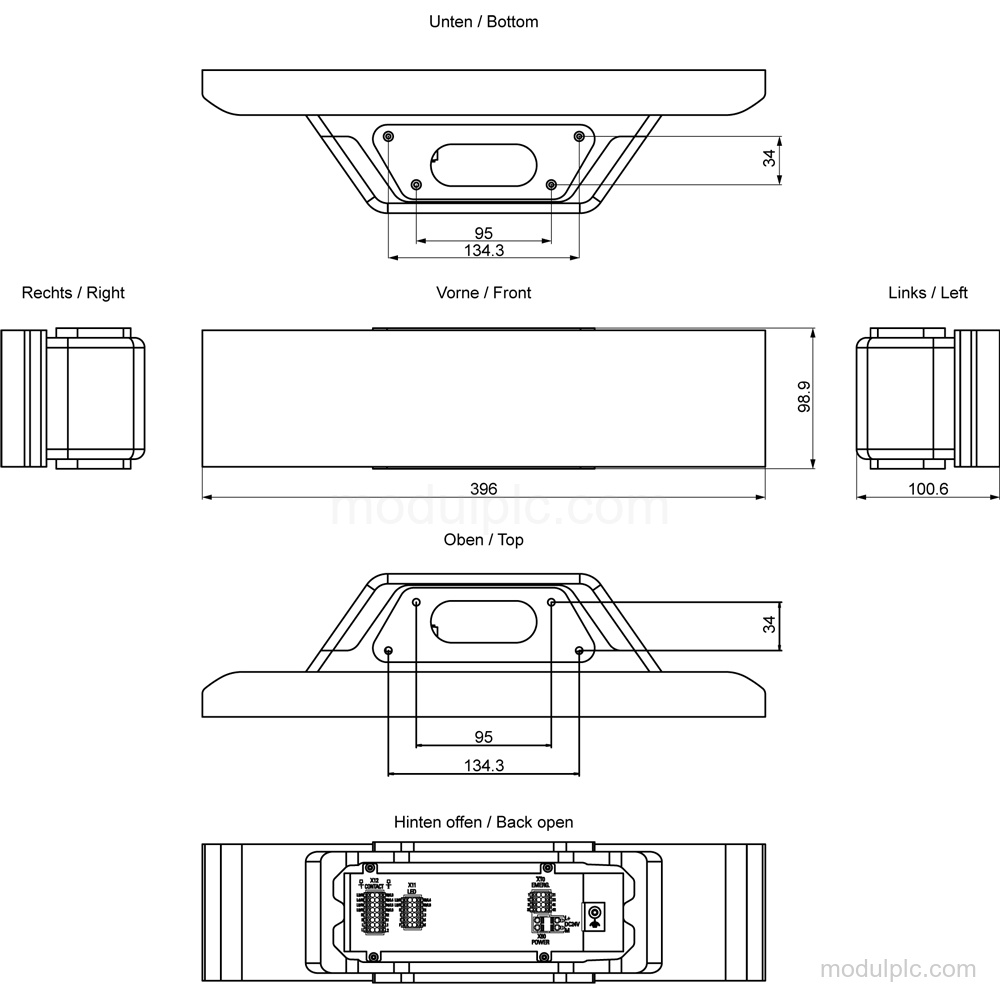

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

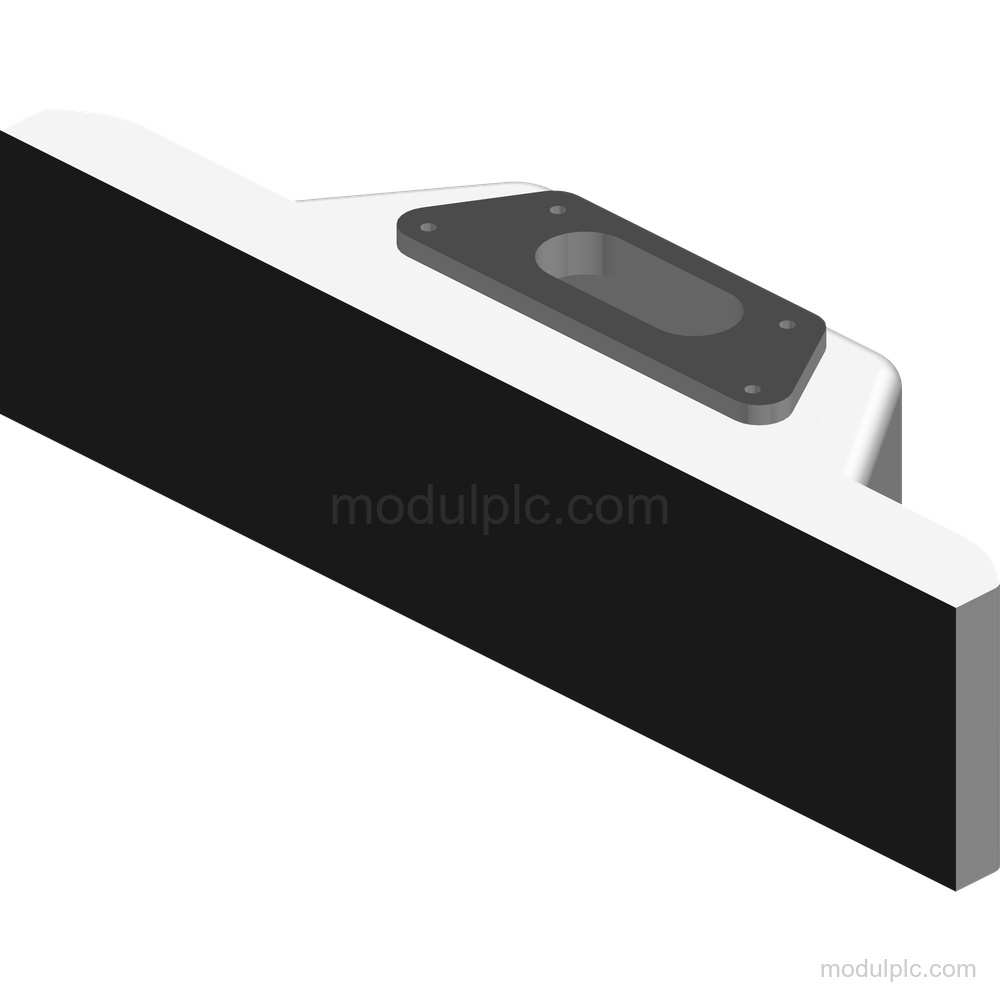

| Product type | Extension Unit 15" hardwired |
| Mounting positions | 8 |
| LED module connection | 12-pin connector |
| Control-element contact connection | 16-pin connector |
| Safety-related contact connection | 8-pin connector |
| Mounting | 16:9 HMI / IPC PRO device lower part |
| Mounting type | Screwed joint |
| Supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Protection | IP65 all-round; NEMA Enclosure Type 4 at the front |
Applications
- Operator-control installation: Supports flexible installation of operator controls using 8 mounting positions on a 16:9 HMI / IPC PRO device lower part.
Key Features
- 15" hardwired extension unit: Product type designation: Extension Unit 15" hardwired.
- 8 mounting positions: 8 operator controls can be equipped.

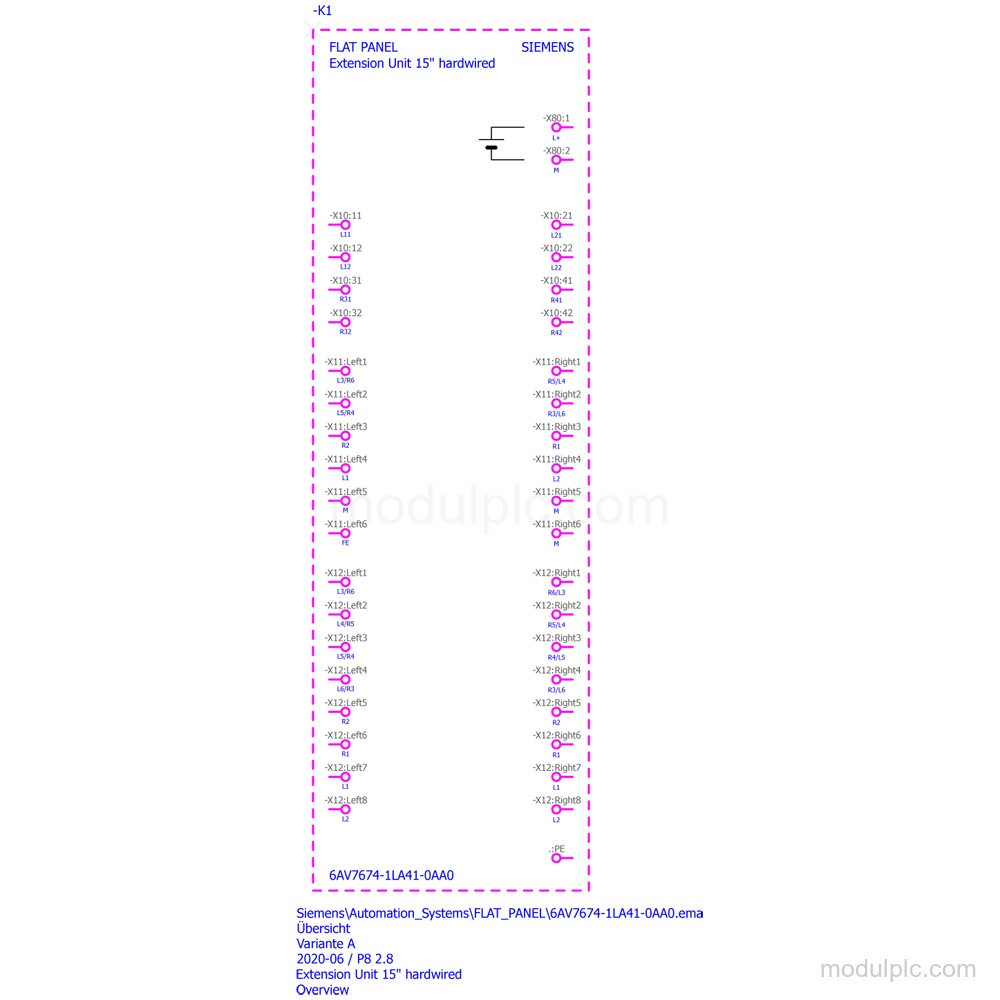

- Connector interfaces: 12-pin connector for the LED module, 16-pin connector for control-element contacts, and 8-pin connector for safety-related contacts.
- Mounting and installation: For mounting on a 16:9 HMI / IPC PRO device lower part; mounting type is screwed joint. Rack mounting and front mounting are not available.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Protection and power data: IP65 all-round protection, NEMA Enclosure Type 4 at the front, 0.1 W typical active power input, and 5 W emitted active power.
Frequently Asked Questions
1. What is Siemens 6AV7674-1LA41-0AA0?
It is an Extension Unit 15" hardwired for mounting on a 16:9 HMI / IPC PRO device lower part.
2. How many operator controls can be equipped?
It has 8 mounting positions for operator controls.
3. Which connectors does the extension unit have?
It has a 12-pin connector for the LED module, a 16-pin connector for control-element contacts, and an 8-pin connector for safety-related contacts.
4. What supply voltage does it use?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
5. Is equipment included with the hardwired connection?
It is without equipment.
