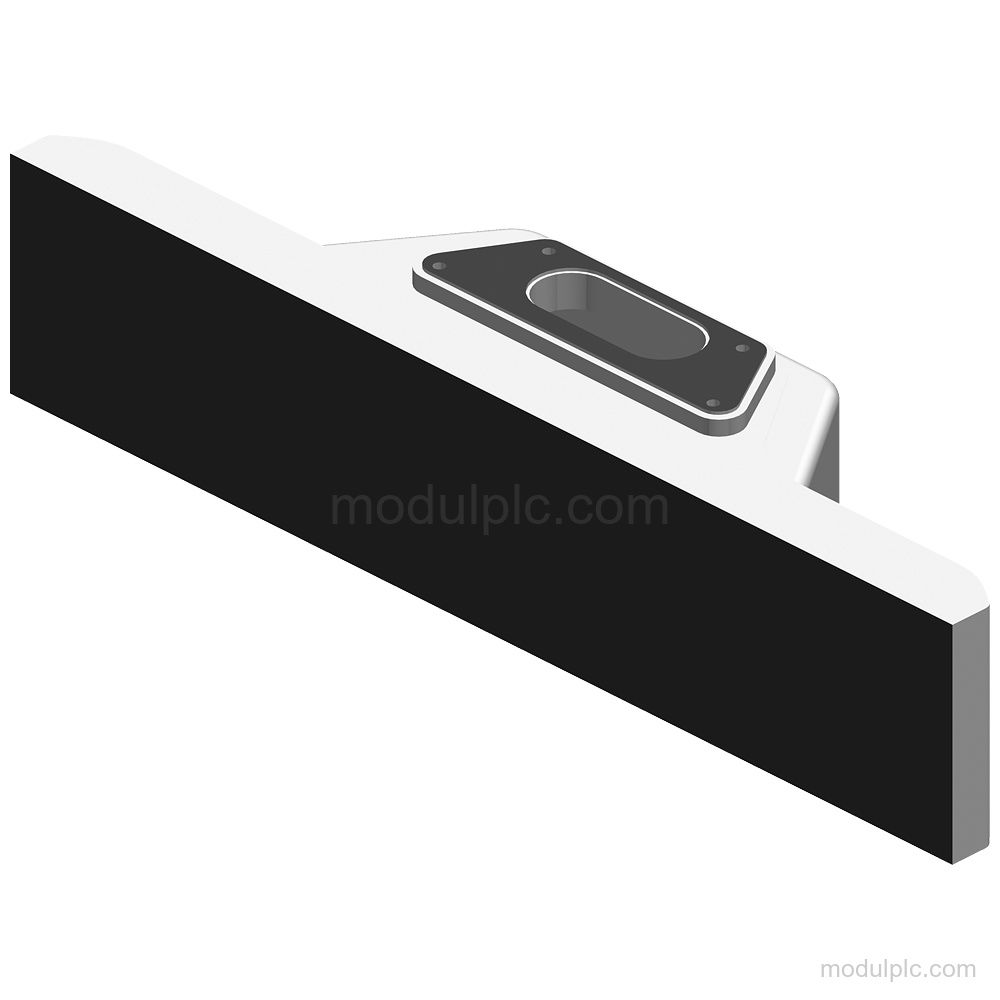

Product Overview
Technical Summary

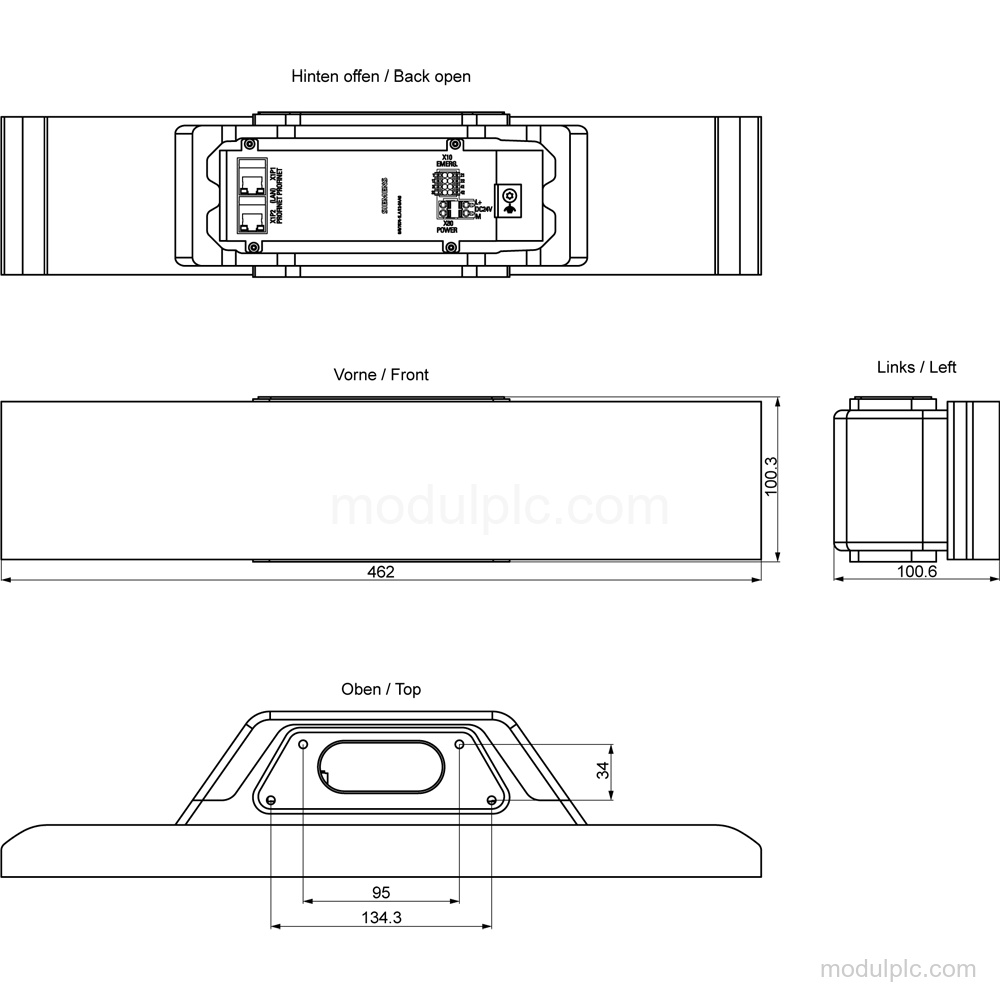

| Parameter | Value |
|---|---|
| Product type | Extension Unit 19" PROFINET |
| PROFINET interfaces | 2; incl. switch |
| Industrial Ethernet interfaces | 2; for constructing lines and rings without an external switch |
| Mounting positions | 10 |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Protection | IP65 all-round; enclosure Type 4x at the front |
| Safety-contact connection | 8-pin connector |
| Mounting | On the lower part of a 16:9 HMI / IPC PRO device; screwed joint |
Applications
- Operator-control installation: Supports flexible installation of operator controls on the lower part of a 16:9 HMI / IPC PRO device, with up to 10 mounting positions.
Key Features
- PROFINET interfaces: Has 2 industrial Ethernet interfaces and 2 PROFINET interfaces, including a switch, for constructing lines and rings without an external switch.
- Operator-control positions: Provides 10 slots for command devices and signaling units; max. 10 operator controls can be equipped.
- Mounting: Mounts on the lower part of a 16:9 HMI / IPC PRO device using a screwed joint. Rack mounting and front mounting: No.
- Supply voltage: DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.

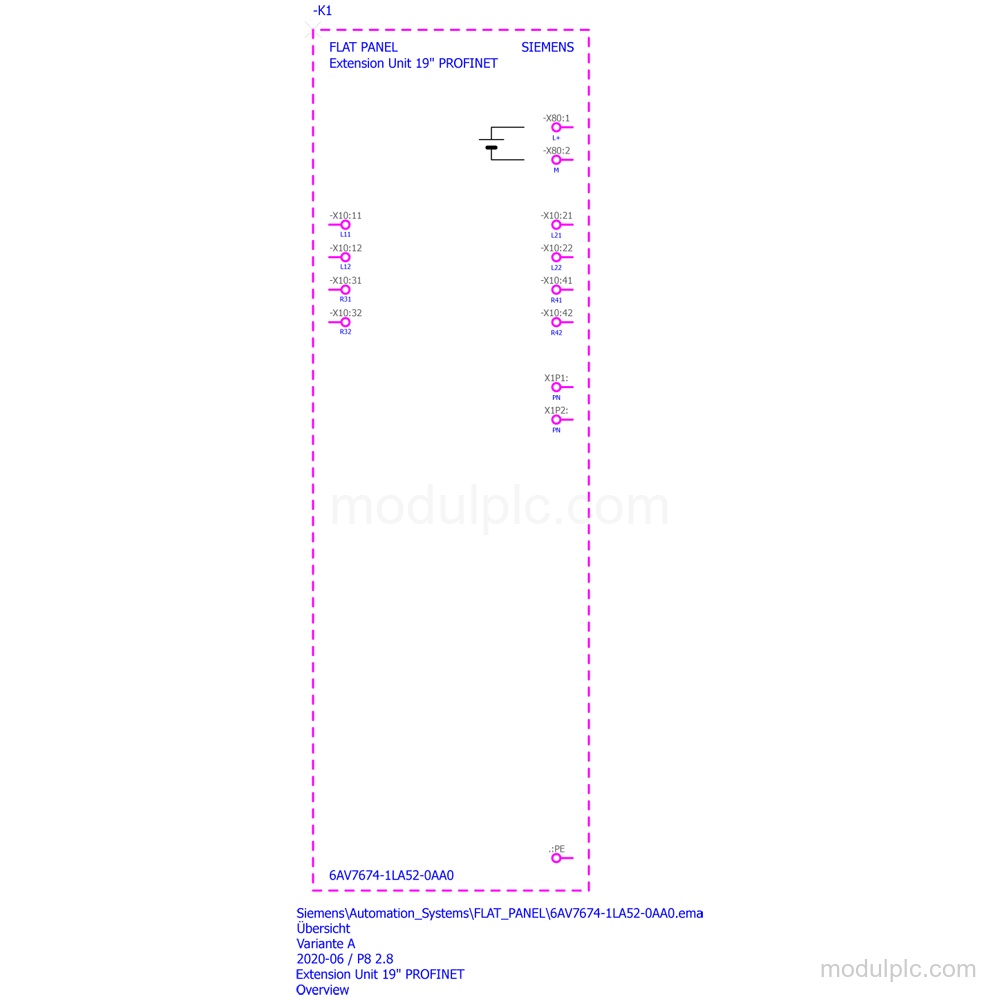

- Connection and control functions: Safety-related contacts for the emergency stop use an 8-pin connector. Parameterizable keys and automatic key and signal lamp testing when switching on are supported.
- Protection and power: Protection: IP65 all-round; enclosure Type 4x at the front. Current consumption is 150 mA without load; active power input is typically 3 W, plus 0.1 W per control element with LED.
Frequently Asked Questions
1. How many PROFINET interfaces does 6AV7674-1LA52-0AA0 have?
It has 2 PROFINET interfaces, including a switch.
2. What supply voltage does the Extension Unit use?
It uses a 24 V DC supply, with a permissible range of 19.2 V to 28.8 V.
3. How is the Extension Unit mounted?
It is mounted on the lower part of a 16:9 HMI / IPC PRO device using a screwed joint. Rack mounting and front mounting are not supported.
4. Are operator controls included with the configuration?
It is without operator controls. The unit provides 10 mounting positions, with a maximum of 10 operator controls that can be equipped.
