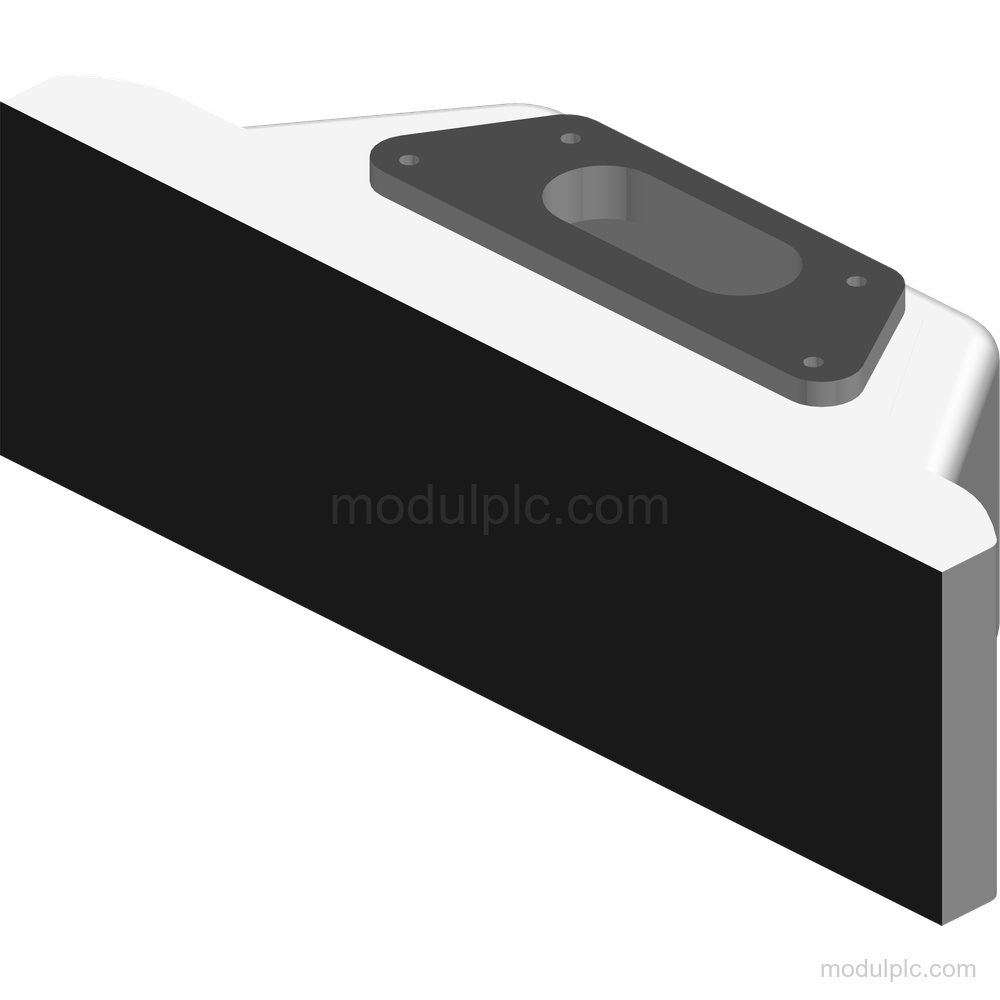

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Extension Unit 12" Hardwired |
| Operator control positions | 6 |
| LED module connector | 12-pin connector |
| Control-element contacts connector | 16-pin connector |
| Safety-related contacts connector | 8-pin connector |

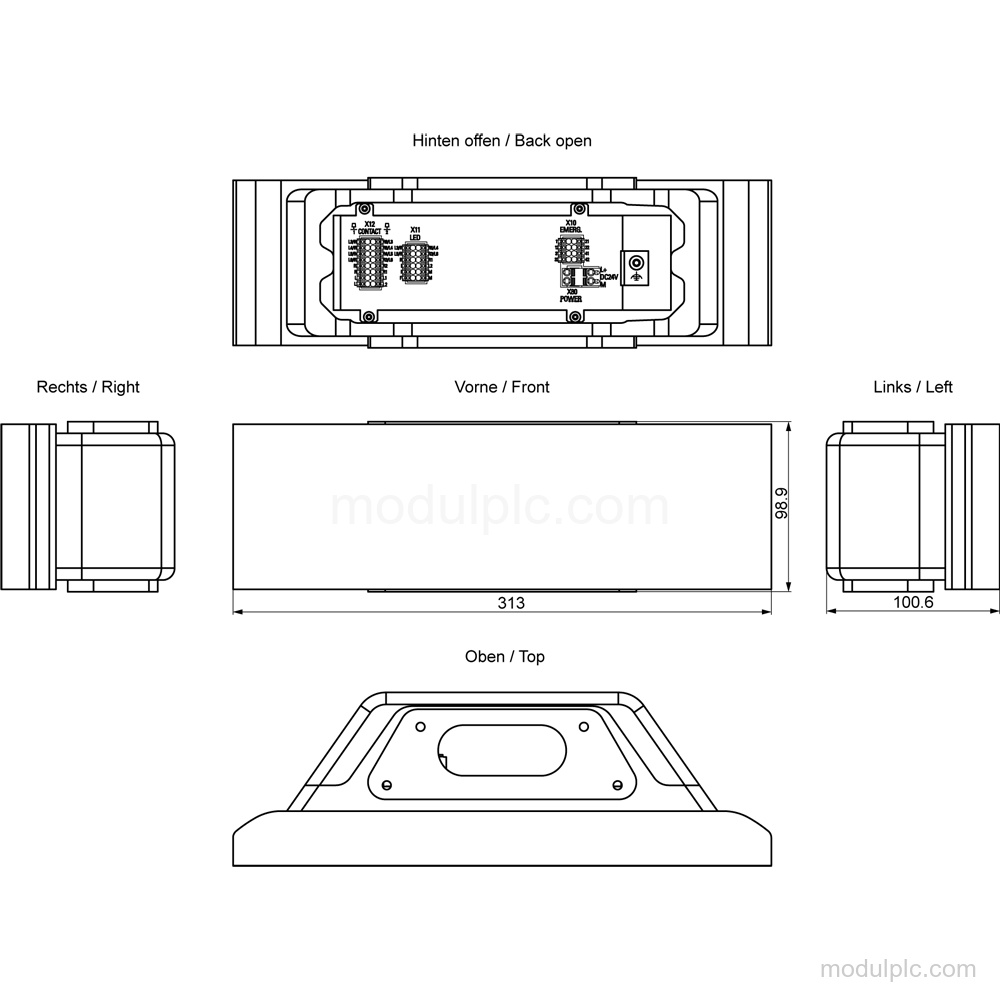

| Mounting | Lower part of a 16:9 HMI / IPC PRO device; screwed joint |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible range |
| Current consumption | 10 mA rated value; without load |
| Typical active power input | 0.1 W |
| Protection | IP65 all-round; Enclosure Type 4 at the front |
Applications
- Flexible operator-control installation: Supports flexible installation of operator controls on fully IP65-enclosed 16:9 HMI/IPC devices.
Key Features
- Operator control installation: 6 mounting positions are available for up to 6 operator controls.

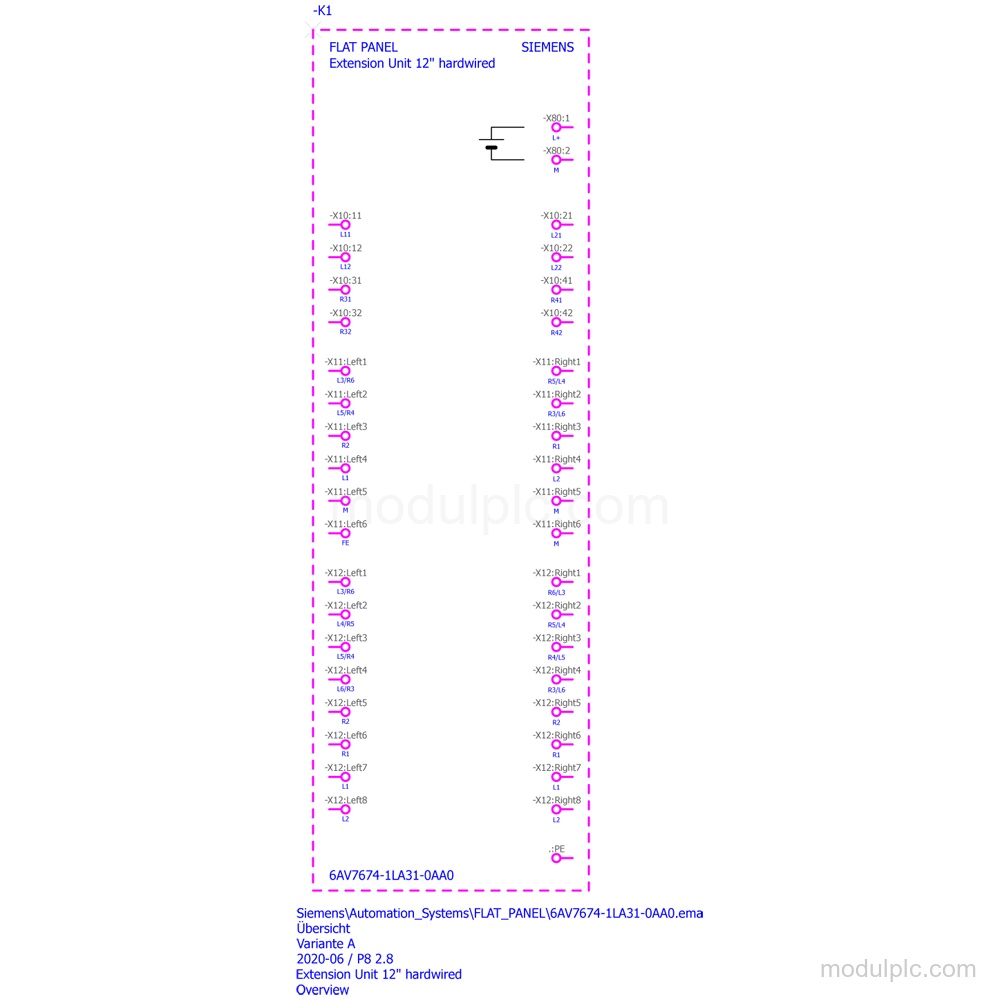

- Connector configuration: The LED module uses a 12-pin connector, the control-element contacts use a 16-pin connector, and the safety-related contacts use an 8-pin connector.
- Mounting: Mounts on the lower part of a 16:9 HMI / IPC PRO device using a screwed joint.
- Supply voltage: DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
- Protection: IP65 all-round protection; the front has Enclosure Type 4.
- Power and current: Current consumption is 10 mA without load; typical active power input is 0.1 W.
Frequently Asked Questions
1. What is the Siemens 6AV7674-1LA31-0AA0?
It is an Extension Unit 12" Hardwired for flexible installation of operator controls on fully IP65-enclosed 16:9 HMI/IPC devices.
2. How many operator controls can the extension unit accommodate?
It has 6 mounting positions and can be equipped with 6 operator controls.
3. Which connectors are provided?
It has a 12-pin connector for the LED module, a 16-pin connector for the control-element contacts, and an 8-pin connector for the safety-related contacts.
4. What supply voltage does it require?
The supply is DC, with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
