Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Flange mount |
| Mounting transition | Size 48 round tube to flange plate |
| Interface qualification | Compatible with basic adapter interface |
| Target devices | PRO devices |
| Protection | IP65 when installed |
| Material | Steel, powder coating in RAL 9006 |
| Enclosure diameter | 48.3 mm |
| Delivery quantity | 1 |
Applications
- Support-arm installation: Mount PRO devices on a support arm using the transition from a size 48 round tube to a flange plate.
Key Features

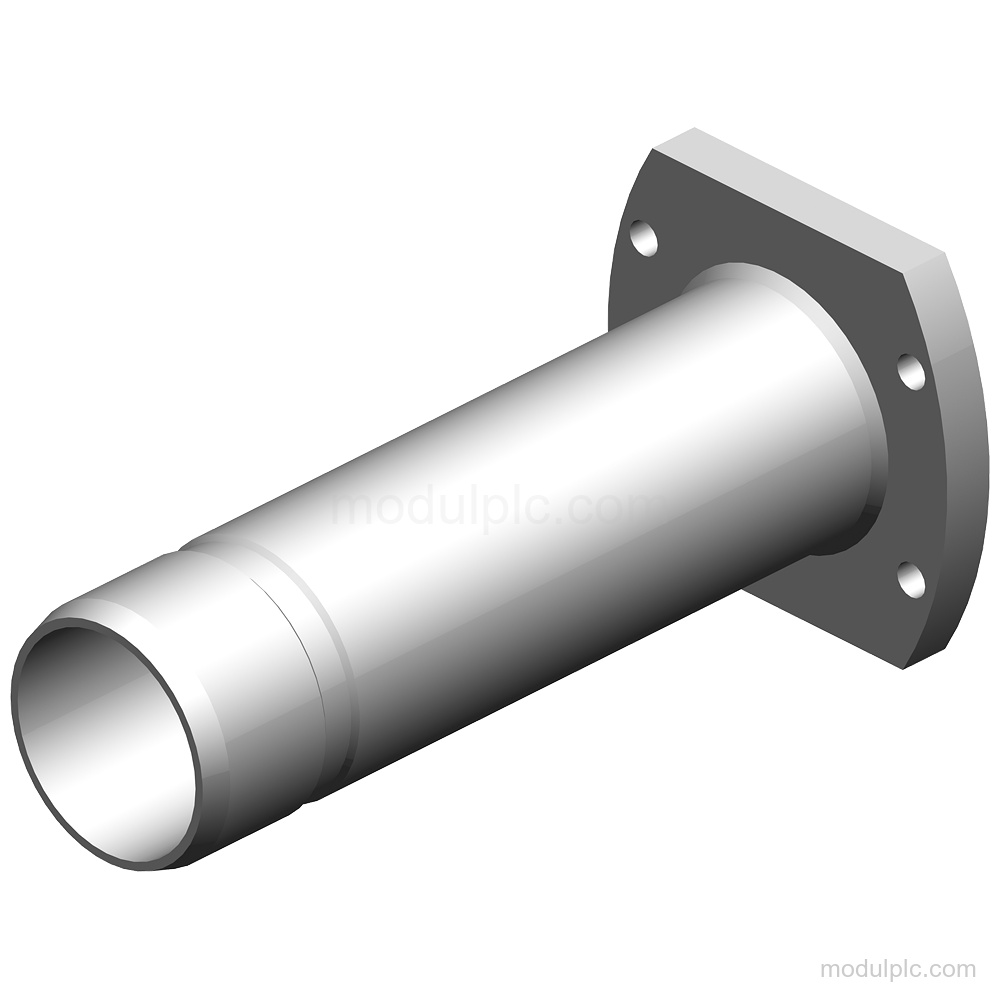

- Flange mount: Product type designation: Flange mount.
- Round tube transition: For the transition from a size 48 round tube to a flange plate; compatible with basic adapter interface.
- PRO device mounting: Suitable for PRO devices and prepared for support arm and extension components with round tube connection.
- Protection: IP65 when installed.
- Material: Steel with powder coating in RAL 9006.

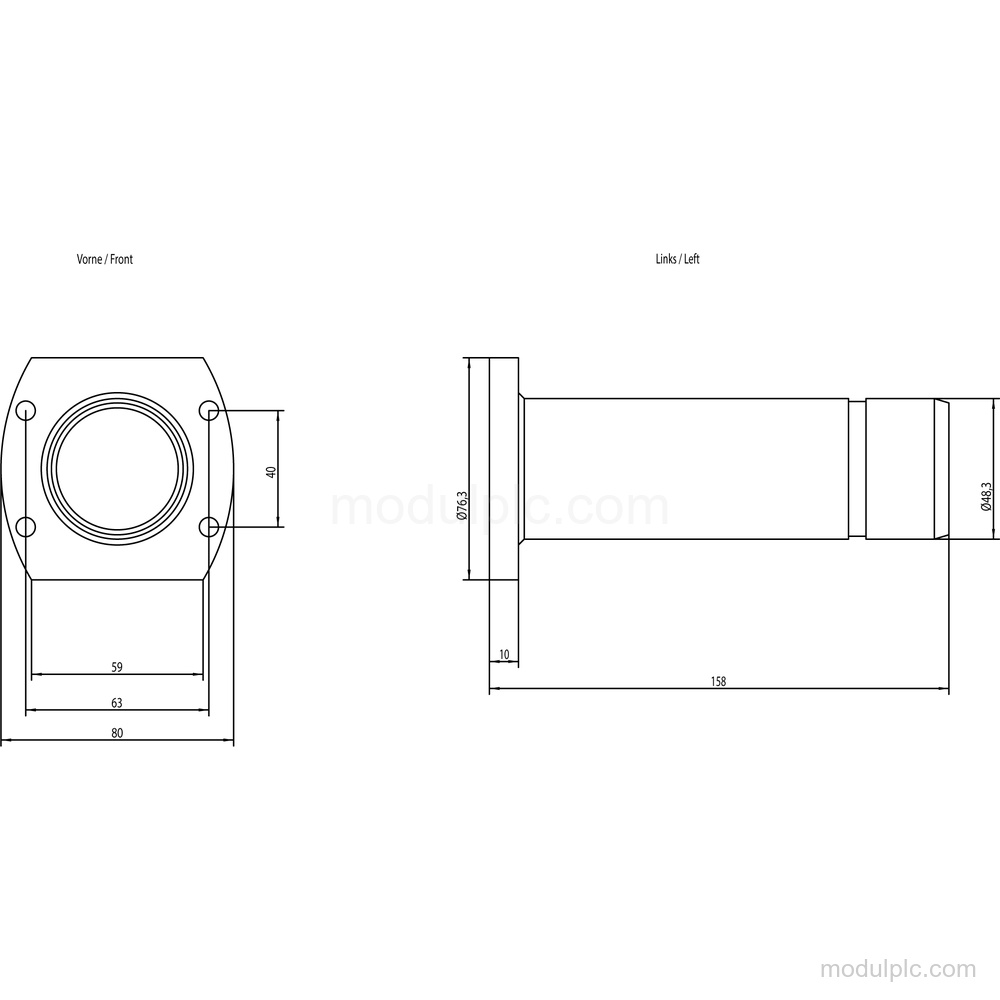

- Dimensions and supply: Width: 76.3 mm; height: 168 mm; depth: 80 mm; enclosure diameter: 48.3 mm; delivery quantity: 1.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1KF00-0AA0?
It is a flange mount adapter for PRO devices, providing a transition from a size 48 round tube to a flange plate.
2. What mounting interface does this adapter use?
It is compatible with the basic adapter interface and is prepared for support arm and extension components with round tube connection.
3. What protection rating applies after installation?
The adapter has IP65 when installed.
4. What is included in the delivery?
The delivery quantity is 1 pipe adapter.
