Product Overview
Technical Summary

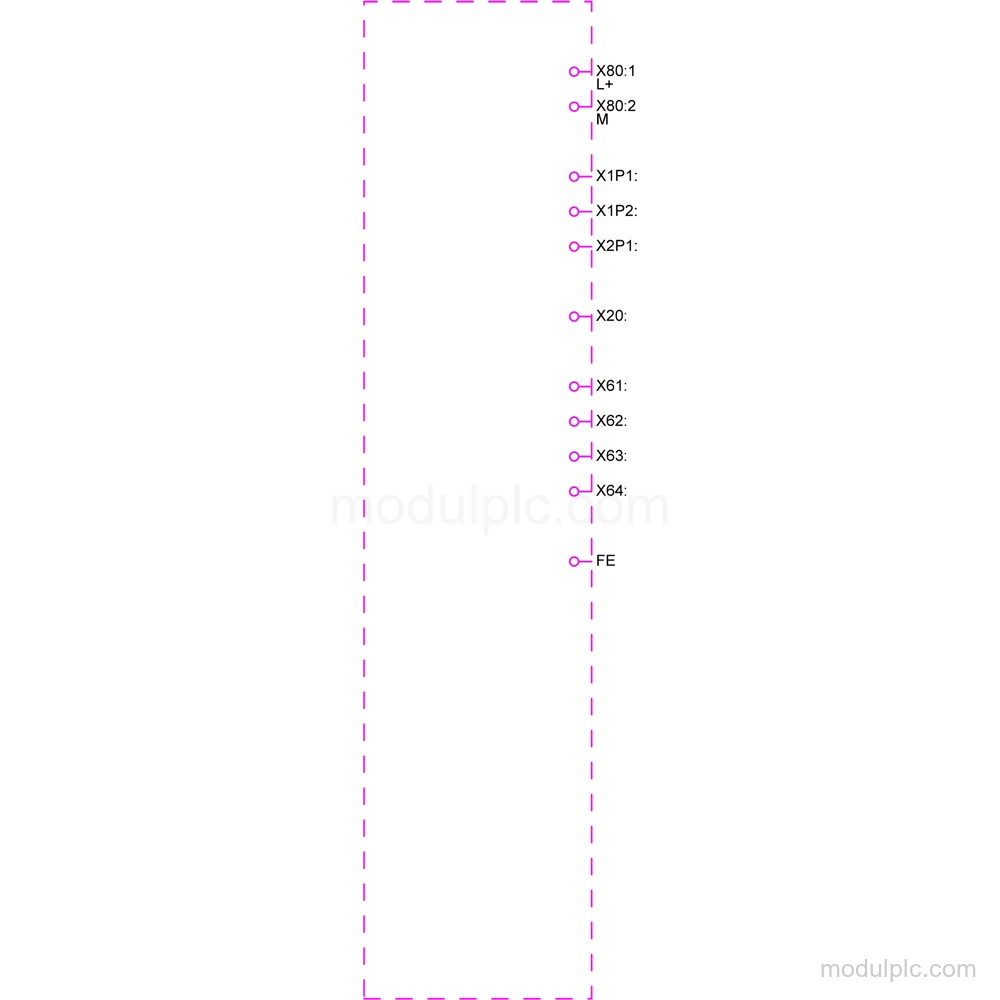

| Parameter | Value |
|---|---|
| Display | 21.5 in widescreen TFT, 1 920 pixel × 1 080 pixel, 16 777 216 colors |
| Touch operation | Multi-touch screen |
| Network interfaces | 2 industrial Ethernet interfaces; 2 switch ports plus 1 independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| USB interfaces | 4 USB 3.1 Gen. 1 type A |
| Serial interface | 1 combined RS 422 / 485 interface |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Current consumption | 1 A rated; 1.5 A maximum |

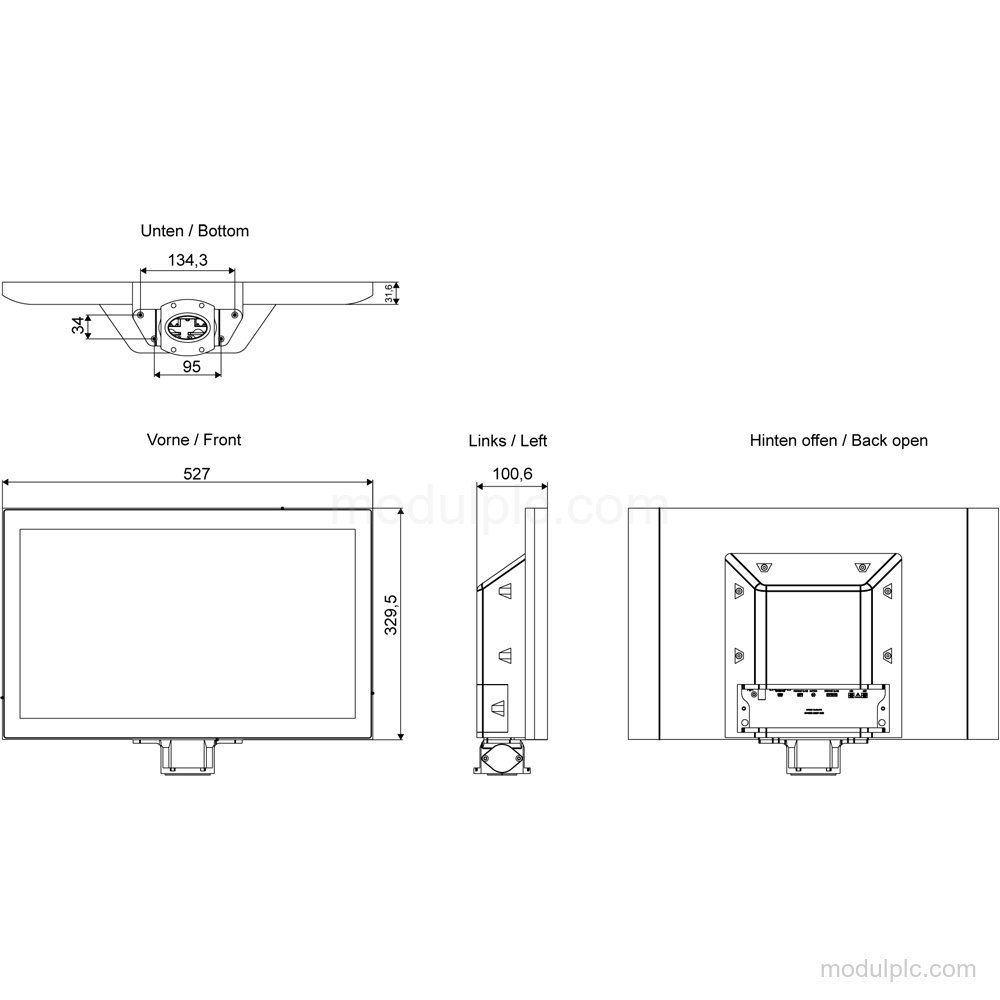

| Mounting | Pedestal, vertical; landscape format possible |
| Protection | IP65 at the front and rear |
Key Features
- Widescreen multi-touch display: 21.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
- PROFINET interface: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- USB and serial interfaces: 4 USB 3.1 Gen. 1 type A interfaces, 1 combined RS 422 / 485 interface, and 2 SD card slots.
- DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.5 A maximum.
- Pedestal mounting: Pedestal mounting in vertical position; landscape format is possible, portrait format is not, and the maximum permissible inclination without external ventilation is 35°.
- Front and rear protection: IP65 at the front and rear; the front has NEMA Enclosure Type 4, Type 4x, and Type 12.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3XB57-1BX0 have?
It has a 21.5 in widescreen TFT display with 1 920 pixel × 1 080 pixel resolution, 16 777 216 colors, and multi-touch operation.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 integrated-switch ports plus 1 independent port. Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. What supply and mounting details should be checked before inquiry?
The rated supply is 24 V DC with a permissible range of 19.2 V to 28.8 V. Mounting is pedestal and vertical; landscape format is possible, while portrait format is not.
