Product Overview
Technical Summary

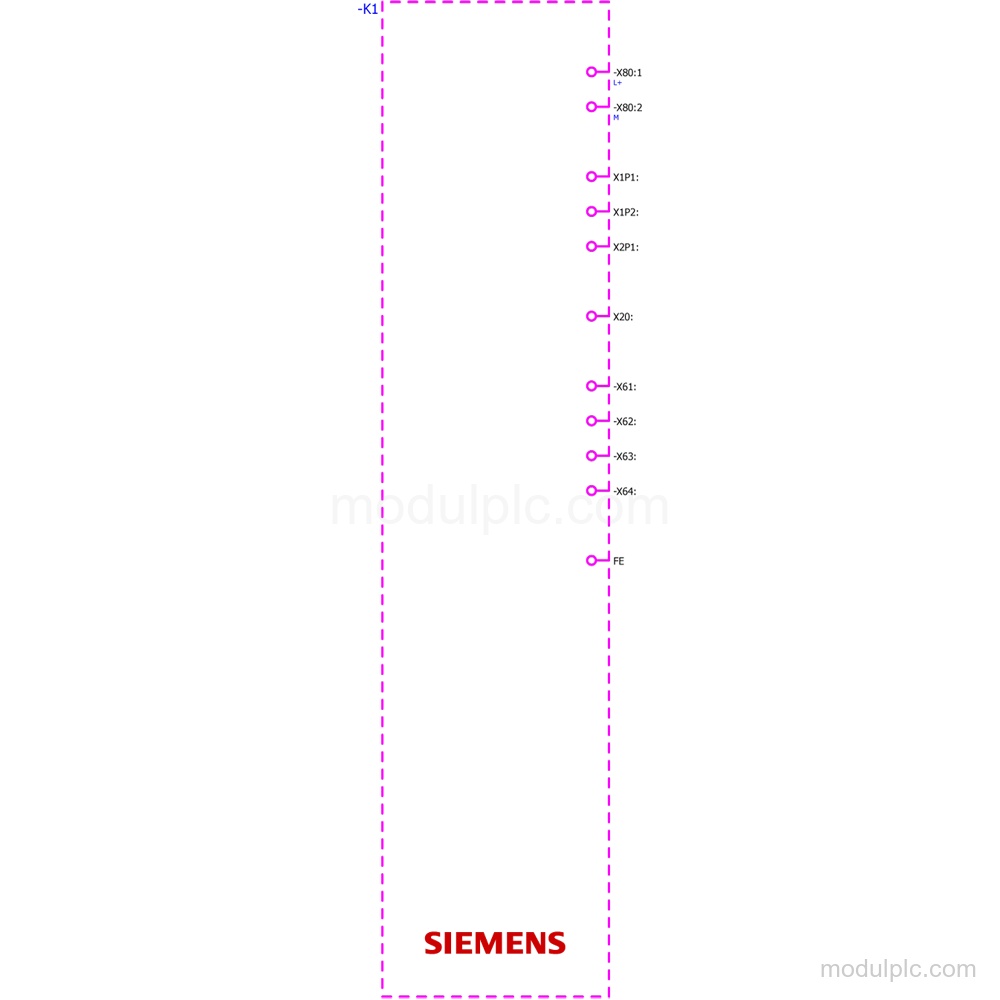

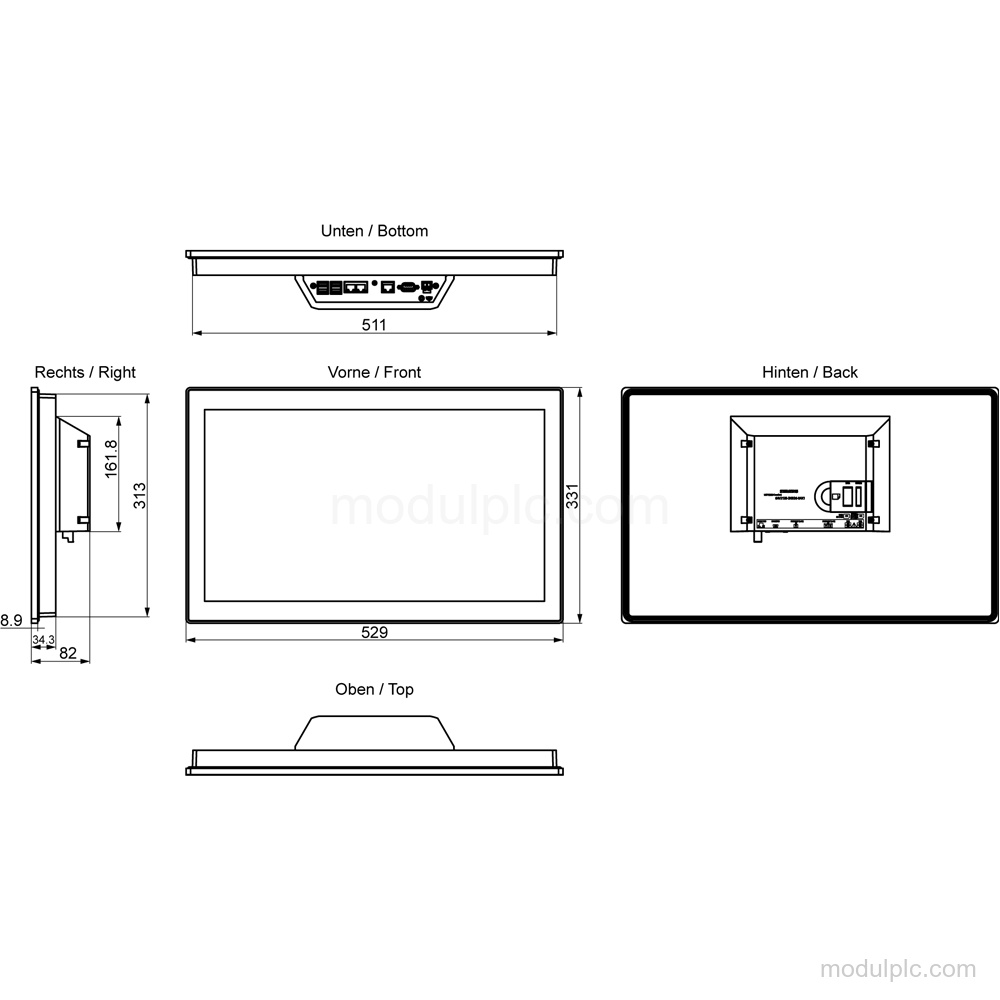

| Parameter | Value |
|---|---|
| Display | 21.5 in widescreen TFT |
| Touch operation | Touch and multi-touch operation |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes; protocol for PROFINET IO: No |
| Additional interfaces | 1 RS 422 / 485 combined; 4 USB 3.1 Gen. 1 type A |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.5 A maximum |
| Mounting | Vertical; portrait and landscape possible |
| Maximum inclination | 35° without external ventilation |
| Protection | IP65 front; IP20 rear |
Applications
- Touch operation: Provides touch and multi-touch operation through the integrated touch screen.
- PROFINET communication: Provides network communication through PROFINET and industrial Ethernet interfaces.
Key Features
- Display and touch operation: 21.5 in widescreen TFT display with 16 777 216 colors, 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, touch operation, and multi-touch operation.
- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; 2 industrial Ethernet status LEDs.
- Network protocols: Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; protocol for PROFINET IO is not supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Supply and current: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 1 A rated and 1.5 A maximum.
- Mounting and protection: Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display and touch features does the MTP2200 have?
It has a 21.5 in widescreen TFT display with 16 777 216 colors, 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, touch operation, and multi-touch operation.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP, but not the protocol for PROFINET IO.
3. What other interfaces are included?
The configuration has 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
4. What supply voltage does it require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.5 A maximum.
5. How is the panel mounted and protected?
It is mounted vertically, with portrait and landscape mounting possible. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
