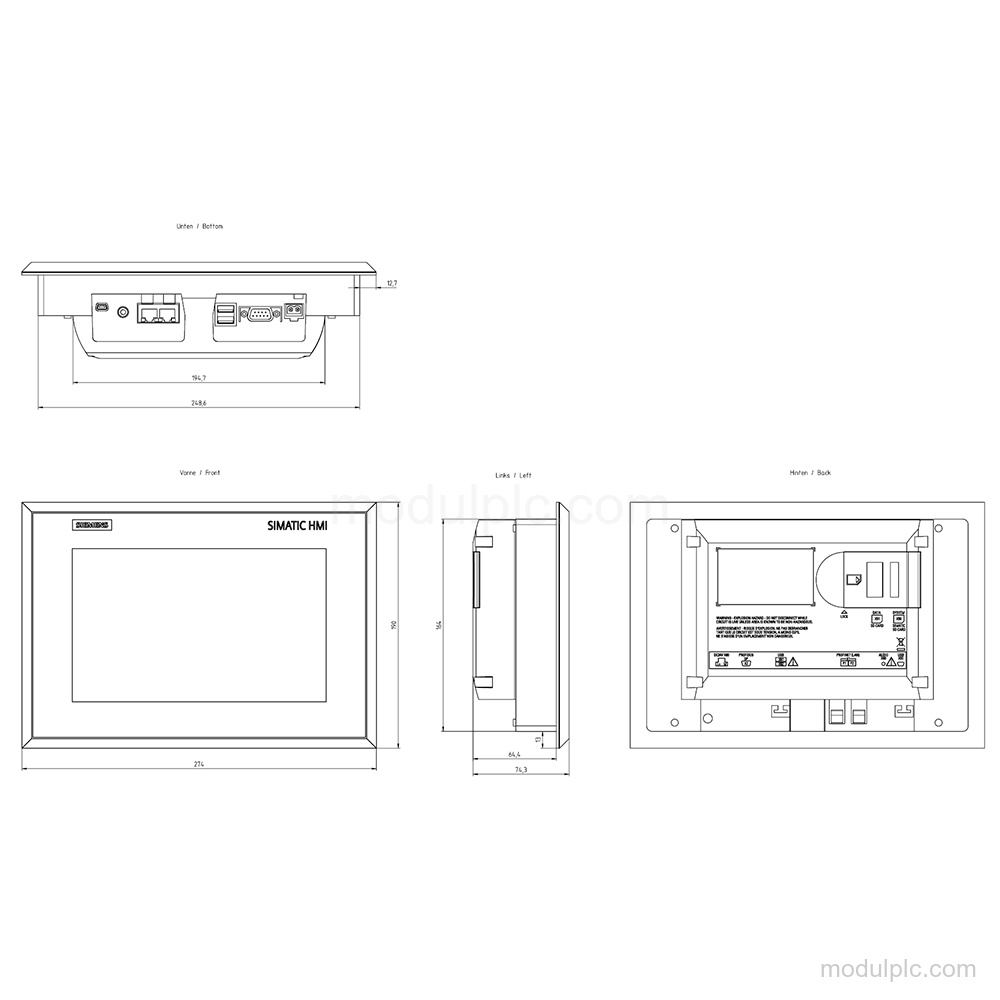

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type designation | TP900 Comfort INOX PCT |
| Display | 9 in widescreen TFT, 800 pixel × 480 pixel |
| Touch operation | Capacitive touch; multi-touch: No |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| Serial interface | 1 RS 422 / 485 combined interface |
| Protocols | PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| User data memory | 12 Mbyte |
| Mounting | Vertical; portrait and landscape possible |
| Front protection | IP66 / IPx6K and IP69 / IPx9K |
Key Features
- Display and touch: 9 in widescreen TFT display with 800 pixel horizontal and 480 pixel vertical resolution, 16 777 216 colors and capacitive touch operation.
- Communication interfaces: 1 industrial Ethernet interface with 2 ports (switch), 1 combined RS 422 / 485 interface and 2 USB 2.0 interfaces.
- Supported protocols: Supports PROFINET, PROFINET IO, IRT as of WinCC V15, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP.
- Supply and power: DC supply with a rated value of 24 V, permissible range from 19.2 V to 28.8 V, current consumption of 0.75 A and typical active power input of 18 W.
- Mounting: Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°.
- Front protection: Front protection: IP66 / IPx6K and IP69 / IPx9K. Rear protection: IP20.
Frequently Asked Questions
1. Which protocols does the Siemens 6AV2144-8JC20-0AA0 support?
It supports PROFINET, PROFINET IO, IRT as of WinCC V15, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP.
2. What communication interfaces are included?
It has 1 industrial Ethernet interface with 2 ports (switch), 1 combined RS 422 / 485 interface and 2 USB 2.0 interfaces.
3. What display and touch configuration does it have?
It has a 9 in widescreen TFT display with 800 pixel × 480 pixel resolution and capacitive touch operation. Multi-touch is not supported.
4. What supply voltage does this model require?
The supply is DC, with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
5. What mounting and protection details should be verified before inquiry?
Mounting is vertical, with portrait and landscape formats possible; the maximum permissible angle of inclination without external ventilation is 35°. Front protection is IP66 / IPx6K and IP69 / IPx9K, while rear protection is IP20.
