Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 21.5 in widescreen TFT display |
| Display resolution | 1 920 pixel × 1 080 pixel |
| Colors | 16 777 216 |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply | 24 V DC |
| Mounting | Support arm; vertical |
| Protection | IP65 front and rear |
Key Features

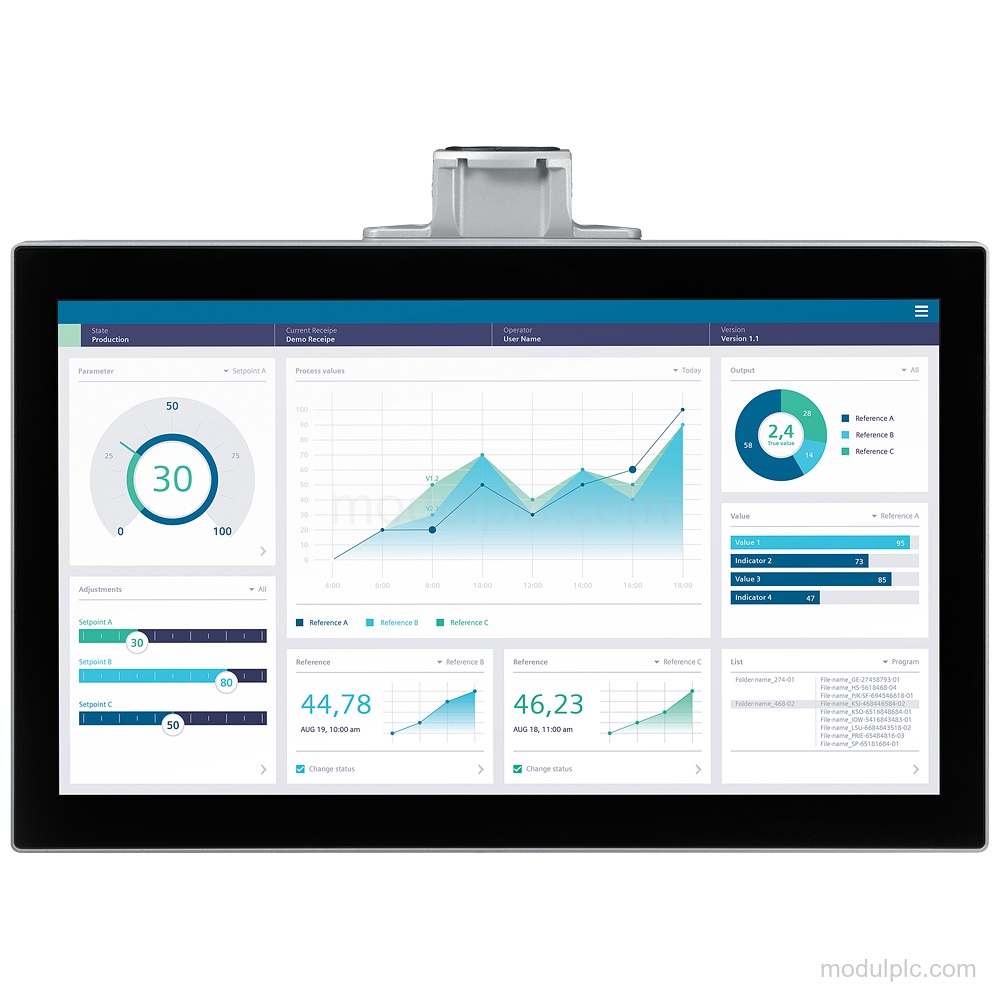

- Widescreen TFT display: The panel has a 21.5 in TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
- Touch and onscreen keyboards: It has touch and multi-touch operation, plus numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet interfaces: It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, plus 2 industrial Ethernet status LEDs.
- PROFINET and Ethernet protocols: Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. PROFINET IO protocol support is not available.

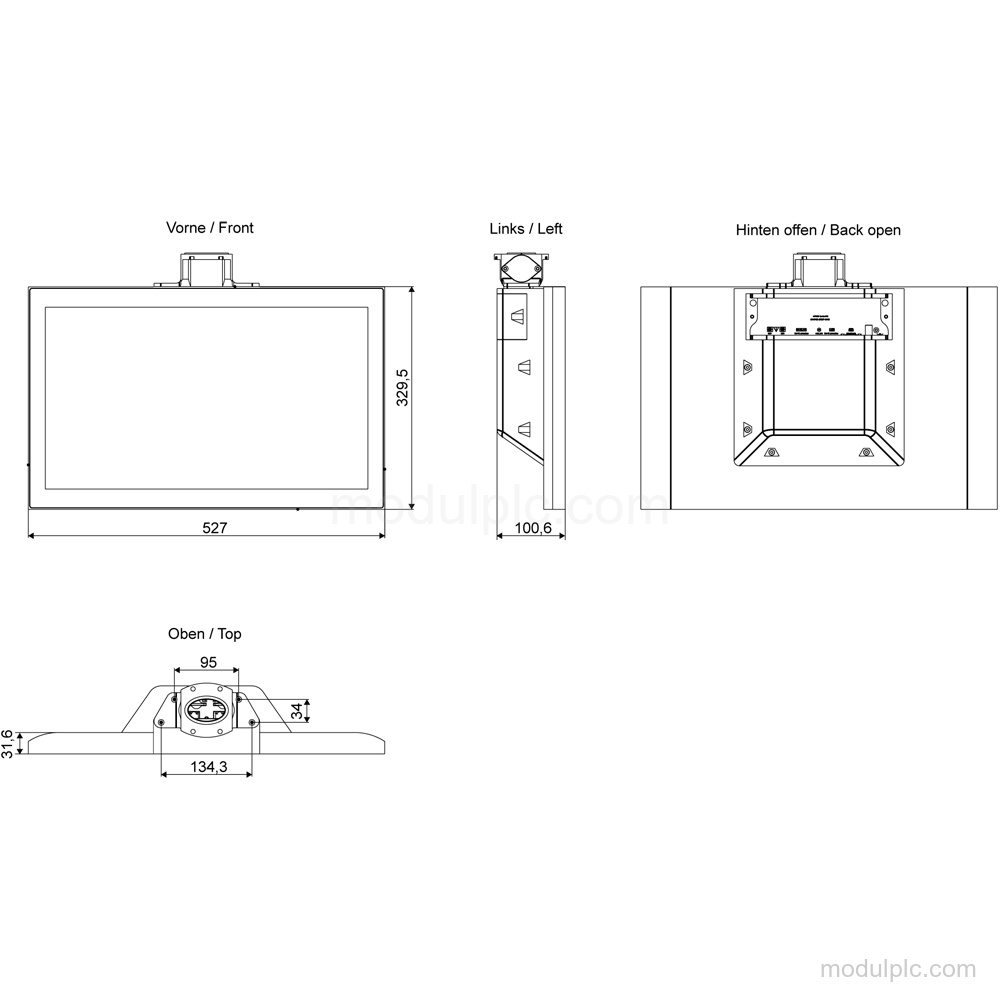

- Support-arm installation: The panel mounts on a support arm in vertical position. Landscape mounting is possible; portrait mounting is not.
- DC supply and front protection: Rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Front and rear protection are IP65.
Frequently Asked Questions
1. What display does Siemens 6AV2128-3XB57-0AX0 have?
It has a 21.5 in widescreen TFT display with 1 920 pixel × 1 080 pixel resolution and 16 777 216 colors.
2. Which Ethernet interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How is the panel mounted?
It is mounted on a support arm in vertical position. Landscape mounting is possible, while portrait mounting is not.
