Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 21.5 in widescreen TFT |
| Touch operation | Touch screen and multi-touch screen |
| Display resolution | 1 920 pixel × 1 080 pixel |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| RS 422 / 485 interface | 1 combined interface |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supported protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.5 A maximum |

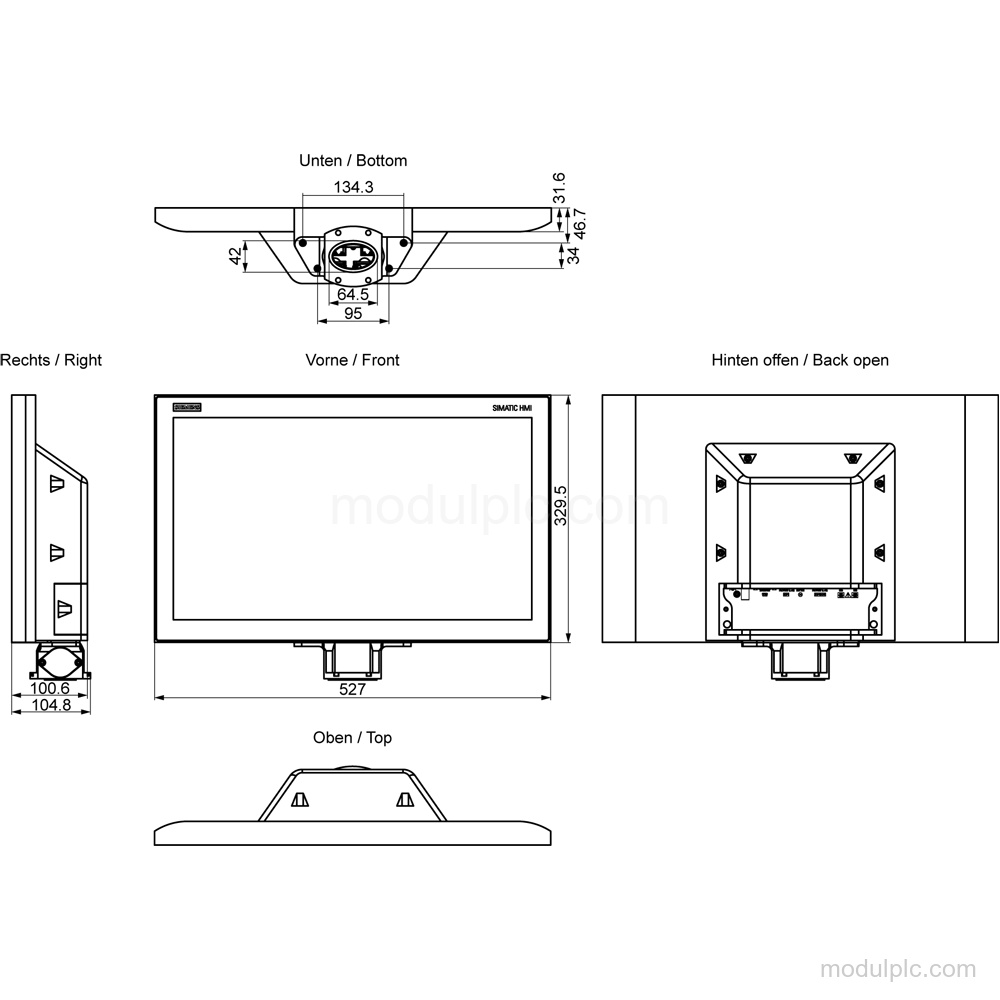

| Mounting | Pedestal; vertical; landscape possible |
| Protection | IP65 at the front and rear |
Key Features
- Display and touch: 21.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, 16 777 216 colors, touch screen, and multi-touch screen.
- PROFINET interface: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported; PROFINET IO protocol is not supported.

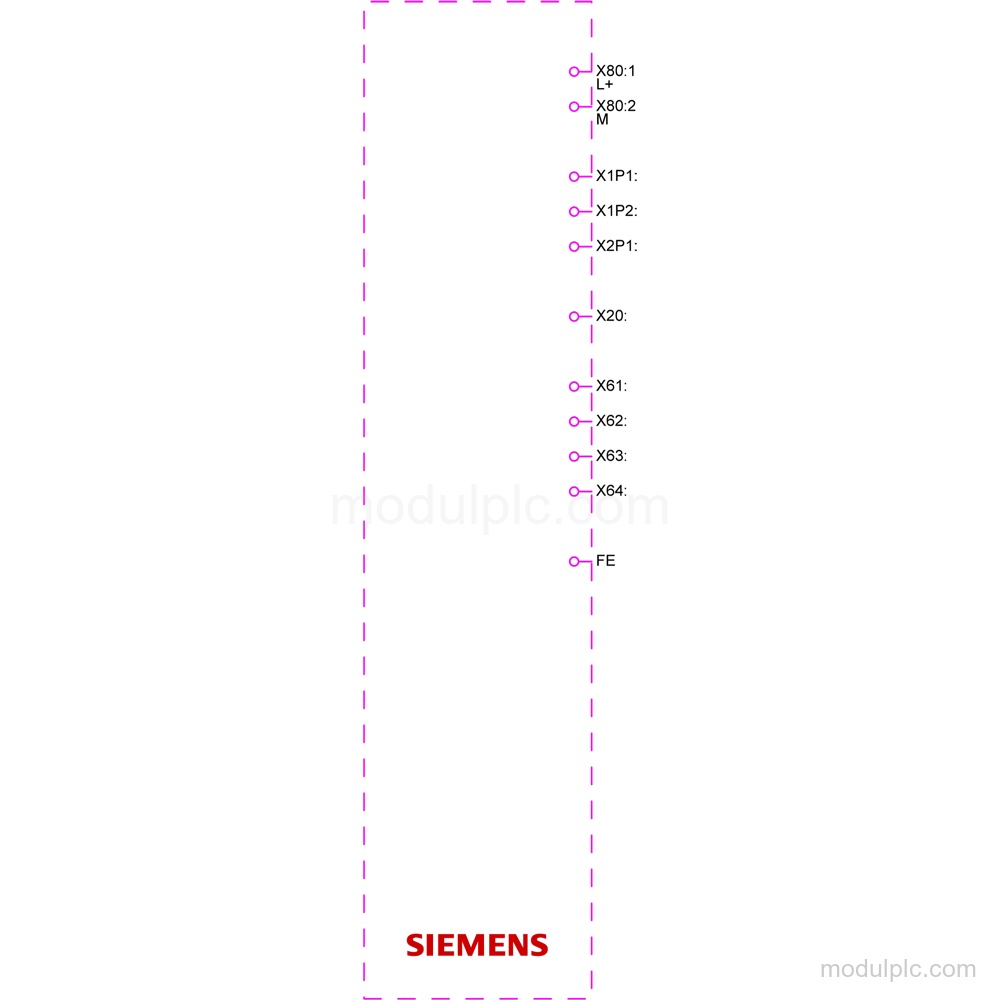

- Industrial interfaces: 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Power supply: DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V. Rated current consumption is 1 A; maximum current consumption is 1.5 A.
- Mounting and protection: Pedestal mounting in vertical position. Landscape mounting is possible; portrait mounting is not. The maximum permissible angle of inclination without external ventilation is 35°; protection is IP65 at the front and rear.
- Software and configuration: Configurable as of Comfort V18. The device contains open-source software provided free of charge.
Frequently Asked Questions
1. What display does the 6AV2128-3XB27-1BX0 have?
It has a 21.5 in widescreen TFT display with 1 920 pixel × 1 080 pixel resolution, 16 777 216 colors, touch operation, and multi-touch operation.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port. Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; PROFINET IO is not supported.
3. What supply voltage and current are required?
The supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Rated current consumption is 1 A and maximum current consumption is 1.5 A.
4. How is this panel mounted and protected?
It uses pedestal mounting in a vertical position. Landscape mounting is possible, portrait mounting is not, and protection is IP65 at the front and rear.
