Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP2200 Unified Comfort PRO |

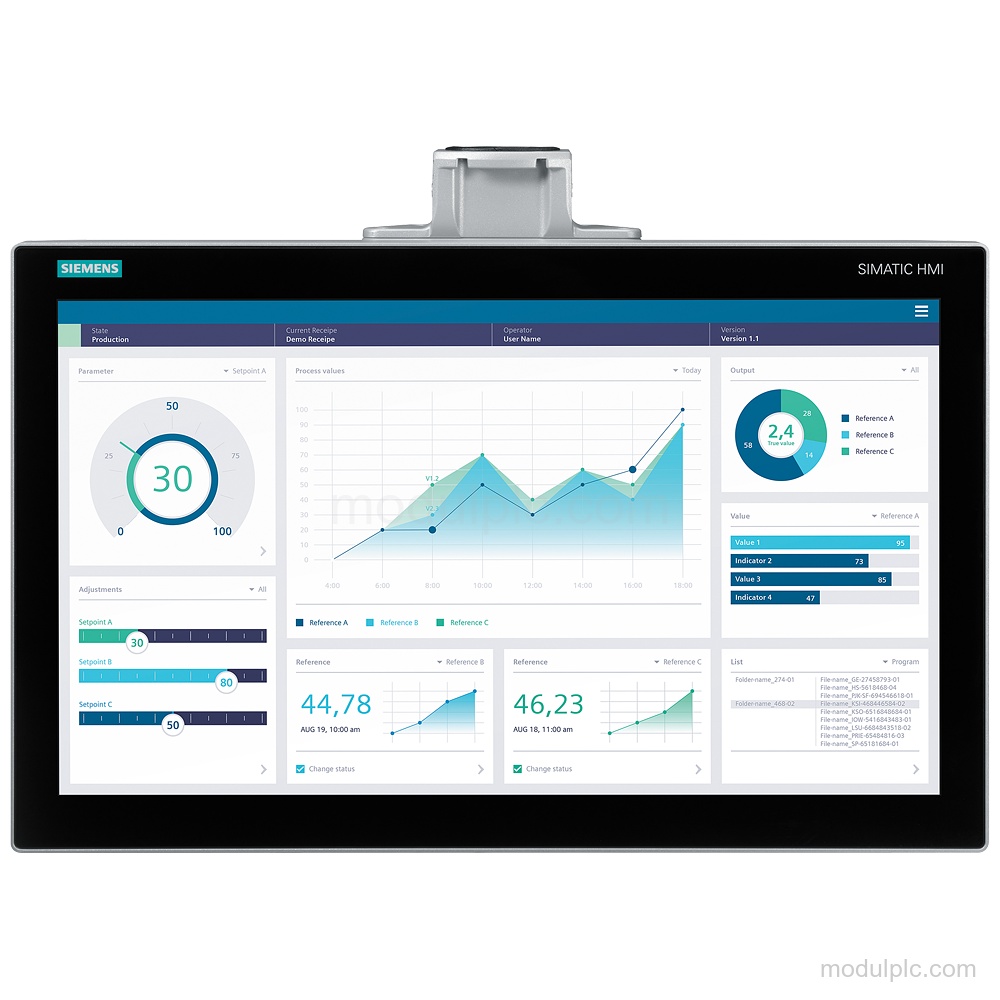

| Display | 21.5 in widescreen TFT, multi-touch |
| Resolution | 1 920 pixel × 1 080 pixel |

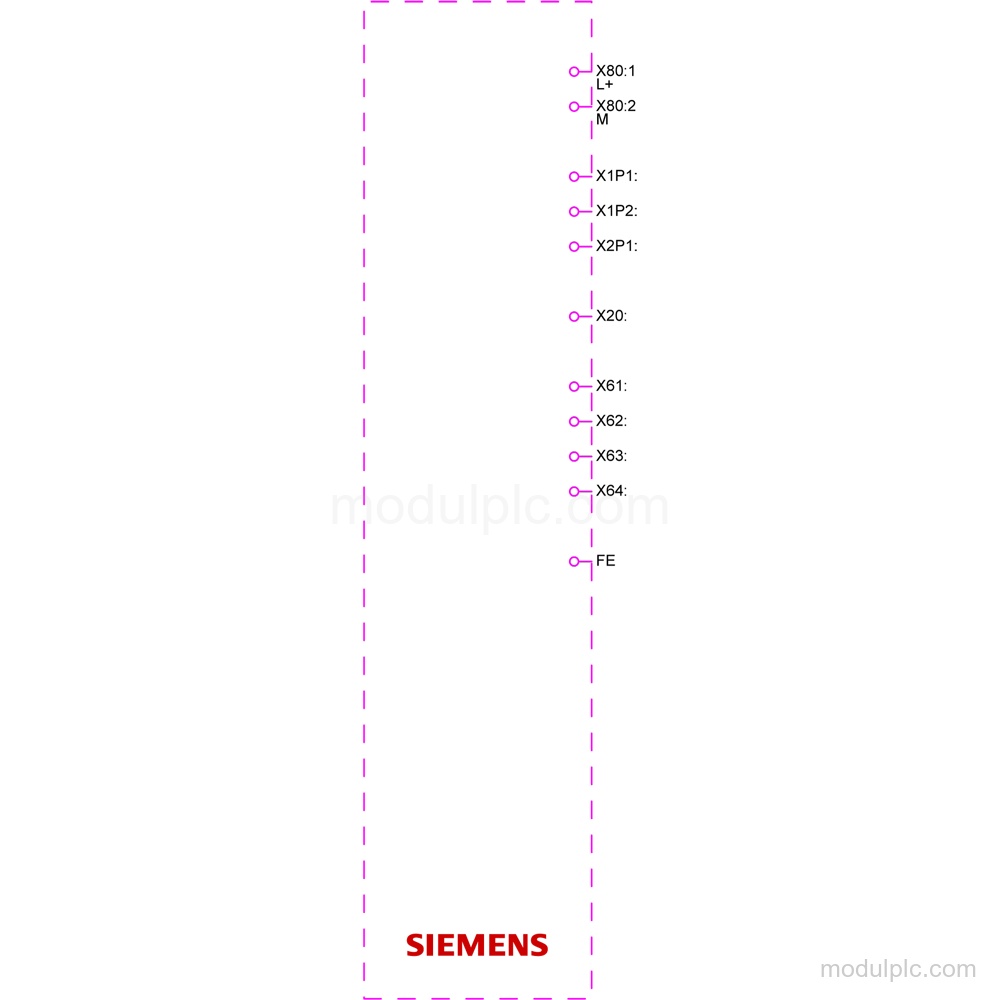

| Network interfaces | 2 industrial Ethernet interfaces; 2 switch ports + 1 independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Serial interface | 1 RS 422 / 485 combined interface |
| USB interfaces | 4 USB 3.1 Gen. 1 type A interfaces |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Rated current consumption | 1 A |

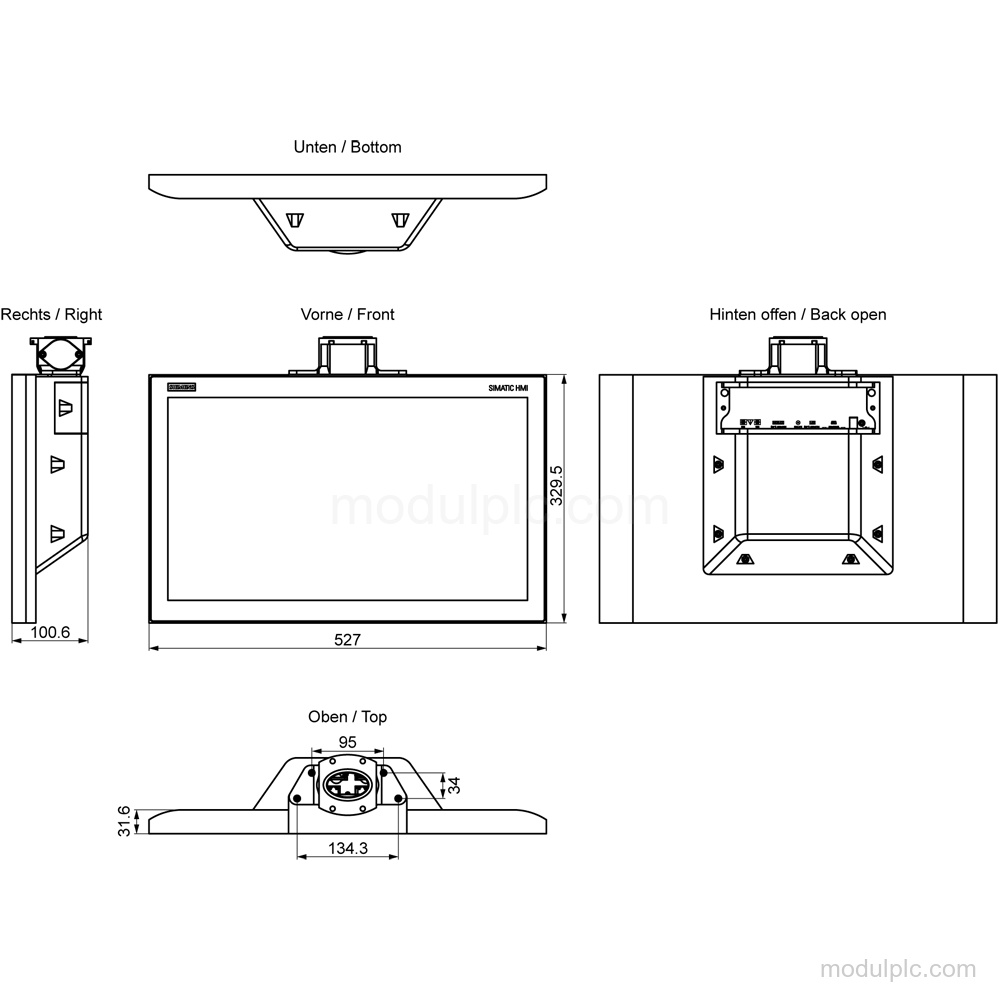

| Mounting | Support arm; vertical or landscape format |
| Protection | IP65 at the front and rear |
Key Features
- Widescreen multi-touch display: 21.5 in TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
- PROFINET and Ethernet interfaces: PROFINET is supported; the device has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V and 1 A rated current consumption.
- Support-arm installation: Mounting is for a support arm in vertical or landscape format; portrait format is not possible. The maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: The protection rating is IP65 at the front and rear. The front has NEMA Enclosure Type 4, Type 4x, and Type 12.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3XB27-0AX0 have?
It has a 21.5 in widescreen TFT multi-touch display with 1 920 pixel × 1 080 pixel resolution and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. What supply voltage does this MTP2200 PRO use?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How is the panel mounted?
It is mounted on a support arm in vertical or landscape format. Portrait mounting is not possible, and the maximum permissible angle of inclination without external ventilation is 35°.
