Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display size | 18.5 in widescreen TFT |
| Display resolution | 1 920 pixel × 1 080 pixel |
| Touch operation | Yes; multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes |
| PROFINET IO protocol support | No |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Mounting | Pedestal; vertical; landscape format possible |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| Protection at front and rear | IP65 |
Key Features
- 18.5 in widescreen display: TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
- Touch and onscreen keyboard: Yes; multi-touch screen with numeric and alphanumeric onscreen keyboard.
- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port; 2 integrated switch ports.
- Communication protocols: Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; PROFINET IO protocol support is No.
- Pedestal mounting: Pedestal mounting; vertical position supported, landscape format supported, and portrait format not supported. Maximum permissible inclination without external ventilation: 35°.
- 24 V DC supply: Rated supply value: 24 V; permissible range: 19.2 V to 28.8 V. Rated current consumption: 1.2 A; maximum: 1.7 A.
Frequently Asked Questions

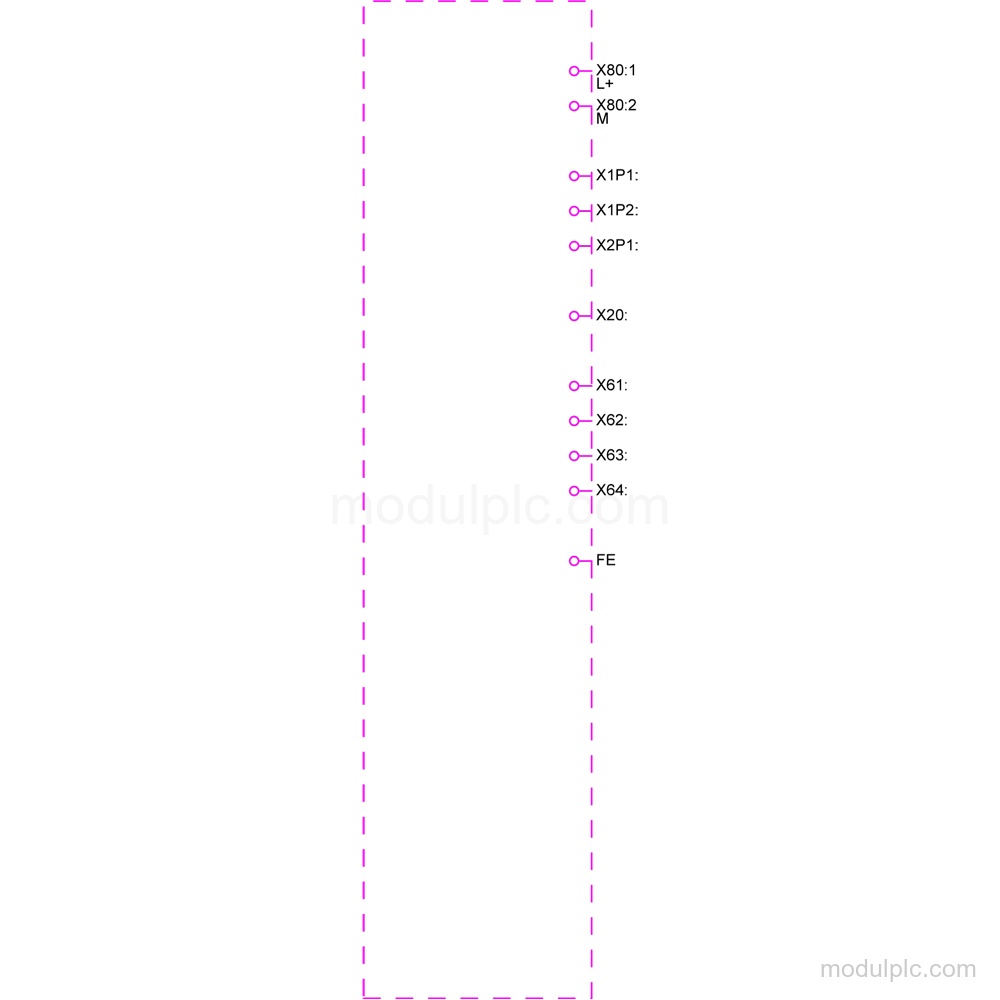

1. Which communication interfaces and protocols does 6AV2128-3UB57-1BX0 have?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
2. What display and touch functions does the panel provide?
It has an 18.5 in widescreen TFT display with 1 920 pixel × 1 080 pixel resolution and 16 777 216 colors. Multi-touch, numeric onscreen keyboard, and alphanumeric onscreen keyboard are supported.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Rated current consumption is 1.2 A and maximum current consumption is 1.7 A.

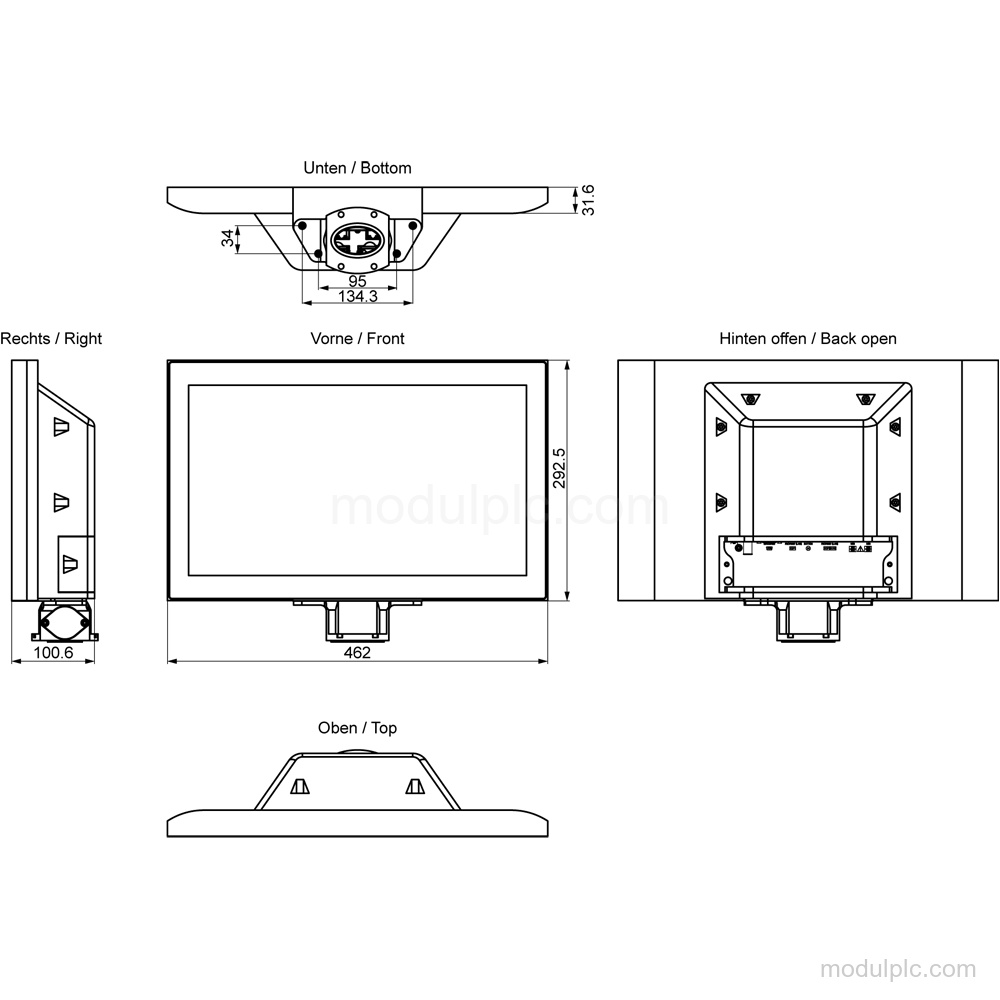

4. How is 6AV2128-3UB57-1BX0 mounted?
It uses pedestal mounting. Vertical and landscape-format mounting are supported; portrait-format mounting is not supported. The maximum permissible inclination without external ventilation is 35°.
