Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1900 Unified Comfort PRO Neutral Front |
| Display | 18.5 in widescreen TFT |
| Touch operation | Multi-touch screen |
| Mounting | Support arm, vertical position |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes; protocol for PROFINET IO: No |
| RS 422 / 485 interface | 1 combined interface |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Active power input, typ. | 28.8 W |
| Protection | IP65 at the front and rear |
| Configuration | Configurable as of WinCC Unified Comfort V18 |

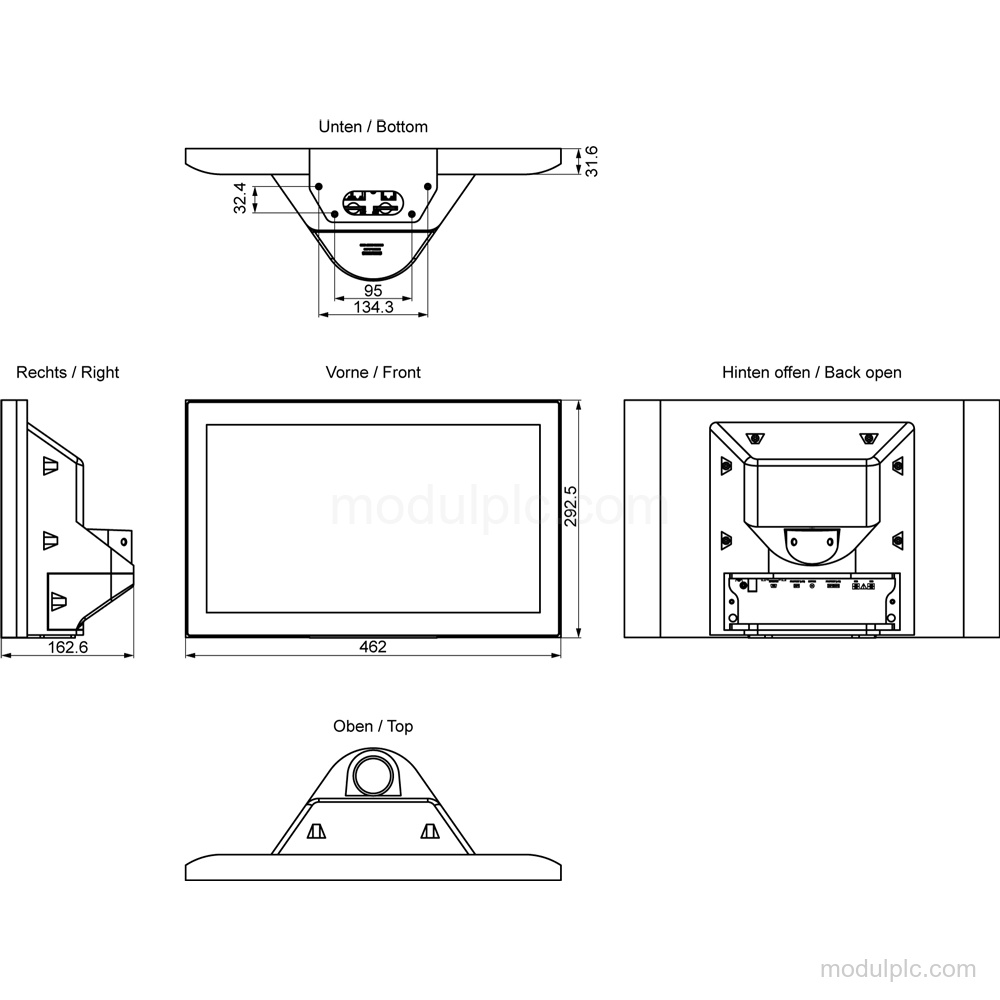

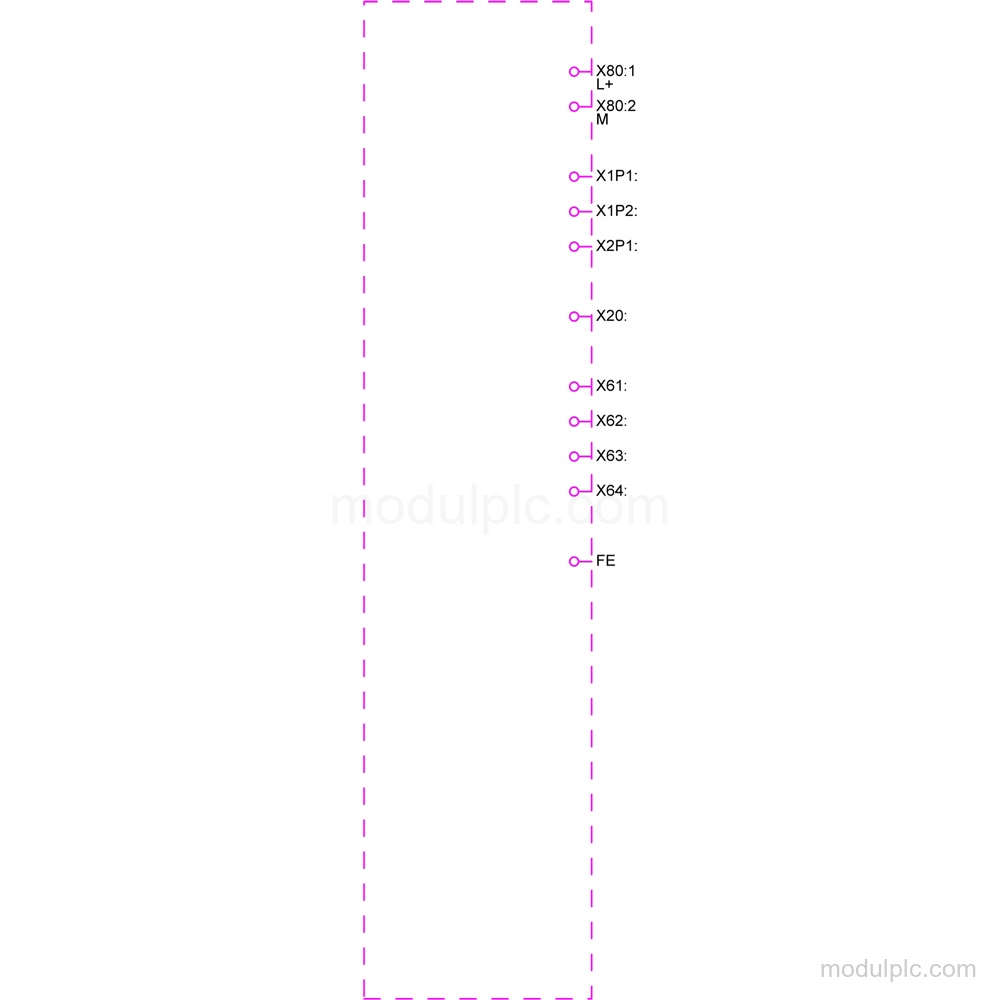

Key Features
- Display and touch: 18.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, 16 777 216 colors, and multi-touch operation.
- Support-arm mounting: Support-arm mounting in vertical position; landscape format is possible, portrait format is not, and the maximum permissible angle of inclination without external ventilation is 35°.
- Supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 1.2 A rated current consumption, 1.7 A maximum current consumption, and 28.8 W typical active power input.
- Industrial Ethernet and PROFINET: 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Protection and software: IP65 protection at the front and rear; configurable as of WinCC Unified Comfort V18 and contains open-source software provided free of charge.
Frequently Asked Questions
1. What display does the 6AV2128-3UB57-0BX0 have?
It has an 18.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
2. How is the 6AV2128-3UB57-0BX0 mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible; portrait format is not.
3. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
4. What supply does this panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
