Product Overview
Technical Summary

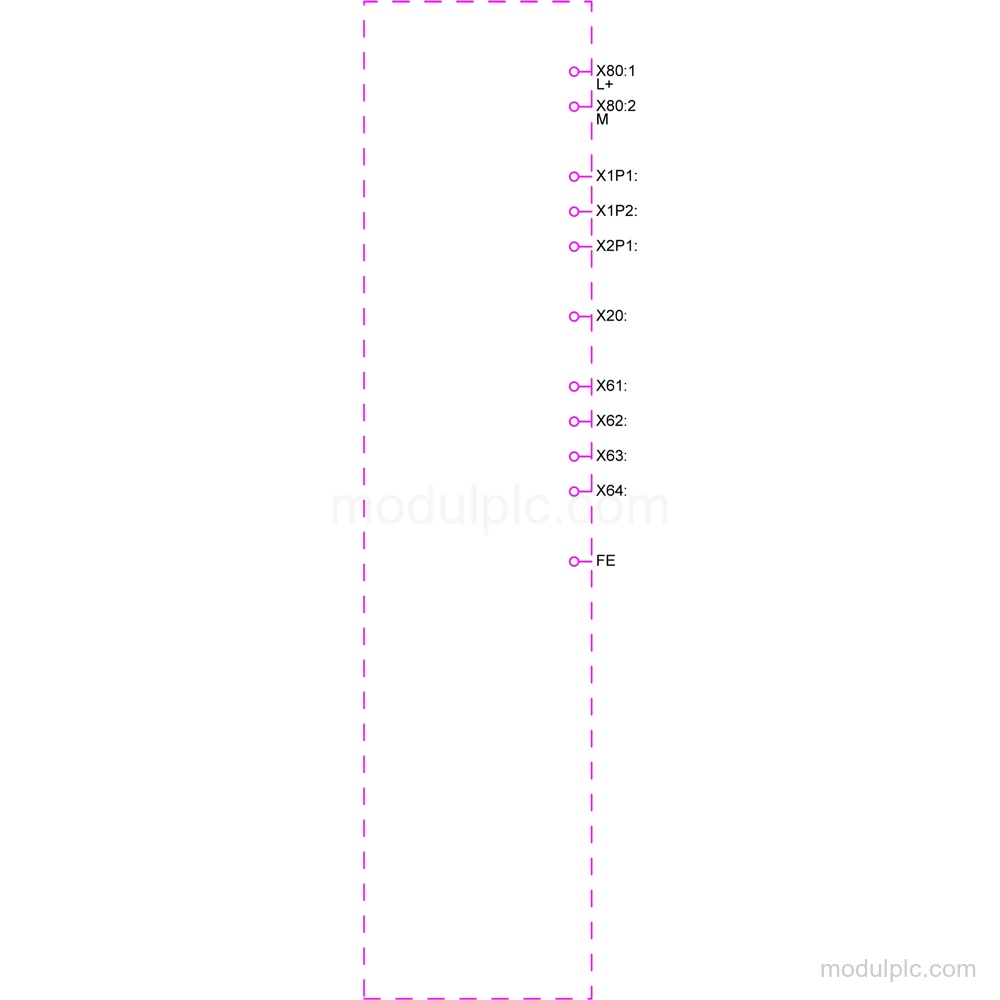

| Parameter | Value |
|---|---|
| Display | 18.5 in widescreen TFT |
| Resolution | 1 920 x 1 080 pixel |
| PROFINET interface | 2 industrial Ethernet interfaces; 2 ports with switch + 1 independent port |
| Additional interfaces | 1 RS 422 / 485, 4 USB 3.1 Gen. 1 type A, 2 SD card slots |
| Supply | 24 V DC; 19.2 V to 28.8 V |

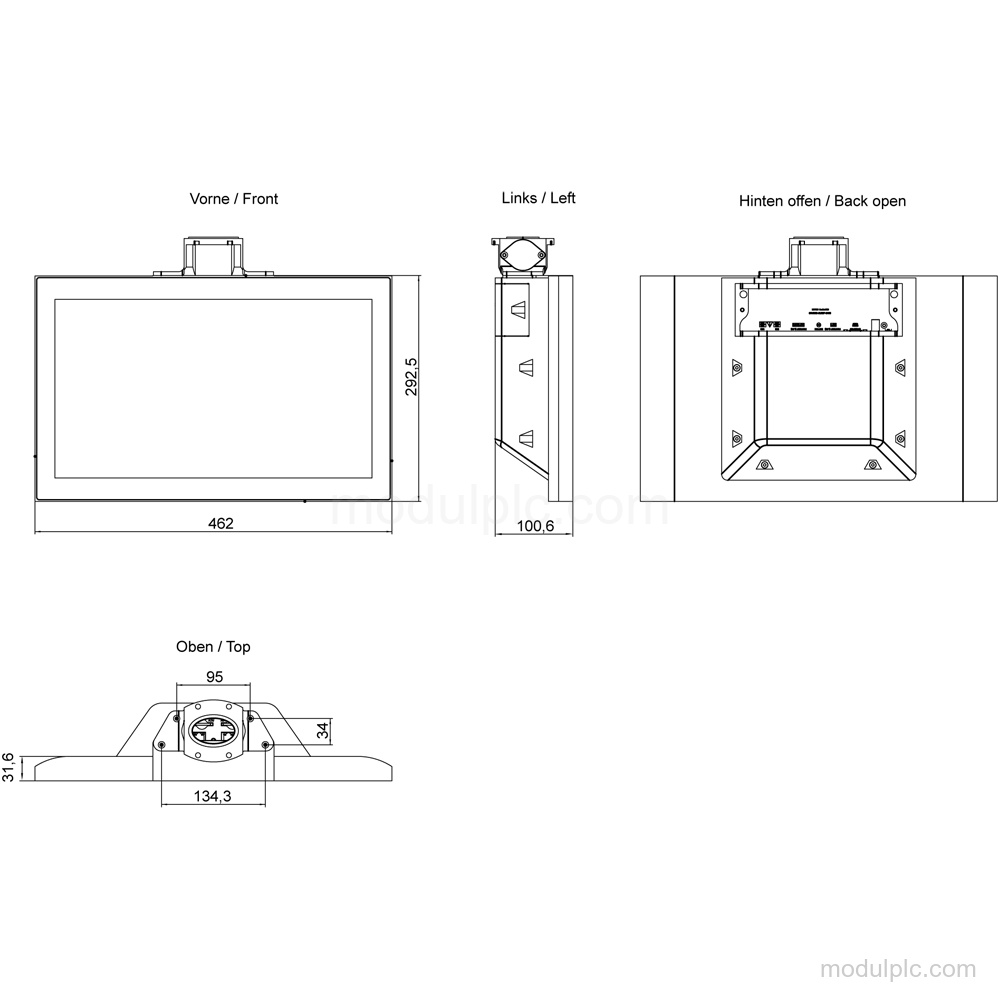

| Mounting | Support arm, vertical; landscape format possible |
| Protection | IP65 at the front and rear |
Key Features
- Display and touch operation: 18.5 in widescreen TFT display with 16 777 216 colors, 1 920 x 1 080 pixel resolution, touch and multi-touch operation.
- PROFINET interface: PROFINET interface with 2 industrial Ethernet interfaces: 2 ports with an integrated switch plus 1 independent port.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Power supply: DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
- Support-arm installation: Support-arm mounting in vertical position; landscape format is possible, while portrait format is not.
- Protection and software: IP65 protection at the front and rear; configurable as of WinCC Unified Comfort V18 and contains open-source software provided free of charge.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3UB57-0AX0 have?
It has an 18.5 in widescreen TFT display with 16 777 216 colors and 1 920 x 1 080 pixel resolution.
2. What network interfaces are included?
It has 2 industrial Ethernet interfaces: 2 ports with an integrated switch plus 1 independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
3. What supply voltage does this HMI panel require?
The DC rated supply value is 24 V, with a permissible range from 19.2 V to 28.8 V.
4. How is the panel mounted?
It is mounted on a support arm in a vertical position. Landscape format is possible; portrait format is not.
