Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 18.5" TFT widescreen multi-touch display |
| Image resolution | 1 920 × 1 080 pixel |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| RS 422 / 485 interface | 1 combined interface |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| Mounting | Pedestal, vertical; landscape format possible |
| Protection | IP65 at the front and rear |
Key Features
- Widescreen multi-touch display: 18.5" TFT display with 1 920 × 1 080 pixel resolution, 16 777 216 colors, and multi-touch operation.

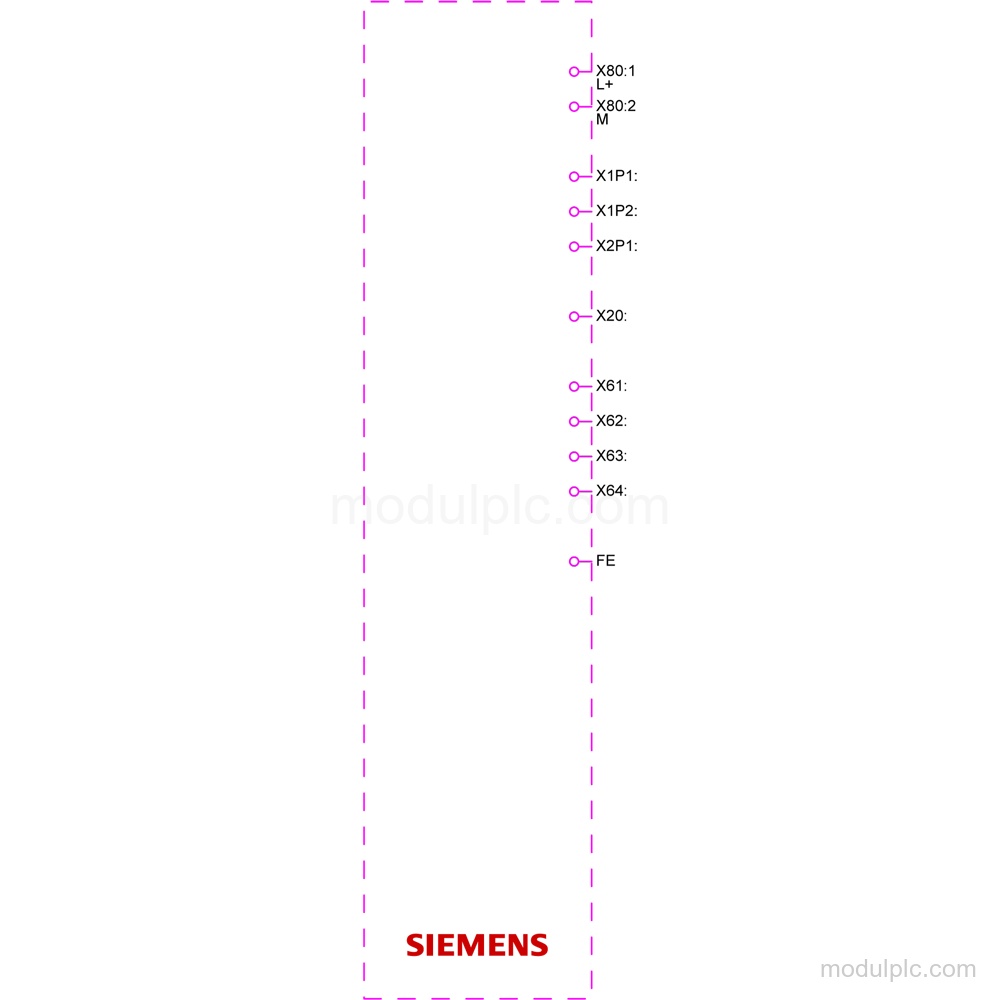

- PROFINET and Ethernet interfaces: 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- DC supply and power: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V; rated current consumption: 1.2 A; maximum current consumption: 1.7 A.

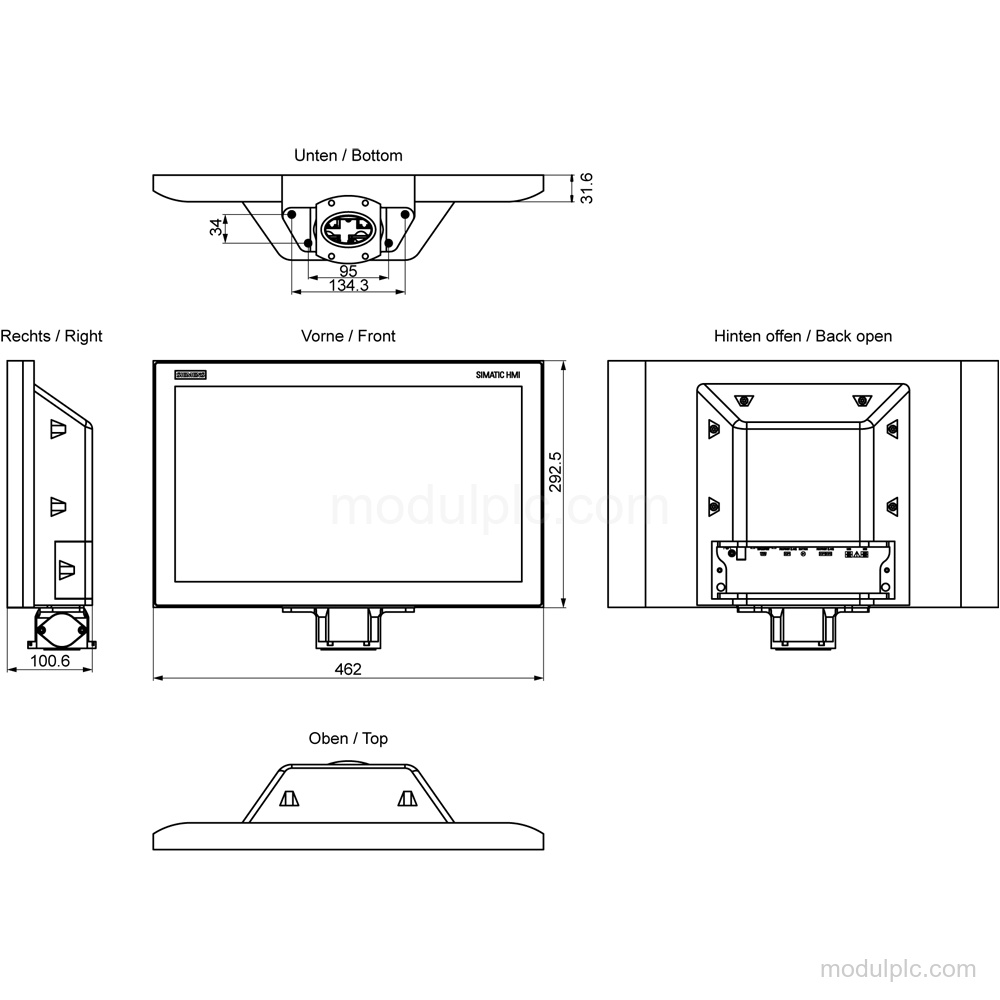

- Pedestal mounting: Pedestal mounting in vertical position; landscape format possible, portrait format not possible; maximum permissible angle of inclination without external ventilation: 35°.
- Front and rear protection: IP65 protection at the front and rear; front enclosure ratings include NEMA Type 4, Type 4x, and Type 12.
Frequently Asked Questions
1. Which protocols does the Siemens 6AV2128-3UB27-1BX0 support?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. It does not support the protocol for PROFINET IO.
2. How many industrial Ethernet ports does the MTP1900 PRO have?
It has 2 industrial Ethernet interfaces: 2 switch ports plus 1 independent port. The integrated switch has 2 ports.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the 6AV2128-3UB27-1BX0 mounted?
It uses pedestal mounting in a vertical position. Landscape mounting is possible, portrait mounting is not possible, and the maximum permissible inclination without external ventilation is 35°.
