Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1900 Unified Comfort PRO |
| Display | 18.5 in widescreen TFT |
| Resolution | 1 920 x 1 080 pixel |
| Touch operation | Yes; multi-touch screen |

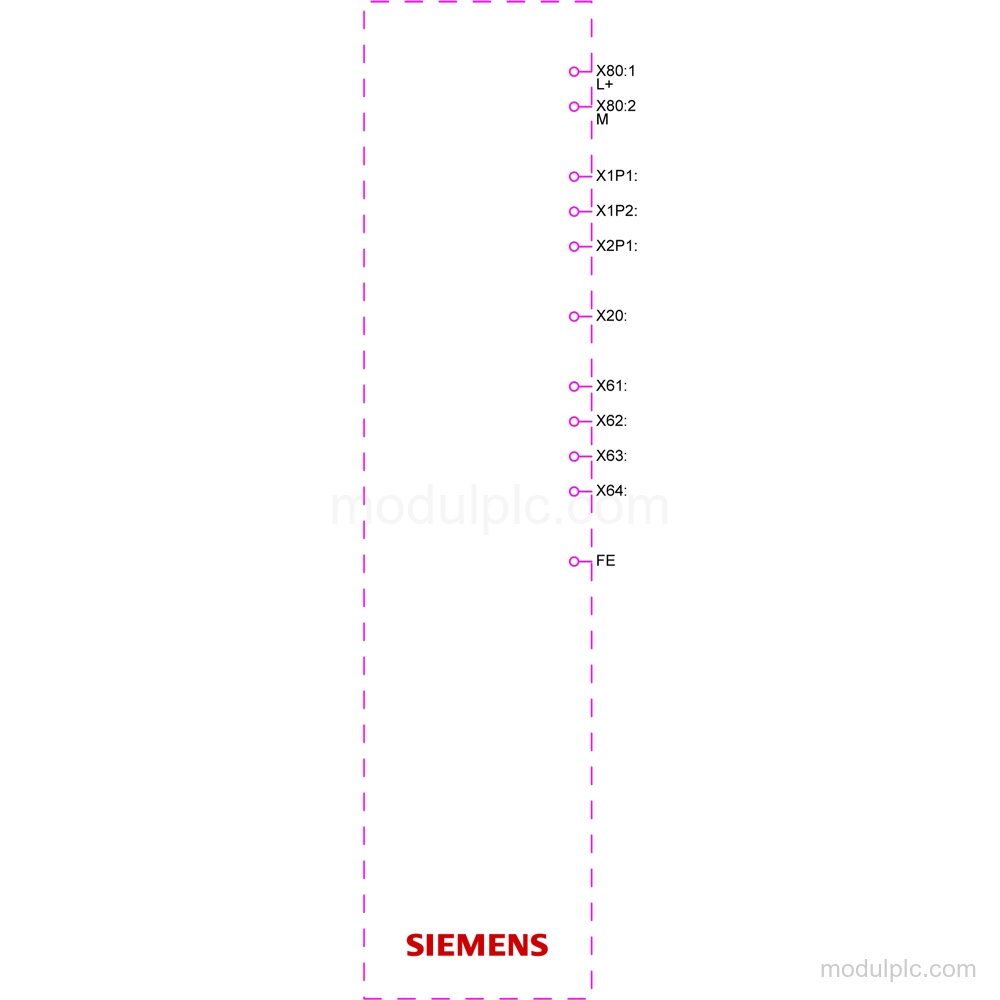

| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Rated current consumption | 1.2 A |

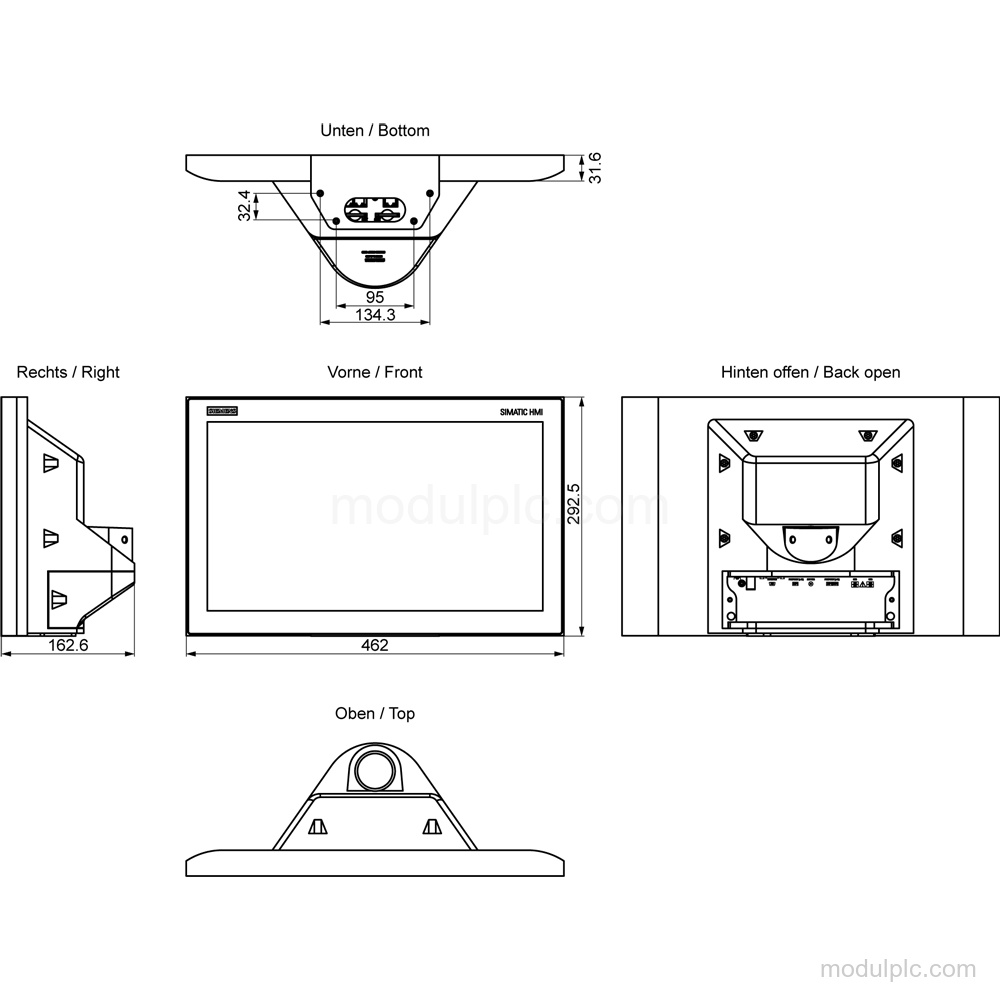

| Mounting | Support arm; vertical; landscape possible |
| Front protection | IP65; NEMA Enclosure Type 4, 4x, and 12 |
Key Features
- Widescreen TFT display: The display has an 18.5 in diagonal, 16 777 216 colors, and 1 920 x 1 080 pixel resolution.
- Touch and onscreen keyboard: The panel has touch and multi-touch operation, plus numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet interfaces: It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, plus 2 industrial Ethernet status LEDs.
- Network protocols: Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. PROFINET IO protocol support is No.
- Support-arm mounting: Mounting is for a support arm in vertical position. Landscape mounting is possible; portrait mounting is No. The maximum permissible angle of inclination without external ventilation is 35°.
- 24 V DC supply: The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Rated current consumption is 1.2 A and maximum current consumption is 1.7 A.
Frequently Asked Questions
1. What display does the 6AV2128-3UB27-0BX0 have?
It has an 18.5 in widescreen TFT display with 16 777 216 colors and 1 920 x 1 080 pixel resolution.
2. Which Ethernet interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port. Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. What supply voltage does this panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted?
It uses support-arm mounting in vertical position. Landscape mounting is possible, while portrait mounting is No. The maximum permissible angle of inclination without external ventilation is 35°.
