Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1900 Unified Comfort PRO |
| Display | 18.5 in TFT widescreen, 16 777 216 colors |
| Touch operation | Multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 1.2 A rated; 1.7 A max. |

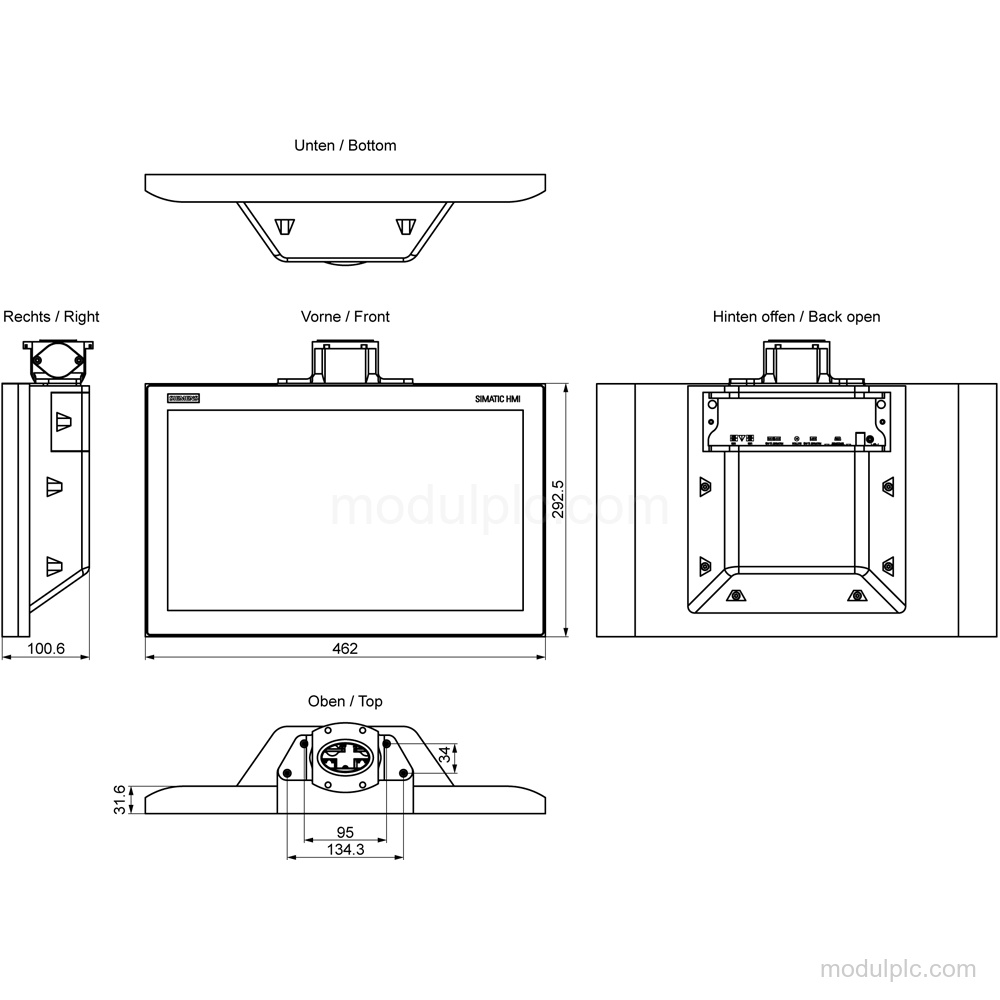

| Mounting | Support arm, vertical; landscape format possible |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Protection | IP65 at the front and rear |
Key Features
- 18.5 in widescreen display: TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
- Touch and onscreen keyboard: Multi-touch screen with numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port.
- PROFINET and Ethernet protocols: Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; PROFINET IO protocol support is No.
- Support-arm installation: Vertical support-arm mounting; landscape format is possible, portrait format is not. Maximum permissible angle of inclination without external ventilation is 35°.
- 24 V DC supply and IP65 protection: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V. IP65 protection applies at the front and rear.
Frequently Asked Questions
1. What display does the 6AV2128-3UB27-0AX0 have?
It has an 18.5 in TFT widescreen display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, configured as 2 ports on an integrated switch plus an independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. How is the panel mounted and supplied?
It uses vertical support-arm mounting and supports landscape format, but not portrait format. Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
