Product Overview
Technical Summary

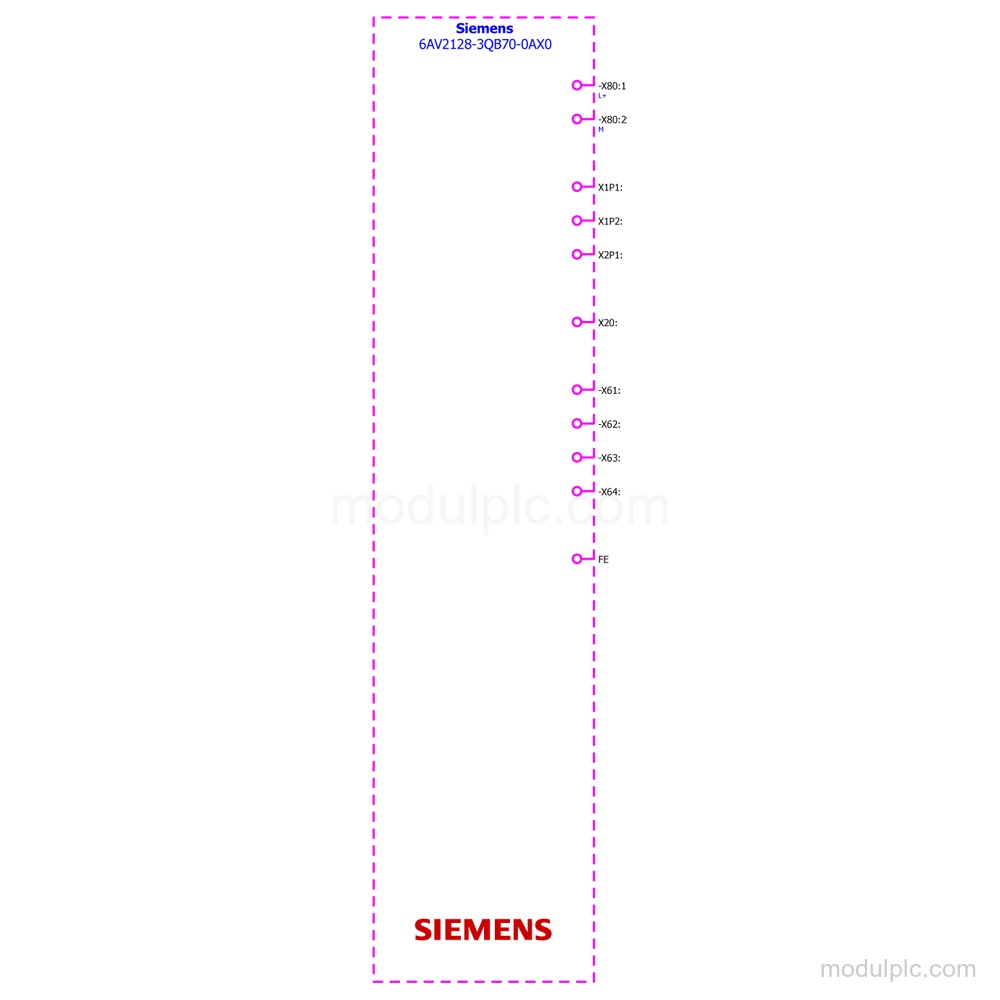

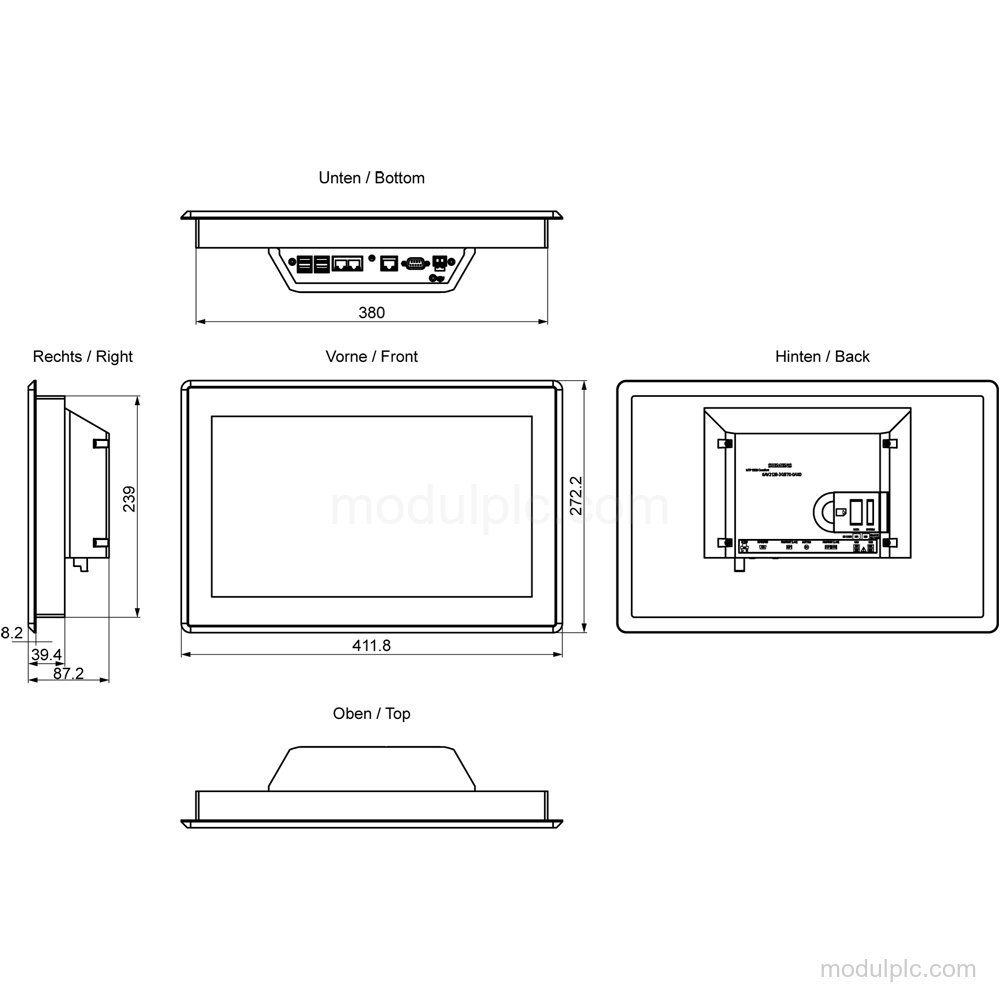

| Parameter | Value |
|---|---|
| Product type | MTP1500 Unified Comfort |
| Display | 15.6 in widescreen TFT |
| Display resolution | 1 366 × 768 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 switch ports plus 1 independent port |
| PROFINET | Yes |
| USB interfaces | 4; USB 3.1 Gen. 1 type A |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible range |
| Current consumption | 0.7 A rated; 1.3 A maximum |
| Front protection | IP69 |
| Rear protection | IP20 |
| Mounting | Horizontal or vertical; portrait or landscape |
Key Features
- 15.6 in widescreen TFT display: The display has a 15.6 in diagonal, 1 366 × 768 pixel resolution, and 16 777 216 colors.
- Touch and multi-touch operation: The panel has a touch screen, multi-touch screen, numeric onscreen keyboard, and alphanumeric onscreen keyboard.
- Industrial Ethernet interfaces: It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.7 A rated and 1.3 A maximum.
- Hygienic stainless-steel design: The panel has a hygienic stainless-steel design, a blue FDA-compliant gasket, and increased impact protection with splinter protection on the display front according to DIN EN 1672-2 and FDA 21 CFR 177.2006.
- Horizontal or vertical mounting: Horizontal and vertical mounting are supported, including portrait and landscape formats. The maximum permissible angle of inclination without external ventilation is 35°.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3QB70-0AX0 have?
It has a 15.6 in widescreen TFT display with 1 366 × 768 pixel resolution and 16 777 216 colors.
2. Which Ethernet interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage and current does the panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.7 A rated and 1.3 A maximum.
4. How can the panel be mounted?
It supports horizontal or vertical mounting, including portrait and landscape formats. The maximum permissible angle of inclination without external ventilation is 35°.
5. What protection ratings does the configuration have?
The front has IP69 protection and the rear has IP20 protection.
