Product Overview
Technical Summary
| Parameter | Value |
|---|---|

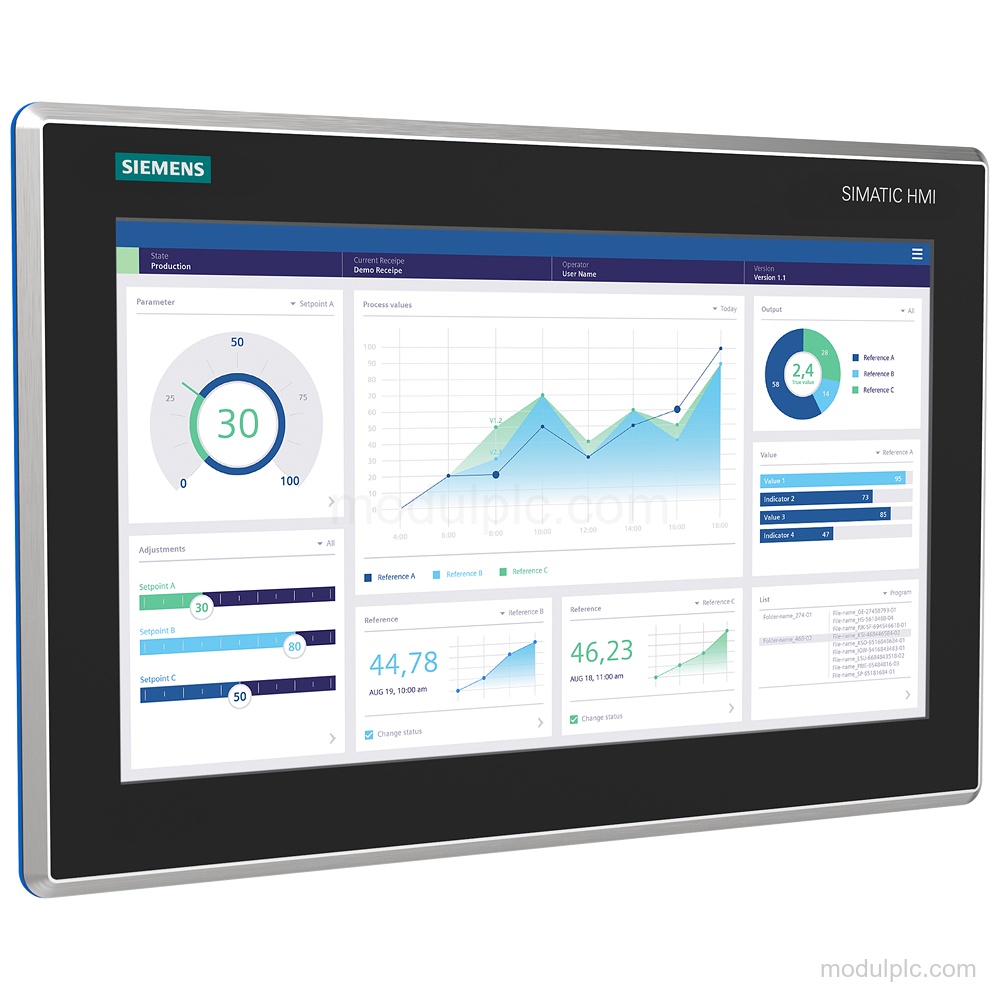

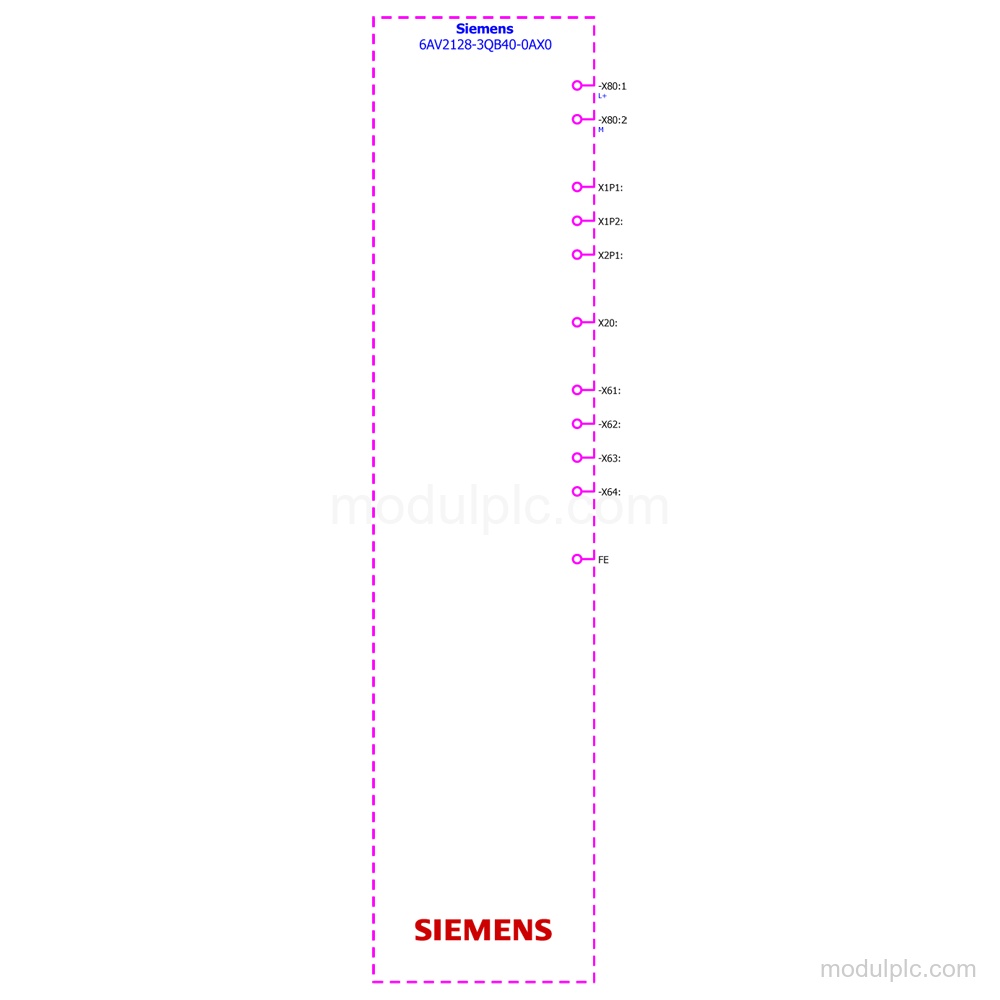

| Product type | MTP1500 Unified Comfort |
| Display | 15.6 in widescreen TFT |
| Display resolution | 1 366 pixel × 768 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| SD card slots | 2 |

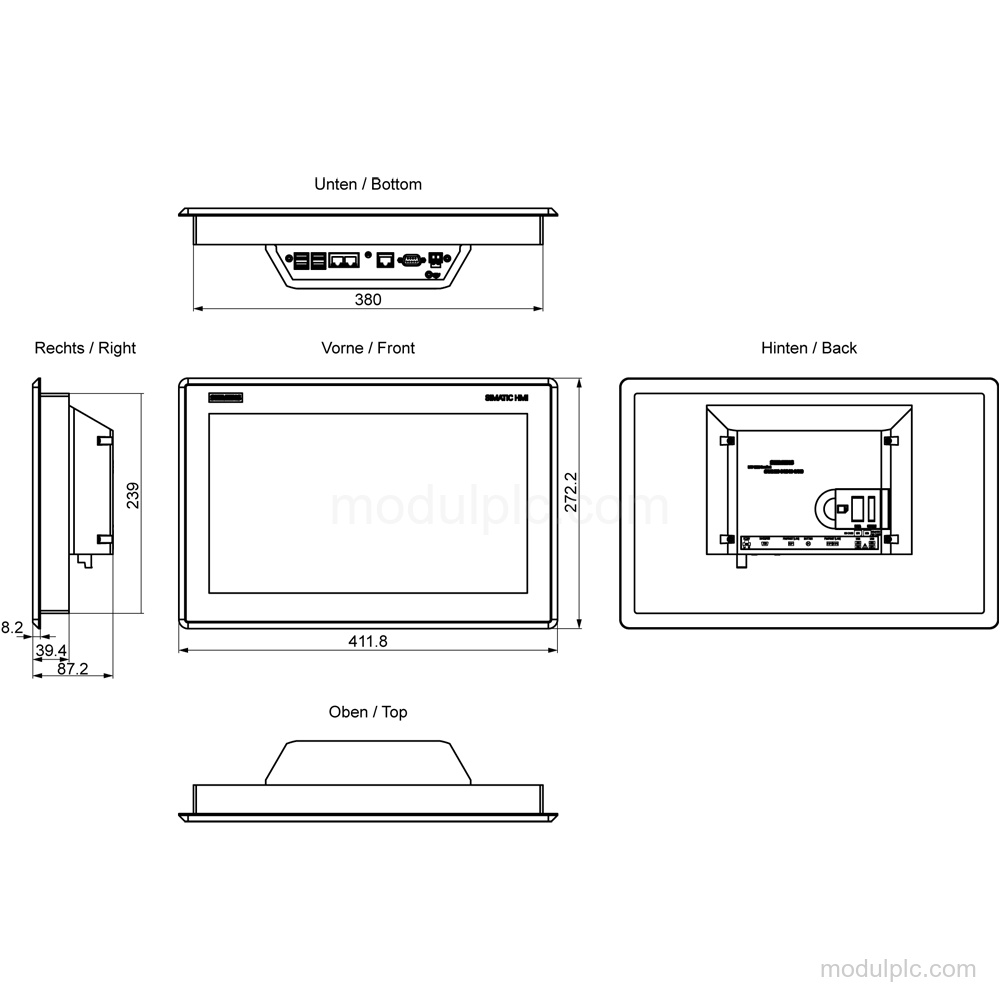

| Mounting position | Horizontal, vertical |
| Maximum permissible angle of inclination without external ventilation | 35° |
| Protection | IP69 at the front; IP20 at the rear |
Key Features
- 15.6 in widescreen TFT display: The display has a 15.6 in diagonal, 1 366 pixel horizontal resolution, 768 pixel vertical resolution, and 16 777 216 colors.
- Touch and onscreen keyboard: The panel has touch-screen and multi-touch operation, a monitor keyboard, and numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet and PROFINET: The panel has 2 industrial Ethernet interfaces, with 2 switch ports plus 1 independent port, and supports PROFINET.
- Supply and current: The supply is DC with a rated value of 24 V; the permissible range is 19.2 V to 28.8 V. Current consumption is 0.7 A rated and 1.3 A maximum.
- Hygienic protection: The panel has stainless steel construction, a blue FDA-compliant gasket, and IP69 protection at the front and IP20 protection at the rear.
Frequently Asked Questions
1. What display does the 6AV2128-3QB40-0AX0 have?
It has a 15.6 in widescreen TFT display with 1 366 pixel × 768 pixel resolution and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, with 2 switch ports plus 1 independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP are supported.
3. What supply voltage does this panel require?
The supply is DC. The rated value is 24 V, with a permissible range of 19.2 V to 28.8 V.
4. What protection and mounting details should be verified?
Protection is IP69 at the front and IP20 at the rear. Mounting is horizontal or vertical, with a maximum permissible angle of inclination of 35° without external ventilation.
