Product Overview
Technical Summary

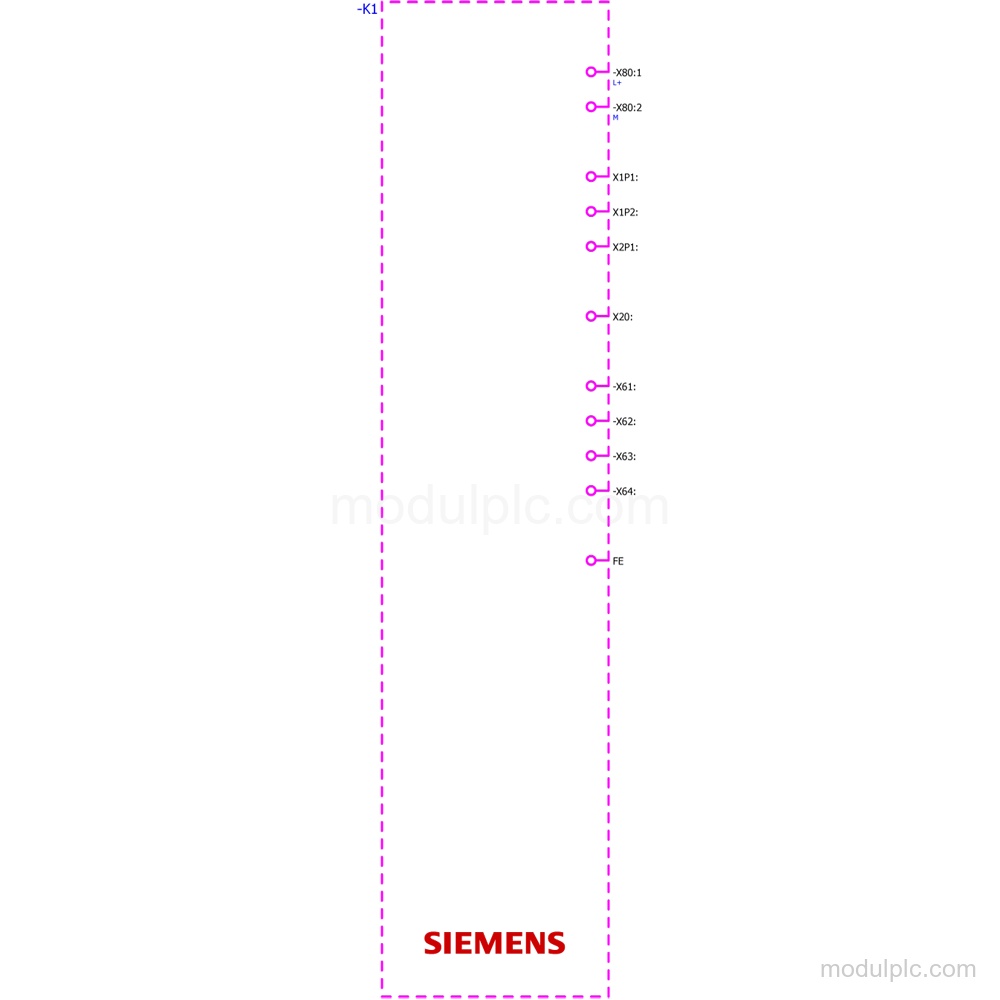

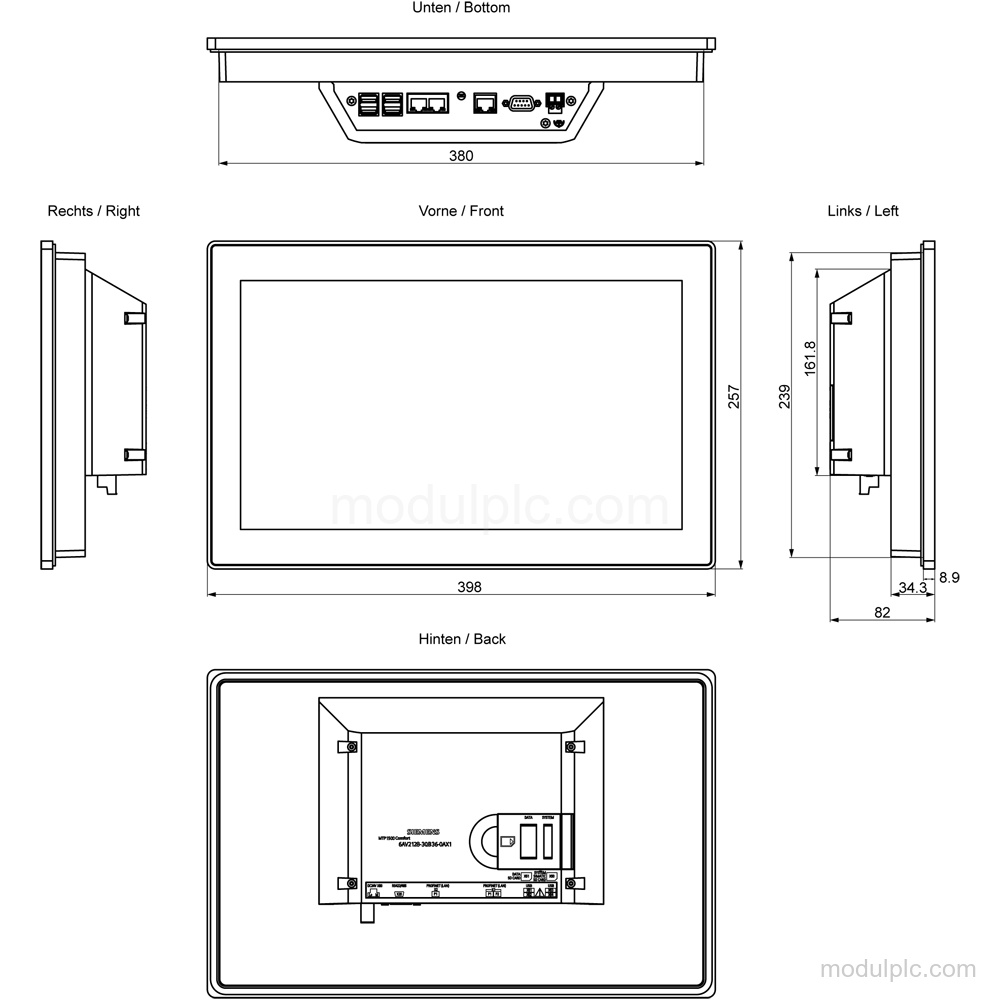

| Parameter | Value |
|---|---|
| Product type | MTP1500 Unified Comfort |
| Display | 15.6 in TFT widescreen, 16 777 216 colors |
| Resolution | 1 366 pixel × 768 pixel |
| Touch operation | Multi-touch screen with numeric and alphanumeric onscreen keyboards |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Current consumption | 0.7 A rated; 1.3 A maximum |
| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- 15.6 in widescreen display: TFT display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
- Touch and onscreen keyboard: Multi-touch screen with numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port.
- Communication protocols: Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
- Supply and current: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.
- Installation and protection: Vertical mounting; portrait and landscape mounting are possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3QB36-0AX1 have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
2. How are the industrial Ethernet interfaces configured?
There are 2 industrial Ethernet interfaces: 2 ports on an integrated switch plus 1 independent port.
3. Which protocols does this panel support?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. The source also states that it does not support the protocol for PROFINET IO.
4. What supply voltage and current are required?
The supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Current consumption is 0.7 A rated and 1.3 A maximum.
5. What mounting and protection details should be verified?
Mounting is vertical, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
