Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1500 Unified Comfort PRO |
| Display | 15.6 in widescreen TFT |
| Resolution | 1 366 × 768 pixel |
| Touch operation | Multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Additional interfaces | 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |

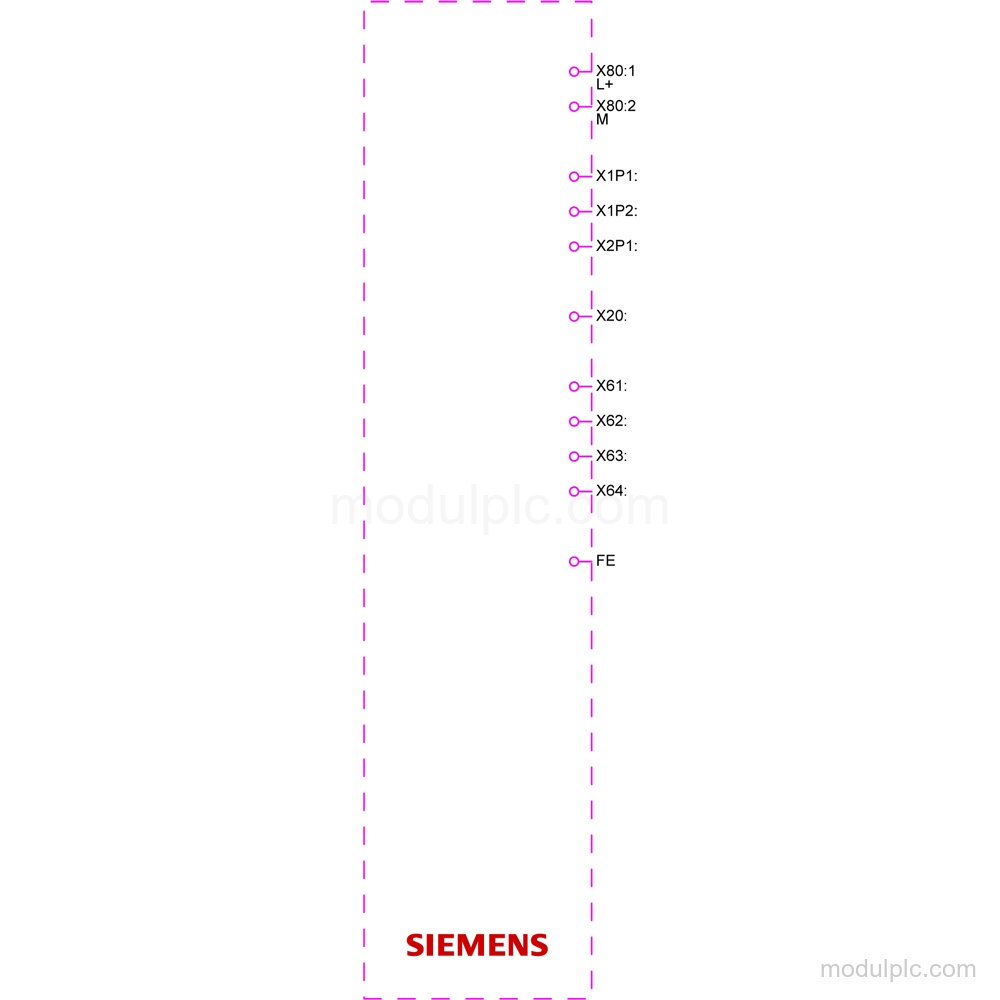

| Supply | 24 V DC; 19.2 V to 28.8 V |

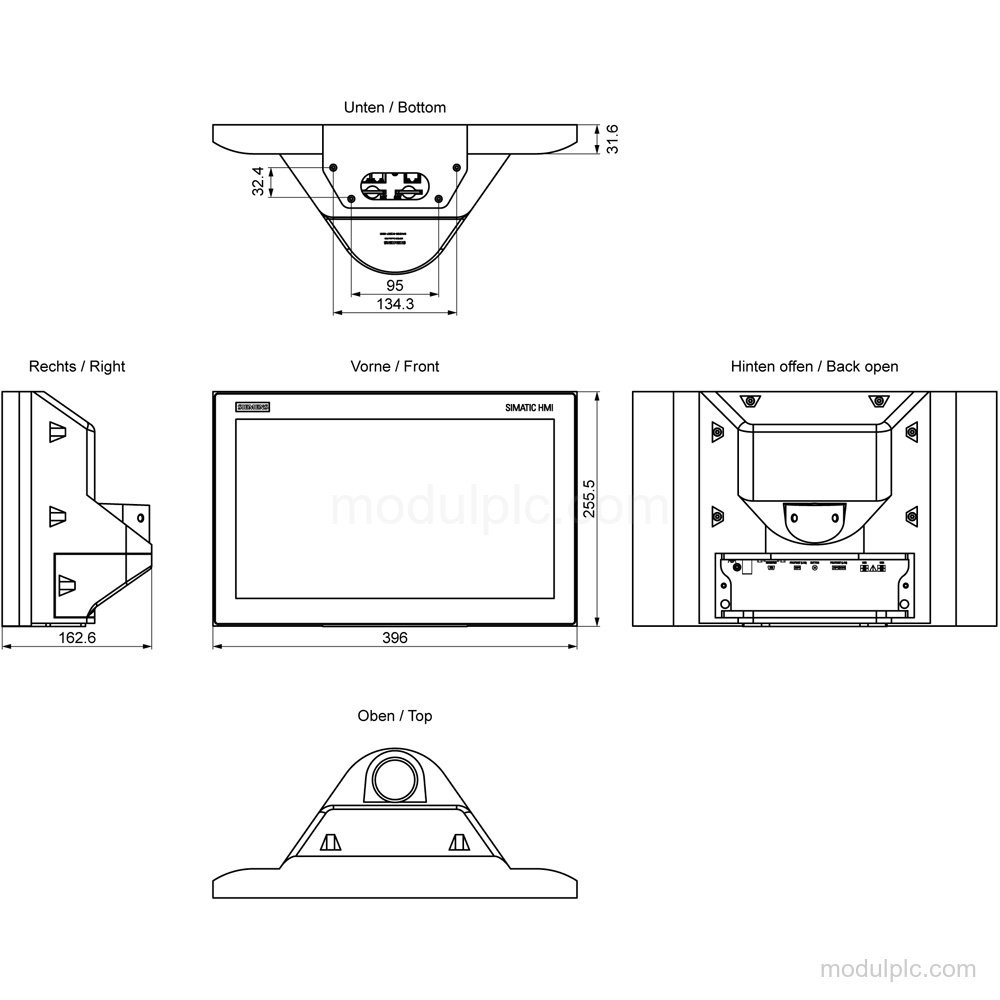

| Mounting | Support arm; vertical; landscape possible |
Key Features
- Display: 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 × 768 pixel resolution.
- Touch and keyboard: Multi-touch screen with numeric and alphanumeric onscreen keyboard.
- PROFINET interface: PROFINET interface with 2 industrial Ethernet interfaces: 2 ports in an integrated switch plus 1 independent port.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Power supply: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.
- Installation and protection: Support-arm mounting in vertical position; landscape mounting is possible, portrait mounting is not. IP65 protection applies at the front and rear.
Frequently Asked Questions
1. What display does the 6AV2128-3QB27-0BX0 have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 × 768 pixel resolution.
2. What network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; protocol support for PROFINET IO is No.
3. What supply voltage and mounting are required?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is by support arm in vertical position; landscape mounting is possible.
