Product Overview
Technical Summary

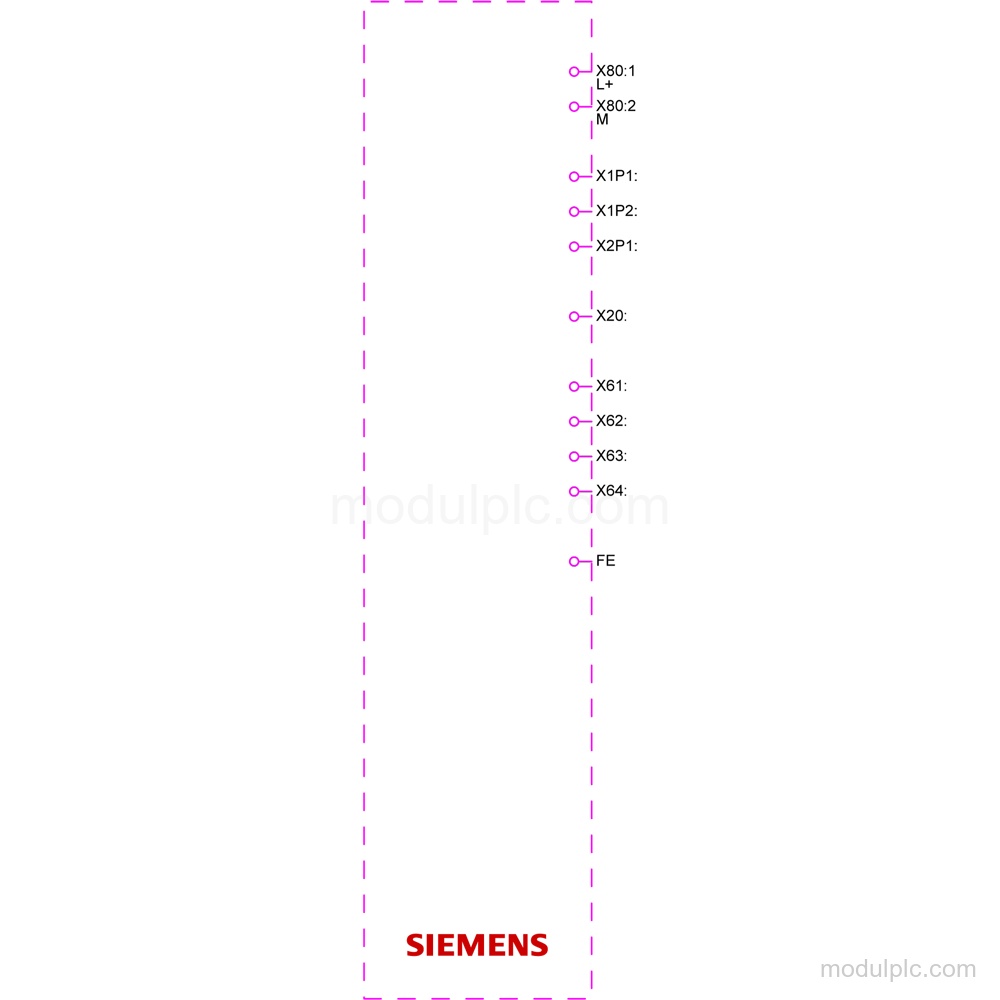

| Parameter | Value |
|---|---|
| Product type | MTP1500 Unified Comfort PRO |
| Display | 15.6 in widescreen TFT |
| Resolution | 1 366 pixel × 768 pixel |
| Touch operation | Yes; multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| RS 422 / 485 interface | 1; combined |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| SD card slots | 2 |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply | 24 V DC; 19.2 V to 28.8 V |

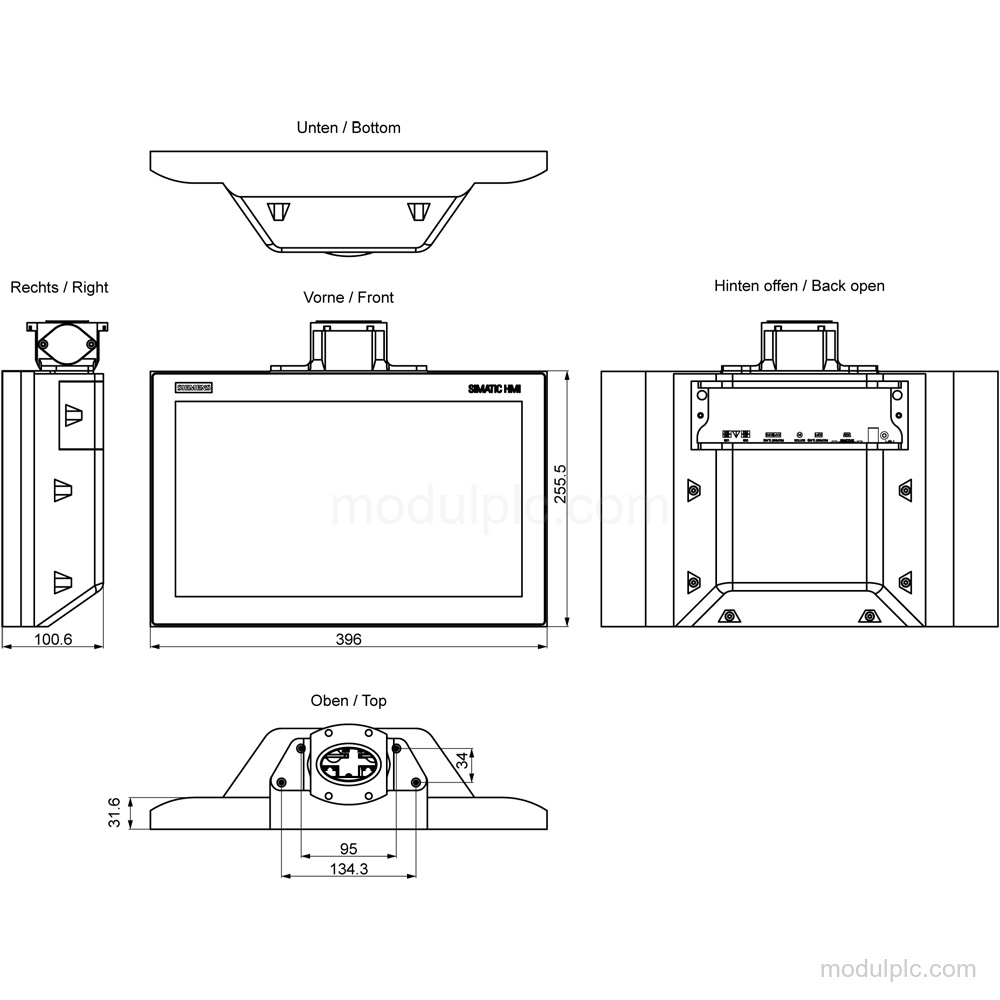

| Mounting | Support arm; vertical; landscape format possible |
Key Features
- Display and touch operation: 15.6 in widescreen TFT display with 16 777 216 colors, 1 366 pixel × 768 pixel resolution, touch operation, and multi-touch operation.
- PROFINET and Ethernet interfaces: PROFINET interface with 2 industrial Ethernet interfaces: 2 ports in an integrated switch plus 1 independent port.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Supported protocols: Supports TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; PROFINET IO protocol support is No.
- DC supply and consumption: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.
- Support-arm installation: Support-arm mounting in vertical position; landscape format is possible, portrait format is not, and the maximum permissible angle of inclination without external ventilation is 35°.
Frequently Asked Questions
1. What interfaces does the Siemens 6AV2128-3QB27-0AX0 have?
It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
2. Which protocols does the 6AV2128-3QB27-0AX0 support?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. PROFINET IO protocol support is No.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the 6AV2128-3QB27-0AX0 mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible; portrait format is not.
