Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1500 Unified Comfort |
| Display | 15.6 in TFT multi-touch display |
| Display resolution | 1 366 × 768 pixel |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| Current consumption | 0.7 A rated; 1.3 A maximum |
| Mounting | Vertical; portrait and landscape formats |
| Front protection | IP65; Enclosure Type 4x and Type 12 |
| Rear protection | IP20 |
Key Features
- 15.6 in TFT multi-touch display: The display has a 15.6 in screen diagonal, 1 366 × 768 pixel resolution, and 16 777 216 colors.

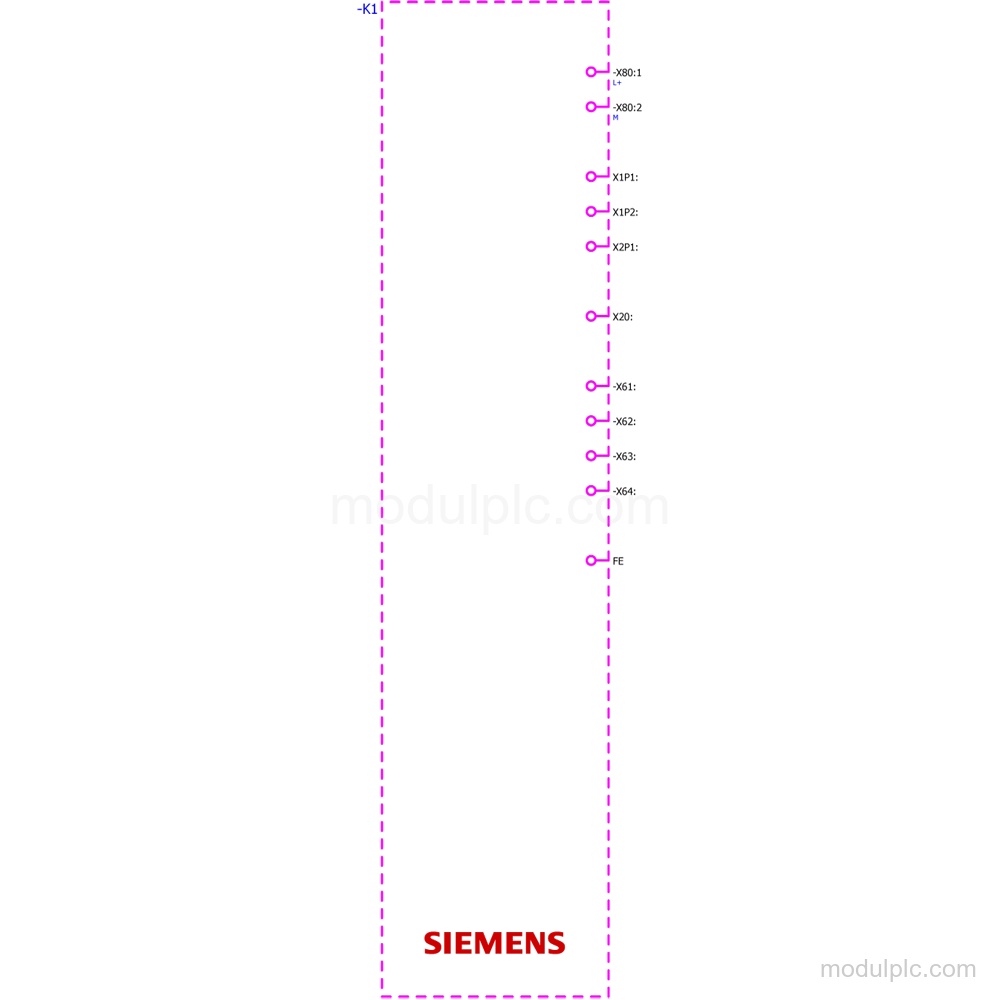

- PROFINET and Ethernet interfaces: The panel has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- USB and serial interfaces: The panel has 4 USB 3.1 Gen. 1 type A interfaces and 1 combined RS 422 / 485 interface.
- 24 V DC supply: The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Rated current consumption is 0.7 A and maximum current consumption is 1.3 A.

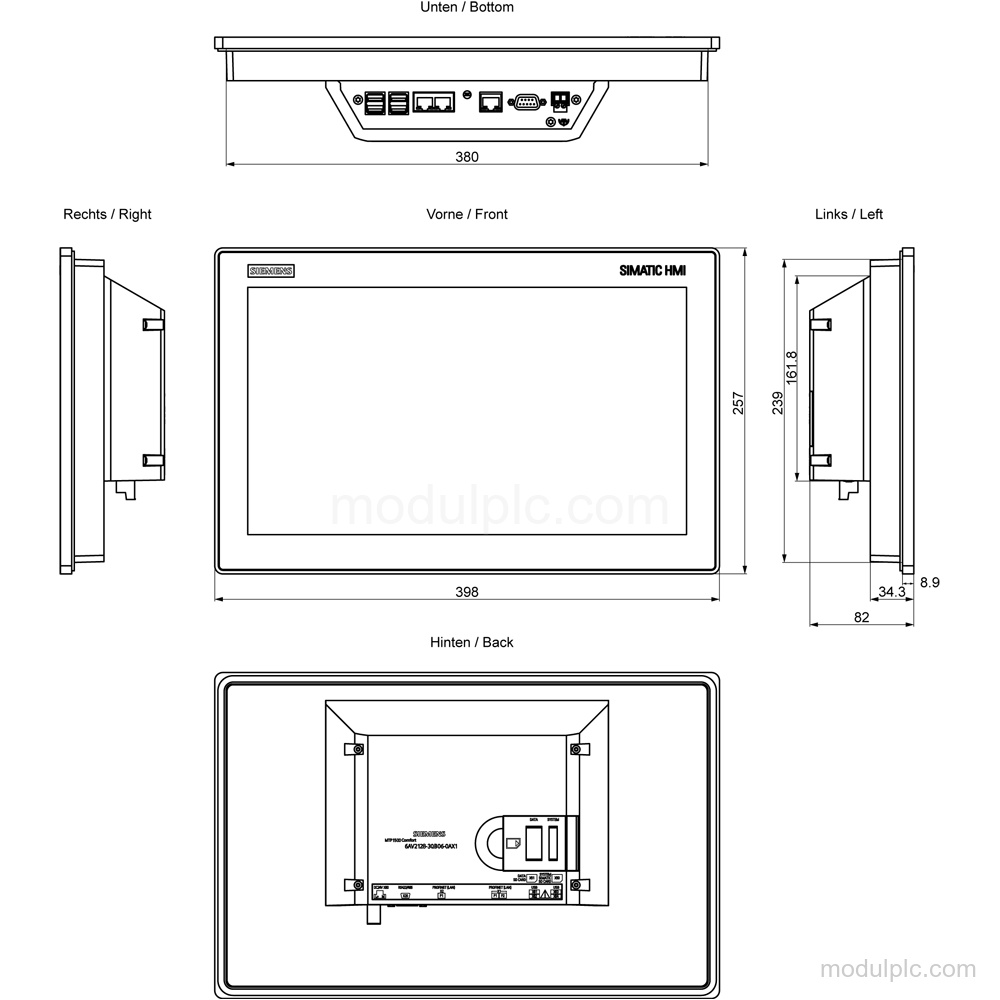

- Flexible panel mounting: Vertical mounting is supported, with portrait and landscape formats possible. The maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: The front has IP65 protection and Enclosure Type 4x and Type 12. The rear has IP20 protection.
Frequently Asked Questions
1. What display does the 6AV2128-3QB06-0AX1 have?
It has a 15.6 in TFT multi-touch display with 1 366 × 768 pixel resolution and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP, but does not support the protocol for PROFINET IO.
3. What supply voltage and current does the panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Rated current consumption is 0.7 A and maximum current consumption is 1.3 A.
4. How can the panel be mounted?
It is mounted vertically, with portrait and landscape formats possible. The maximum permissible angle of inclination without external ventilation is 35°.
5. What protection ratings apply to the panel?
The front has IP65 protection and Enclosure Type 4x and Type 12. The rear has IP20 protection.
