Product Overview
Technical Summary
| Parameter | Value |
|---|---|

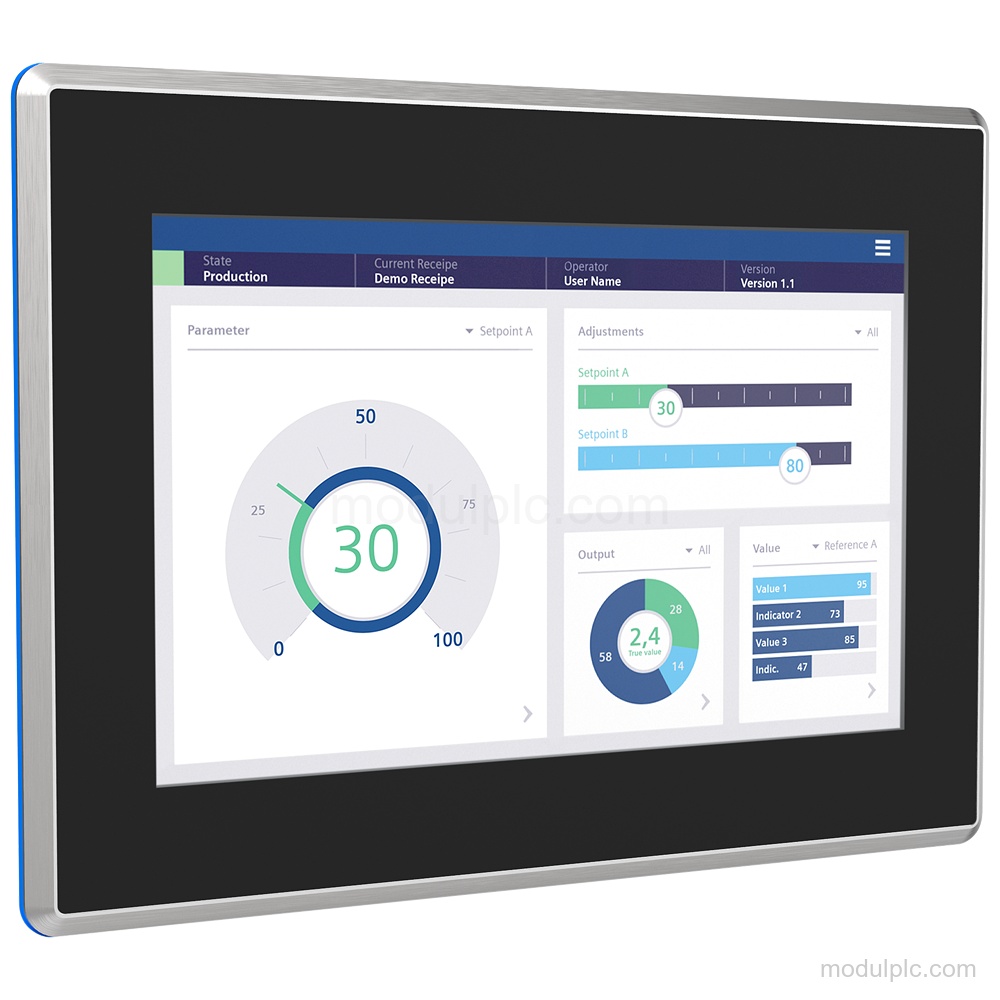

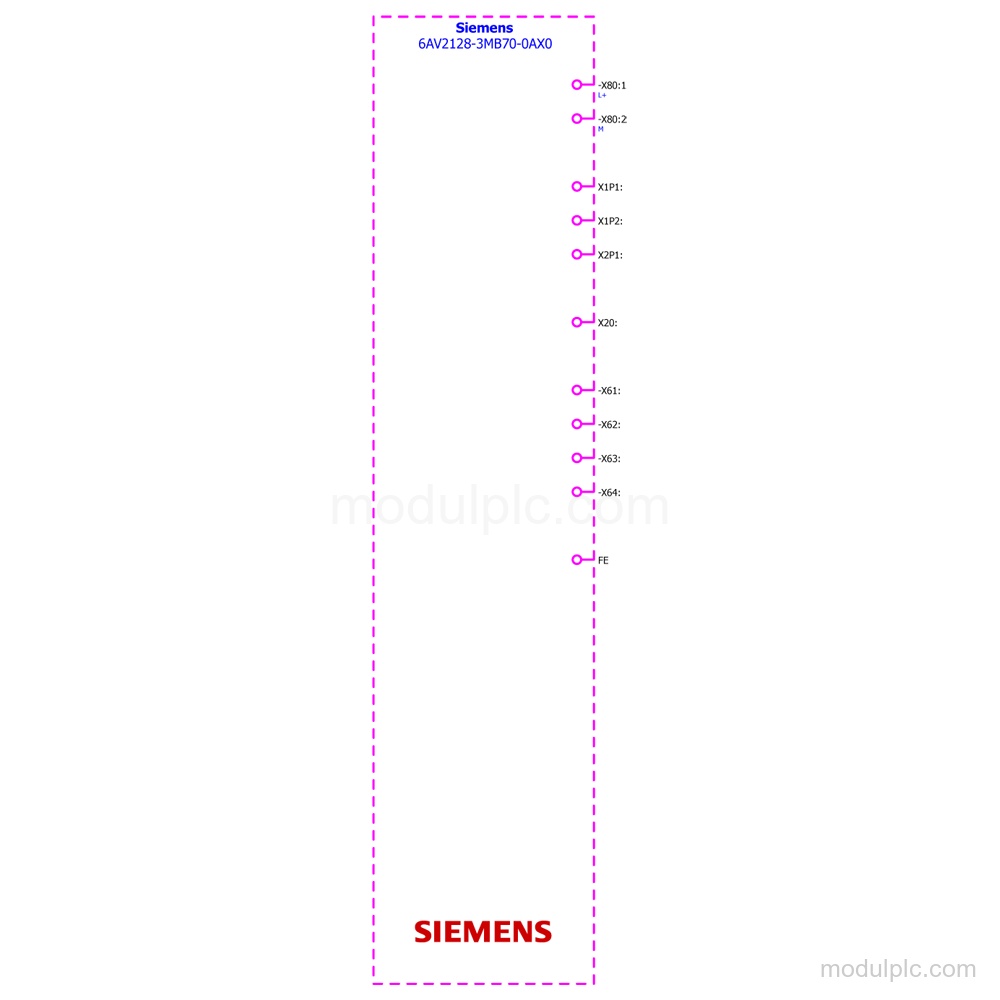

| Product type | MTP1200 Unified Comfort Hygienic |
| Display | 12.1 in widescreen TFT touch display |
| Display resolution | 1 280 pixel × 800 pixel |
| Number of colors | 16 777 216 |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET | Yes |
| PROFINET IO protocol | No |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Front protection | IP69 |
| Rear protection | IP20 |

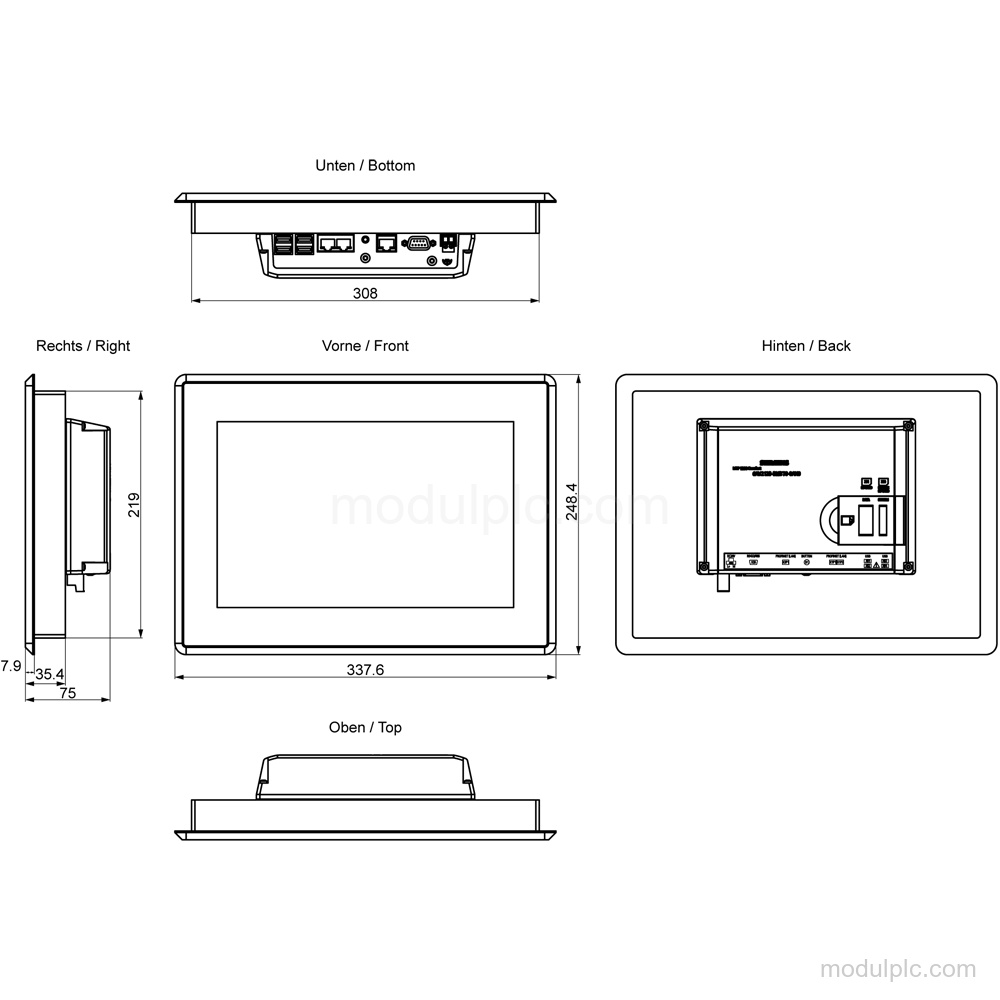

| Mounting position | Horizontal, vertical; portrait and landscape formats |
Key Features
- 12.1 in widescreen TFT display: The display has a 12.1 in screen diagonal, 1 280 pixel horizontal resolution, 800 pixel vertical resolution, and 16 777 216 colors.
- Touch and onscreen keyboards: The panel has touch and multi-touch operation, plus numeric and alphanumeric onscreen keyboards.
- Industrial Ethernet interfaces: It has 2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, plus 2 industrial Ethernet status LEDs.
- PROFINET and Ethernet protocols: Supported protocols include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, and JavaScript. PROFINET IO protocol support is No.
- Hygienic protection design: The stainless-steel panel has IP69 protection at the front and IP20 protection at the rear, with a blue FDA-compliant gasket and splinter protection display front.
- 24 V DC supply: The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.6 A rated and 1.3 A maximum.
Frequently Asked Questions
1. Which protocols does the Siemens 6AV2128-3MB70-0AX0 support?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, and JavaScript. PROFINET IO protocol support is No.
2. How many industrial Ethernet interfaces does this HMI panel have?
It has 2 industrial Ethernet interfaces: 2 ports through an integrated switch and 1 independent port.
3. What display and touch functions are provided?
It has a 12.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, touch operation, and multi-touch operation.
4. What supply and protection specifications should be verified before inquiry?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Protection is IP69 at the front and IP20 at the rear.
