Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1200 Unified Comfort PRO |
| Display | 12.1 in TFT, multi-touch |
| Display resolution | 1 280 pixel × 800 pixel |

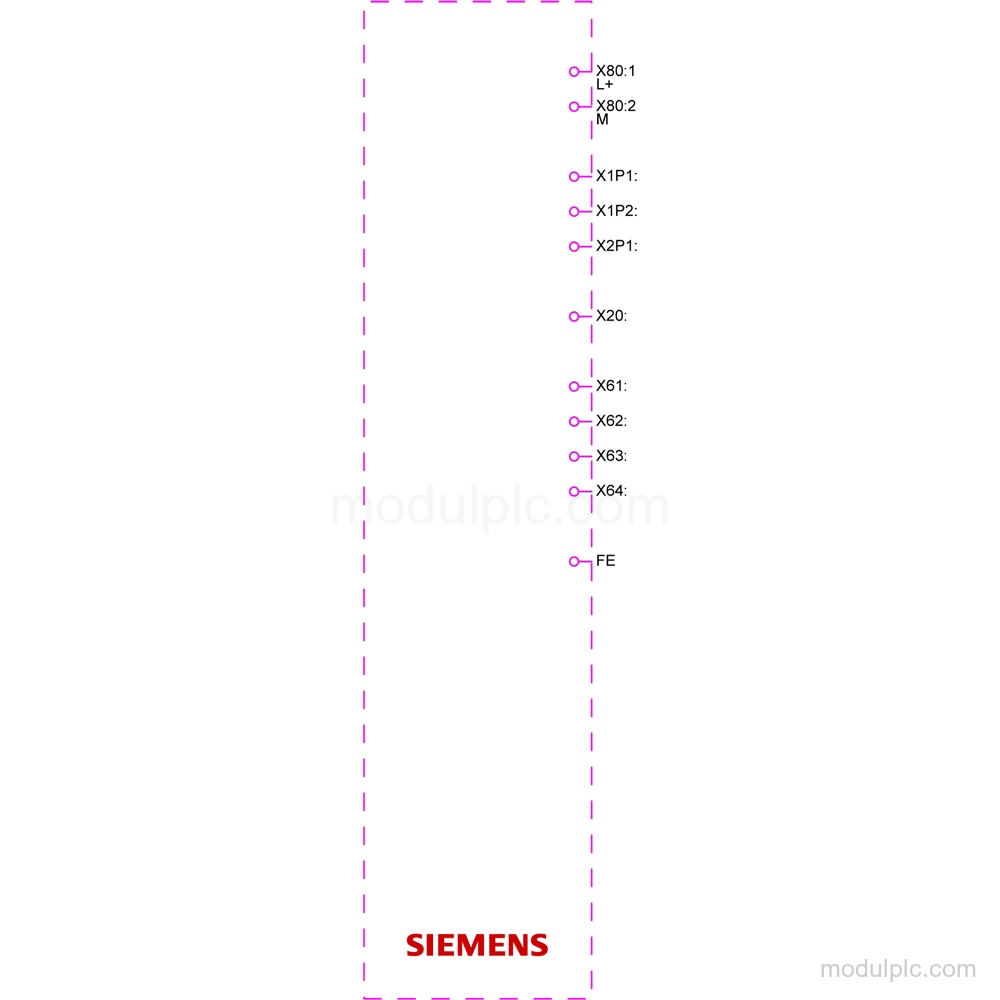

| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Additional interfaces | 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Rated supply | 24 V DC |
| Supply range | 19.2 V to 28.8 V |
| Rated current consumption | 0.6 A |

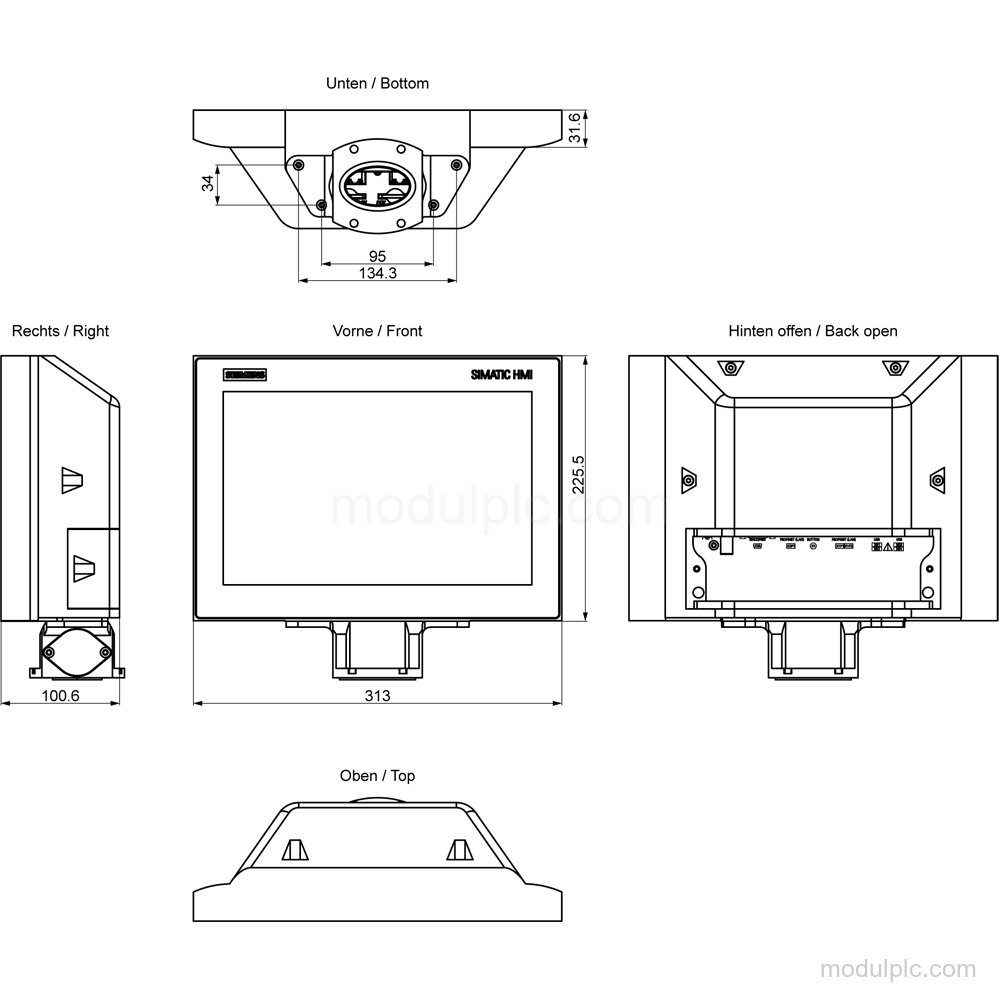

| Mounting | Pedestal; vertical; landscape possible |
| Protection | IP65 at the front and rear |
Key Features
- Display and touch operation: 12.1 in TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, 16 777 216 colors, and multi-touch operation.
- PROFINET and Ethernet interfaces: 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; rated current consumption is 0.6 A and maximum current consumption is 1.3 A.
- Installation and protection: Pedestal mounting in a vertical position; landscape mounting is possible, portrait mounting is not. The maximum permissible angle of inclination without external ventilation is 35°; IP65 protection applies at the front and rear.
- Configuration and lifecycle: Configurable as of WinCC Unified Comfort V18 and identified as an Active Product; open-source software is included free of charge.
Frequently Asked Questions
1. What display does the 6AV2128-3MB27-1BX0 have?
It has a 12.1 in TFT multi-touch display with 1 280 pixel × 800 pixel resolution and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted?
It uses pedestal mounting in a vertical position. Landscape mounting is possible, portrait mounting is not, and the maximum permissible angle of inclination without external ventilation is 35°.
