Product Overview
Technical Summary

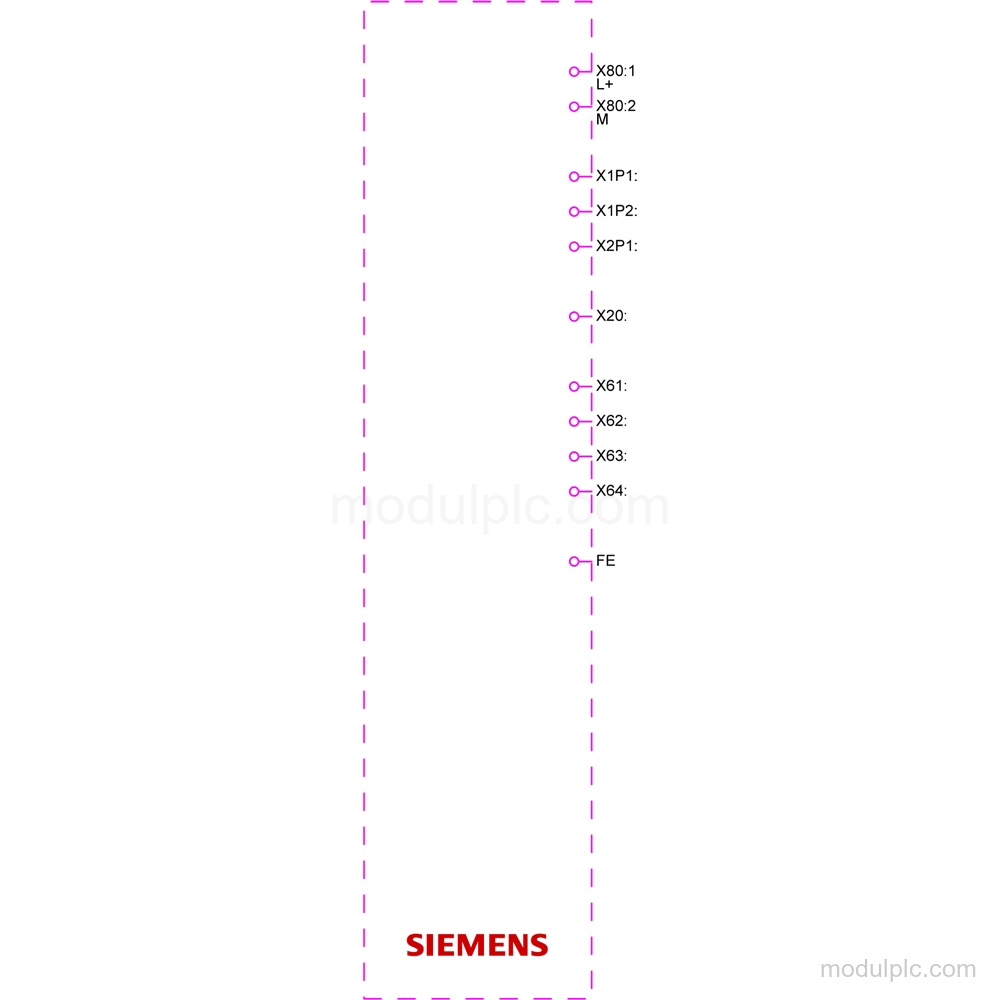

| Parameter | Value |
|---|---|
| Product type | MTP1200 Unified Comfort PRO |
| Display | 12.1 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel × 800 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Mounting | Support arm; vertical or landscape format |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.6 A rated; 1.3 A maximum |
| Industrial Ethernet | 2 interfaces; 2-port integrated switch plus independent port |
| Additional interfaces | 1 combined RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Protection | IP65 at the front and rear |
| Backlighting | Dimmable, 5-100 % |
Key Features
- Widescreen TFT display: 12.1 in screen diagonal, 1 280 pixel horizontal image resolution, 800 pixel vertical image resolution, and 16 777 216 colors.
- Touch and onscreen keyboard: The display has touch and multi-touch operation, with numeric and alphanumeric onscreen keyboards.
- PROFINET and Ethernet interfaces: The panel has 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- Additional interfaces: The panel has 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- 24 V DC supply: Rated supply voltage is 24 V, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.6 A rated and 1.3 A maximum.

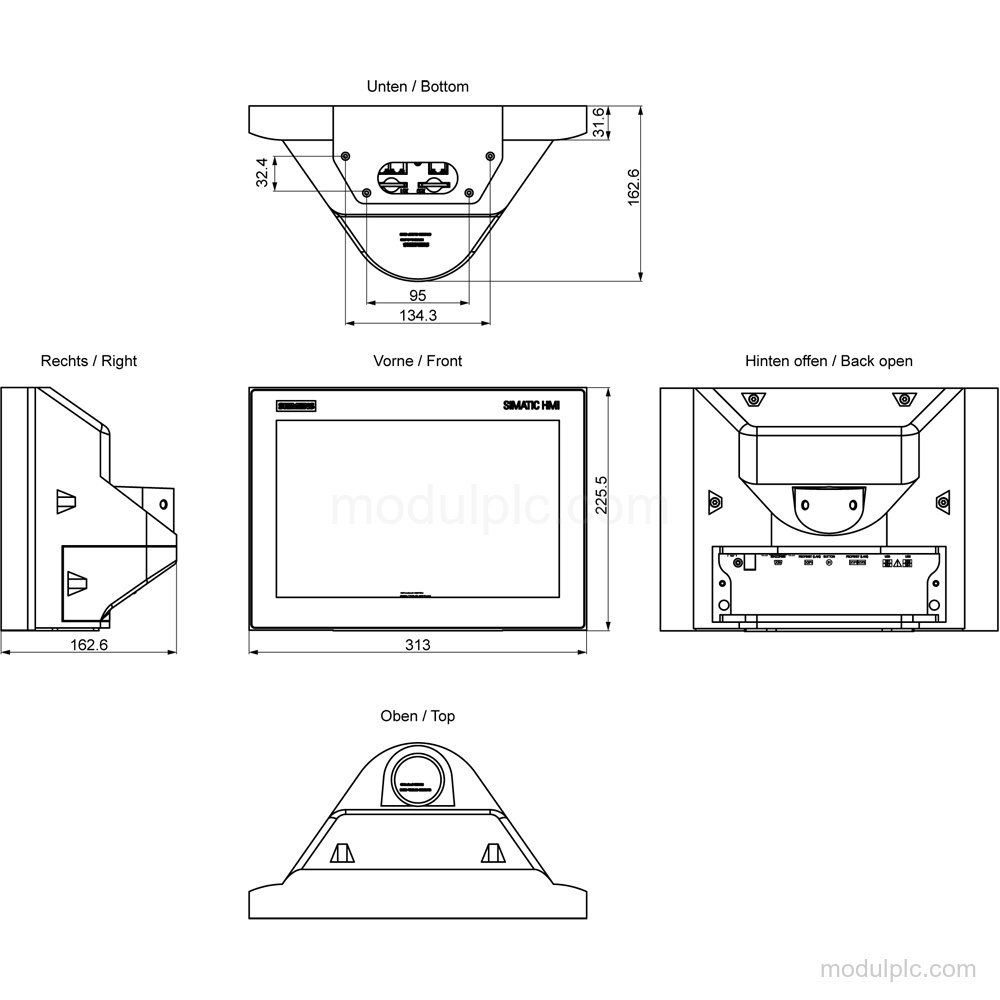

- Support-arm installation and IP65: The panel mounts on a support arm in vertical or landscape format. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and rear.
Frequently Asked Questions
1. What display does Siemens 6AV2128-3MB27-0BX0 have?
It has a 12.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution and 16 777 216 colors.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
3. What supply voltage and current consumption does it require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.6 A rated and 1.3 A maximum.
4. How is the panel mounted and protected?
It mounts on a support arm in vertical or landscape format. Protection is IP65 at the front and rear; the maximum permissible angle of inclination without external ventilation is 35°.
