Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP1200 Unified Comfort PRO |
| Display | 12.1 in widescreen TFT |
| Display resolution | 1 280 pixel × 800 pixel |
| Touch operation | Multi-touch screen |
| Mounting | Support arm, vertical; landscape format possible |

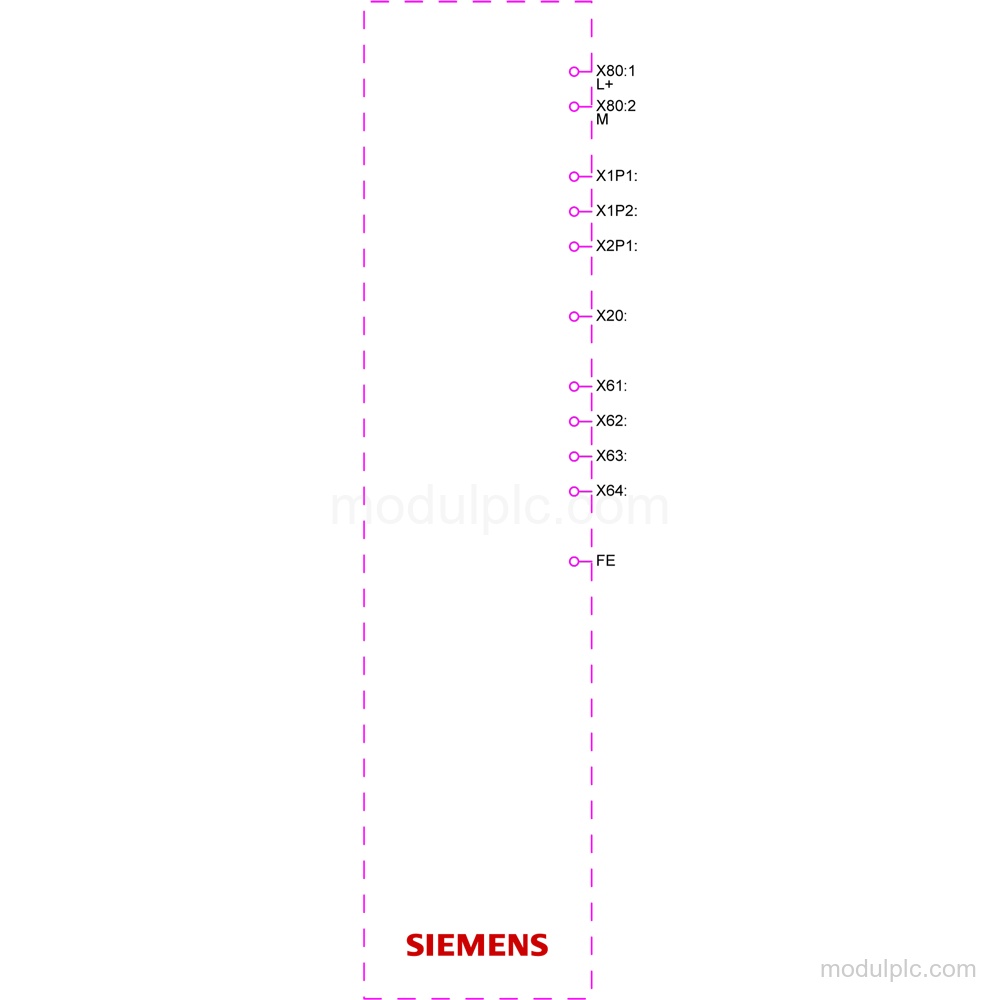

| Industrial Ethernet | 2 interfaces; 2 ports (switch) + independent port |
| Additional interfaces | 1 RS 422 / 485 combined; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Supply voltage | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.6 A rated; 1.3 A maximum |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Protection | IP65 at the front and rear |
Key Features
- Widescreen TFT display: 12.1 in widescreen TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
- Touch and onscreen keyboard: Multi-touch screen with numeric and alphanumeric onscreen keyboard.
- PROFINET and Ethernet interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- DC supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.6 A rated and 1.3 A maximum.

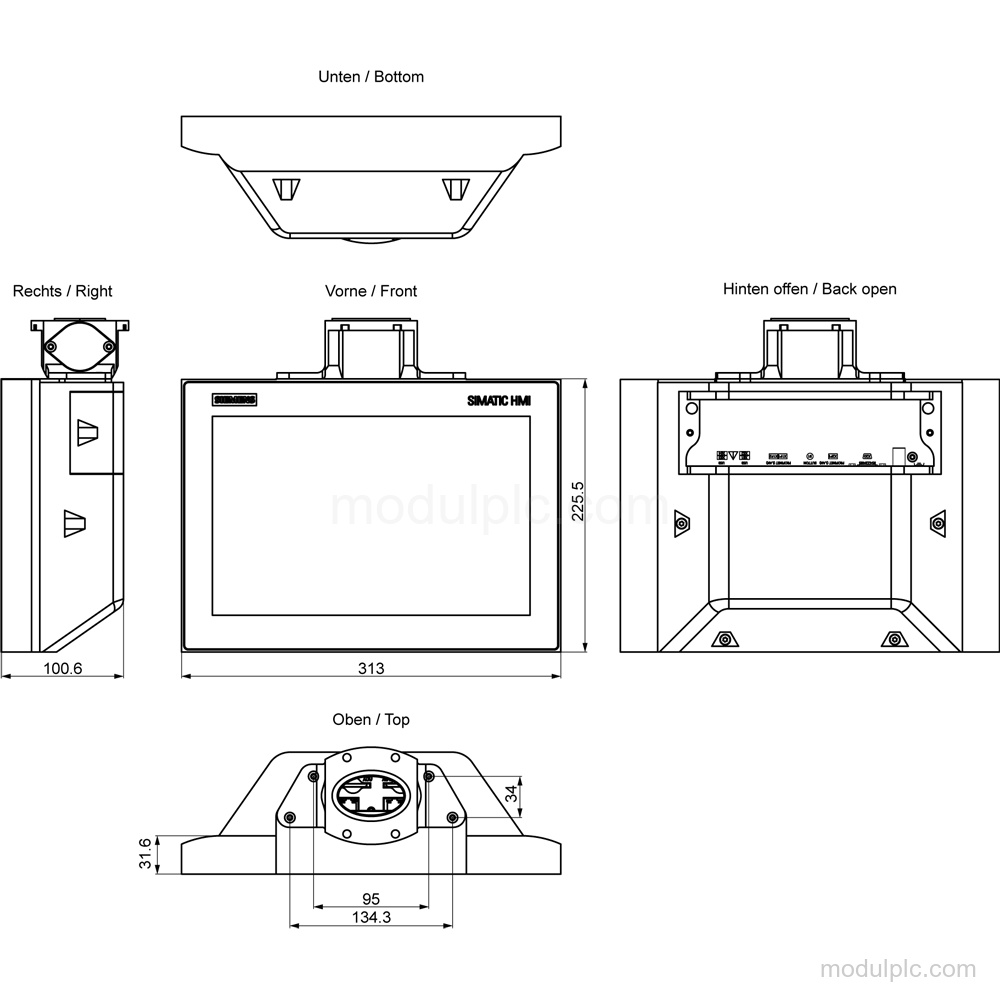

- Support-arm installation and protection: Vertical support-arm mounting, landscape format possible, with a maximum permissible angle of inclination of 35° without external ventilation; IP65 protection at the front and rear.
Frequently Asked Questions
1. What display does the Siemens 6AV2128-3MB27-0AX0 have?
It has a 12.1 in widescreen TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
2. Which Ethernet interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
It uses vertical support-arm mounting, supports landscape format, and has IP65 protection at the front and rear.
