Product Overview
Technical Summary

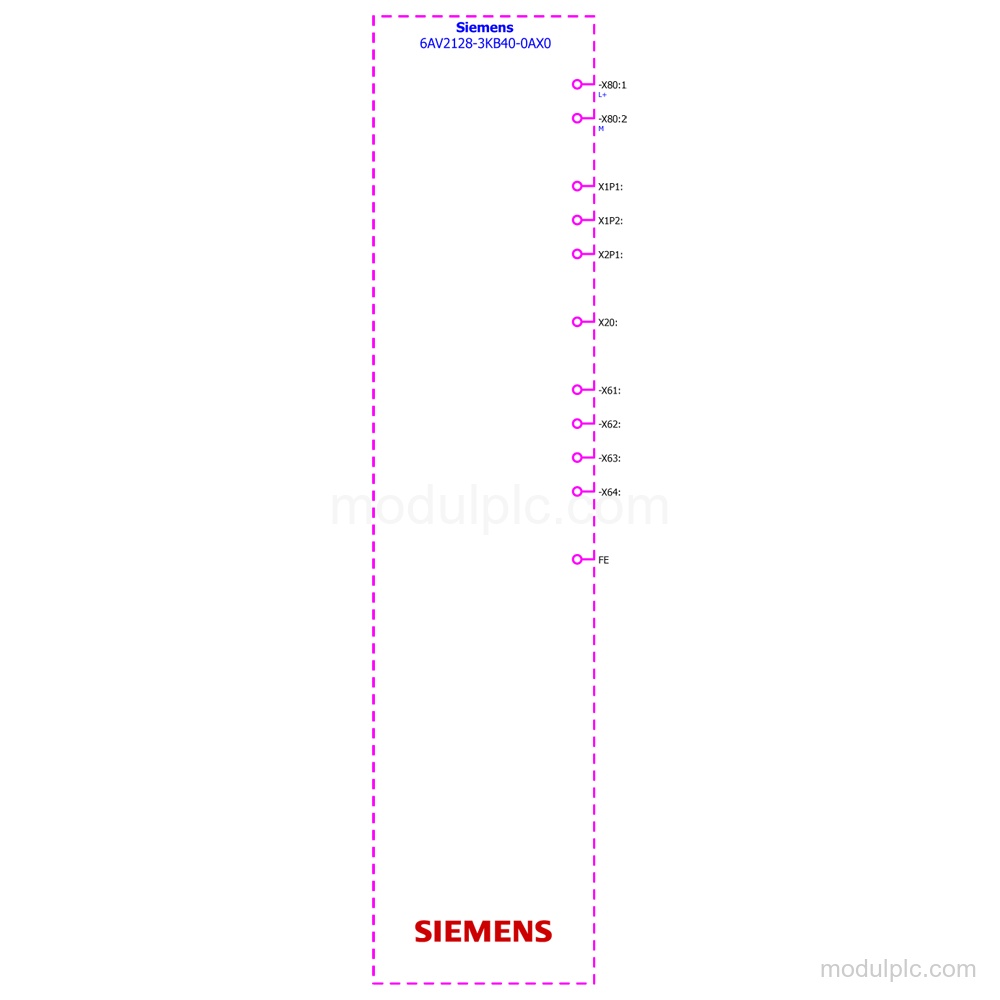

| Parameter | Value |
|---|---|
| Display | 10.1 in widescreen TFT |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| RS 422 / 485 interface | 1 combined interface |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Front protection | IP69 |
| Rear protection | IP20 |

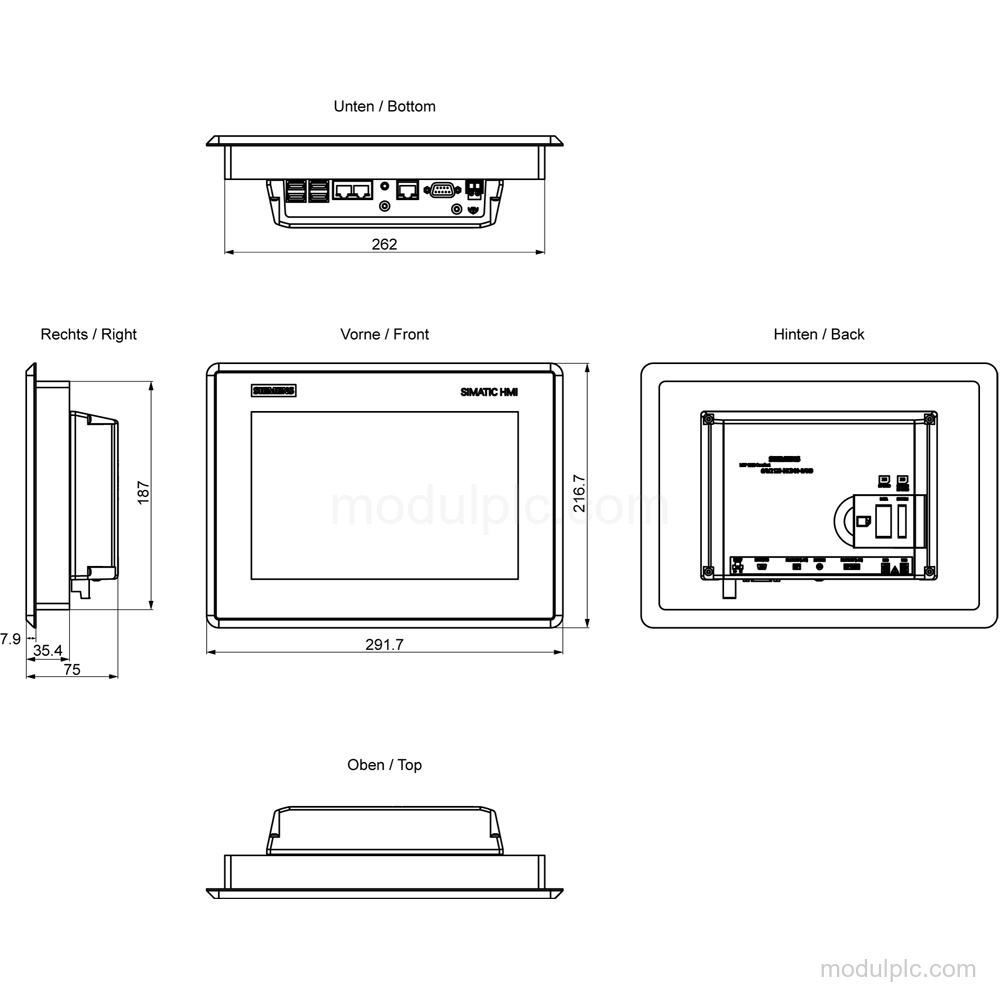

| Mounting | Horizontal or vertical; portrait or landscape |
| Maximum inclination | 35° without external ventilation |
Key Features
- Display and touch operation: 10.1 in widescreen TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, 16 777 216 colors, touch screen, and multi-touch screen.
- PROFINET interface: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP are supported.
- Additional interfaces: 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
- Supply and current: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.5 A rated and 1.1 A maximum.
- Hygienic protection: Stainless steel hygienic design with IP69 protection at the front and IP20 protection at the rear; the blue gasket is FDA-compliant.
- Mounting and configuration: Horizontal or vertical mounting is possible, including portrait and landscape format; the maximum permissible angle of inclination without external ventilation is 35°.
Frequently Asked Questions
1. What display and touch features does the 6AV2128-3KB40-0AX0 have?
It has a 10.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, touch-screen operation, and multi-touch operation.
2. Which network protocols and Ethernet interfaces are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port. PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP are supported, while PROFINET IO is not supported.
3. What supply voltage does this panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Current consumption is 0.5 A rated and 1.1 A maximum.
4. What protection and mounting options does it have?
The front has IP69 protection and the rear has IP20 protection. It supports horizontal or vertical mounting in portrait or landscape format, with a maximum permissible inclination of 35° without external ventilation.
