Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 10.1 in TFT, 1 280 × 800 pixel, 16 777 216 colors |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- 10.1 in multi-touch display: TFT display with 10.1 in screen diagonal, 1 280 pixel horizontal resolution, 800 pixel vertical resolution, and 16 777 216 colors.

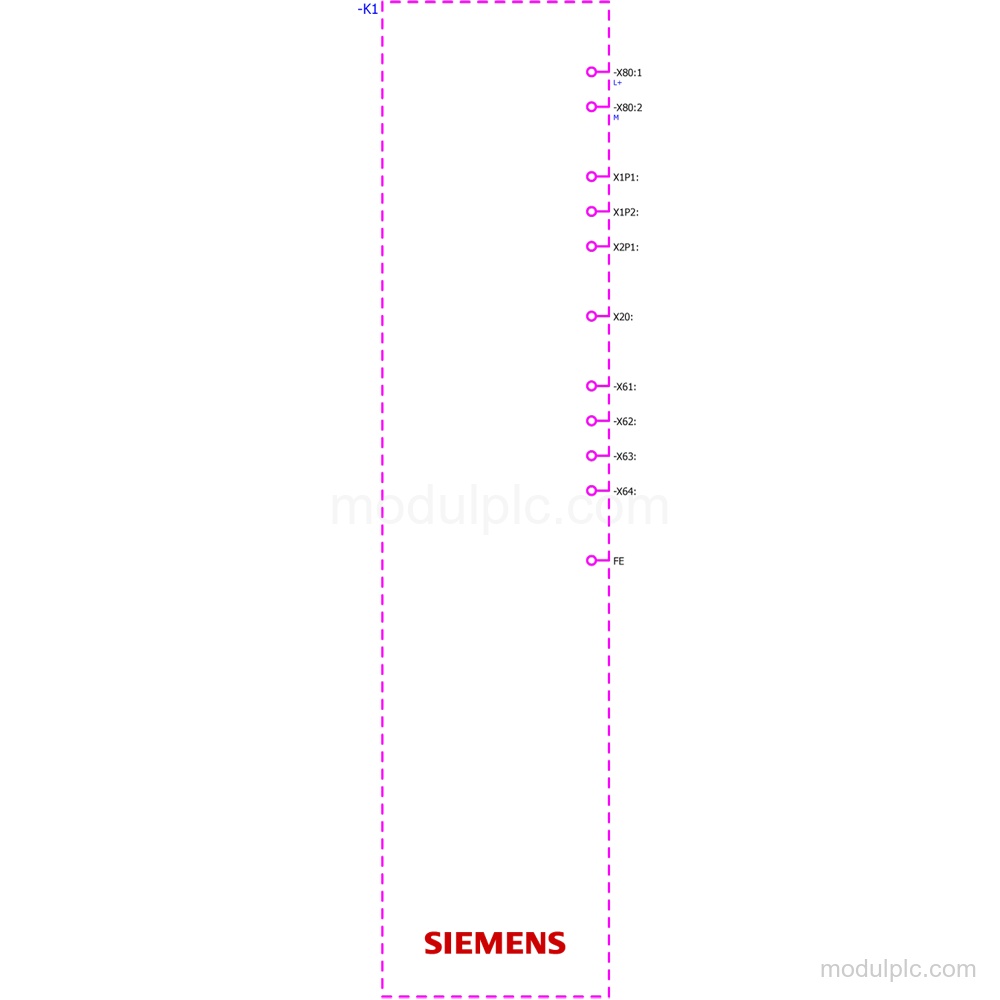

- PROFINET and Ethernet interfaces: 2 industrial Ethernet interfaces provide 2 switch ports plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
- Touch and onscreen keyboards: The panel has touch and multi-touch operation, with numeric and alphanumeric onscreen keyboards.

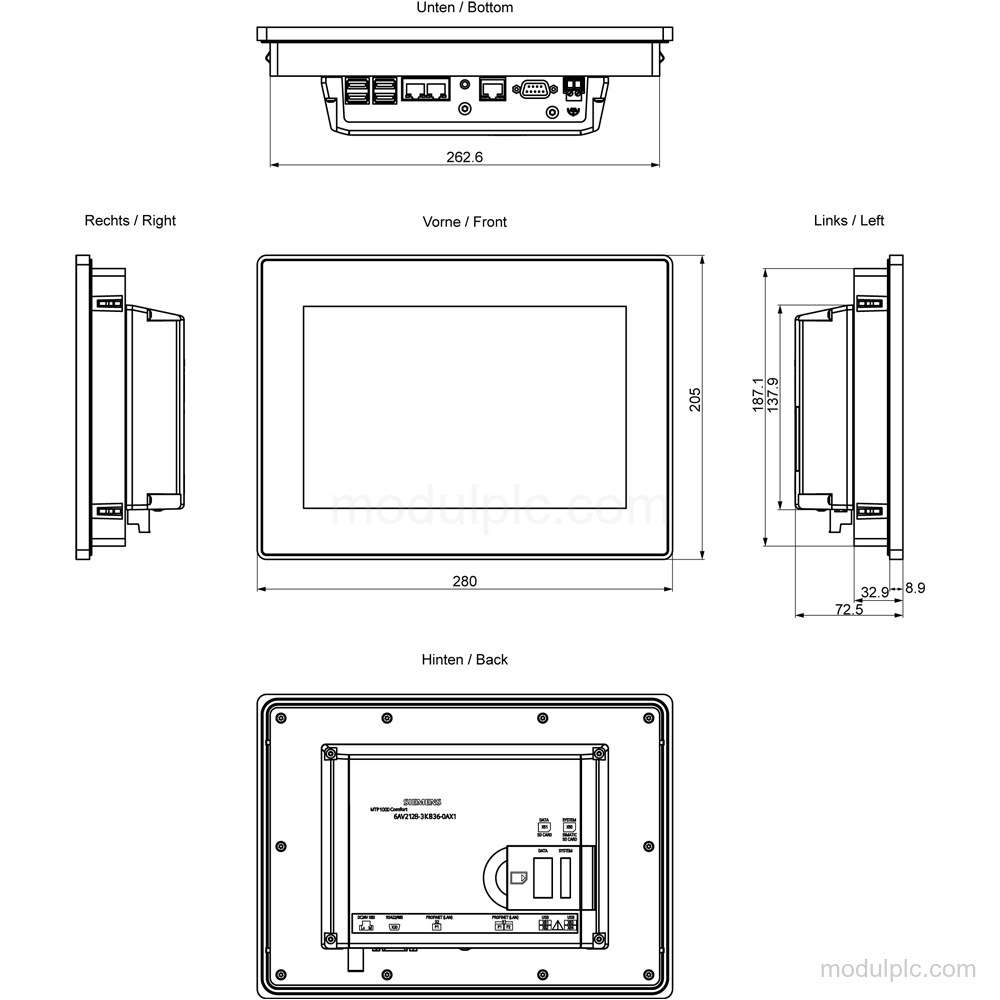

- Mounting options: Vertical mounting is supported, with portrait and landscape formats possible; the maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: Protection is IP65 at the front and IP20 at the rear; the front has NEMA Enclosure Type 4x and Type 12.
Frequently Asked Questions
1. Which display does the 6AV2128-3KB36-0AX1 have?
It has a 10.1 in TFT multi-touch display with 1 280 × 800 pixel resolution and 16 777 216 colors.
2. How many Ethernet ports does this HMI panel provide?
It provides 2 industrial Ethernet interfaces with 2 ports for the integrated switch plus 1 independent port.
3. Which protocols are supported?
Supported protocols and functions include PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. The protocol for PROFINET IO is not supported.
4. What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
5. What should be verified before requesting a quote?
Verify the required mounting format, interface configuration, supply range, and front or rear protection requirements for the exact model.
