Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MTP700 Unified Comfort Hygienic |
| Display | 7 in TFT widescreen, 800 × 480 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 switch ports plus independent port |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V permissible range |
| Front protection | IP69 |
Key Features
- 7 in TFT widescreen display: The display has a 7 in diagonal, 800 × 480 pixel resolution, 16 777 216 colors, and dimmable backlighting from 5-100 %.
- Multi-touch operation: The panel has a touch screen, multi-touch screen, numeric onscreen keyboard, and alphanumeric onscreen keyboard.

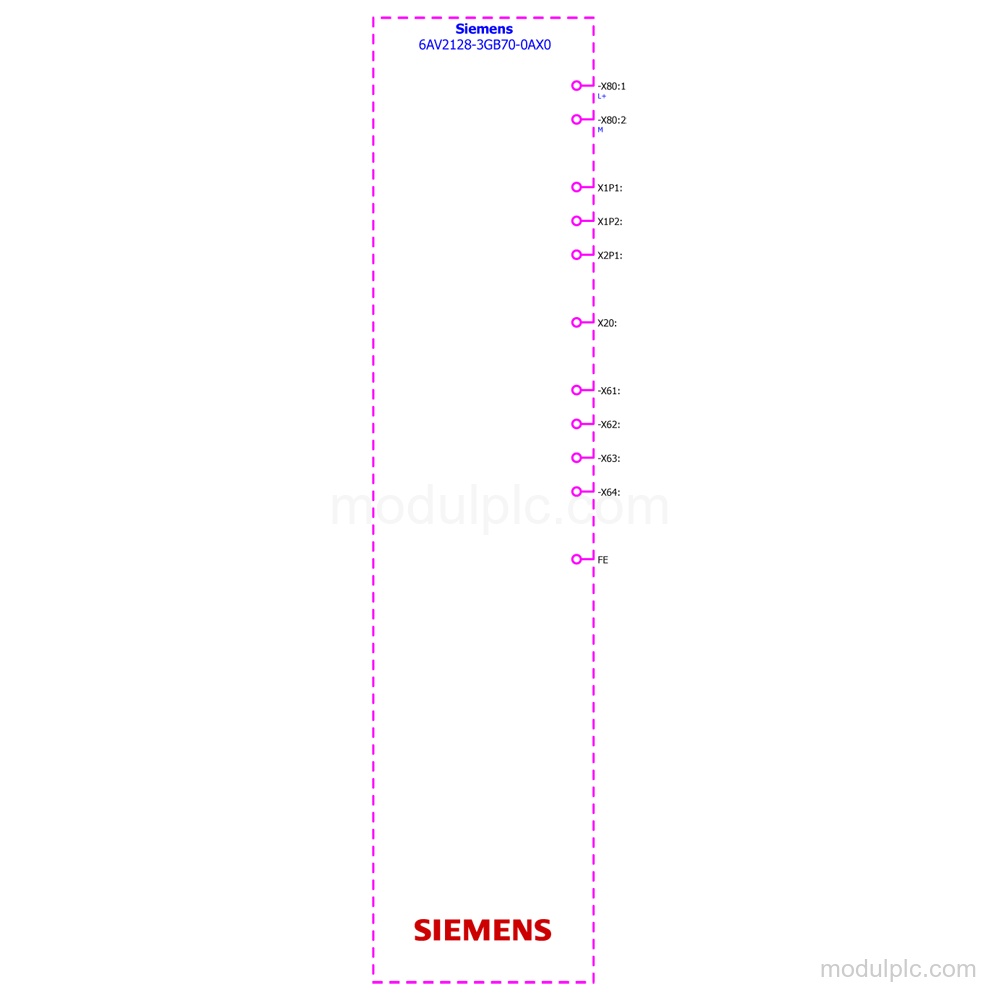

- PROFINET and Ethernet interfaces: It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.45 A rated and 1 A maximum.

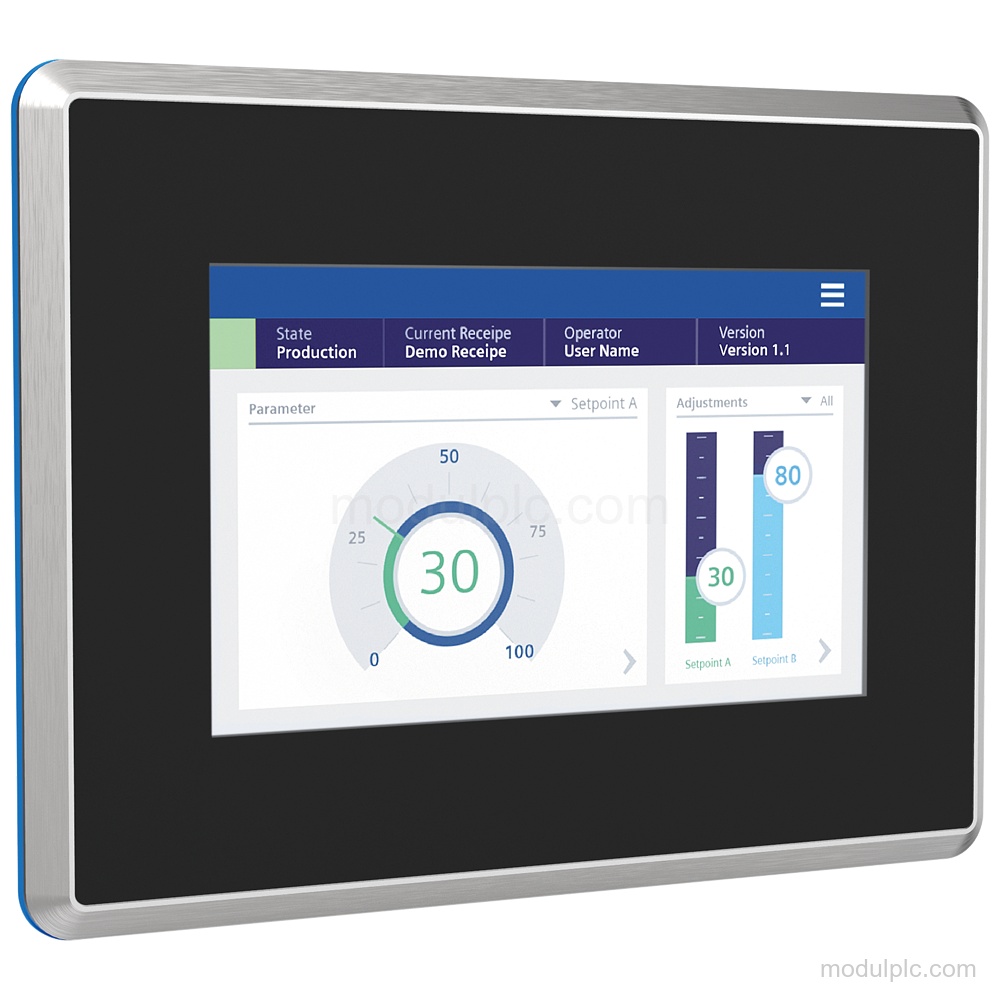

- Hygienic stainless steel design: The panel has a stainless steel hygienic design, a blue FDA-compliant gasket, and increased impact protection with splinter protection on the display front.

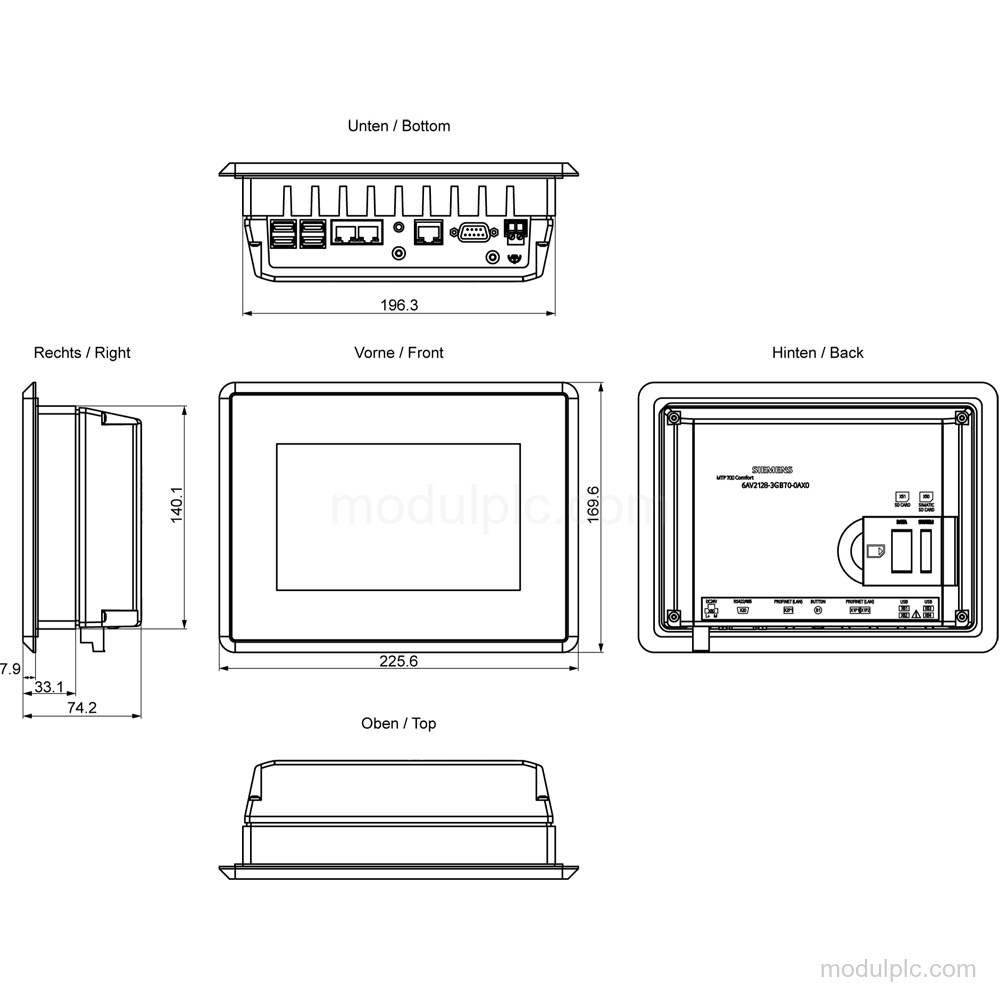

- Flexible mounting and protection: Mounting is possible horizontally or vertically, including portrait or landscape format. Protection is IP69 at the front and IP20 at the rear; the maximum permissible inclination without external ventilation is 35°.
Frequently Asked Questions
1. What display does the 6AV2128-3GB70-0AX0 have?
It has a 7 in TFT widescreen display with 800 × 480 pixel resolution, 16 777 216 colors, and dimmable backlighting from 5-100 %.
2. How many Ethernet and USB interfaces are available?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, and 4 USB 3.0 interfaces.
3. What communication protocols does this panel support?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP. It does not support the protocol for PROFINET IO.
4. What supply voltage does the panel require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
5. How is the panel mounted and protected?
It can be mounted horizontally or vertically in portrait or landscape format. Front protection is IP69 and rear protection is IP20; the maximum permissible inclination without external ventilation is 35°.
