Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 x 480 pixel |
| Colors | 16 777 216 |
| Function keys | 6, all with LEDs |
| PROFINET interfaces | 1 |
| USB interfaces | 1; USB 2.0 |
| SD card slots | 1 |
| Supported protocols | PROFINET, PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS |
| Supply voltage | 24 V DC rated; permissible range from 19.2 V to 28.8 V |
| Protection | IP65 (all-round) |
Key Features
- Display and operation: 7 in TFT widescreen display with LED backlighting, 800 x 480 pixel resolution and 16 777 216 colors. Key and touch operation are supported; multi-touch is not supported.

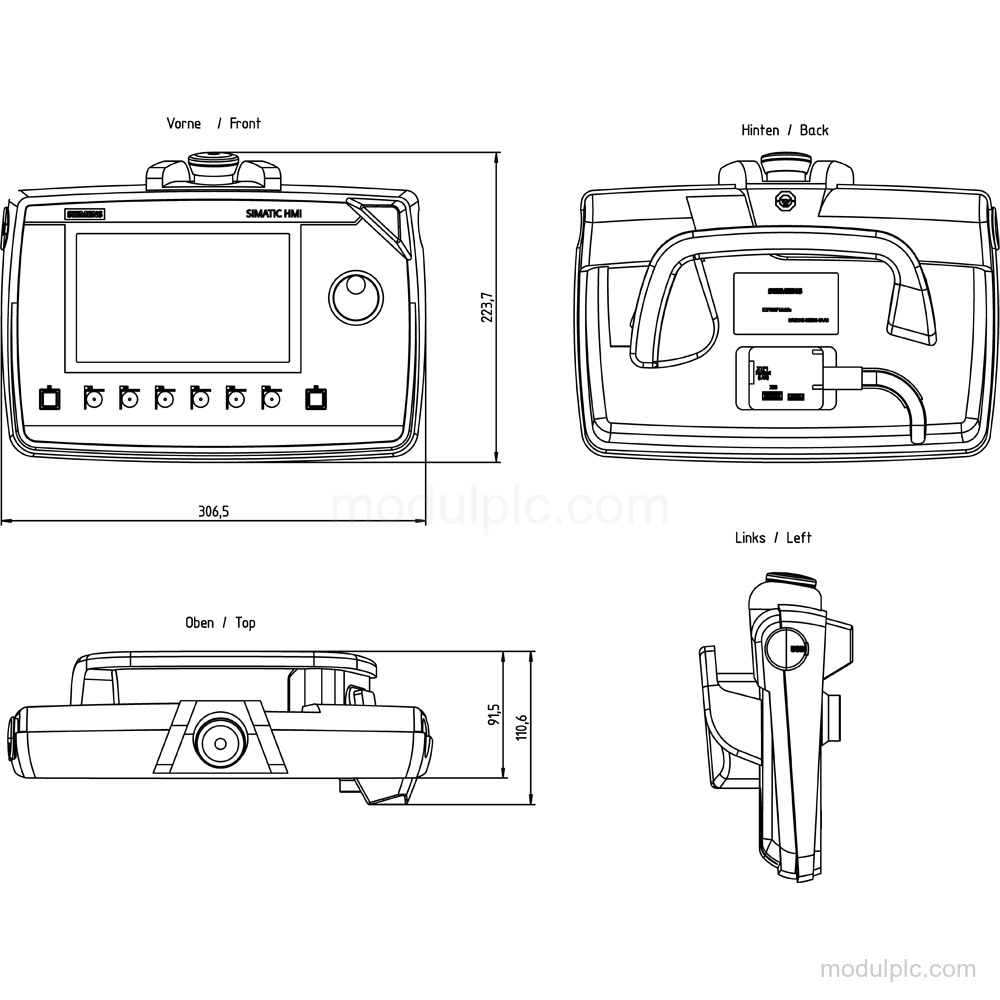

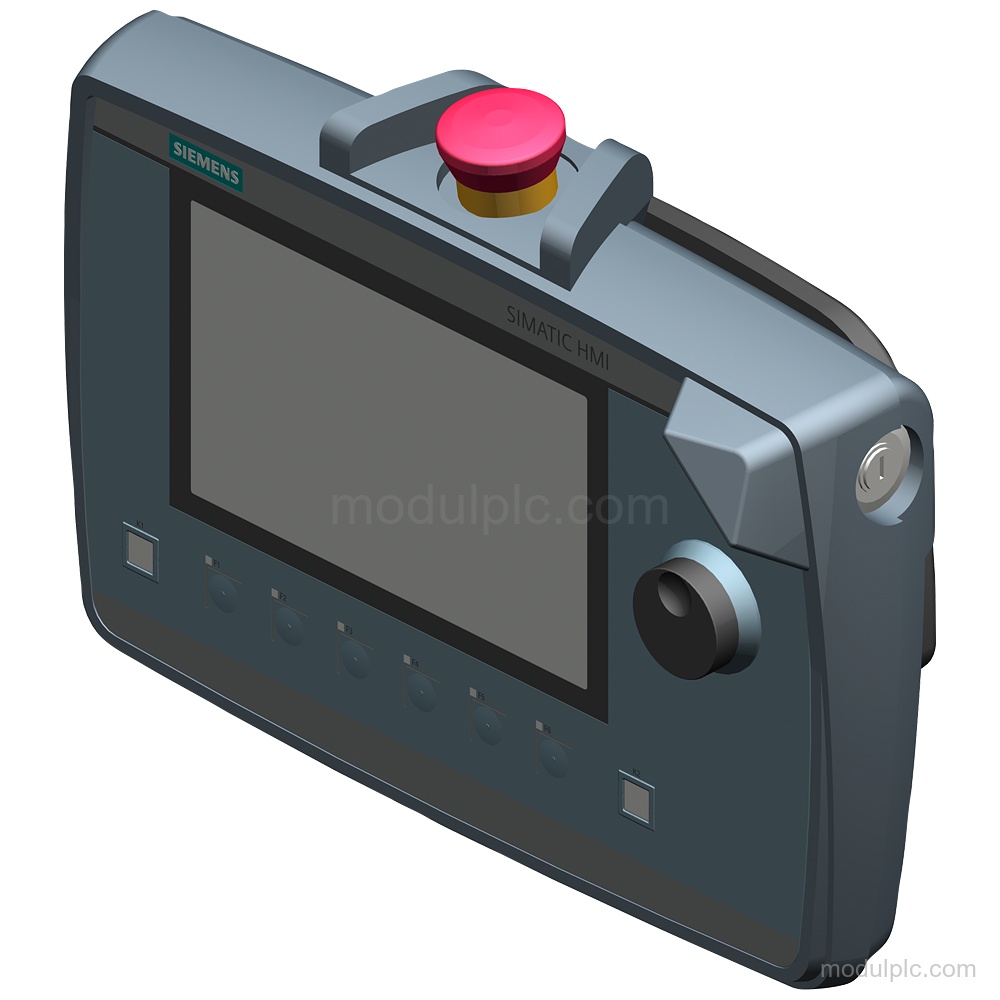

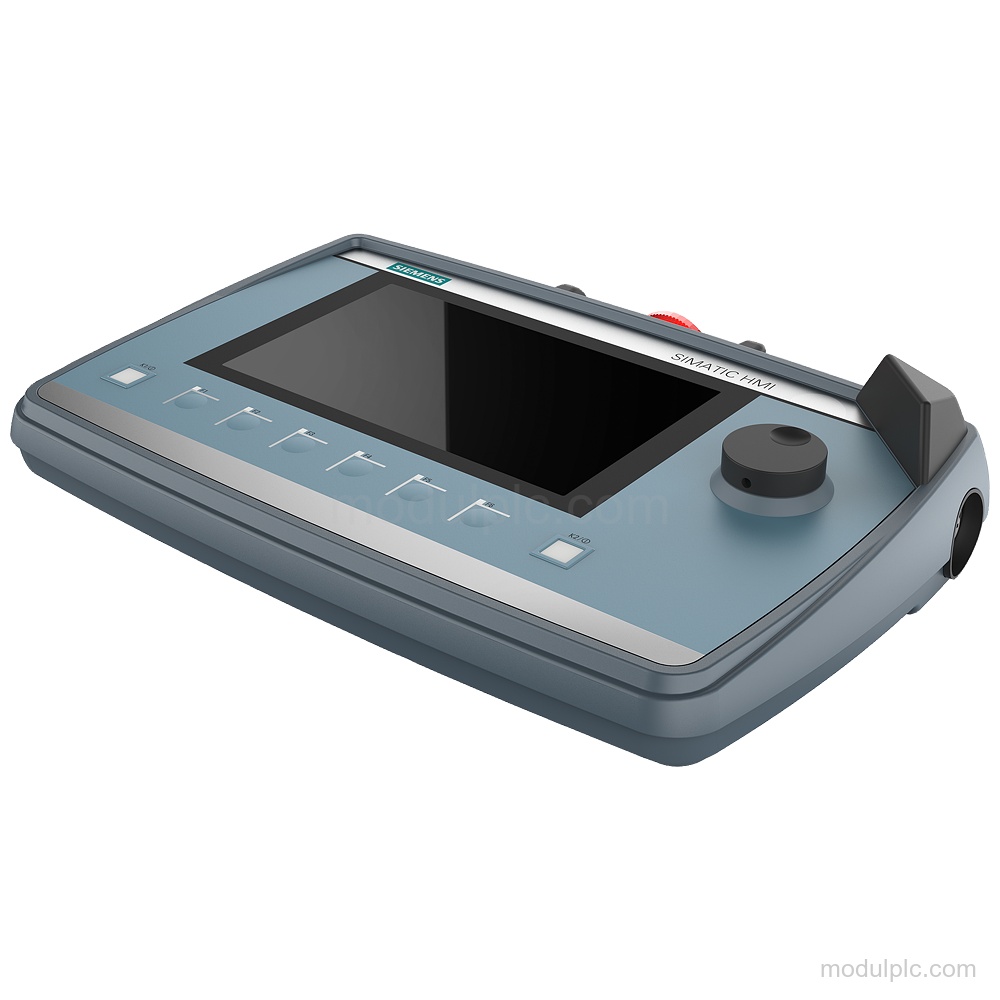

- Operator controls: 6 function keys with LEDs, 2 illuminated push-buttons, a 3-stage acknowledgement button, key-operated switch, handwheel, and illuminated emergency stop and stop buttons with forced blocking.
- PROFINET and Ethernet: 1 industrial Ethernet interface and 1 PROFINET interface. PROFINET, PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
- Connections and storage: 1 USB 2.0 interface and 1 SD card slot. RS 485, RS 422, RS 232 and wireless interfaces are not provided.
- Supply voltage: 24 V DC rated supply with a permissible range from 19.2 V to 28.8 V.
- Protection and lifecycle: IP65 all-round protection. The product lifecycle is Active Product.
Frequently Asked Questions
1. Which network protocols does the 6AV2145-8GB00-0AA0 support?
It supports PROFINET, protocol for PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS. PROFIBUS and MPI are not supported.
2. What interfaces are available on this mobile HMI panel?
It has 1 industrial Ethernet interface, 1 PROFINET interface, 1 USB 2.0 interface and 1 SD card slot. It has 0 RS 485, RS 422, RS 232 and wireless interfaces.
3. What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. What operator controls are included?
The panel has 6 function keys with LEDs, 2 illuminated push-buttons, a key-operated switch, a 3-stage acknowledgement button, a handwheel, and illuminated emergency stop and stop buttons with forced blocking.
5. Does the configuration include an integrated camera?
It is without an integrated camera.
