Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Mobile Panel 277F IWLAN V2 (RFID) |
| Display | 7.5 in TFT color display, 640 pixel × 480 pixel |
| Control elements | Keys and touch; 18 function keys with LEDs |

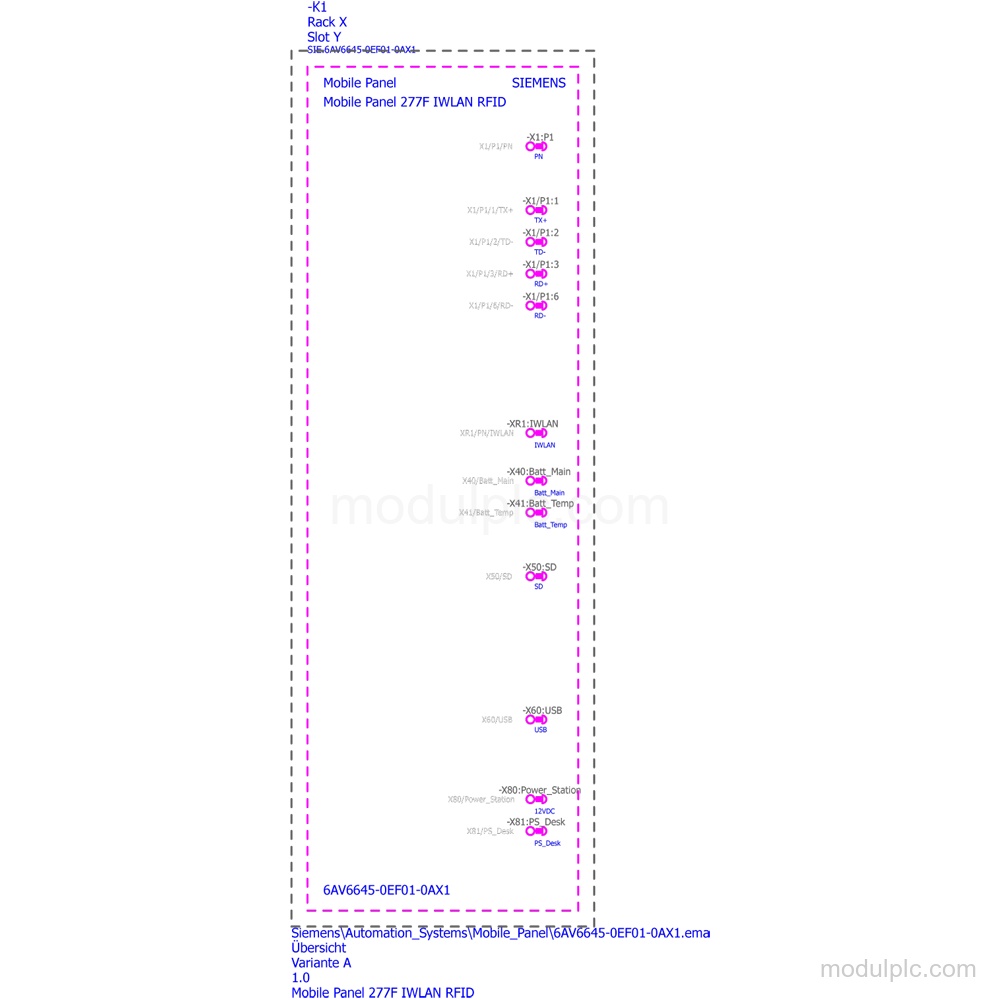

| Interfaces | 1x Ethernet (RJ45); 1 USB; 1 wireless interface |
| Protocols | PROFINET IO, PROFIsafe and TCP/IP supported |
| Power supply | Via charging station or table power supply; DC |
| Main rechargeable battery | 7.2 V rated voltage; 5 100 mA·h capacity |
| Safety level | Performance level e according to ISO 13849-1; SIL 3 according to IEC 61508 |
| Operating temperature | 0 °C to 40 °C |
Applications
- Alarm handling: The panel supports an alarm system including buffer and acknowledgment, with 32 alarm classes, bit messages and analog messages.
- Process value display and input: The panel supports process value display and process value input.
- Recipe management: The panel supports recipe management with 300 recipes, 500 data records per recipe and 1 000 entries per data record.
- Controller communication: The panel supports connection to S7-200, S7-300/400, S7-1200 and S7-1500 controllers through Ethernet and PROFINET.
Key Features

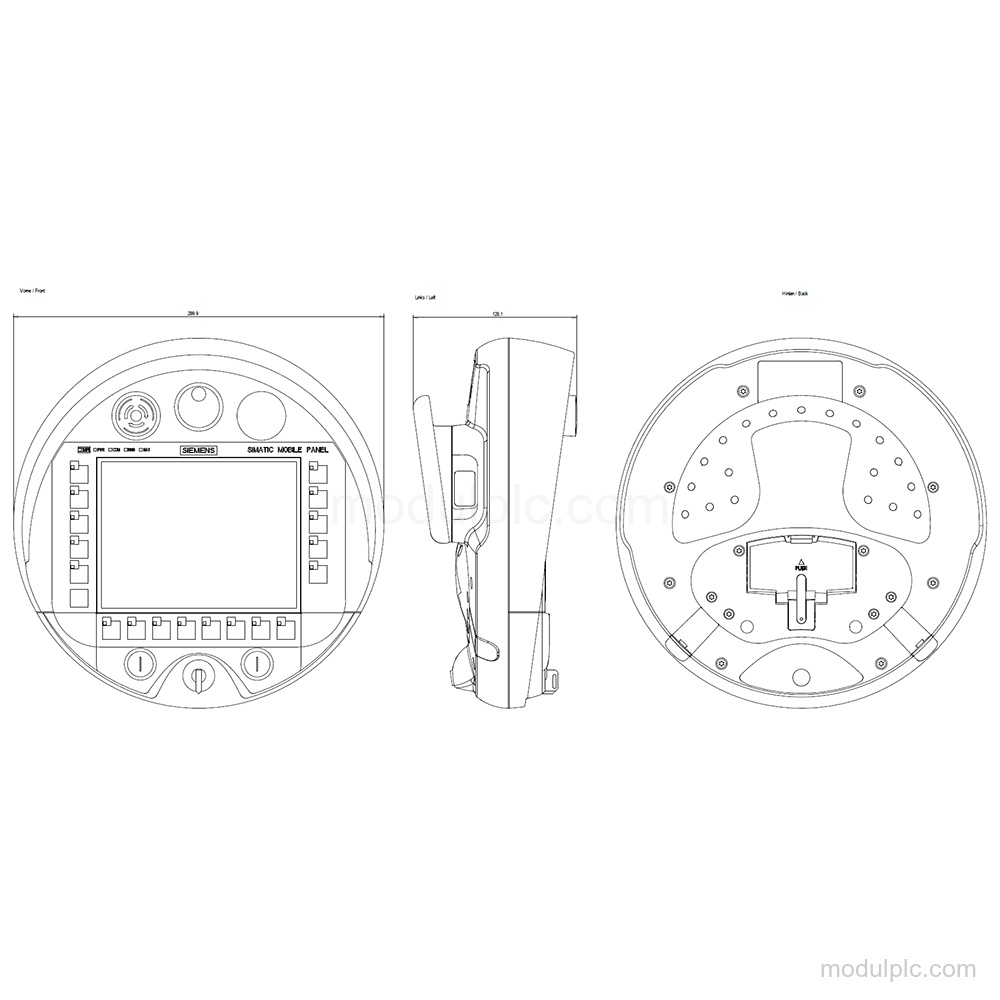

- Display and operation: The TFT color display has a 7.5 in screen diagonal, 640 pixel × 480 pixel resolution, keys and touch operation, and 18 function keys with LEDs.
- Operator controls: The panel has an acknowledgment button, emergency stop button with forced blocking, key-operated switch, handwheel and two illuminated pushbuttons.
- Interfaces and protocols: It has 1x Ethernet (RJ45), 1 USB interface, 1 wireless interface, WLAN with rapid roaming, and supports PROFINET IO, PROFIsafe and TCP/IP.
- Power and battery: Power is supplied via a charging station or table power supply. The main rechargeable battery has a rated voltage of 7.2 V, capacity of 5 100 mA·h and typical charging time of 4 h.
- Safety and environment: The panel is suitable for safety functions, with performance level e according to ISO 13849-1 and SIL 3 according to IEC 61508. Ambient temperature during operation is 0 °C to 40 °C.
- Configuration and exclusions: Configuration supports WinCC flexible Standard Version 2008 SP2 and higher and WinCC Comfort, Advanced and Professional (TIA Portal) V11 SP2 or higher. The power supply is ordered separately; the product is a spare part and does not correspond to the current version of the standard.
Frequently Asked Questions
1. What display and operating elements does 6AV6645-0EF01-0AX1 have?
It has a 7.5 in TFT color display with 640 pixel × 480 pixel resolution, keys and touch operation, 18 function keys with LEDs, an acknowledgment button, an emergency stop button, a key-operated switch, a handwheel and two illuminated pushbuttons.
2. Which interfaces and protocols are supported?
It has 1x Ethernet (RJ45), 1 USB interface and 1 wireless interface. PROFINET IO, PROFIsafe and TCP/IP are supported; PROFIBUS and MODBUS are not supported.
3. How is the panel powered?
Power is supplied via a charging station or table power supply. The main rechargeable battery has a rated voltage of 7.2 V and a capacity of 5 100 mA·h.
4. Is the power supply included with the configuration?
It is without a power supply. The charging station 6AV6671-5CE00-0AX1 or table power supply unit 6AV6671-5CN00-0AX2 is to be ordered separately.
