Product Overview
Technical Summary
| Parameter | Value |
|---|---|

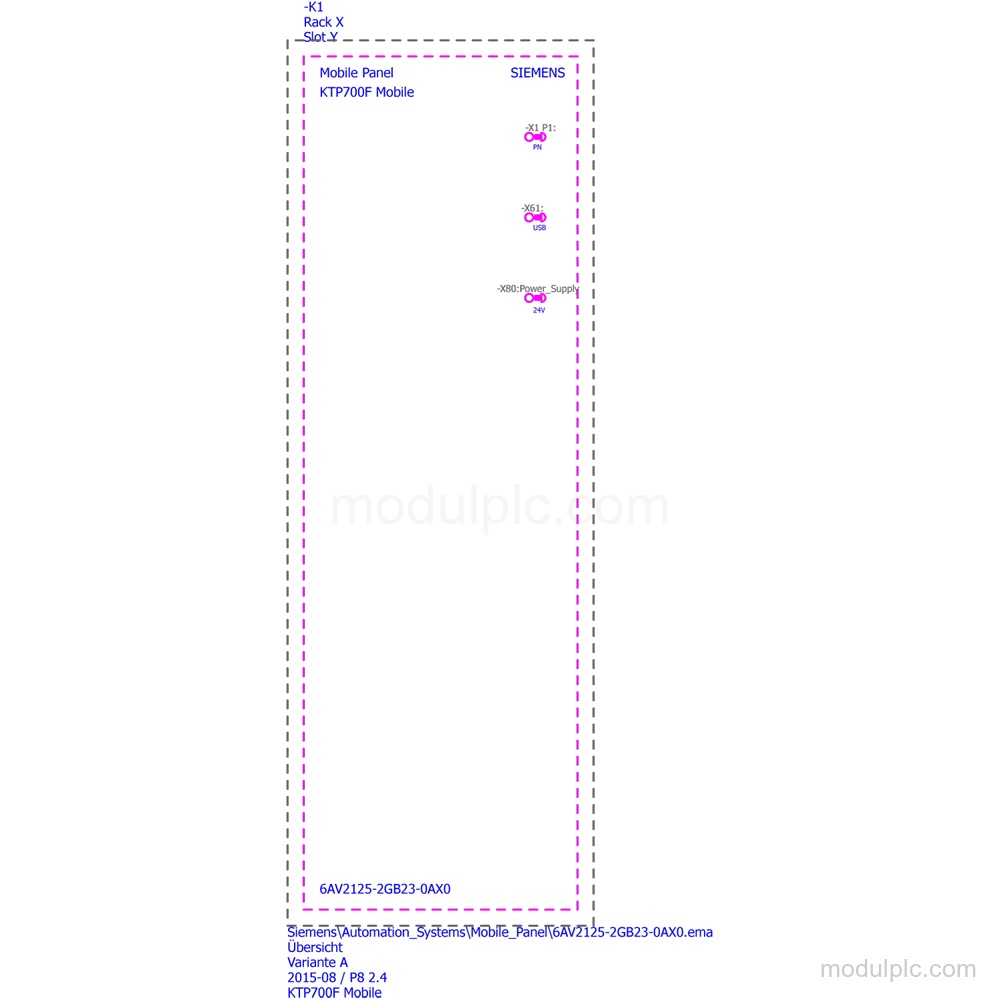

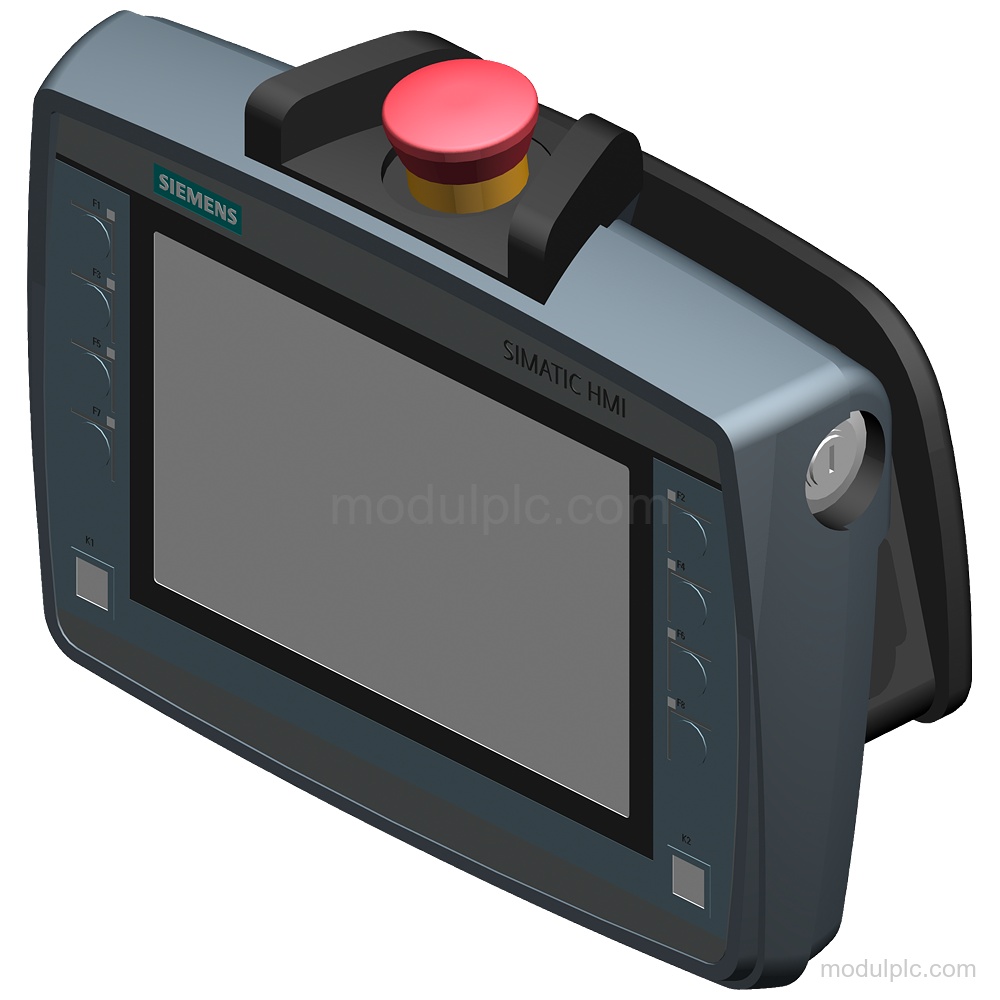

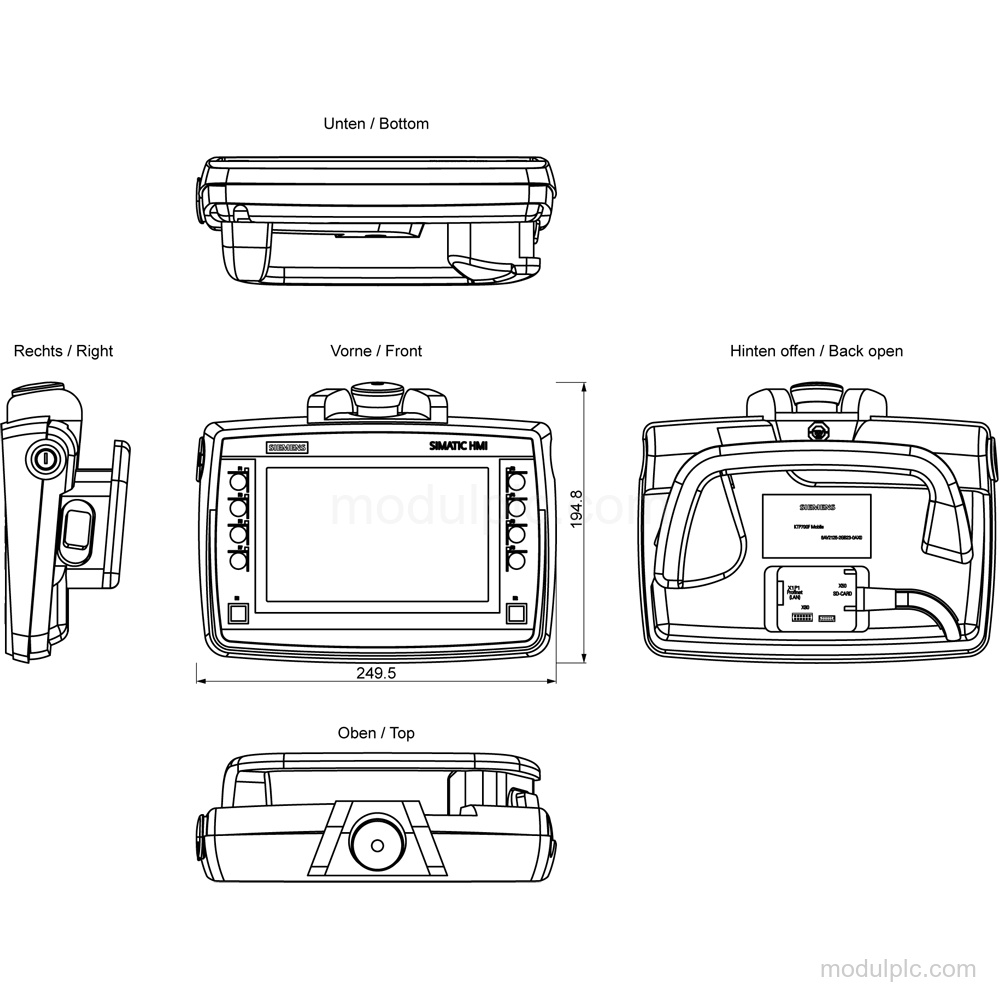

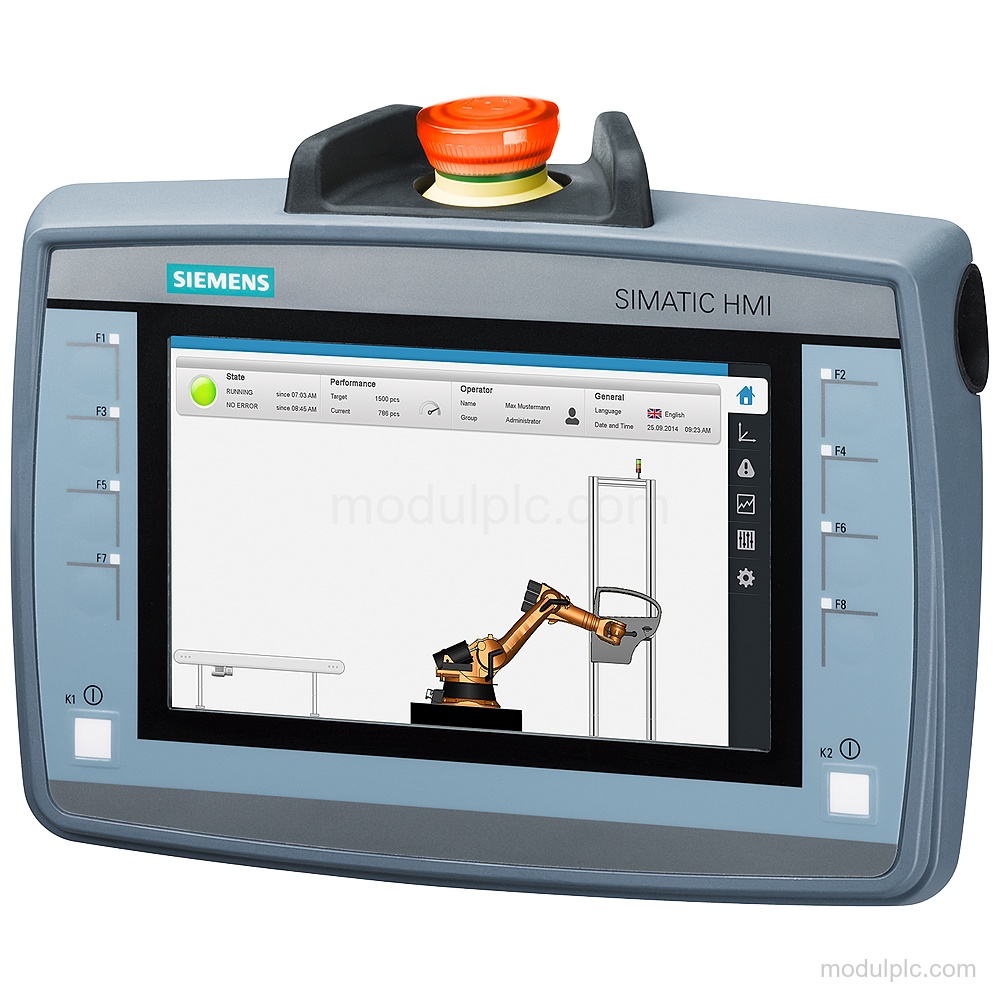

| Product type | KTP700F Mobile |
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 pixel x 480 pixel |
| Function keys | 8, with LEDs |
| PROFINET interfaces | 1 |
| USB interface | 1; USB 2.0 |
| SD card slots | 1 |
| Supply | 24 V DC rated; permissible range 19.2 V DC to 28.8 V DC |
| Current consumption | 350 mA rated |
| Protection | IP65 (all-round) |
Key Features
- Display and operation: 7 in TFT widescreen display with LED backlighting, 800 pixel x 480 pixel resolution, 16 777 216 colors, key operation, and touch operation.
- Function keys: 8 function keys with LEDs, plus numeric and alphanumeric onscreen keyboards.
- Operator controls: Key-operated switch, 3-stage acknowledgement button, illuminated pushbutton, and illuminated emergency stop button with forced blocking.
- Network and interfaces: 1 industrial Ethernet interface and 1 PROFINET interface, plus 1 USB 2.0 interface and 1 SD card slot.
- Protocols: Supports PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
- Supply and protection: 24 V DC rated supply with a permissible range of 19.2 V DC to 28.8 V DC; IP65 all-round protection.
Frequently Asked Questions
1. What display does the Siemens 6AV2125-2GB23-0AX0 have?
It has a 7 in TFT widescreen display with LED backlighting, 800 pixel x 480 pixel resolution, and 16 777 216 colors.
2. How many function keys and direct keys does it provide?
It has 8 function keys with LEDs and 32 direct keys configured as touch buttons; it also has 8 direct keys configured as F1…Fx S7 input I/O.
3. Which network and communication interfaces are available?
It has 1 industrial Ethernet interface, 1 PROFINET interface, and 1 USB 2.0 interface. Supported protocols include PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
4. What supply does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC. Rated current consumption is 350 mA.
5. What operator controls are included?
It includes a key-operated switch, a 3-stage acknowledgement button, an illuminated pushbutton, and an illuminated emergency stop button with forced blocking.
