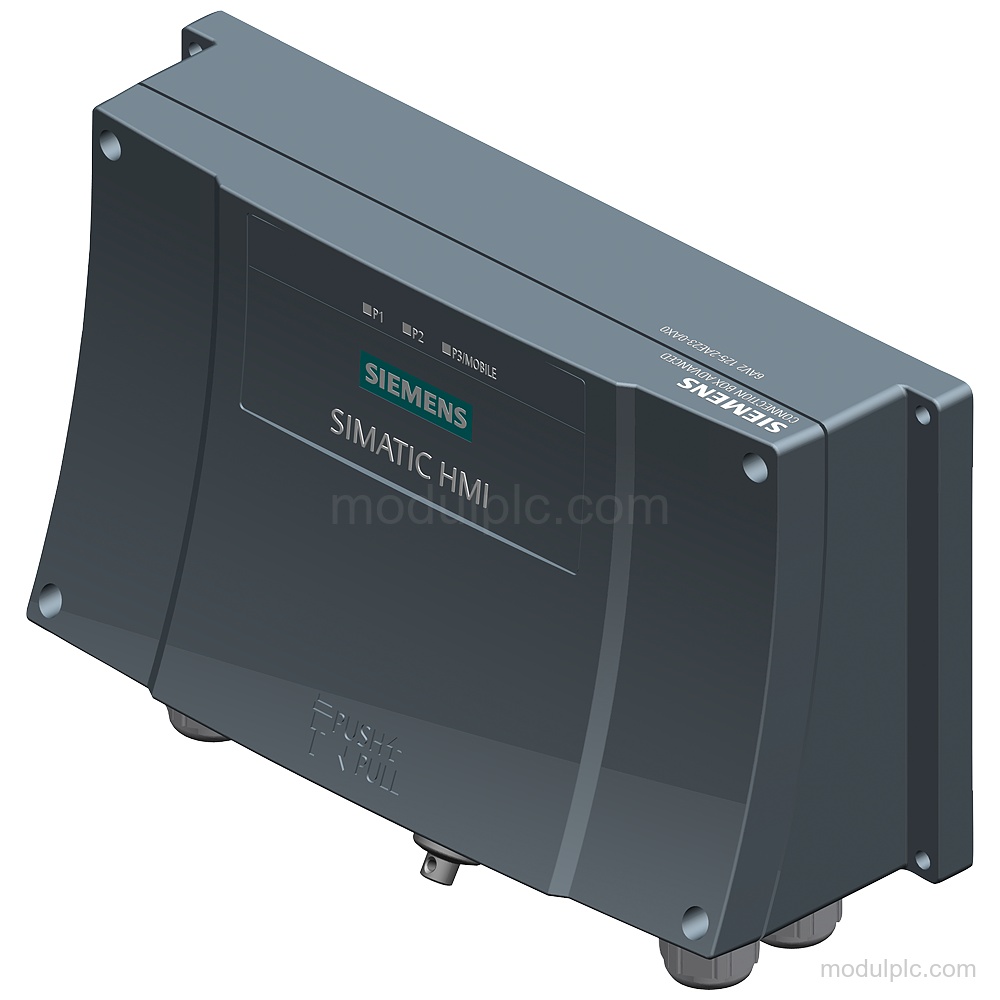

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Connection box |
| Industrial Ethernet interfaces | 3 |
| PROFINET interfaces | 3 |
| Supported protocols | PROFINET, PROFIsafe, EtherNet/IP, IRT, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, MODBUS |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Rated current consumption | 95 mA |
| Typical active power input | 2.3 W |
| Mounting | Wall mounting/direct mounting |
| Protection | IP65 |
Applications
- Emergency stop circuit bridging: Supports emergency stop circuit bridging for Mobile Panel connections.

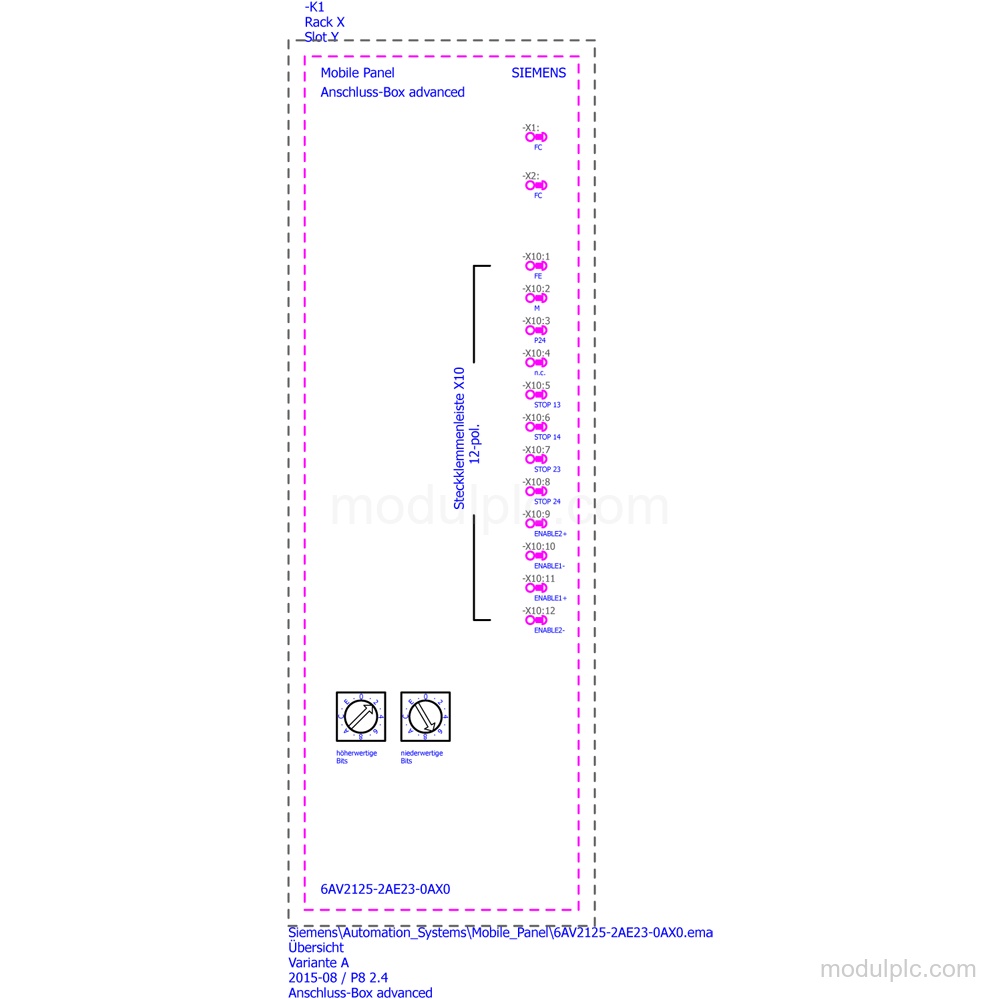

- Safety button monitoring: Supports monitoring of STOP, emergency stop, and acknowledgement buttons through direct wiring and PROFIsafe.
- Terminal detection: Provides terminal detection for the connected Mobile Panel setup.
- Web-based management: Provides web-based management of the connection box.
Key Features
- Network interfaces: Has 3 industrial Ethernet interfaces and 3 PROFINET interfaces, with 3 industrial Ethernet status LEDs.
- Protocols and network functions: Supports PROFINET, PROFIsafe, EtherNet/IP, IRT, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
- Safety monitoring: Supports monitoring of the STOP button, emergency stop button, and acknowledgement button through direct wiring and PROFIsafe.
- Supply and power: Uses a 24 V DC rated supply value, with a permissible range from 19.2 V to 28.8 V, 95 mA rated current consumption, and 2.3 W typical active power input.

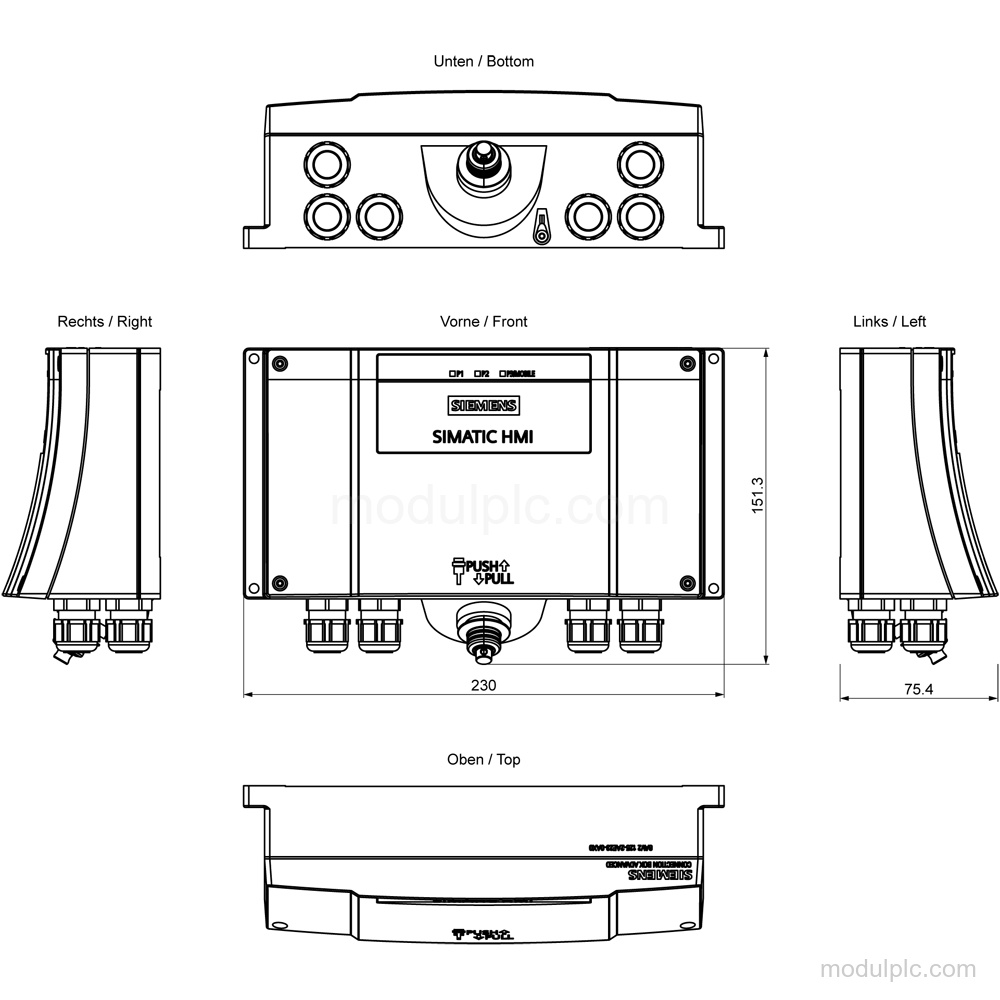

- Installation and protection: Supports wall mounting/direct mounting and has IP65 protection, including IP65 all-round and at the front.
- Management and connection: Provides web-based management, connection point identification, terminal detection, an integrated switch, and MRP client functionality.
Frequently Asked Questions
1. Which protocols does the 6AV2125-2AE23-0AX0 support?
It supports PROFINET, PROFIsafe, EtherNet/IP, IRT, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
2. How many network interfaces does the connection box have?
It has 3 industrial Ethernet interfaces and 3 PROFINET interfaces.
3. What supply does this connection box require?
The rated supply value is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. How is the 6AV2125-2AE23-0AX0 mounted?
It supports wall mounting/direct mounting and has IP65 protection.
