Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Connection box |
| Interfaces | 2 industrial Ethernet interfaces; 2 PROFINET interfaces |
| Protocols | PROFINET, PROFIsafe, EtherNet/IP, MODBUS |
| Supply voltage | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Current consumption | 18 mA rated value |
| Active power input | 0.43 W, typ. |
| Mounting | Control cabinet installation |
| Protection rating | IP65 at the front; IP20 at the rear |
| Connection point identification | Yes |
Applications
- Safety relay connection: Provides connection of a safety relay.
- Connection point detection: Provides connection point identification.
- Control cabinet installation: Supports installation in a control cabinet.
Key Features

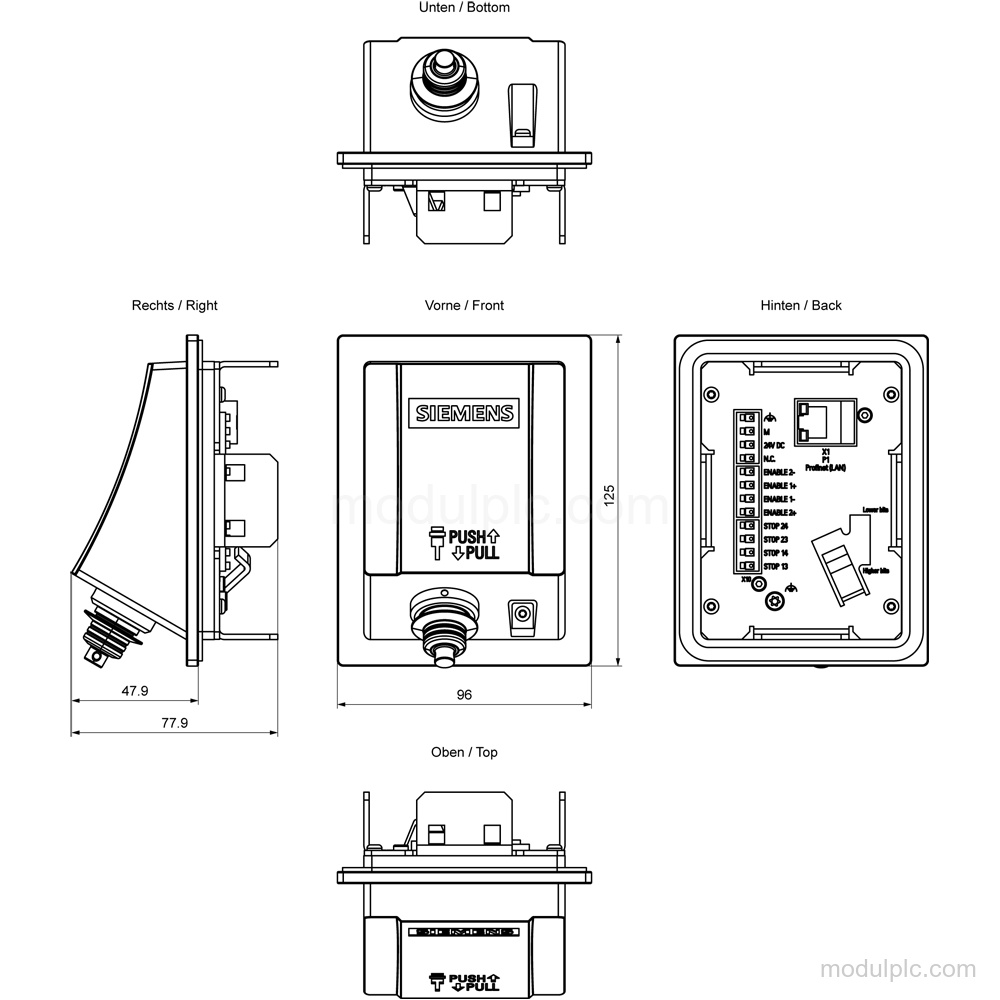

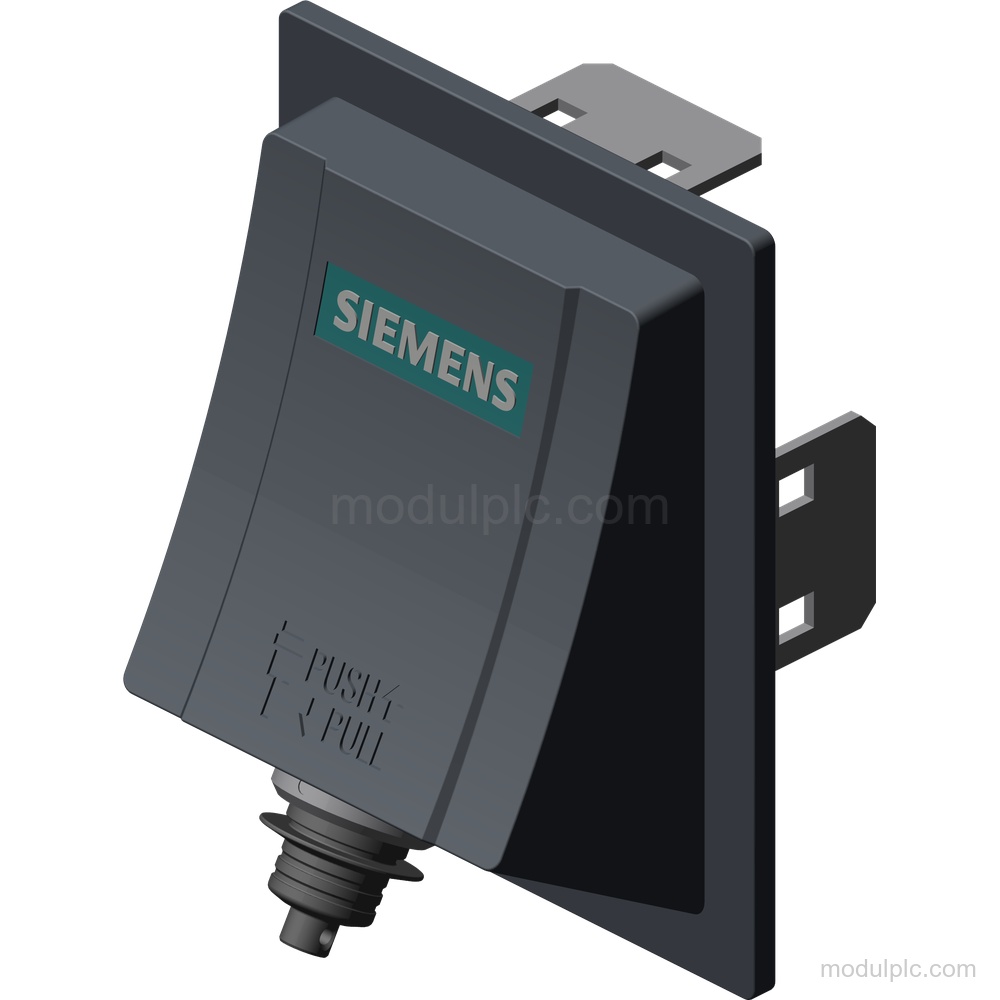

- Mobile Panel connection box: Connection box for Mobile Panels with control cabinet installation.
- PROFINET and PROFIsafe: Supports PROFINET and PROFIsafe, both without switch functionality.
- Industrial Ethernet interfaces: Has 2 industrial Ethernet interfaces and 2 PROFINET interfaces.

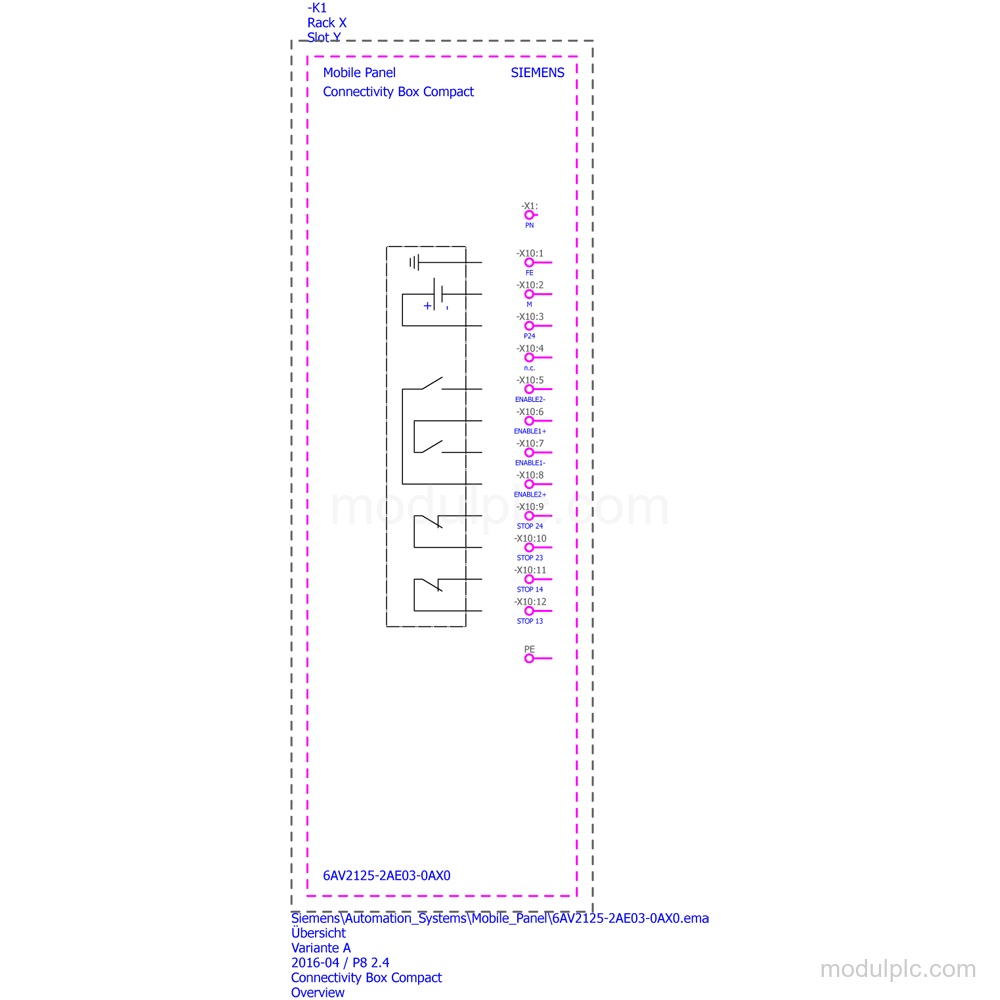

- Safety monitoring: Supports monitoring of the STOP button, emergency stop button, and acknowledgement button through direct wiring and PROFIsafe.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Front and rear protection: Protection rating is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. Which protocols does the 6AV2125-2AE03-0AX0 support?
It supports PROFINET, PROFIsafe, EtherNet/IP, and MODBUS. PROFINET, PROFIsafe, and TCP/IP have no switch functionality.
2. How many interfaces does this connection box have?
It has 2 industrial Ethernet interfaces and 2 PROFINET interfaces.
3. What supply voltage does the connection box require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. Where is the 6AV2125-2AE03-0AX0 installed?
It is intended for control cabinet installation; wall mounting/direct mounting is not supported.
5. What protection ratings apply to this configuration?
The protection rating is IP65 at the front and IP20 at the rear.
