Product Overview
Technical Summary
| Parameter | Value |
|---|---|

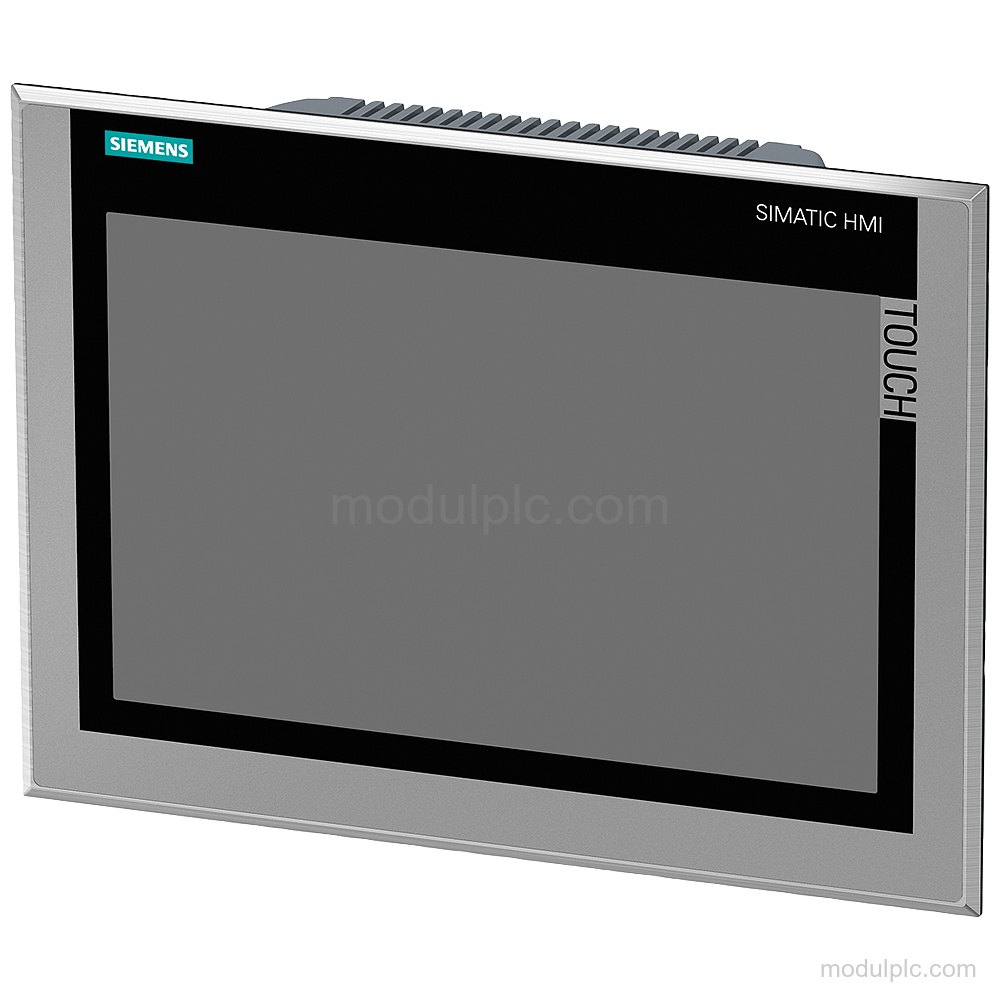

| Product type | TP1200 Comfort INOX LF |
| Display | 12.1 in capacitive TFT |
| Resolution | 1 280 pixel × 800 pixel |
| Ethernet interface | 1; 2 ports (switch) |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| USB interfaces | 2; USB 2.0 |
| Mounting | Vertical; portrait and landscape possible |
| Front protection | IP66K |
| Rear protection | IP20 |
Key Features
- Display and touch operation: 12.1 in capacitive TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution and 16 777 216 colors.
- Communication interfaces: 1 industrial Ethernet interface with 2 ports through an integrated switch, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
- Supported protocols: Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X and JavaScript.
- Power supply: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; rated current consumption is 0.85 A and typical active power input is 20 W.
- Installation and protection: Vertical mounting is supported, with portrait and landscape formats possible. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP66K at the front and IP20 at the rear.
- INOX construction: Stainless steel front with continuous decorative film; front enclosure Type 4x is supported for indoor use only.
Frequently Asked Questions
1. What display does the 6AV2144-8MC10-0AC0 have?
It has a 12.1 in capacitive TFT display with 1 280 pixel × 800 pixel resolution and 16 777 216 colors.
2. Which communication interfaces are available?
It has 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
3. Which protocols does this HMI panel support?
It supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X and JavaScript.
4. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
5. How is the panel mounted and protected?
It supports vertical mounting in portrait or landscape format. The maximum permissible angle of inclination without external ventilation is 35°, with IP66K protection at the front and IP20 at the rear.
