Product Overview
Technical Summary

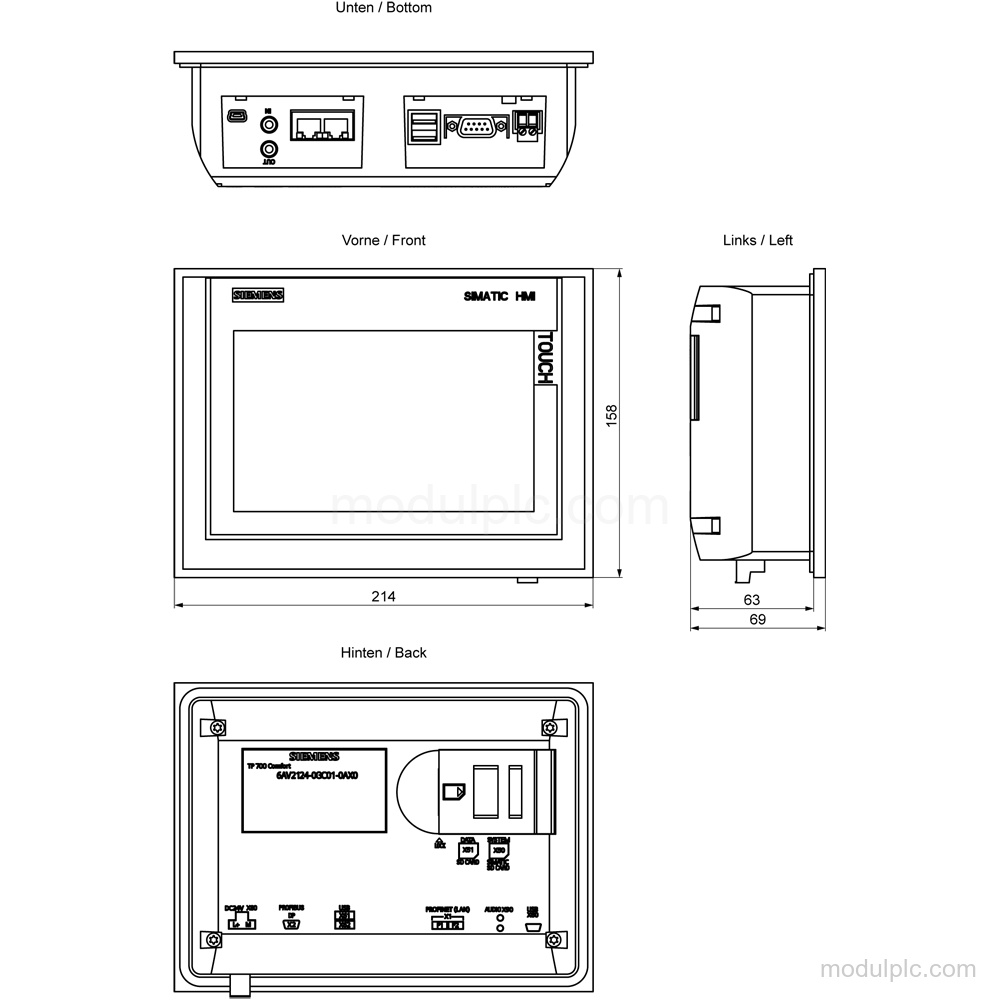

| Parameter | Value |
|---|---|
| Display | 7 in widescreen TFT, 16 777 216 colors |
| Touch screen | Analog-resistive |
| Resolution | 800 pixel × 480 pixel |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- Widescreen TFT display: 7 in display with 16 777 216 colors and 800 pixel × 480 pixel resolution.
- Touch operation: Analog-resistive touch screen with numeric and alphanumeric onscreen keyboards.

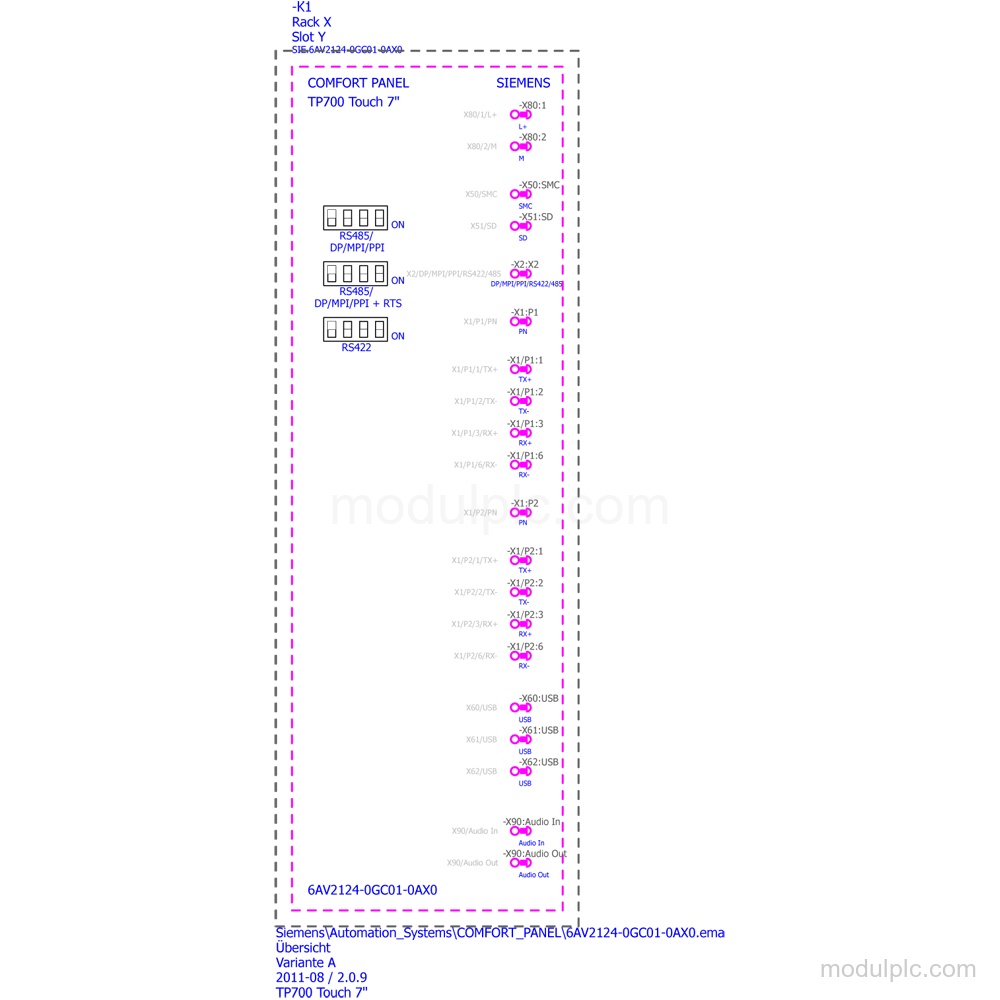

- Communication interfaces: 1 industrial Ethernet interface with 2 ports (switch), 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
- Supported protocols: PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, and JavaScript.
- DC supply: 24 V DC rated value with a permissible range from 19.2 V to 28.8 V; current consumption is 0.5 A.
- Mounting and protection: Vertical mounting; portrait and landscape mounting are possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-0GC01-0AX0 have?
It has a 7 in widescreen TFT display with 16 777 216 colors and 800 pixel × 480 pixel resolution.
2. Which communication interfaces are available?
It has 1 industrial Ethernet interface with 2 ports (switch), 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
3. Which protocols does this TP700 Comfort Panel support?
It supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, and JavaScript.
4. What supply voltage and current consumption does it require?
The rated supply value is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.5 A.
5. How can the panel be mounted?
Mounting is vertical, and portrait or landscape mounting is possible. Wall mounting/direct mounting is not available.
