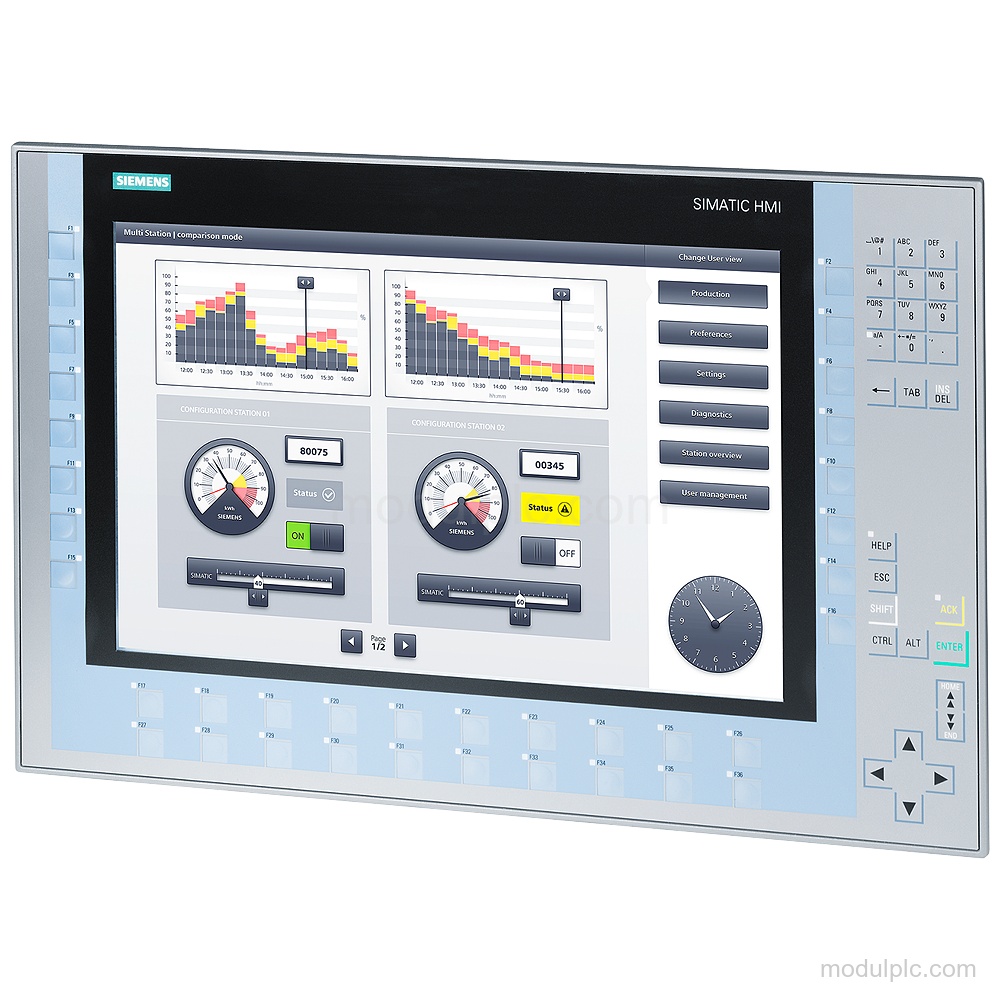

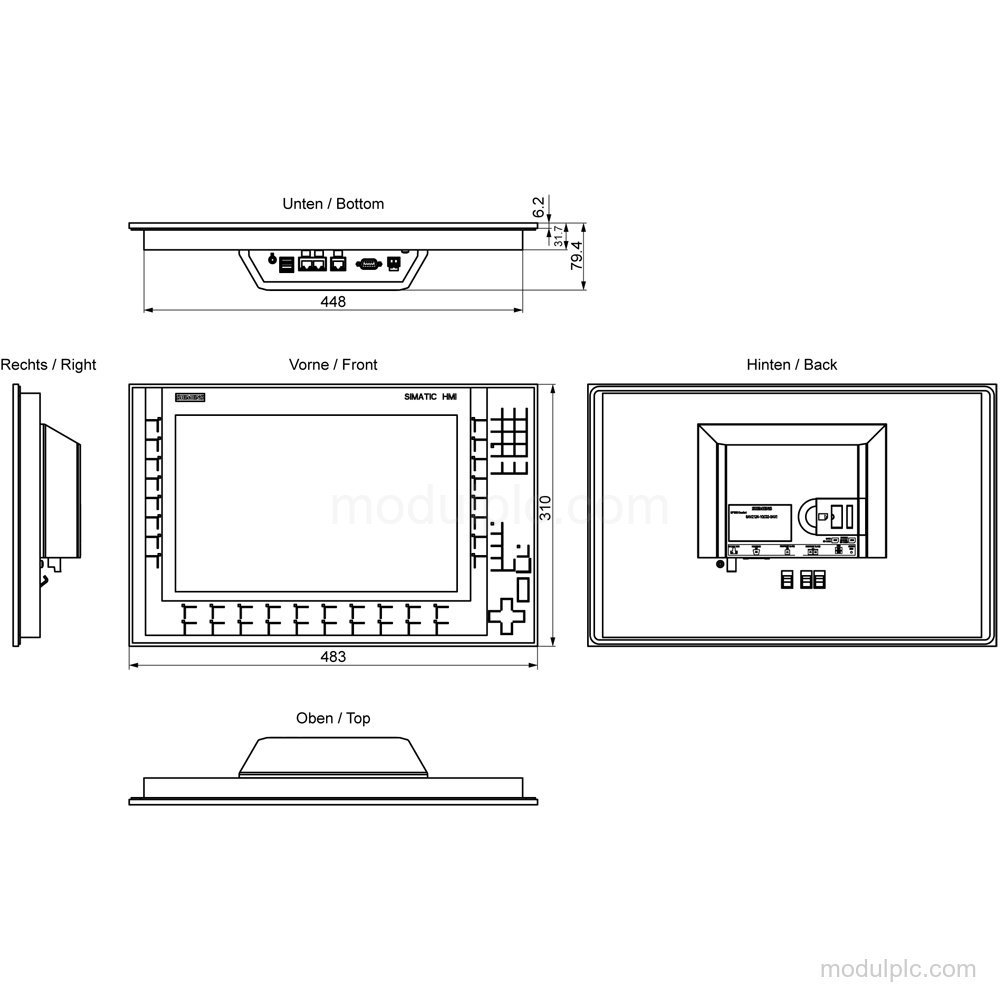

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 15.4 in widescreen TFT |
| Display_resolution | 1 280 pixel x 800 pixel |
| Function_keys | 36 |
| Industrial_Ethernet_interfaces | 2; 2 ports (switch) + independent port |
| RS_485_interfaces | 1; RS 422 / 485 combined |
| USB_interfaces | 2; USB 2.0 |
| Supported_protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP |
| User_data_memory | 24 Mbyte |
| Rated_supply | 24 V DC |
| Mounting | Vertical; landscape format possible |
Key Features
- Display: 15.4 in widescreen TFT display with 16 777 216 colors and 1 280 x 800 pixel resolution.
- Key operation: 36 function keys, including 36 function keys with LEDs; numeric and alphanumeric keyboards are included. Touch operation: No; without.

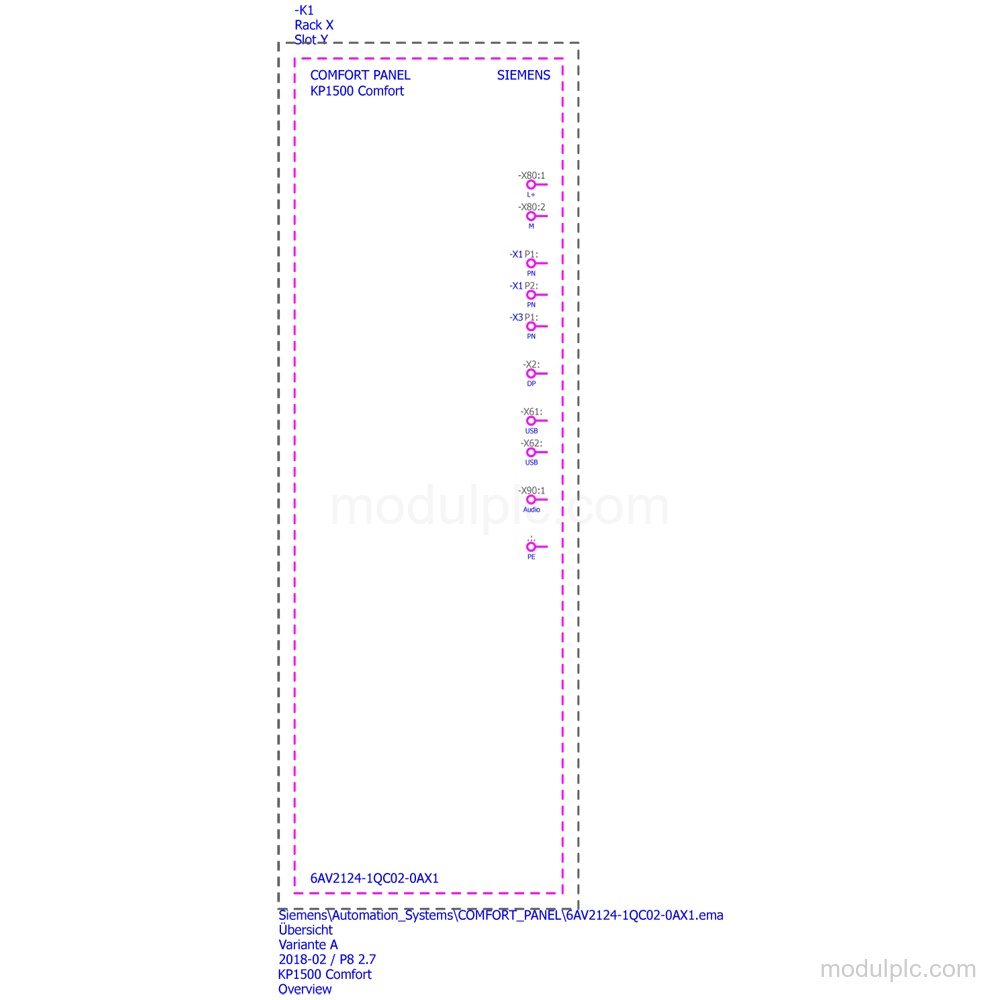

- Network interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, and 1 combined RS 422 / 485 interface.
- Protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP.
- USB and storage: 2 USB 2.0 interfaces and 2 SD card slots; 24 Mbyte is available for user data.
- Supply and mounting: 24 V DC rated supply with a permissible range of 19.2 V DC to 28.8 V DC; vertical mounting and landscape format are supported, with a maximum permissible angle of inclination of 35° without external ventilation.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-1QC02-0AX1 have?
It has a 15.4 in widescreen TFT display with 16 777 216 colors and 1 280 x 800 pixel resolution.
2. How many function keys does the KP1500 Comfort have?
It has 36 function keys, and all 36 have LEDs. Touch operation is not included.
3. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports and an independent port, plus 1 combined RS 422 / 485 interface. Supported protocols include PROFINET, PROFIBUS, EtherNet/IP, MPI and TCP/IP.
4. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
5. How is the panel mounted?
Mounting is vertical, and landscape format is possible. The maximum permissible angle of inclination is 35° without external ventilation.
