Product Overview
Technical Summary

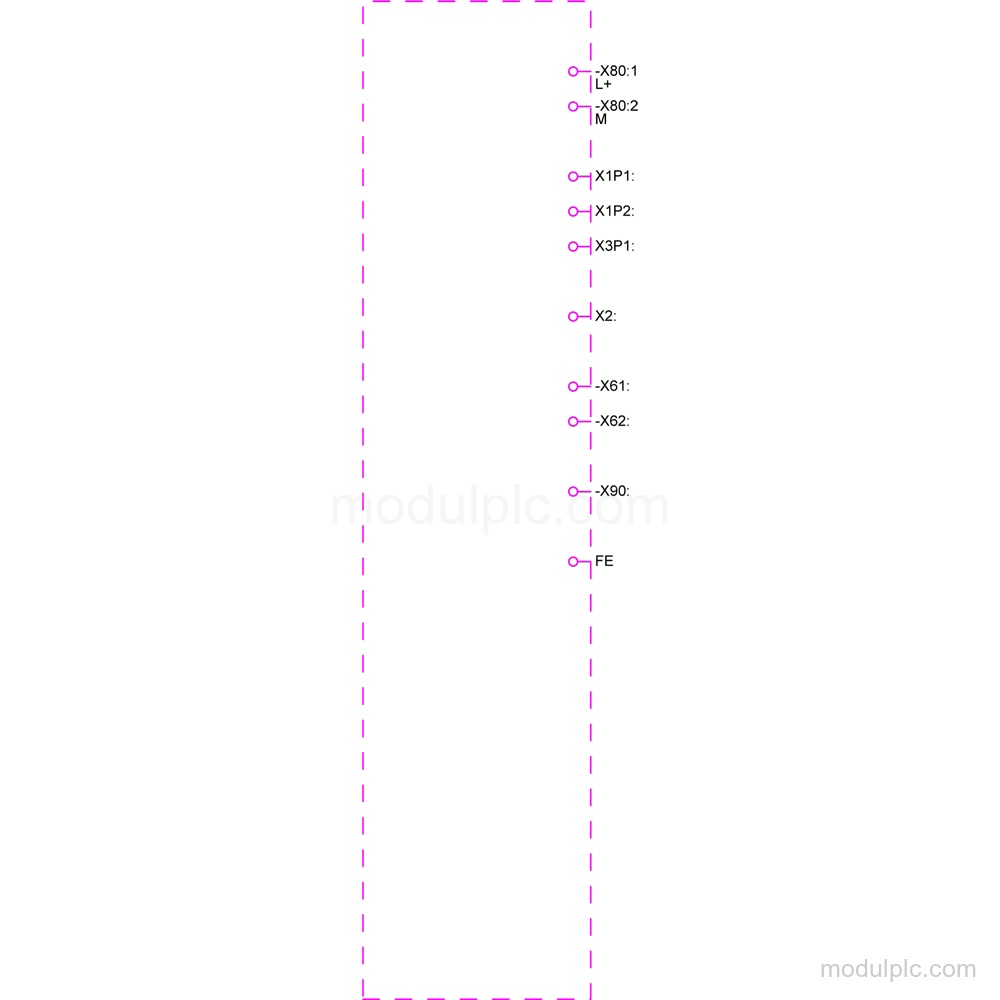

| Parameter | Value |
|---|---|
| Display | 21.5 in TFT, 1 920 x 1 080 pixel, 16 777 216 colors |
| Touch operation | Projective-capacitive touch screen |
| Direct keys | 40 touch buttons as S7 input I/O |
| Industrial Ethernet | 2 switch ports plus 1 independent port |
| Serial interface | 1 combined RS 422 / 485 interface |
| USB | 2 USB 2.0 interfaces |
| Protocols | PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Power input | 44 W typical active power input |

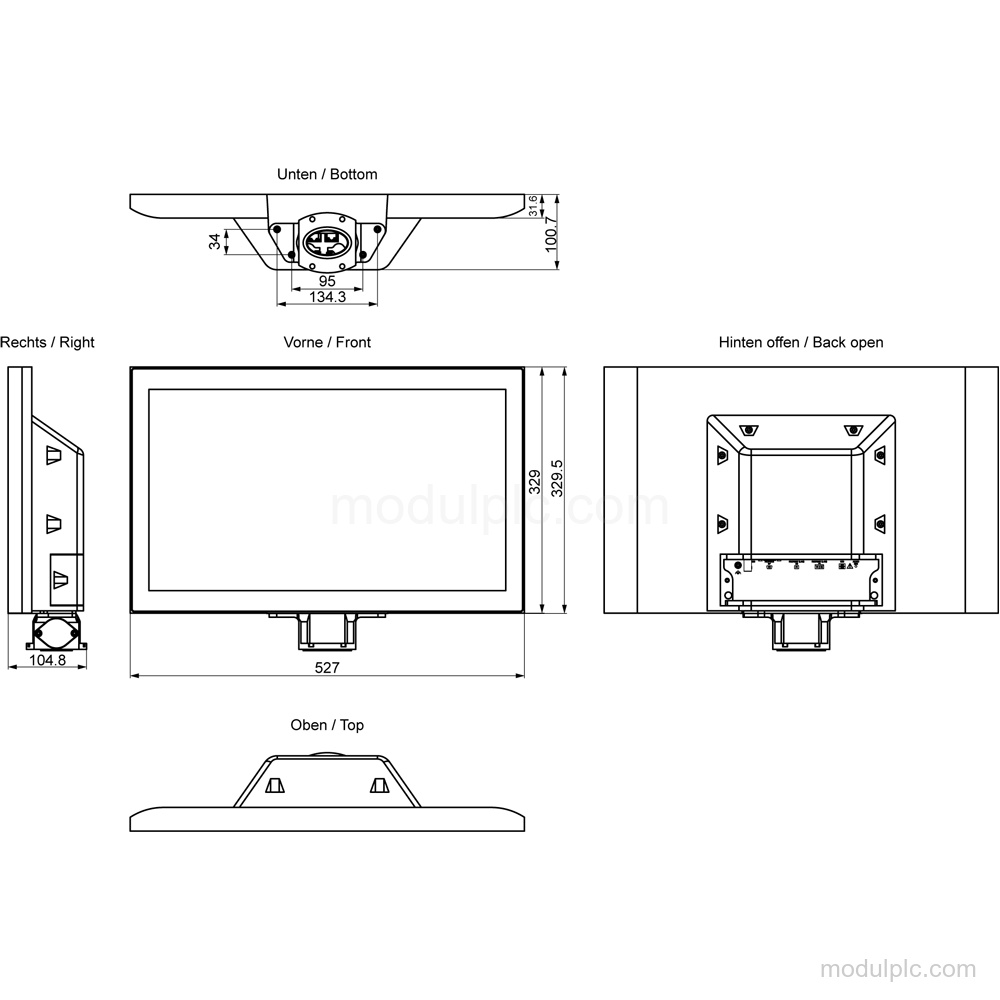

| Mounting | Pedestal; vertical position; landscape format possible |
| Protection | IP65 at the front and rear |
Applications
- Touch operator control: The touch screen and 40 direct keys provide operator control through touch buttons as S7 input I/O.
- PROFINET IO communication: The panel supports PROFINET IO protocol communication.
- Diagnostic information: Diagnostic information is readable through an S7 controller.
Key Features
- Touch display: 21.5 in TFT display with 1 920 pixel horizontal and 1 080 pixel vertical image resolution, 16 777 216 colors, and projective-capacitive touch operation.
- Communication interfaces: 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
- Supported protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, JavaScript, MRP, and MODBUS.
- Mounting and protection: Pedestal mounting in vertical position; landscape mounting is possible. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and rear.
- Power supply: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 1.8 A rated current consumption, and 44 W typical active power input.
- Operator controls and memory: Provides 40 direct keys as touch buttons, onscreen numeric and alphanumeric keyboards, and 24 Mbyte memory available for user data.
Frequently Asked Questions
1. What display does the 6AV2124-0XC24-1AB0 have?
It has a 21.5 in TFT display with 1 920 x 1 080 pixel resolution, 16 777 216 colors, and projective-capacitive touch operation.
2. Which network interfaces are provided?
It has 2 industrial Ethernet interfaces with 2 ports of an integrated switch plus 1 independent port.
3. Which protocols does this panel support?
It supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
4. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
