Product Overview
Technical Summary
| Parameter | Value |
|---|---|

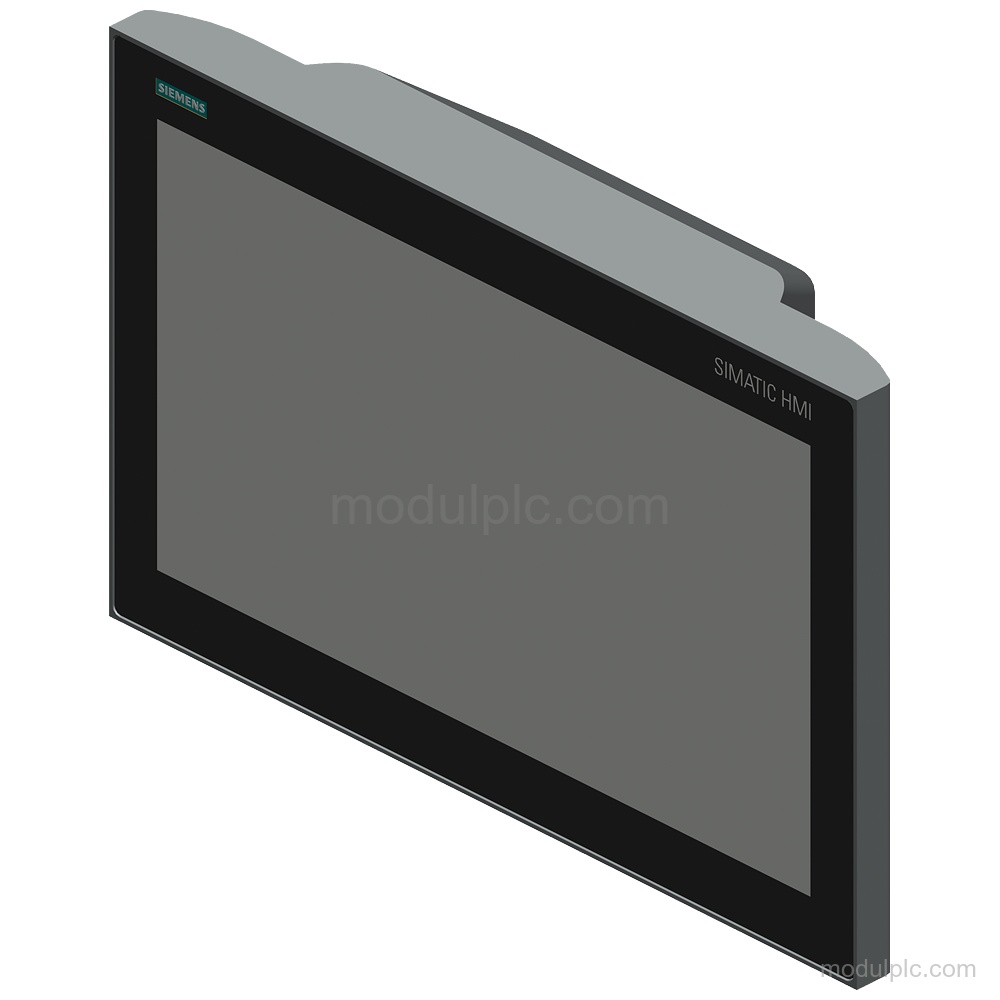

| Product type | TP1500 Comfort PRO |
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 x 768 pixel |
| Touch operation | Projective-capacitive touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| PROFINET IO | Supported |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Configuration memory | 24 MB |
| Mounting | Pedestal, vertical |
| Protection | IP65 at the front and rear |
Applications
- Touch-based operator control: The panel provides touch operation and 40 direct keys as S7 input I/O for operator control of the process.
Key Features
- Touch display: 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 x 768 pixel resolution.
- Operator control: Projective-capacitive touch screen with 40 direct keys as S7 input I/O; numeric and alphanumeric keyboards use the Onscreen keyboard.

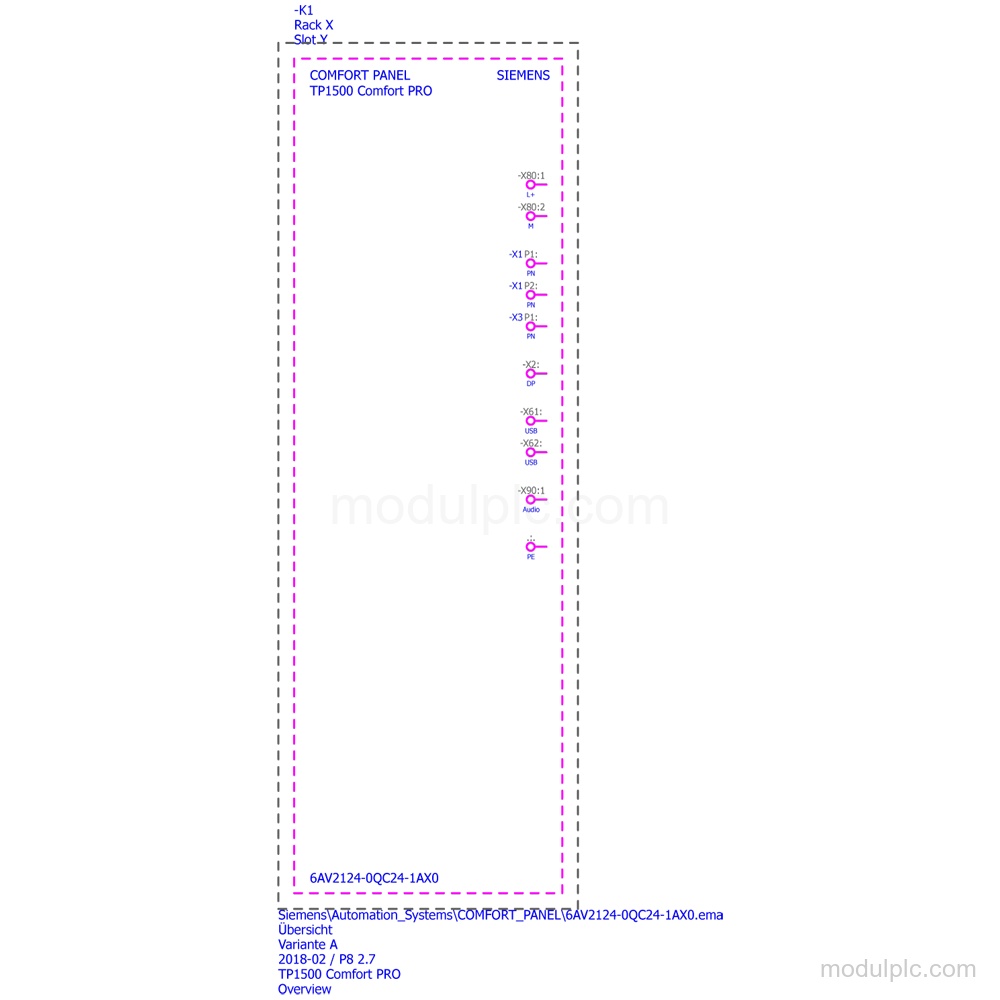

- Industrial interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port; 1 combined RS 422 / 485 interface and 2 USB 2.0 interfaces.
- Protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, JavaScript, MRP, and MODBUS.
- Supply and power: DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V; rated current consumption is 1.5 A and typical active power input is 36 W.

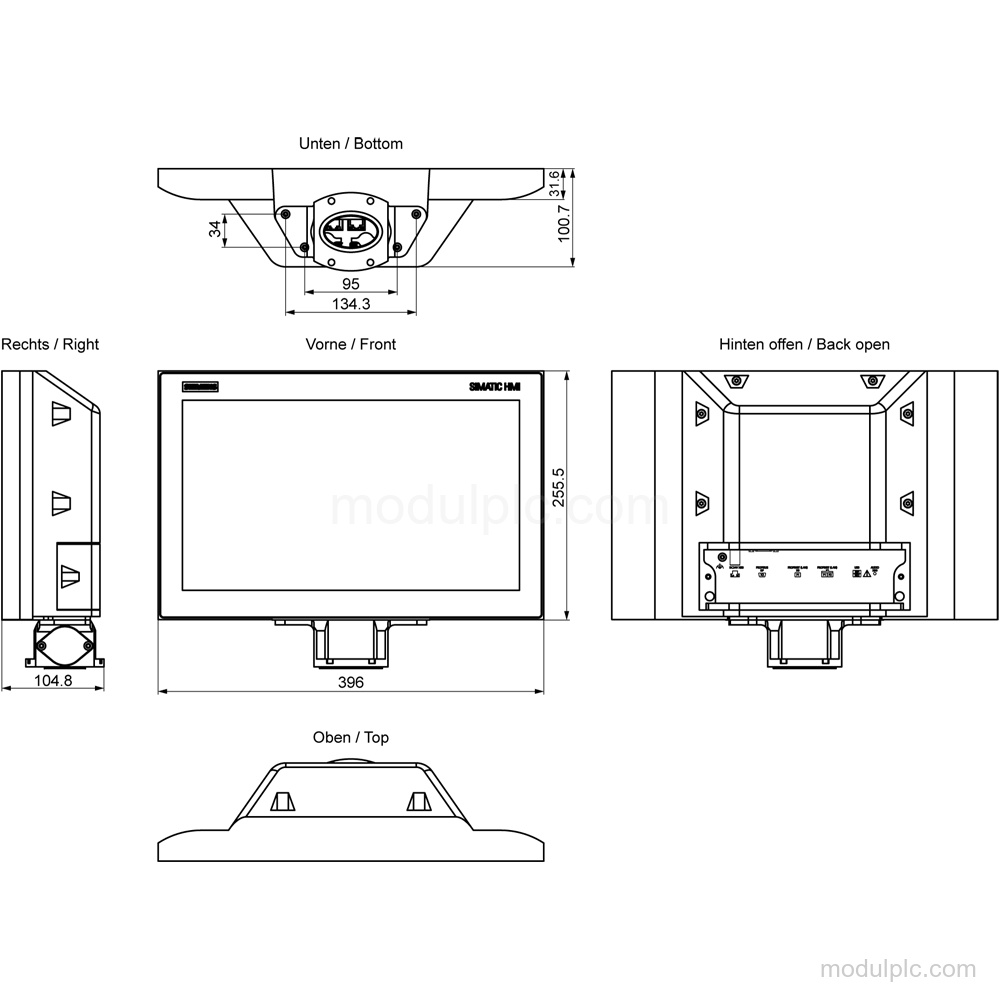

- Installation and protection: Pedestal mounting in vertical position; maximum permissible angle of inclination without external ventilation is 35°. IP65 protection applies at the front and rear.
Frequently Asked Questions
1. What display and touch technology does 6AV2124-0QC24-1AX0 use?
It has a 15.6 in widescreen TFT display with 16 777 216 colors, 1 366 x 768 pixel resolution, and a projective-capacitive touch screen.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, and supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, and MODBUS.
3. What supply voltage is required?
The DC supply has a rated value of 24 V, with a permissible range of 19.2 V to 28.8 V.
4. How is this HMI panel mounted and protected?
It uses pedestal mounting in a vertical position. IP65 protection applies at the front and rear.
