Product Overview
Technical Summary
| Parameter | Value |
|---|---|

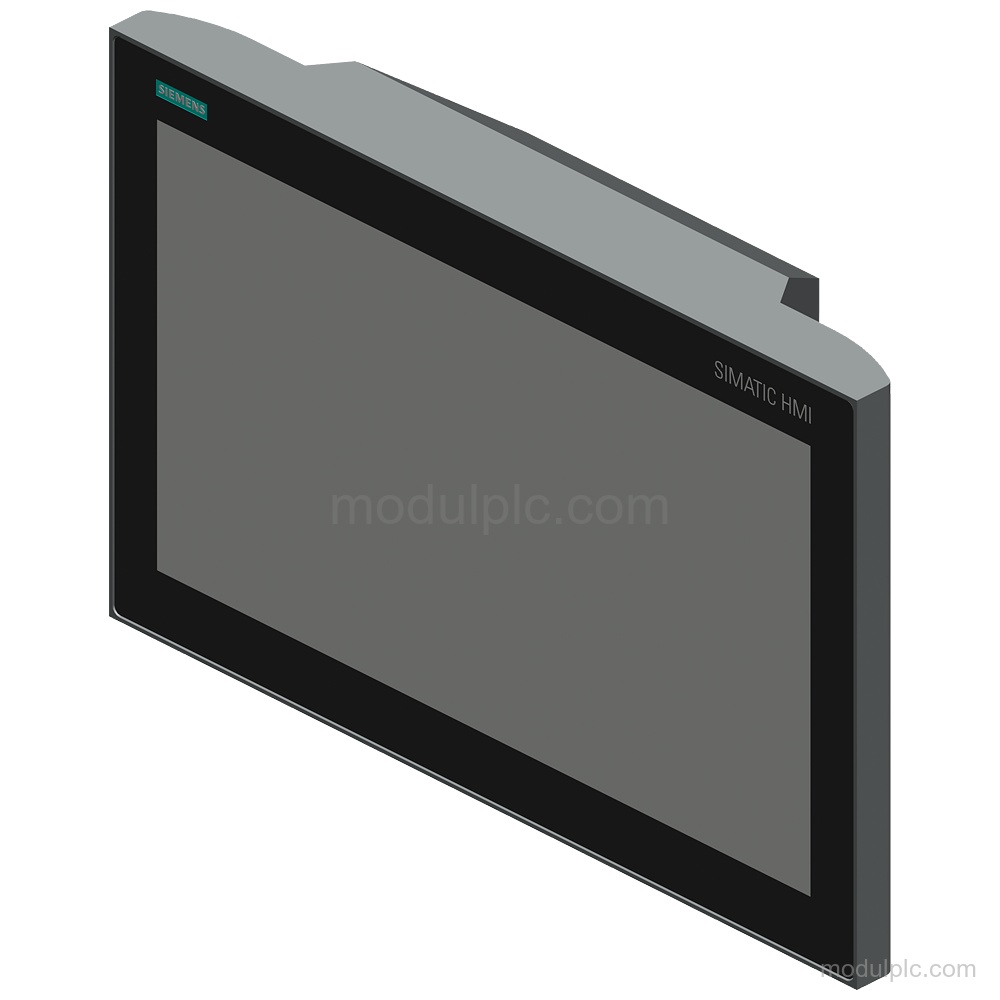

| Product type | TP1500 Comfort PRO |
| Display | 15.6 in TFT widescreen, 1 366 × 768 pixel |
| Touch operation | Yes; Projective-capacitive |
| Direct keys | 40; touch buttons as S7 input I/O |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| USB interfaces | 2; USB 2.0 |
| Mounting | Support arm, vertical |
| Protection | IP65 at the front and rear |
Applications
- Touch-based operator input: The projective-capacitive touch screen and 40 direct keys support operator input through touch buttons configured as S7 input I/O.
- PROFINET communication: The device supports PROFINET, PROFINET IO, IRT, TCP/IP, DHCP, SNMP, DCP, and LLDP communication.
- MPI/PROFIBUS DP communication: The MPI/PROFIBUS DP interface supports communication over PROFIBUS and MPI.
- Web-based access: The device supports HTTP, HTTPS, HTML, XML, CSS, Active X, and JavaScript.
Key Features
- 15.6 in widescreen touch display: The TFT display has a 15.6 in diagonal, 1 366 × 768 pixel resolution, 16 777 216 colors, and projective-capacitive touch operation.
- PROFINET and MPI/PROFIBUS DP interfaces: The unit has a PROFINET interface and an MPI/PROFIBUS DP interface, with 2 industrial Ethernet interfaces using 2 switch ports plus 1 independent port.
- Touch and direct-key operation: The device has 40 direct keys implemented as touch buttons serving as S7 input I/O, plus onscreen numeric and alphanumeric keyboards.

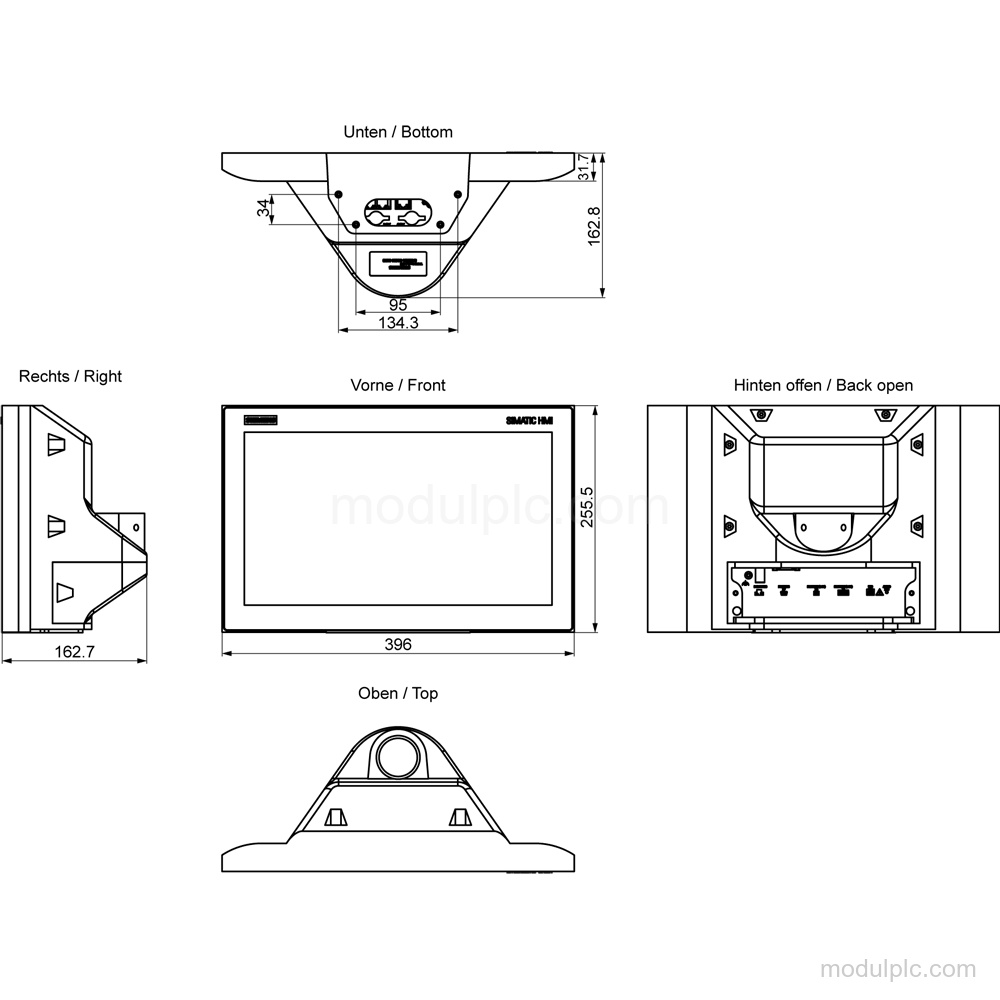

- Support-arm installation: Mounting is for a support arm in vertical position. Portrait-format mounting is not possible, and the maximum permissible inclination without external ventilation is 35°.
- DC supply and USB connectivity: Supply is 24 V DC with a permissible range of 19.2 V to 28.8 V, rated current consumption of 1.5 A, and 2 USB 2.0 interfaces.
- Front and rear IP65 protection: The enclosure has IP65 protection at the front and rear, with Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. Which communication interfaces does 6AV2124-0QC24-0BX0 have?

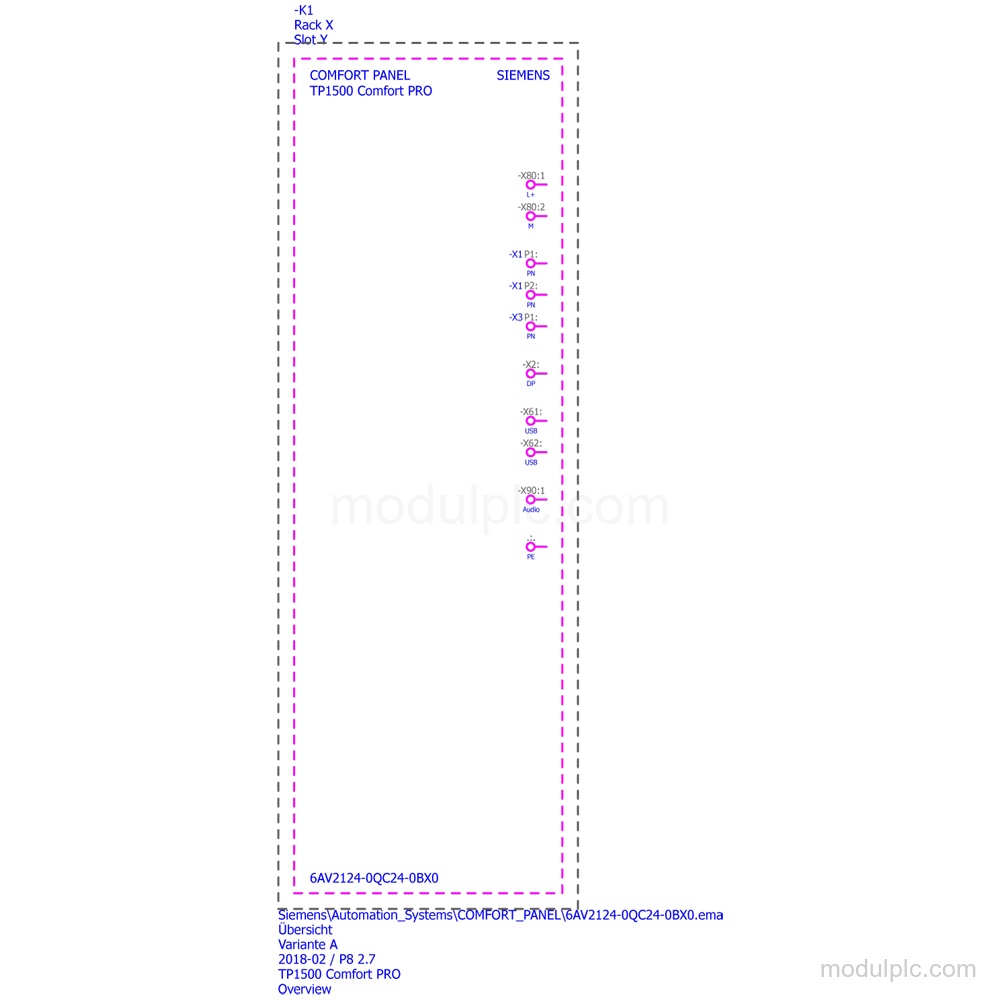

It has a PROFINET interface, an MPI/PROFIBUS DP interface, 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, and 2 USB 2.0 interfaces.
2. Which protocols are supported?
Supported protocols include PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
3. How is the panel mounted?
It is mounted on a support arm in vertical position. Portrait-format mounting is not possible.
4. What supply does the panel require?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V and rated current consumption of 1.5 A.
