Product Overview
Technical Summary

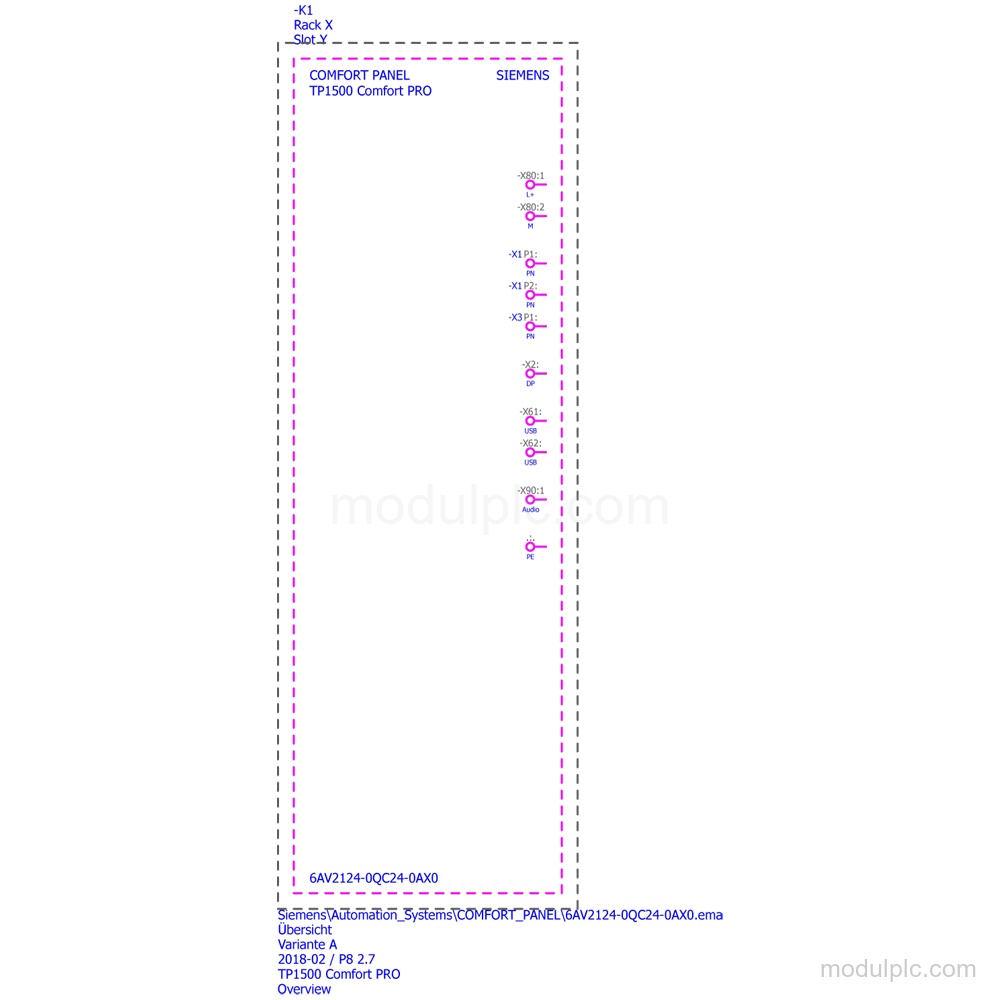

| Parameter | Value |
|---|---|
| Product type | TP1500 Comfort PRO |
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 pixel × 768 pixel |
| Touch operation | Projective-capacitive touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Serial interface | 1; RS 422 / 485 combined |
| Supported protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP |
| User-data memory | 24 Mbyte |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Mounting | Support arm, vertical |
| Protection | IP65 at the front and rear |
Key Features
- Touch widescreen display: 15.6 in widescreen TFT display with 16 777 216 colors, 1 366 pixel × 768 pixel resolution and projective-capacitive touch operation.
- PROFINET and PROFIBUS interfaces: Has 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, and 1 combined RS 422 / 485 interface. PROFINET, PROFIBUS, EtherNet/IP and MPI are supported.
- Operator input: Has 40 direct keys implemented as touch buttons and numeric and alphanumeric onscreen keyboards.
- Supply and memory: DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V; user-data memory is 24 Mbyte.

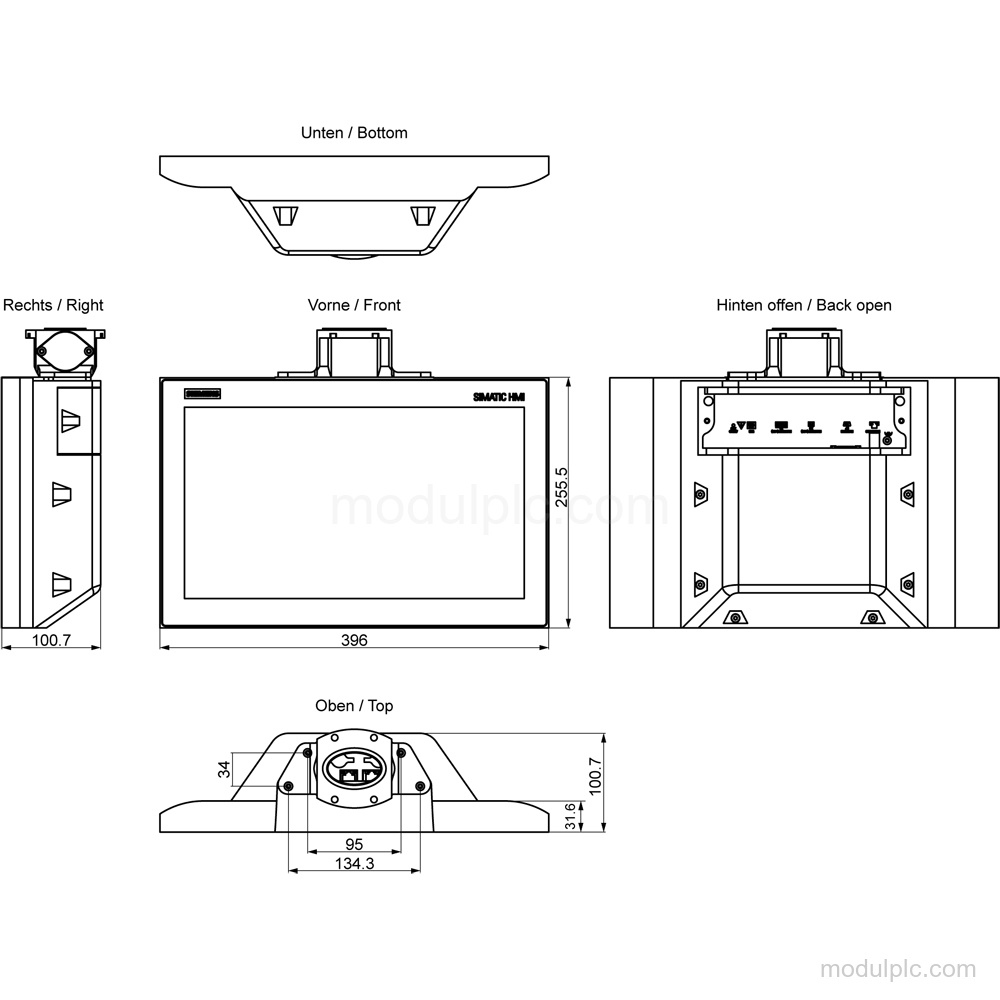

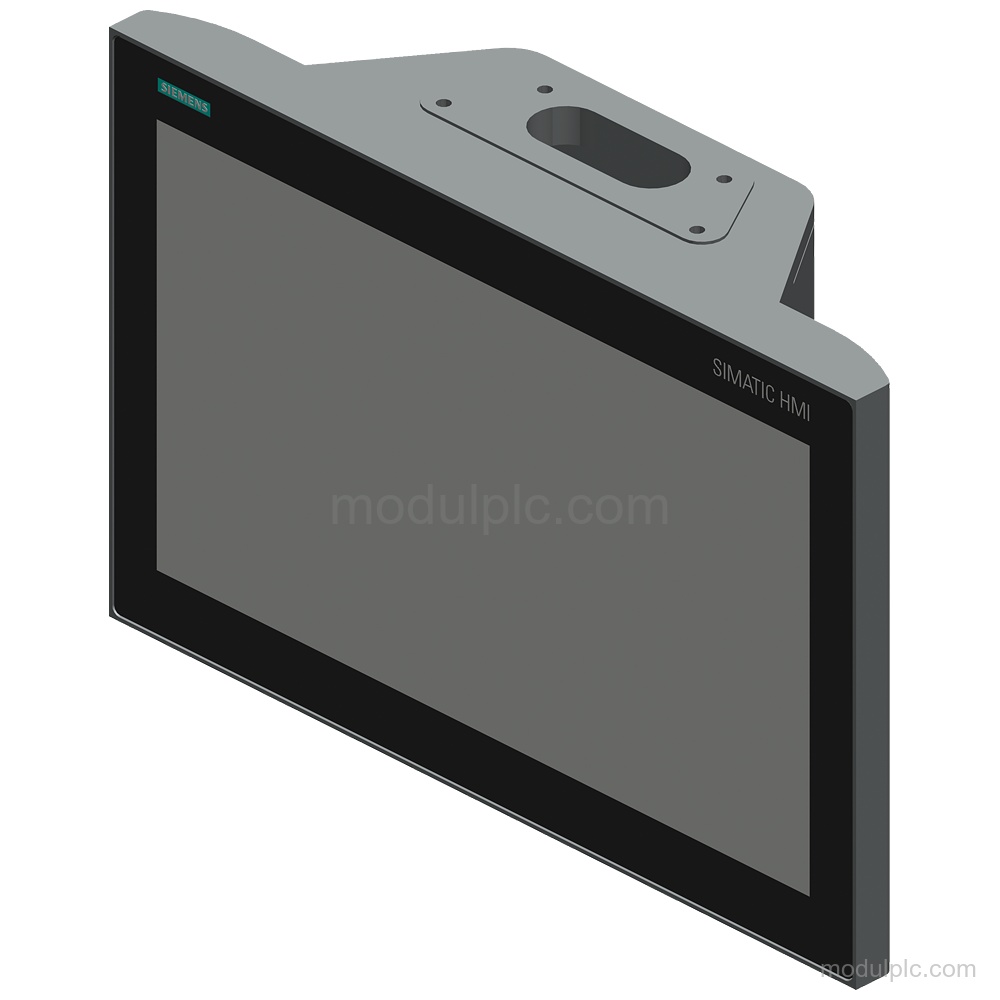

- Support-arm installation: Mounts on a support arm in vertical position. Portrait-format mounting is not possible; the maximum permissible angle of inclination without external ventilation is 35°.
- Protection and diagnostics: IP65 protection at the front and rear, Enclosure Type 4 and Enclosure Type 4x at the front, with diagnostic information readable by an S7 controller.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-0QC24-0AX0 have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port. PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
3. What supply voltage does this HMI panel require?
The supply is DC, with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
4. How is the TP1500 Comfort PRO installed?
It mounts on a support arm in vertical position. Portrait-format mounting is not possible.
5. Is the panel supplied with expansion capability?
It is not expandable and has a flange on top.
