Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 12.1 in widescreen TFT, 1 280 pixel × 800 pixel, 16 777 216 colors |
| Touch operation | Projective-capacitive touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Serial interface | 1 RS 422 / 485 combined interface |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Configuration memory | 24 MB |
| Mounting | Pedestal, vertical position |
| Protection | IP65 at the front and rear |
| Product lifecycle | Announcement of product phase-out |
Applications
- Touch-based operator input: Supports process operator input through the projective-capacitive touch screen and 40 direct keys as S7 input I/O.
- Industrial Ethernet communication: Supports communication through PROFINET, PROFINET IO, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP.
- PROFIBUS and serial communication: Supports PROFIBUS and MPI communication through the stated interfaces, including the combined RS 422 / 485 interface.

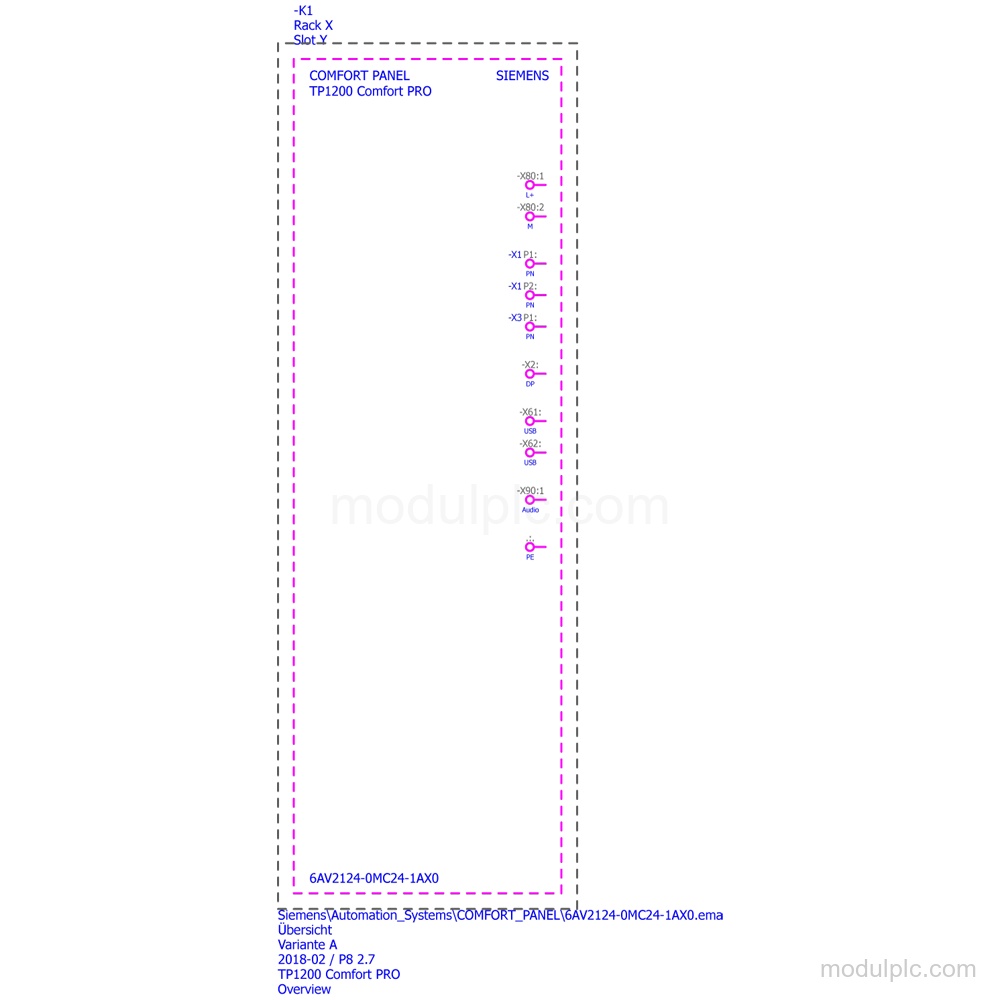

Key Features
- 12.1 in widescreen touch display: TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, 16 777 216 colors and projective-capacitive touch operation.
- PROFINET and PROFIBUS interfaces: Has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, 1 combined RS 422 / 485 interface, and PROFINET, PROFIBUS, MPI and EtherNet/IP support.
- Operator input and display functions: Provides 40 direct keys as S7 input I/O, numeric and alphanumeric onscreen keyboards, dimmable LED backlighting, and a speaker.
- Supply and power: DC supply with rated value 24 V, permissible range 19.2 V to 28.8 V, rated current consumption 1.5 A and typical active power input 36 W.
- Mounting and protection: Pedestal mounting in vertical position; portrait mounting is not possible. Maximum permissible angle of inclination without external ventilation is 35°. IP65 protection applies at the front and rear.
- Configuration and lifecycle: Has 24 MB configuration memory and 12 Mbyte memory for user data; configurable as of WinCC Comfort V14 SP1 with HSP. Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-0MC24-1AX0 have?
It has a 12.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors and projective-capacitive touch operation.
2. Which communication interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, 1 combined RS 422 / 485 interface, and supports PROFINET, PROFIBUS, EtherNet/IP and MPI.
3. What supply voltage does this HMI panel require?
The rated DC supply is 24 V, with a permissible range from 19.2 V to 28.8 V.
4. How is the panel mounted?
It uses pedestal mounting in a vertical position. Portrait mounting is not possible, and the maximum permissible inclination without external ventilation is 35°.
