Product Overview
Technical Summary
| Parameter | Value |
|---|---|

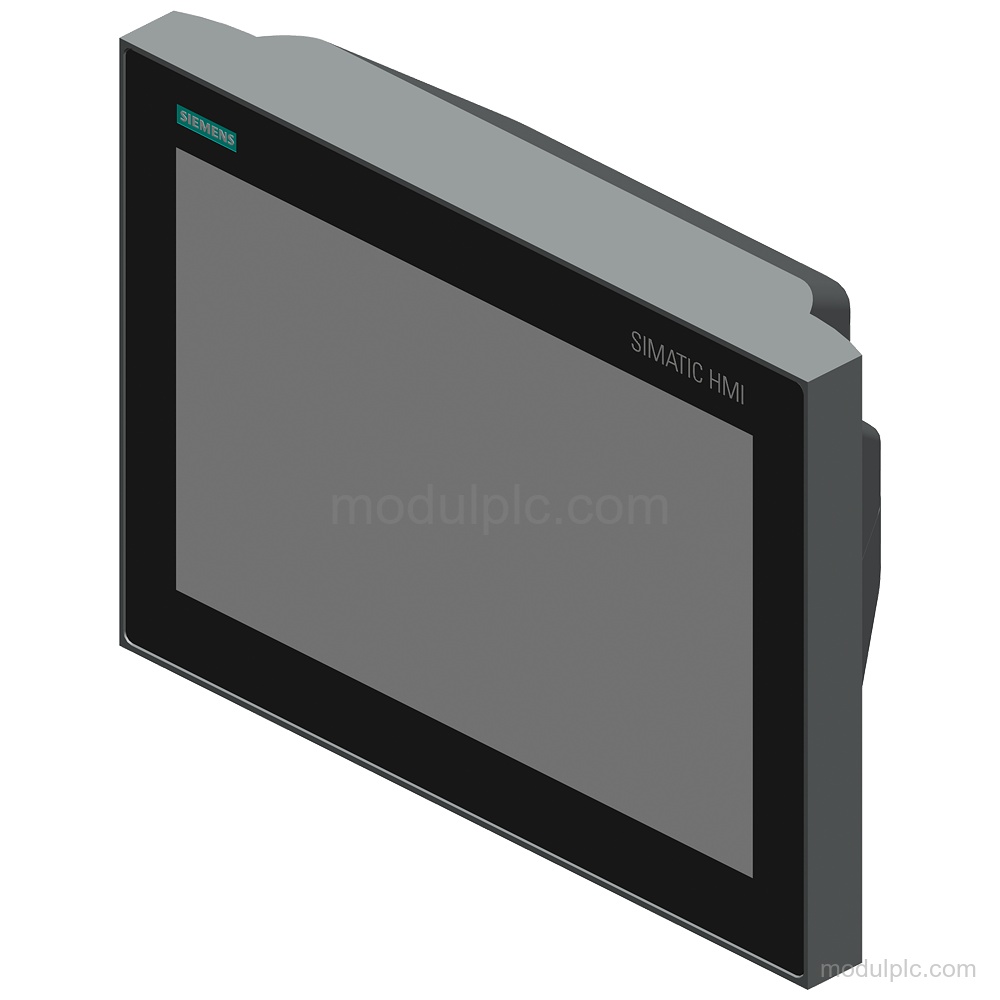

| Display | 12.1 in widescreen TFT touch display |
| Resolution | 1 280 pixel × 800 pixel |
| Touch operation | Projective-capacitive touch screen |

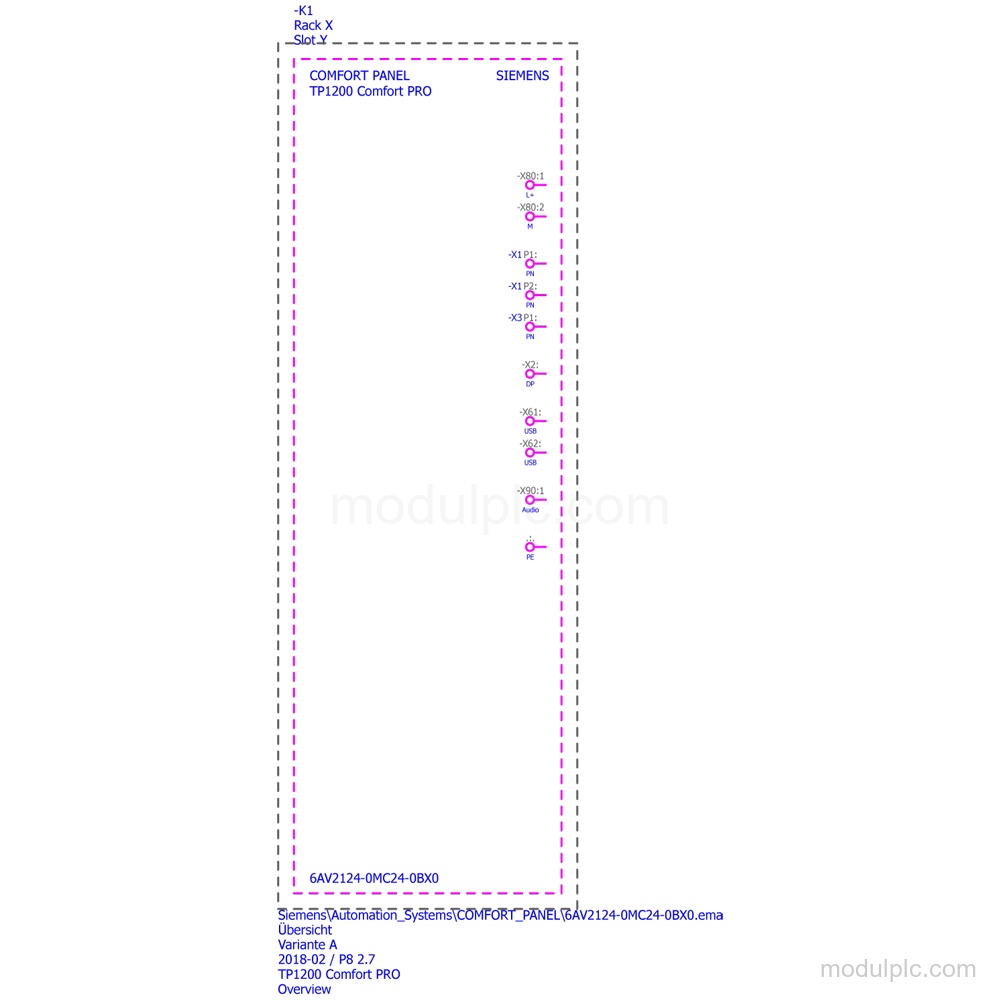

| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| RS 422 / 485 interface | 1; combined |
| PROFINET | Yes |
| PROFIBUS | Yes |
| USB interfaces | 2; USB 2.0 |

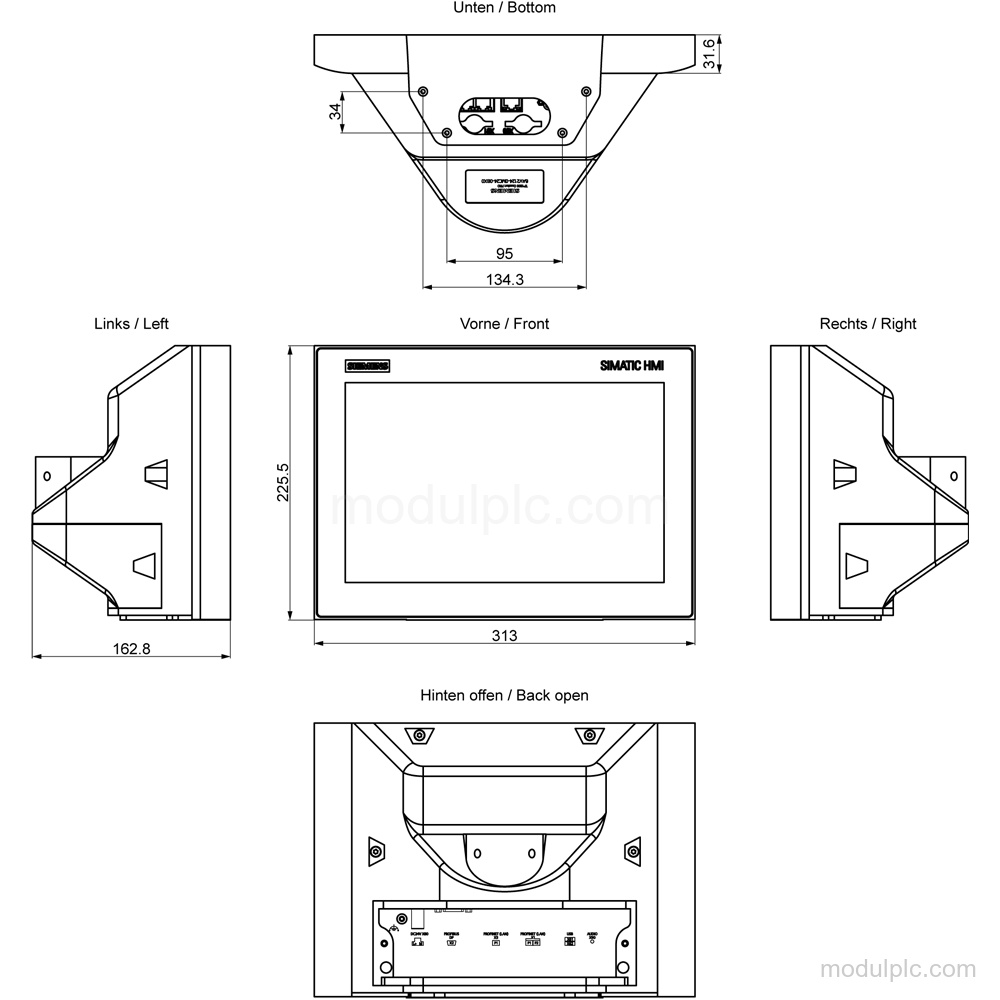

| Mounting | Support arm, vertical |
| Supply voltage | 24 V DC rated value |
| Configuration memory | 24 MB |
| Protection | IP65 at the front and rear |
Key Features
- Touch display: 12.1 in widescreen TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
- Communication interfaces: 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, 1 combined RS 422 / 485 interface, and 2 USB 2.0 interfaces.
- Supported protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
- Support-arm mounting: Support-arm mounting in vertical position; portrait format is not possible. The maximum permissible angle of inclination without external ventilation is 35°.
- DC supply: 24 V rated DC supply with a permissible range from 19.2 V to 28.8 V; rated current consumption is 1.5 A and typical active power input is 36 W.
- Protection and diagnostics: IP65 protection at the front and rear, Enclosure Type 4 and Enclosure Type 4x at the front, and diagnostic information readable by an S7 controller.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-0MC24-0BX0 have?
It has a 12.1 in widescreen TFT touch display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switch ports plus an independent port, and supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How is the TP1200 Comfort PRO mounted?
It uses support-arm mounting in a vertical position. Portrait format is not possible, and the maximum permissible angle of inclination without external ventilation is 35°.
