Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | TP1200 Comfort PRO |
| Display | 12.1 in TFT, 16 777 216 colors |
| Touch screen | Projective-capacitive |
| Resolution | 1 280 pixel × 800 pixel |
| Industrial Ethernet interfaces | 2; 2 switch ports + independent port |
| Supply voltage | 24 V DC; 19.2 V DC to 28.8 V DC |
| Rated current consumption | 1.5 A |
| Mounting | Support arm, vertical |
| Protection degree | IP65 front and rear |
| Configuration memory | 24 MB |
| Product lifecycle | Announcement of product phase-out |
Key Features
- 12.1 in widescreen touch display: TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution and 16 777 216 colors. Touch operation uses a projective-capacitive screen.

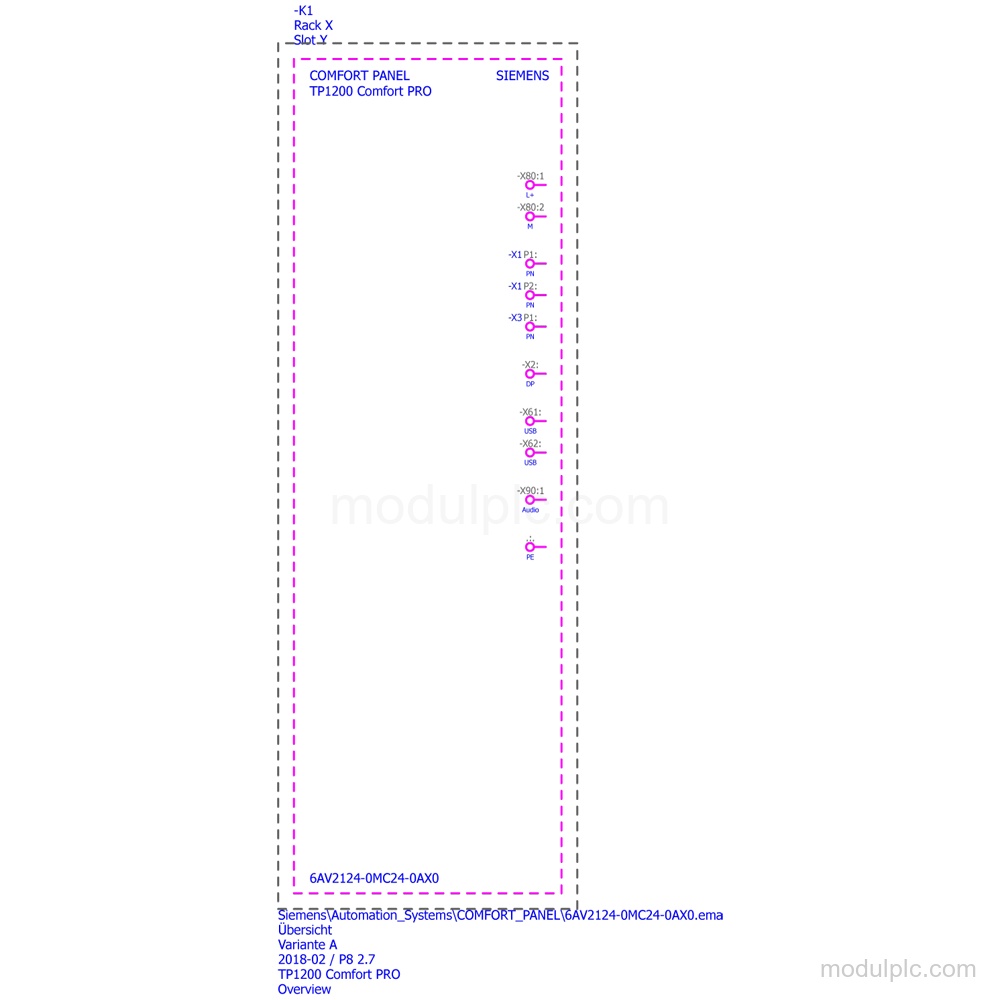

- Communication interfaces: Has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, and 1 combined RS 422 / 485 interface. It also has 2 USB 2.0 interfaces and 2 SD card slots.
- Supported protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC. Rated current consumption is 1.5 A and typical active power input is 36 W.

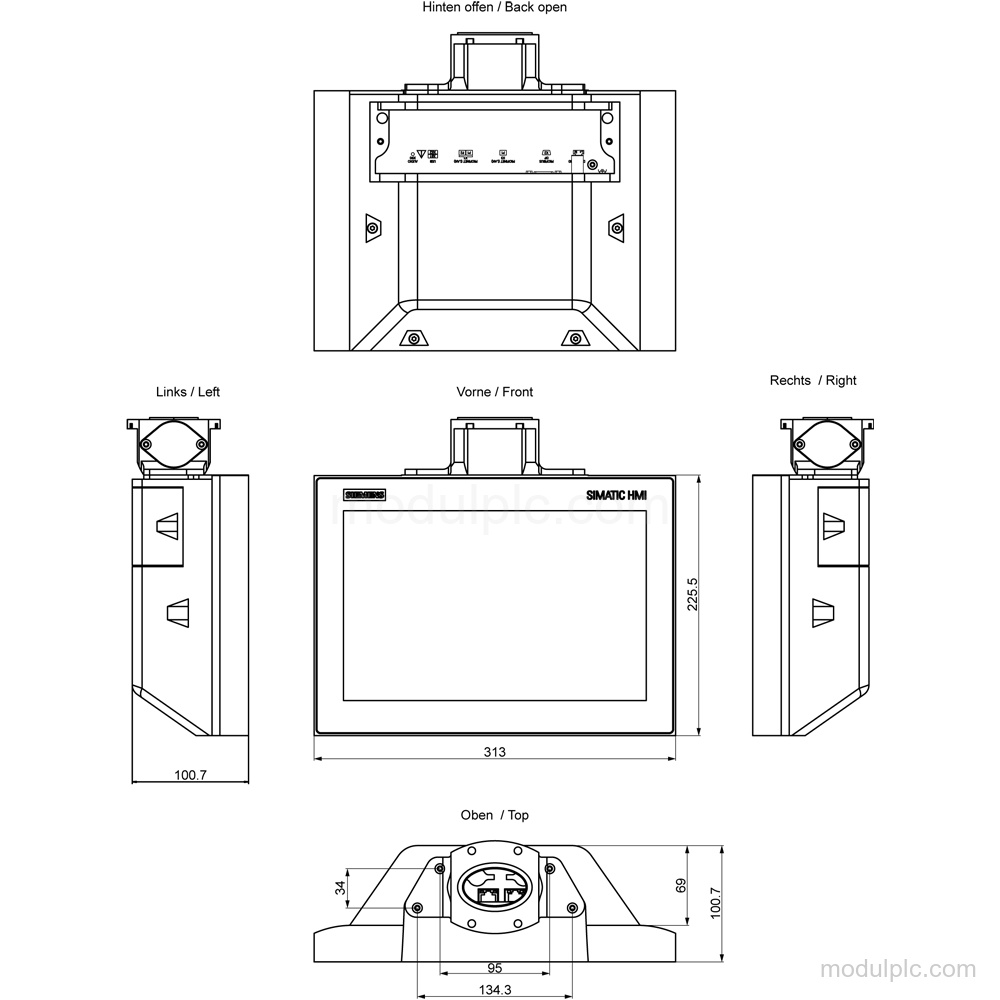

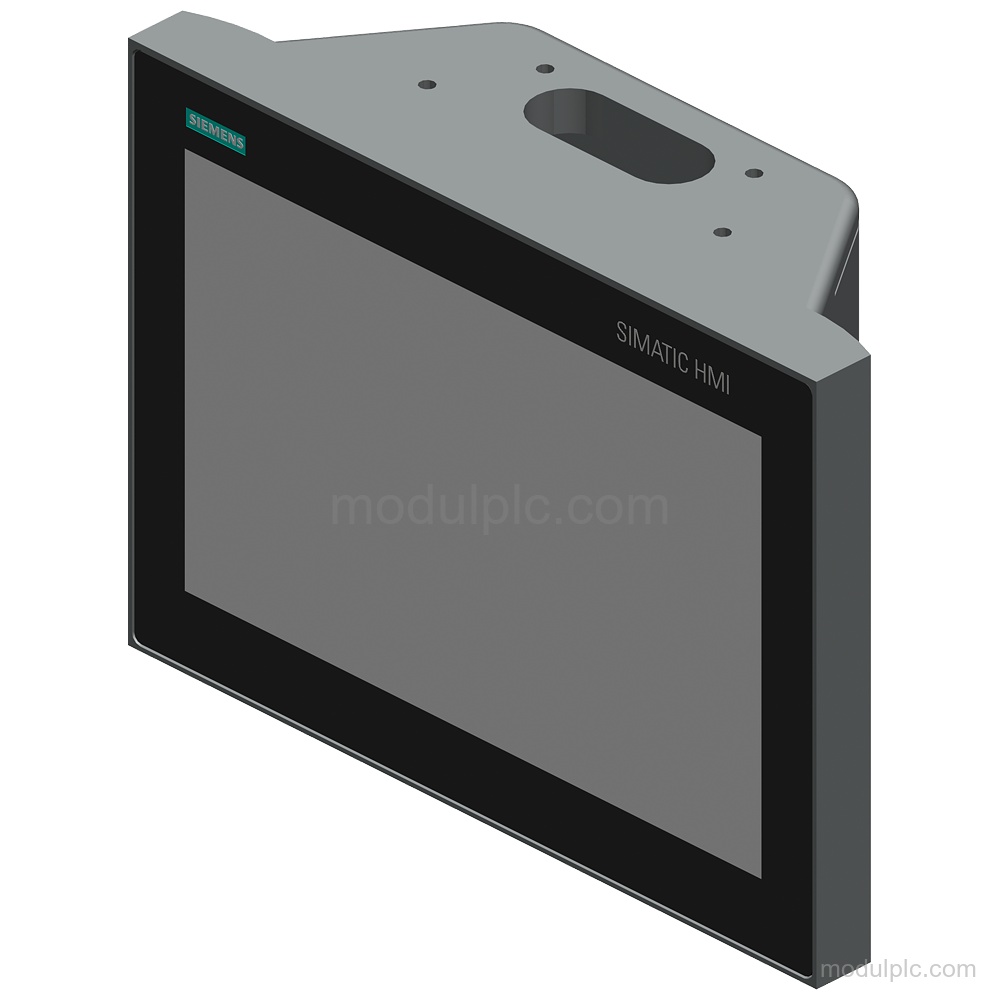

- Support-arm installation: Mounts on a support arm in vertical position. Portrait-format mounting is not possible, and the maximum permissible inclination without external ventilation is 35°.
- Front and rear protection: Protection degree is IP65 at the front and rear. The front has NEMA Enclosure Type 4 and Enclosure Type 4x.
Frequently Asked Questions
1. What display and touch technology does the 6AV2124-0MC24-0AX0 have?
It has a 12.1 in TFT widescreen display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors and projective-capacitive touch operation.
2. Which network and serial interfaces are available?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, and 1 combined RS 422 / 485 interface.
3. Which protocols does this HMI panel support?
It supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
4. How is the panel mounted and powered?
It mounts on a support arm in vertical position and uses 24 V DC supply, with a permissible range from 19.2 V DC to 28.8 V DC.
