Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | TP900 Comfort |
| Display | 9 in widescreen TFT, 16 777 216 colors |
| Touch operation | Analog-resistive |
| Resolution | 800 x 480 pixel |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Configuration memory | 12 MB |
| Mounting | Vertical; portrait and landscape possible |
| Front protection | IP65 |
Key Features
- Touch display: 9 in widescreen TFT display with 16 777 216 colors, 800 x 480 pixel resolution and analog-resistive touch operation.

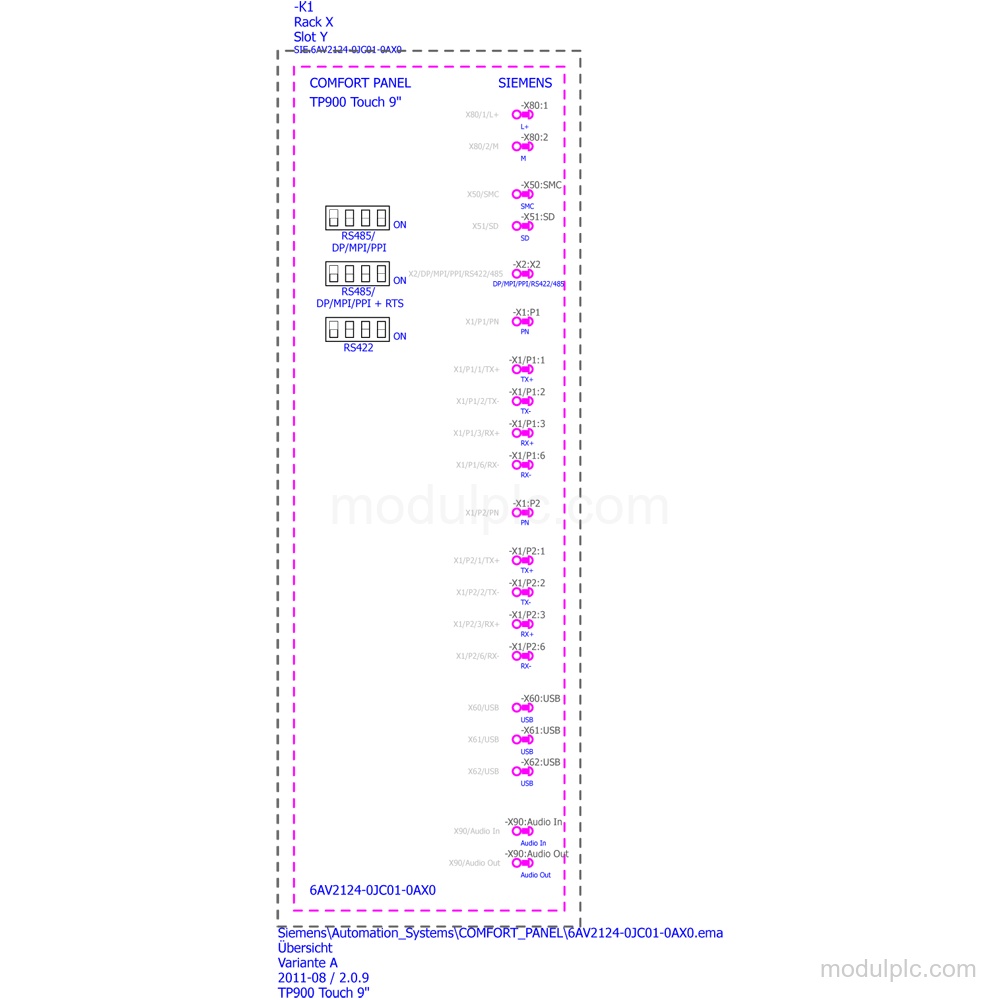

- Communication interfaces: 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
- Supported protocols: Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X and JavaScript.
- Supply and power: 24 V DC rated supply; permissible range 19.2 V to 28.8 V. Current consumption is 0.75 A and typical active power input is 18 W.

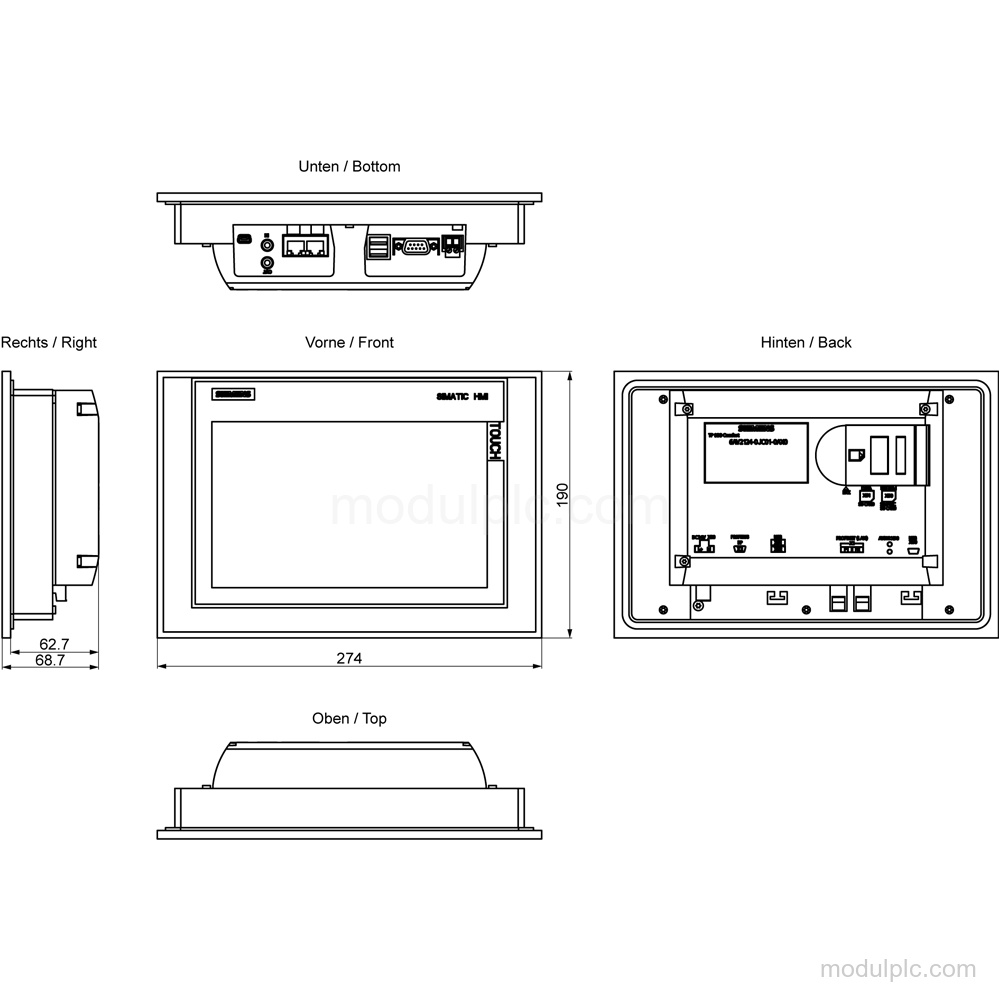

- Mounting: Vertical mounting position; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation is 35°.
- Front protection: Front protection is IP65, with NEMA Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. What display and touch technology does 6AV2124-0JC01-0AX0 use?
It has a 9 in widescreen TFT display with 16 777 216 colors, 800 x 480 pixel resolution and analog-resistive touch operation.
2. Which communication interfaces are available?
It has 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
3. Which protocols does the panel support?
It supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X and JavaScript.
4. What supply voltage and mounting options does it have?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape formats possible; it is without wall mounting/direct mounting.
