Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | FSTN LCD, 3.6 in, 240 pixel × 80 pixel, 4 colors |
| Function keys | 10 |

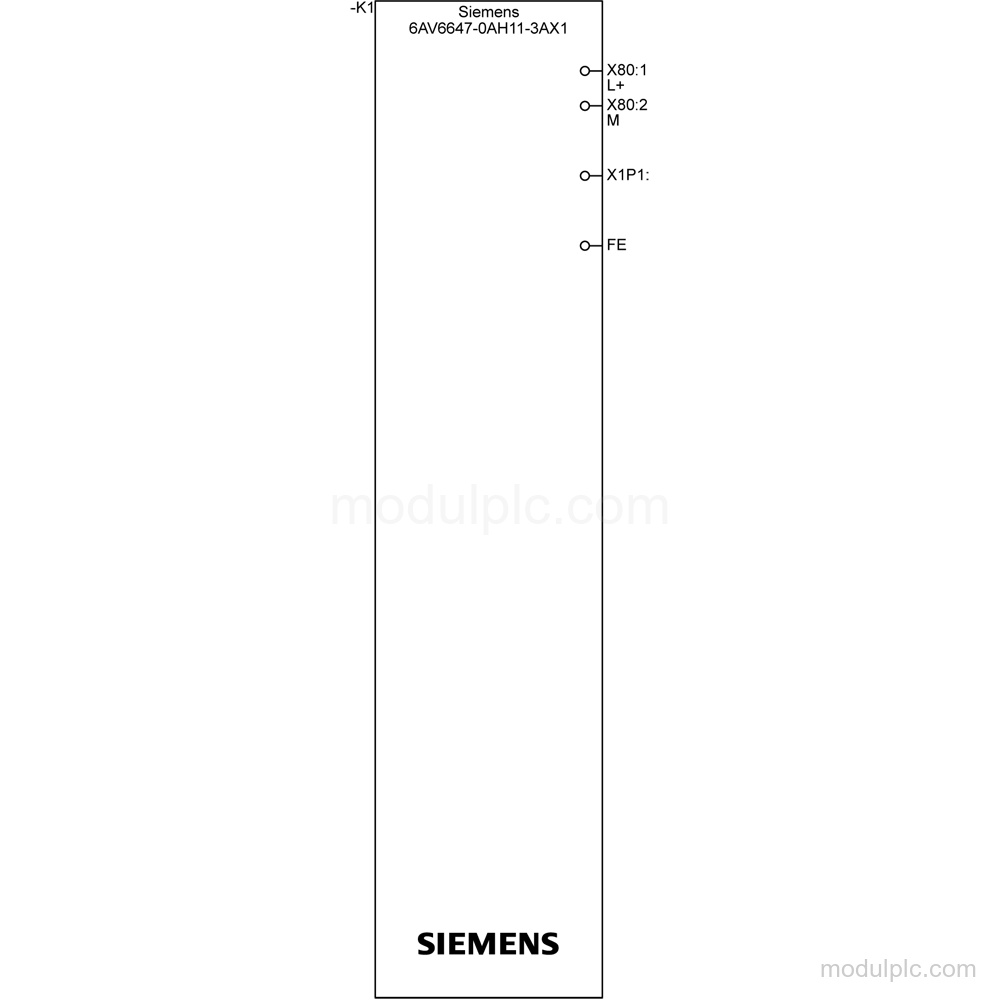

| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS TCP/IP |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V |
| Rated current consumption | 0.1 A |
| Typical active power input | 3 W |

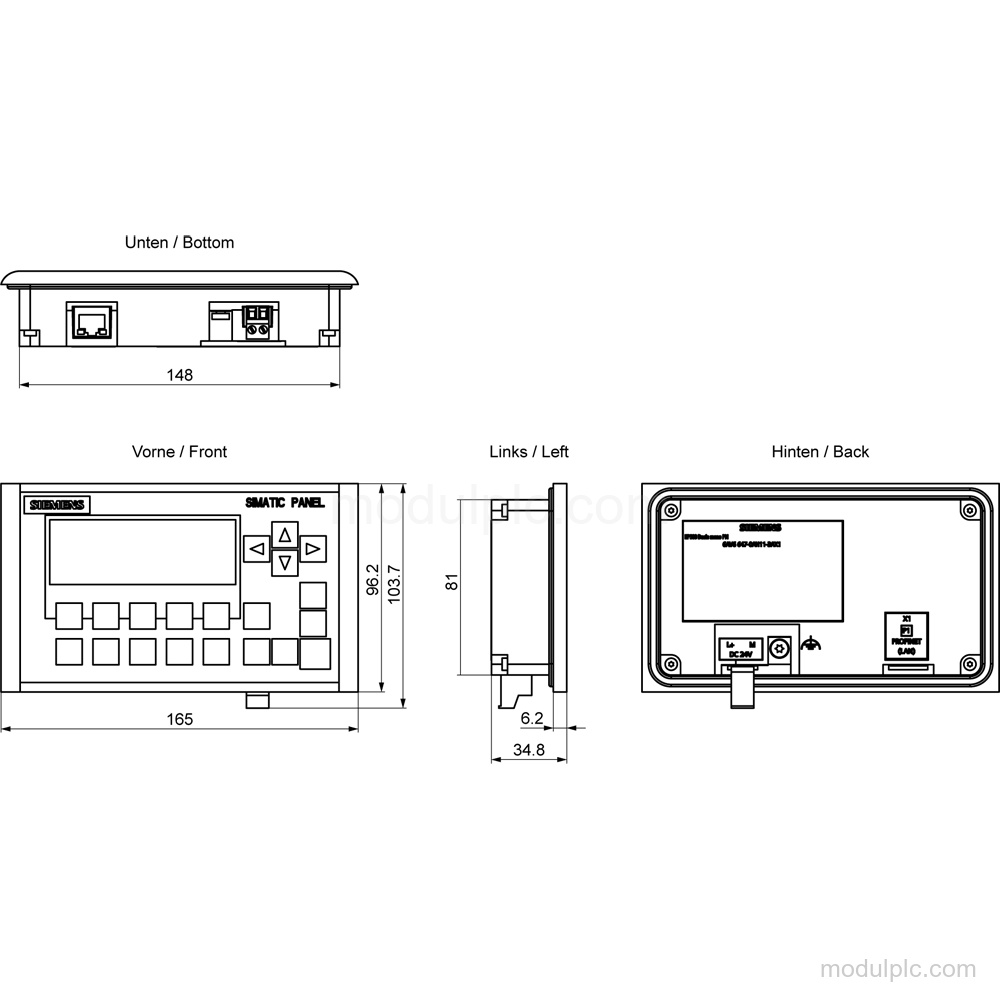

| Mounting position | Vertical; landscape mounting possible |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
- Display and operation: 3.6 in FSTN LCD display with 240 pixel × 80 pixel resolution, 4 colors and key operation.
- Function keys: 10 function keys, numeric keyboard, alphanumeric keyboard and system keys.
- PROFINET interface: 1 industrial Ethernet interface with PROFINET, TCP/IP, DHCP, SNMP, DCP and LLDP; 2 industrial Ethernet status LEDs.
- Additional protocol: EtherNet/IP and MODBUS TCP/IP are supported.
- Supply and consumption: 24 V DC rated supply, permissible range 19.2 V to 28.8 V, 0.1 A rated current consumption and 3 W typical active power input.
- Mounting and protection: Vertical mounting position, landscape mounting possible, maximum permissible angle of inclination 35° without external ventilation, IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. How many function keys does the 6AV6647-0AH11-3AX1 have?
It has 10 function keys, plus numeric, alphanumeric and system keys.
2. What display does the KP300 Basic mono PN use?
It has a 3.6 in FSTN LCD display with 240 pixel × 80 pixel resolution and 4 colors.
3. Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS TCP/IP.
4. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
5. What mounting and protection details should be verified before inquiry?
Mounting is vertical, landscape mounting is possible, the maximum permissible inclination is 35° without external ventilation, and protection is IP65 at the front and IP20 at the rear.
