Product Overview
Technical Summary
| Parameter | Value |
|---|---|

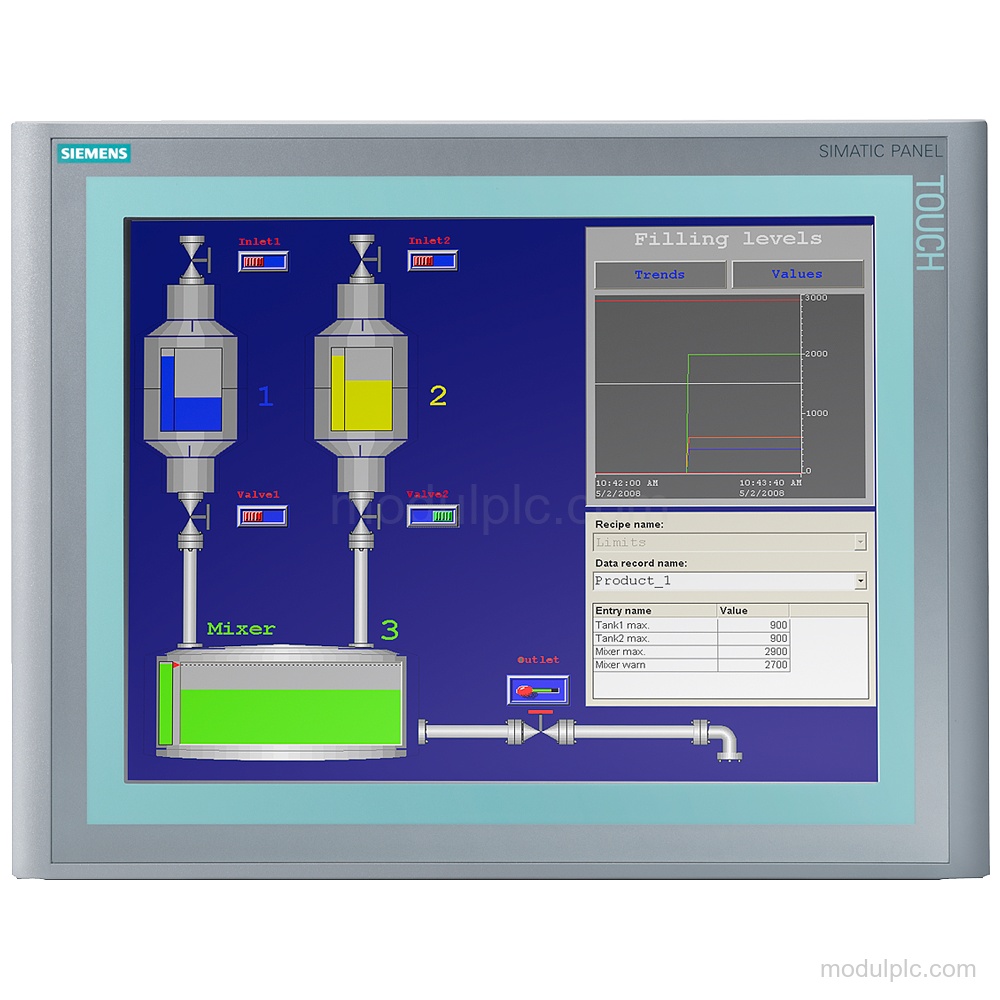

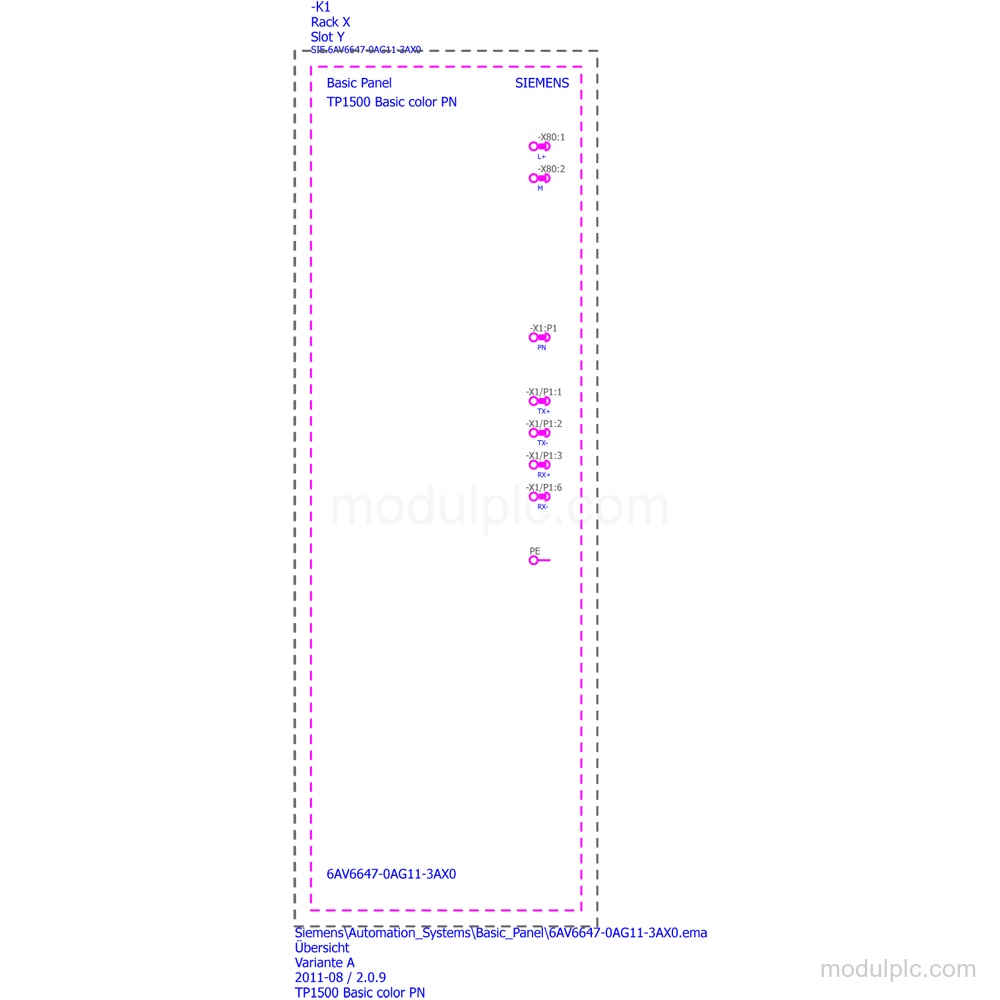

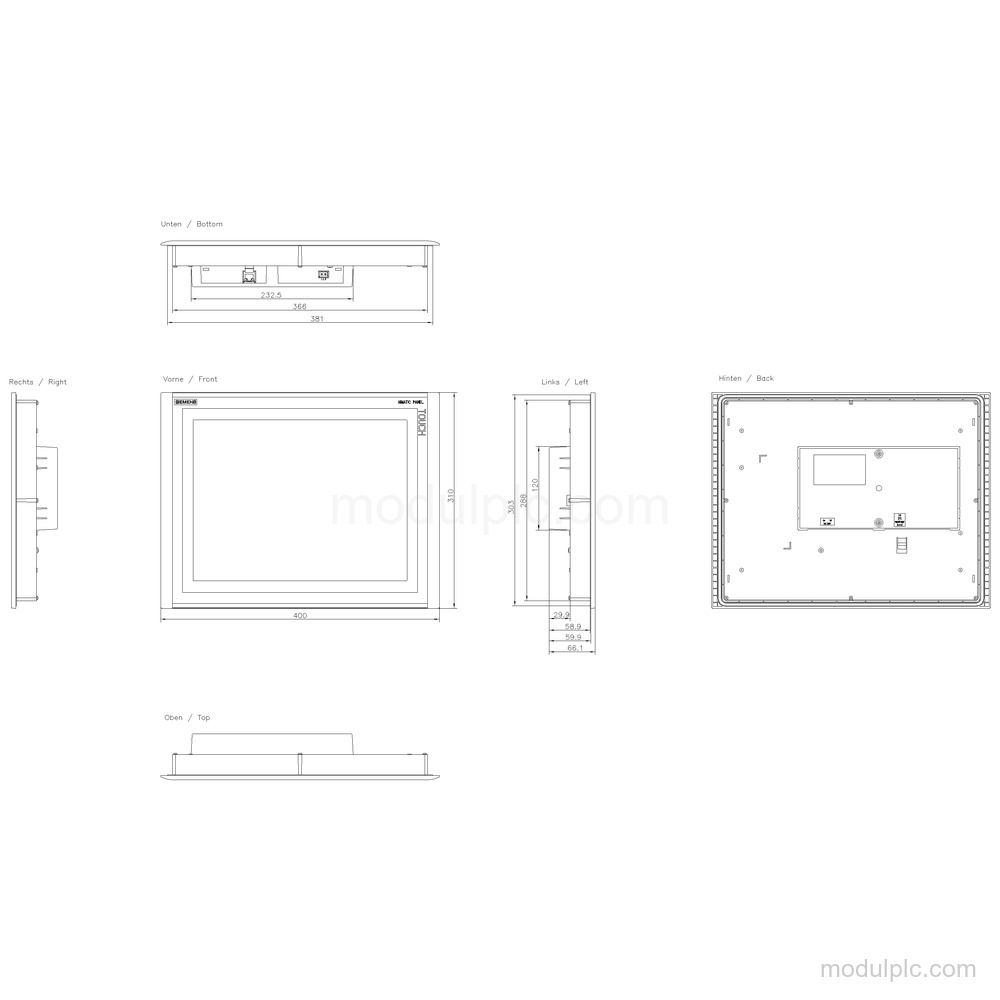

| Product type | TP1500 Basic color PN |
| Display | 15 in TFT, 256 colors |
| Touch operation | Analog-resistive; onscreen keyboard |
| Image resolution | 1 024 pixel horizontal × 768 pixel vertical |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; SNMP; DCP; LLDP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.8 A |
| Mounting | Vertical position; landscape format possible; maximum permissible angle of inclination without external ventilation 35° |
| Protection | IP65 front; IP20 rear |
| Configuration software | WinCC flexible 2008 SP2 Compact; WinCC Basic V10.5; STEP 7 Basic V10.5 |
Key Features
- 15 in TFT touch display: The display has a 15 in screen diagonal, 256 colors, and analog-resistive touch operation with an onscreen keyboard.
- Display resolution: Horizontal image resolution is 1 024 pixel and vertical image resolution is 768 pixel.
- PROFINET interface: The panel has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: Rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.8 A.
- Landscape mounting: Mounting position is vertical, and mounting in landscape format is possible. The maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: Protection is IP65 at the front and IP20 at the rear. The front has Enclosure Type 4 and Enclosure Type 4x.
Frequently Asked Questions
1. What display and touch operation does the 6AV6647-0AG11-3AX0 have?
It has a 15 in TFT display with 256 colors, 1 024 pixel horizontal resolution, 768 pixel vertical resolution, and analog-resistive touch operation with an onscreen keyboard.
2. Which communication interfaces and protocols are supported?
The panel has 1 industrial Ethernet interface. It supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this HMI panel require?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Current consumption is 0.8 A.
4. How can the panel be mounted?
The mounting position is vertical, and landscape-format mounting is possible. The maximum permissible angle of inclination without external ventilation is 35°.
5. What should be verified before requesting a quotation?
Verify the exact 6AV6647-0AG11-3AX0 model, required WinCC flexible or WinCC Basic configuration software, STEP 7 Basic version, interface protocol requirements, mounting format, and supply conditions.
