Product Overview
Technical Summary

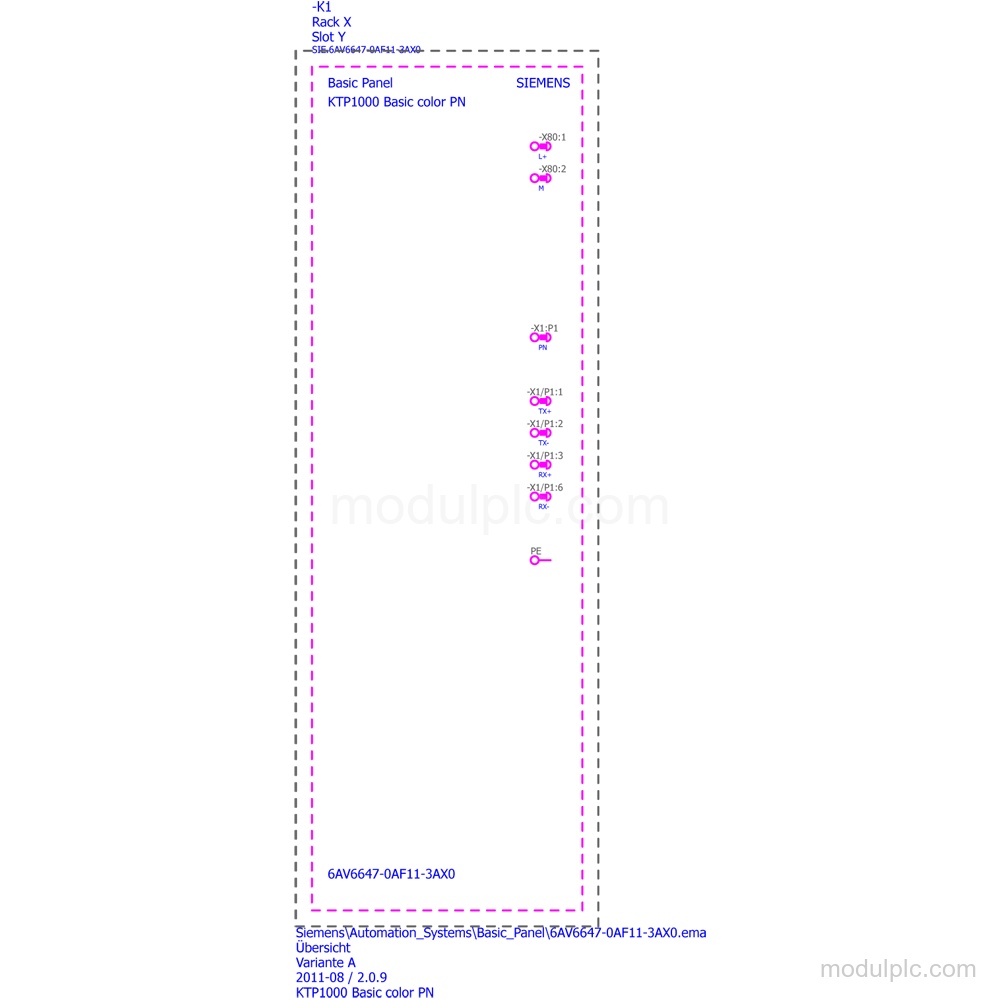

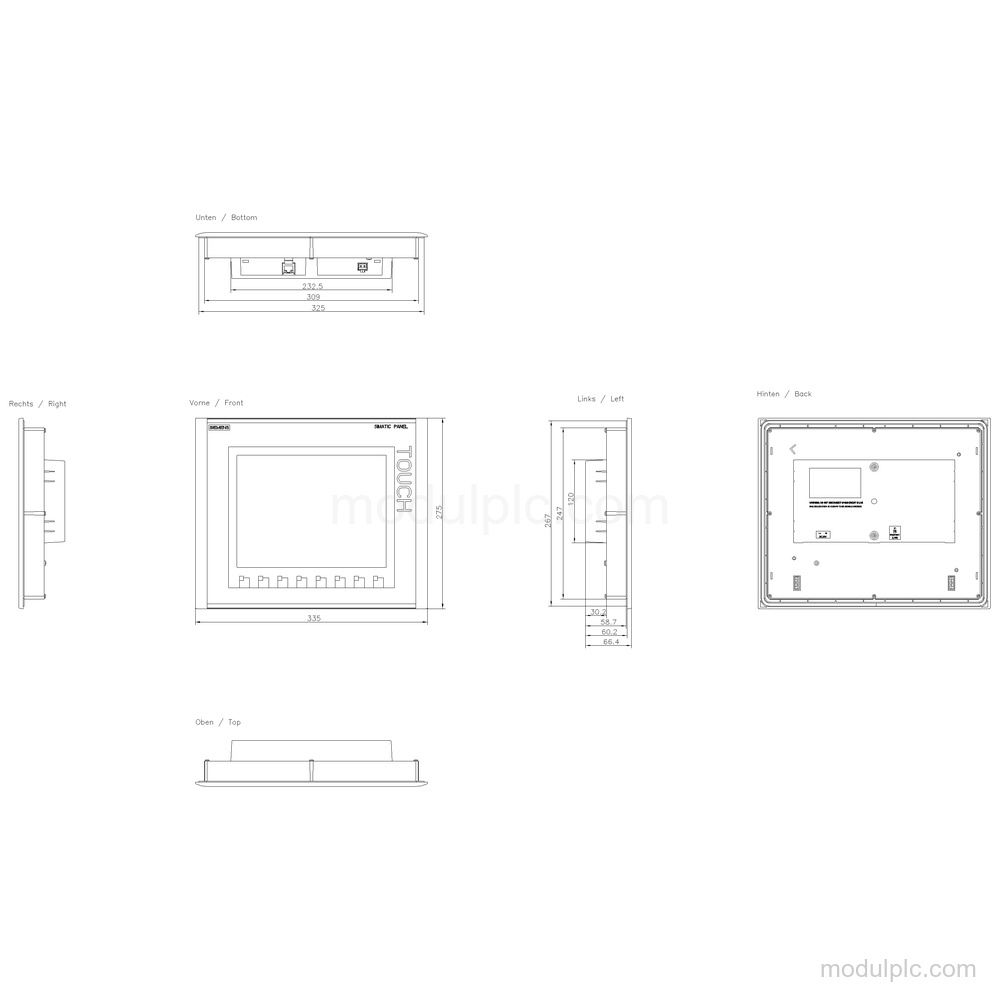

| Parameter | Value |
|---|---|
| Product type | KTP1000 Basic color PN |
| Operation | Key/touch operation |
| Display | 256-color TFT |
| Image resolution | 640 x 480 pixel |
| Function keys | 8 |
| Industrial Ethernet interfaces | 1 |
| PROFINET | Yes |
| Supply voltage | 24 V DC |
| Supply range | 19.2 V to 28.8 V |
| Mounting | Vertical; landscape format possible |
| Front/rear protection | IP65 / IP20 |
Key Features
- Key/touch operation: Has 8 function keys and an analog-resistive touchscreen with numeric and alphanumeric onscreen keyboards.
- TFT display: Uses a 256-color TFT display with 640 pixel horizontal and 480 pixel vertical image resolution.
- PROFINET interface: Has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Landscape mounting: Mounting position is vertical; landscape-format mounting is possible, with a maximum permissible inclination angle of 35° without external ventilation.
- Front protection: Protection is IP65 at the front and IP20 at the rear; the front has Enclosure Type 4 and Enclosure Type 4x.
Frequently Asked Questions
1. What display and operation does Siemens 6AV6647-0AF11-3AX0 have?
It has a 256-color TFT display with 640 x 480 pixel resolution, 8 function keys, and an analog-resistive touchscreen.
2. Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does the KTP1000 Basic Color PN use?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How can this HMI panel be mounted?
The mounting position is vertical, landscape-format mounting is possible, and the maximum permissible inclination angle is 35° without external ventilation.
5. What protection does the panel provide?
The front has IP65 protection and Enclosure Type 4 and Enclosure Type 4x; the rear has IP20 protection.
