Product Overview
Technical Summary
| Parameter | Value |
|---|---|

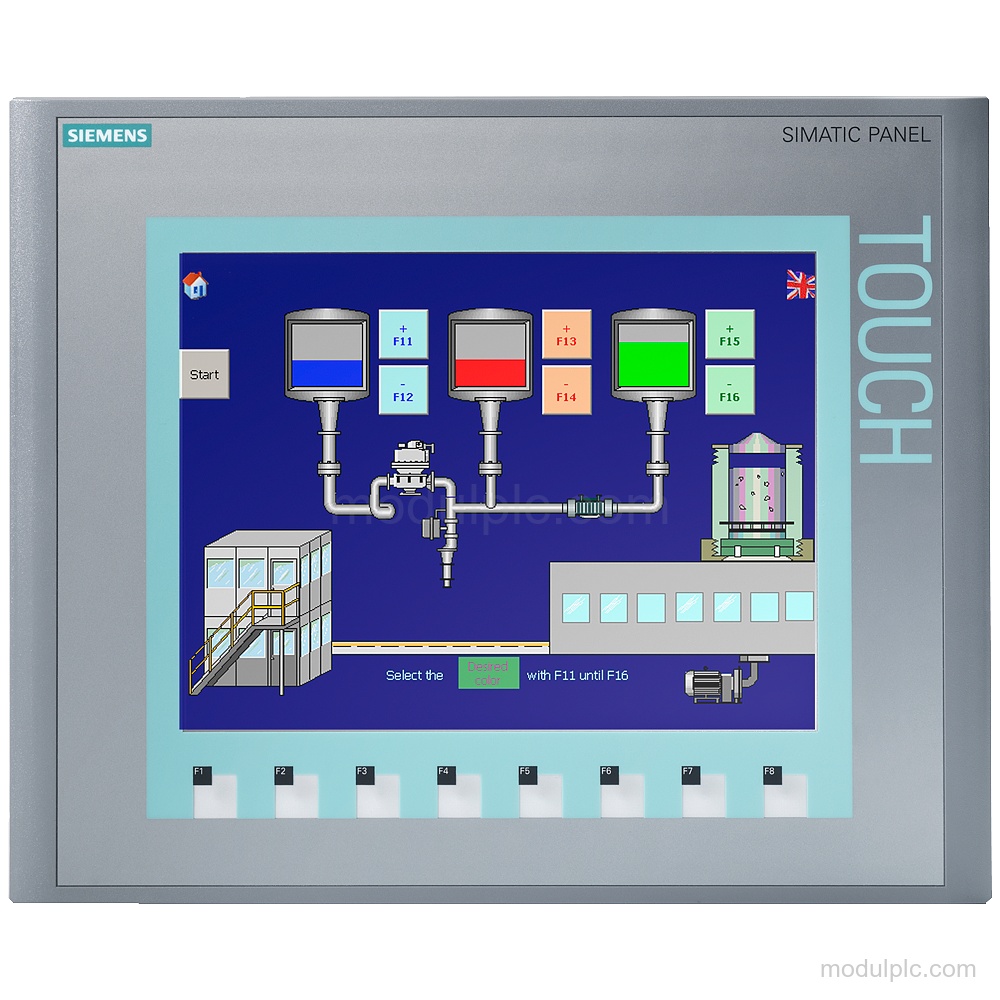

| Product type | KTP1000 Basic color DP |
| Display | TFT, 256 colors |
| Image resolution | 640 pixel × 480 pixel |
| Operation | Key/touch operation |
| Function keys | 8 |
| Interfaces | 1 RS 485; 1 RS 422 |
| Protocols | MPI; PROFIBUS; MODBUS RTU |
| Supply | 24 V DC; 19.2 V to 28.8 V DC |
| User data memory | 2 Mbyte |
| Mounting | Vertical; landscape format possible |
| Protection | IP65 front; IP20 rear |

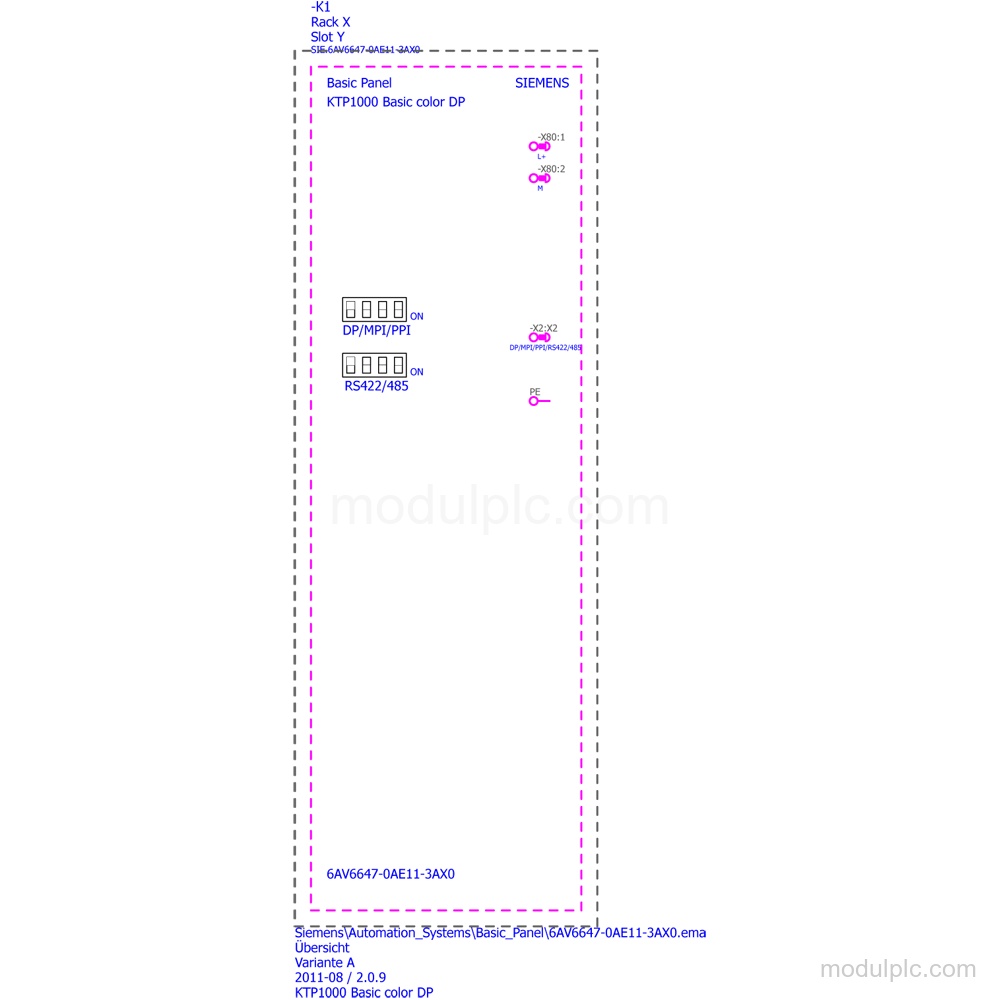

Key Features
- Key/touch operation: Key/touch operation with 8 function keys, numeric and alphanumeric onscreen keyboards, and analog-resistive touch screen.
- TFT display: TFT display with 256 colors and 640 pixel × 480 pixel image resolution.
- MPI and PROFIBUS interfaces: 1 RS 485 interface, 1 RS 422 interface, MPI support, and PROFIBUS support.
- 24 V DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.

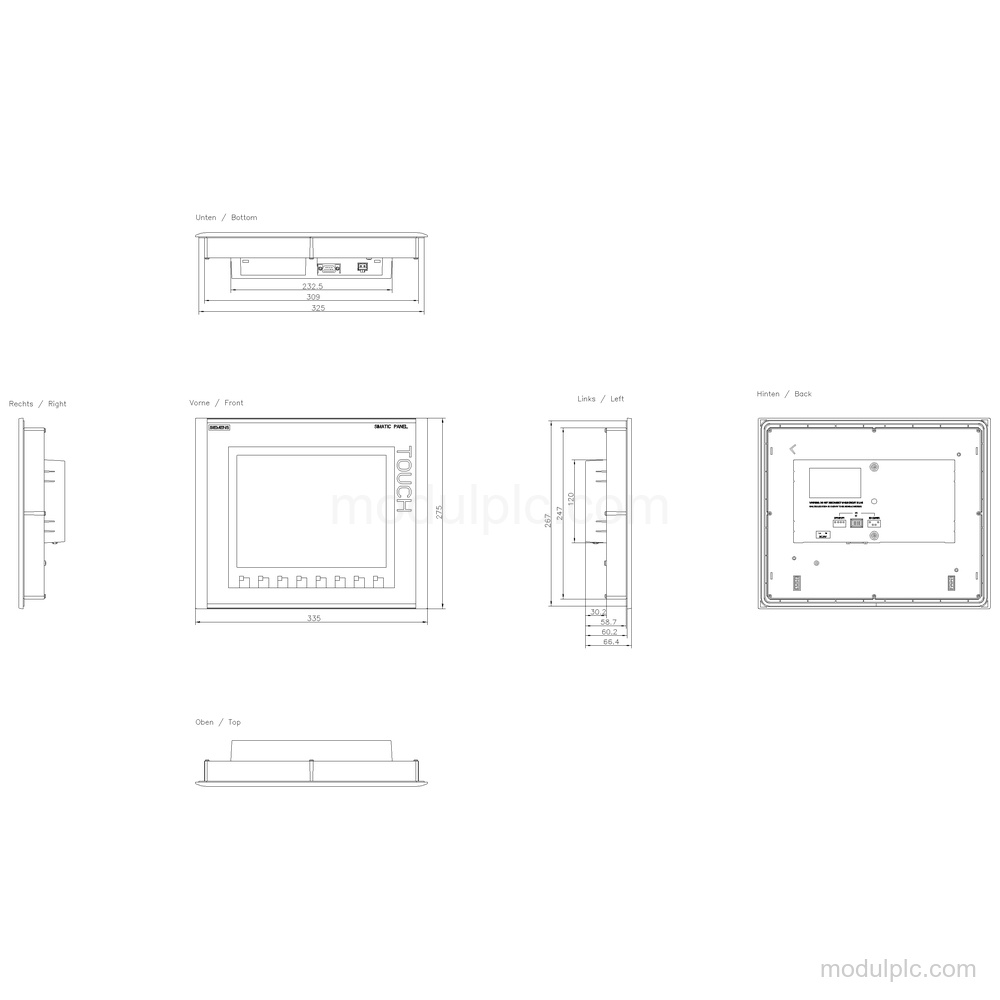

- Landscape mounting: Vertical mounting position with landscape mounting possible; maximum permissible angle of inclination without external ventilation: 35°.
- Front and rear protection: IP65 at the front and IP20 at the rear; Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. What operation does the Siemens 6AV6647-0AE11-3AX0 support?
It supports key/touch operation with 8 function keys, numeric and alphanumeric onscreen keyboards, and an analog-resistive touch screen.
2. What display does the KTP1000 Basic Color DP have?
It has a TFT display with 256 colors and 640 pixel × 480 pixel image resolution.
3. Which interfaces and protocols are supported?
It has 1 RS 485 interface and 1 RS 422 interface, with MPI, PROFIBUS, and MODBUS RTU support.
4. What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What mounting and protection details should be verified?
The mounting position is vertical, landscape mounting is possible, and protection is IP65 at the front and IP20 at the rear.
